Instrument Cluster

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

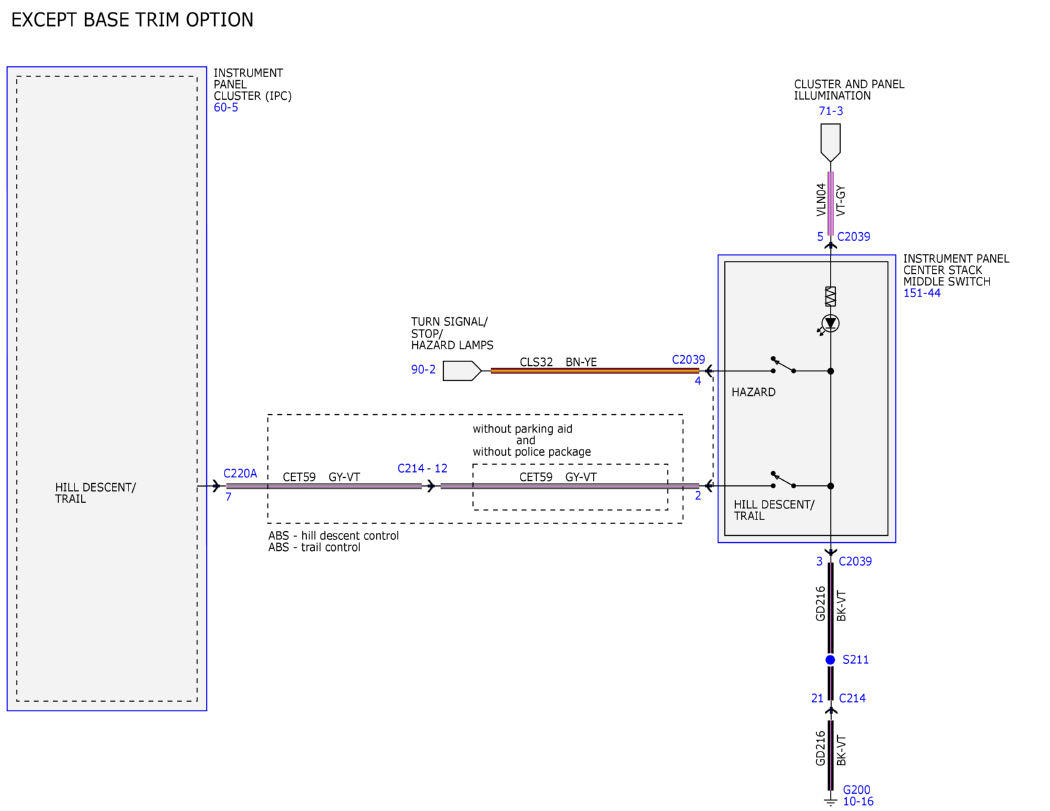

Fig 1: Instrument Cluster Wiring Diagram (1 Of 11)

Courtesy of FORD MOTOR COMPANY

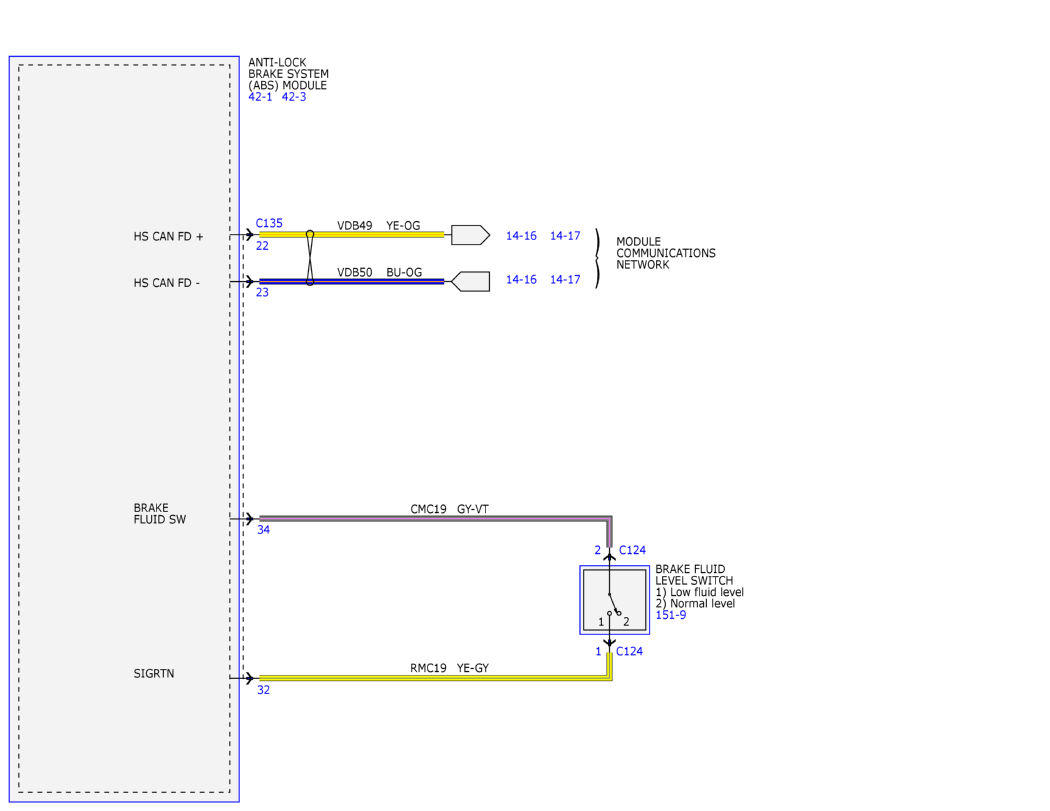

Fig 2: Instrument Cluster Wiring Diagram (2 Of 11)

Courtesy of FORD MOTOR COMPANY

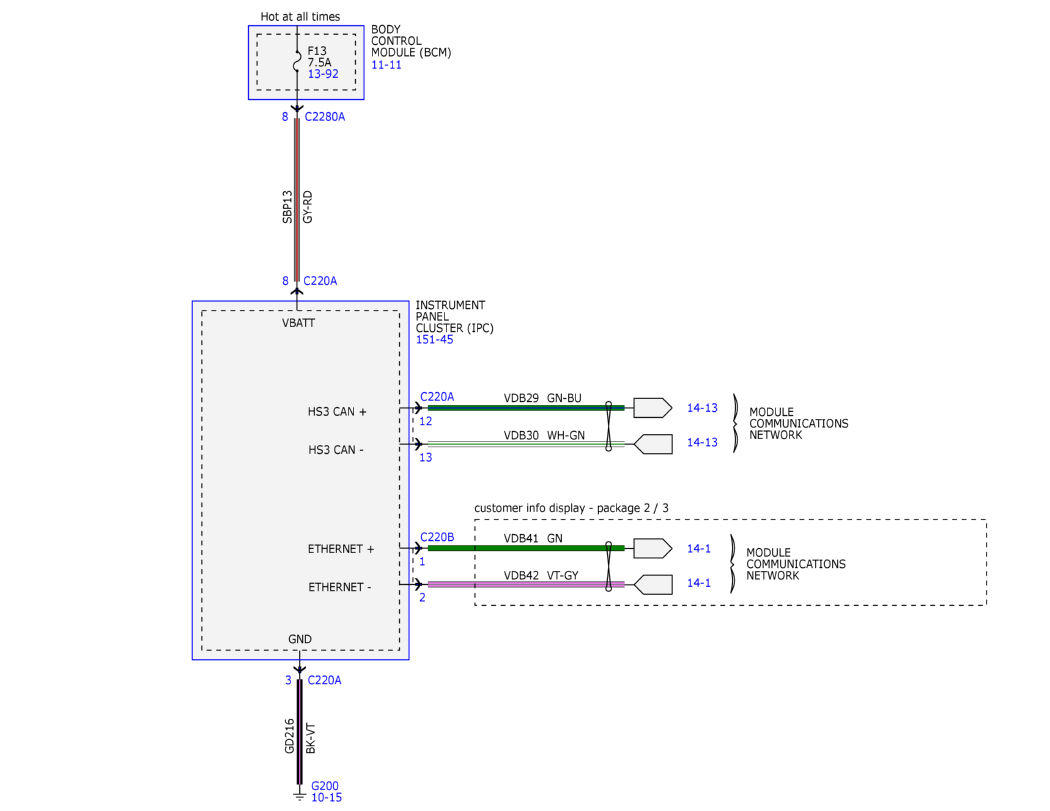

Fig 3: Instrument Cluster Wiring Diagram (3 Of 11)

Courtesy of FORD MOTOR COMPANY

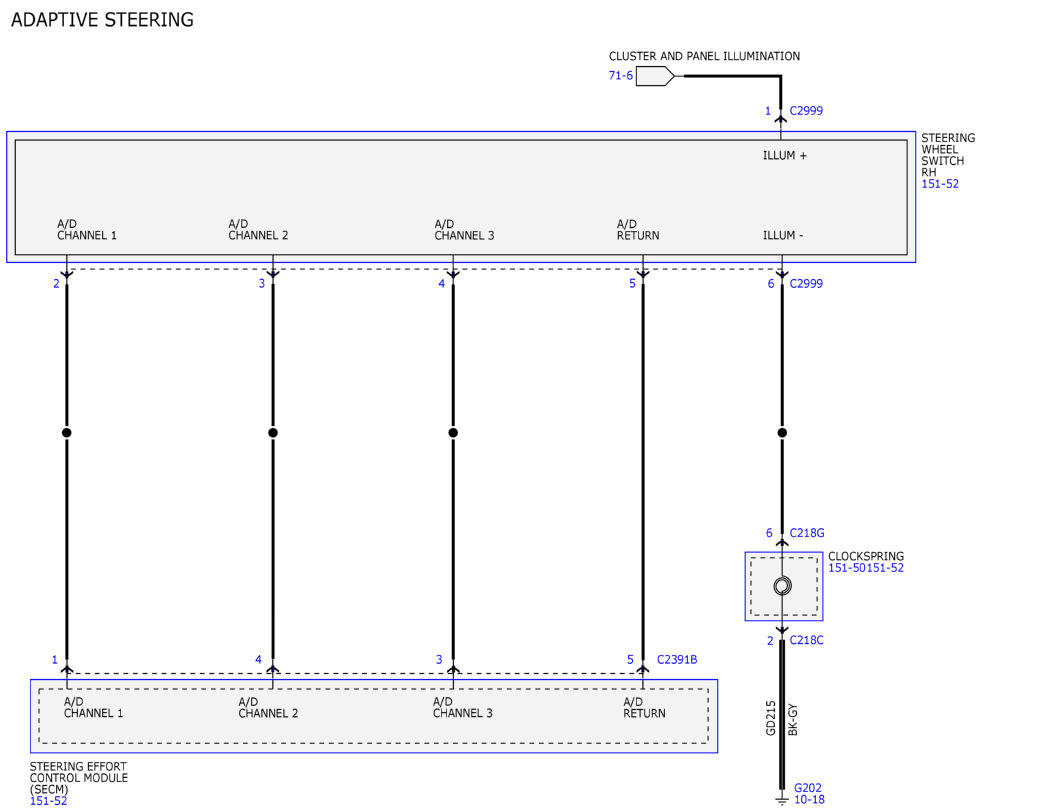

Fig 4: Instrument Cluster Wiring Diagram (4 Of 11)

Courtesy of FORD MOTOR COMPANY

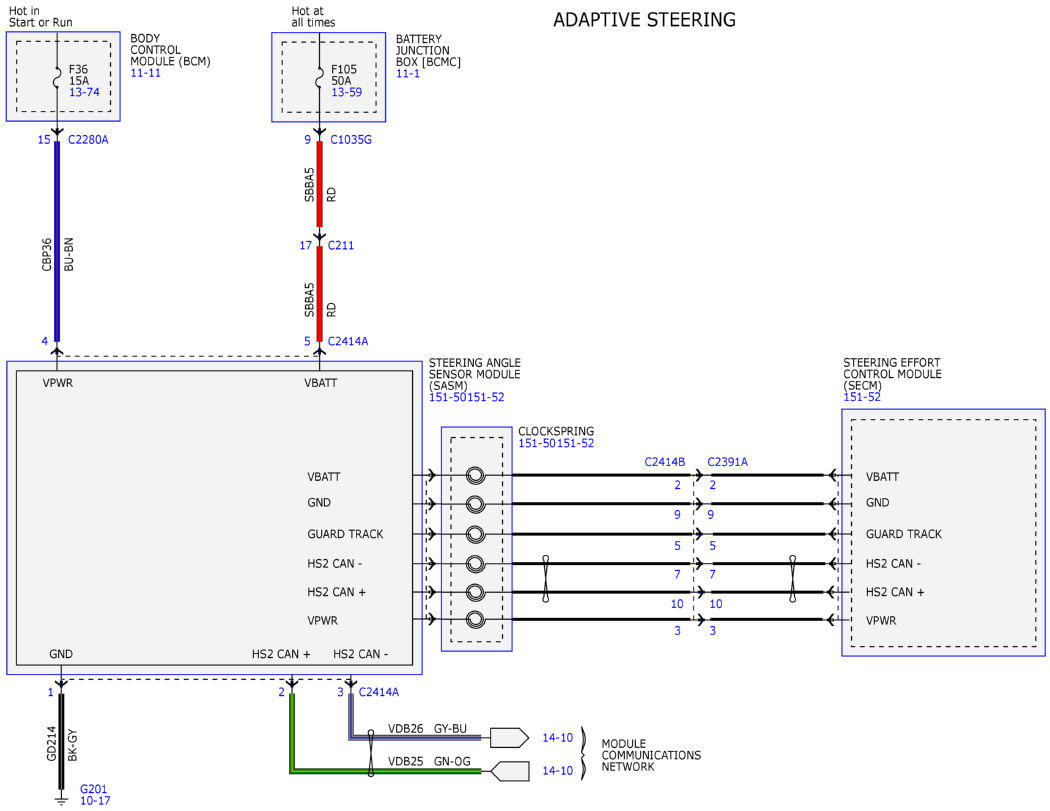

Fig 5: Instrument Cluster Wiring Diagram (5 Of 11)

Courtesy of FORD MOTOR COMPANY

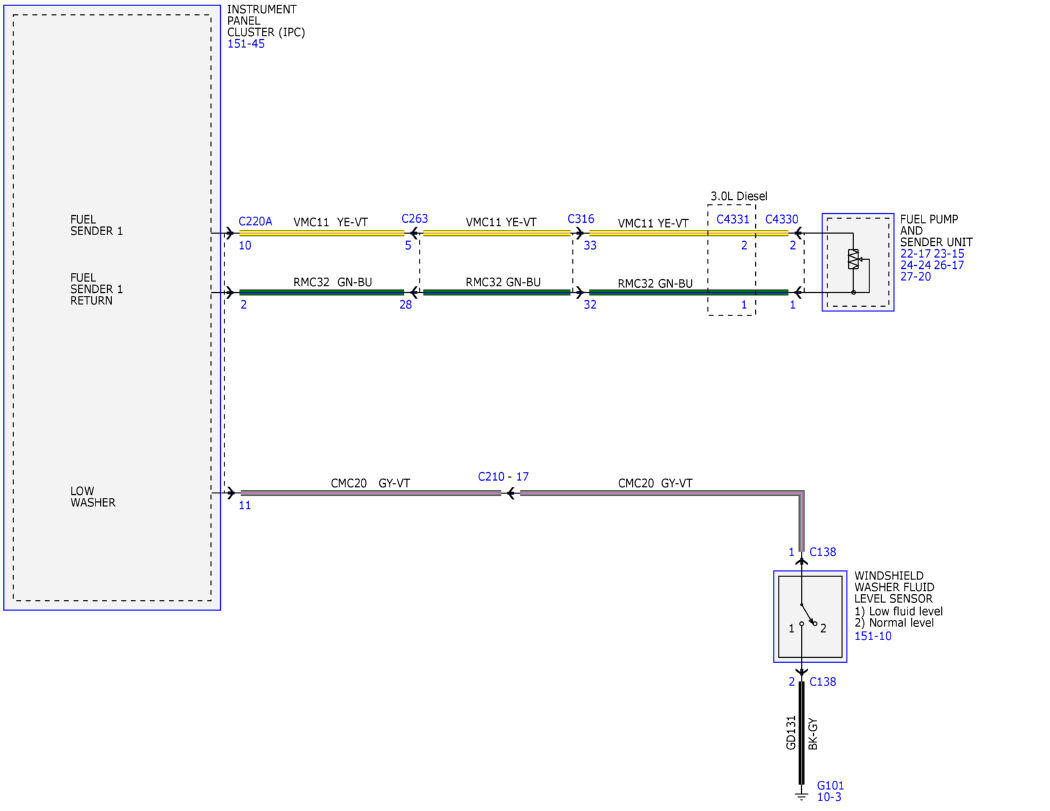

Fig 6: Instrument Cluster Wiring Diagram (6 Of 11)

Courtesy of FORD MOTOR COMPANY

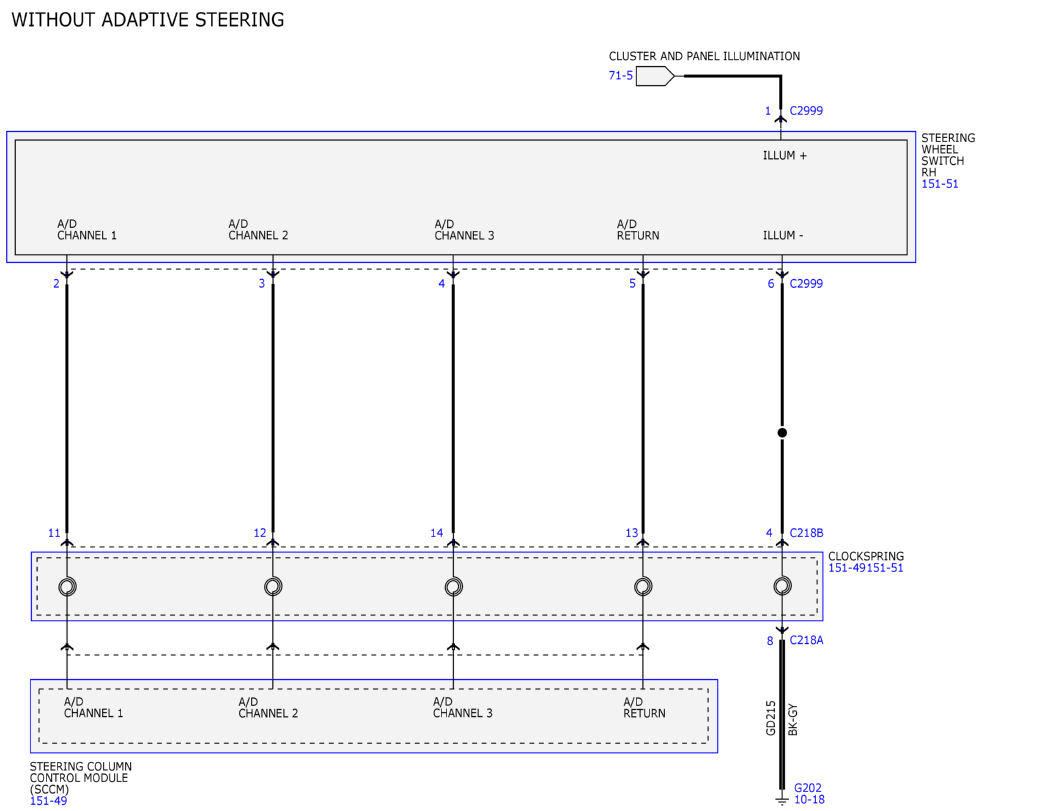

Fig 7: Instrument Cluster Wiring Diagram (7 Of 11)

Courtesy of FORD MOTOR COMPANY

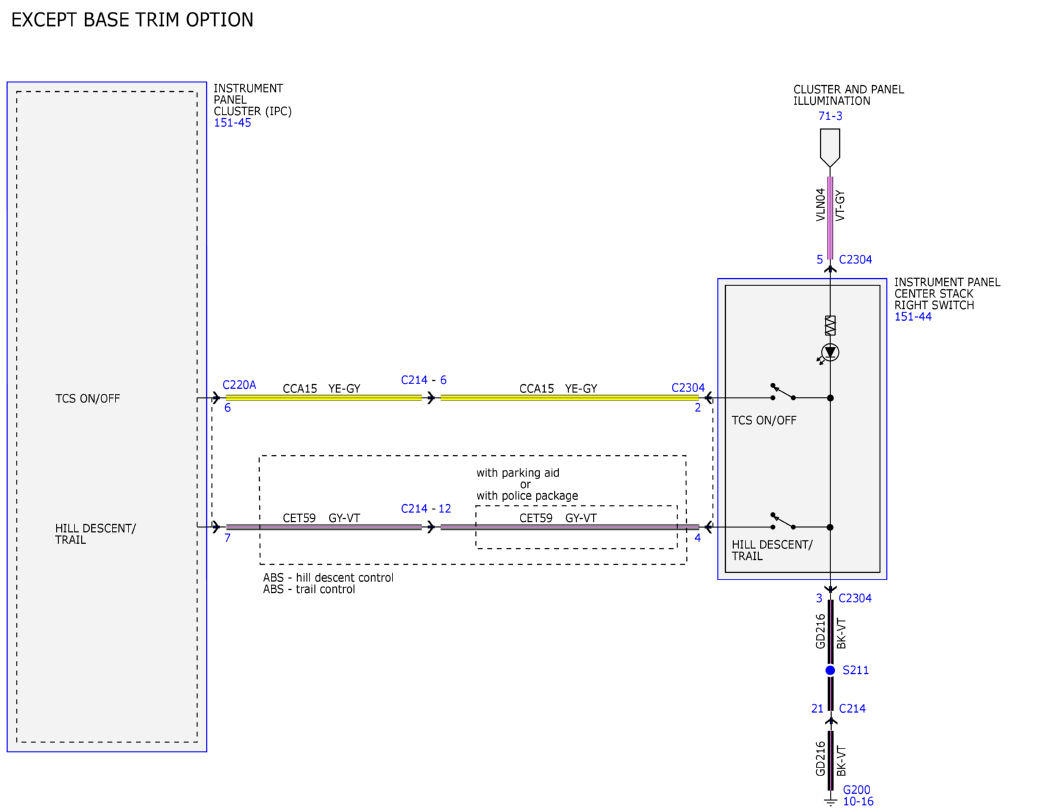

Fig 8: Instrument Cluster Wiring Diagram (8 Of 11)

Courtesy of FORD MOTOR COMPANY

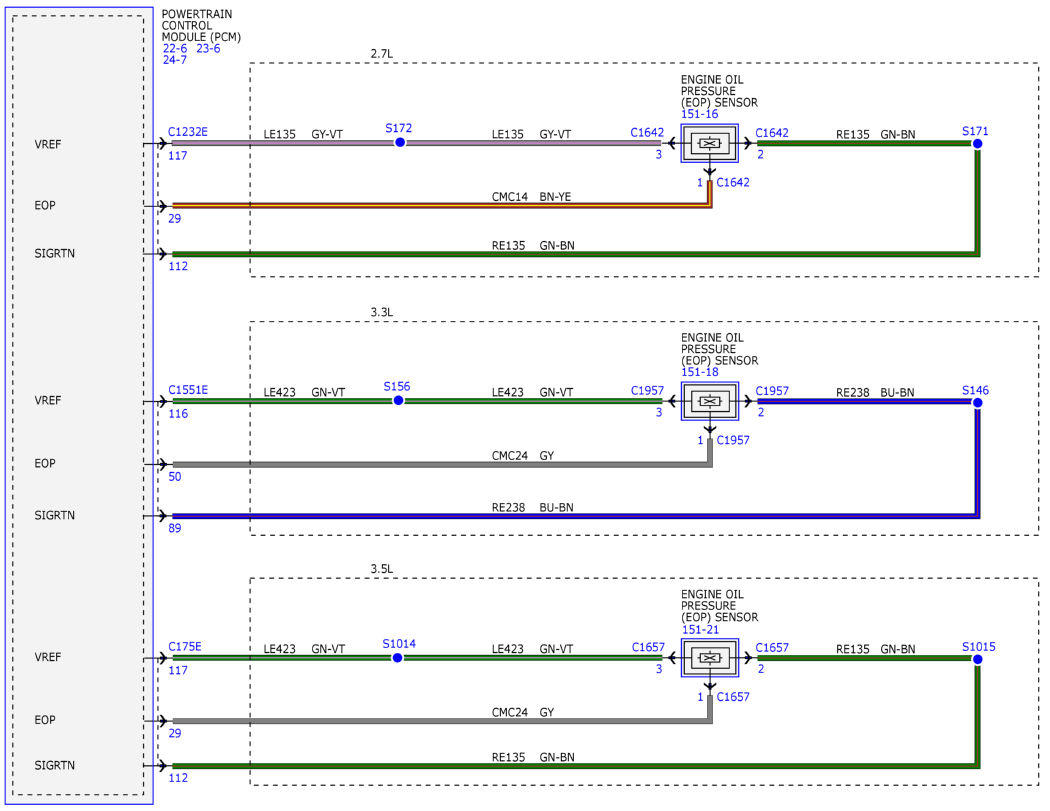

Fig 9: Instrument Cluster Wiring Diagram (9 Of 11)

Courtesy of FORD MOTOR COMPANY

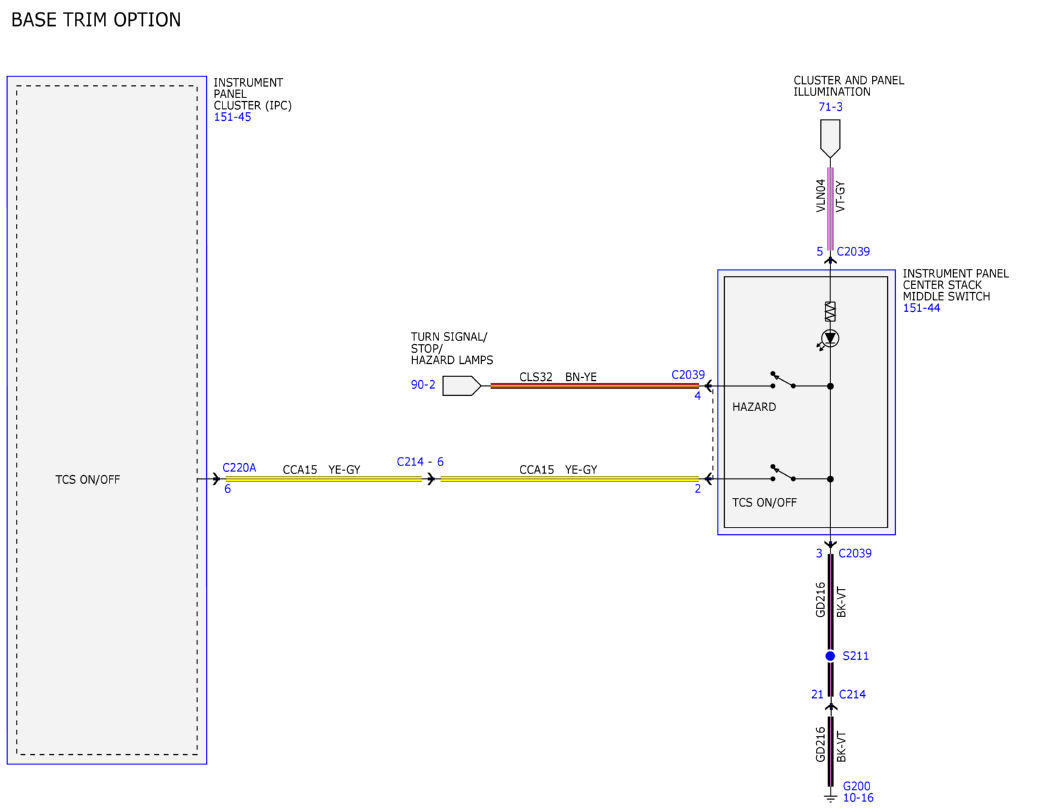

Fig 10: Instrument Cluster Wiring Diagram (10 Of 11)

Courtesy of FORD MOTOR COMPANY

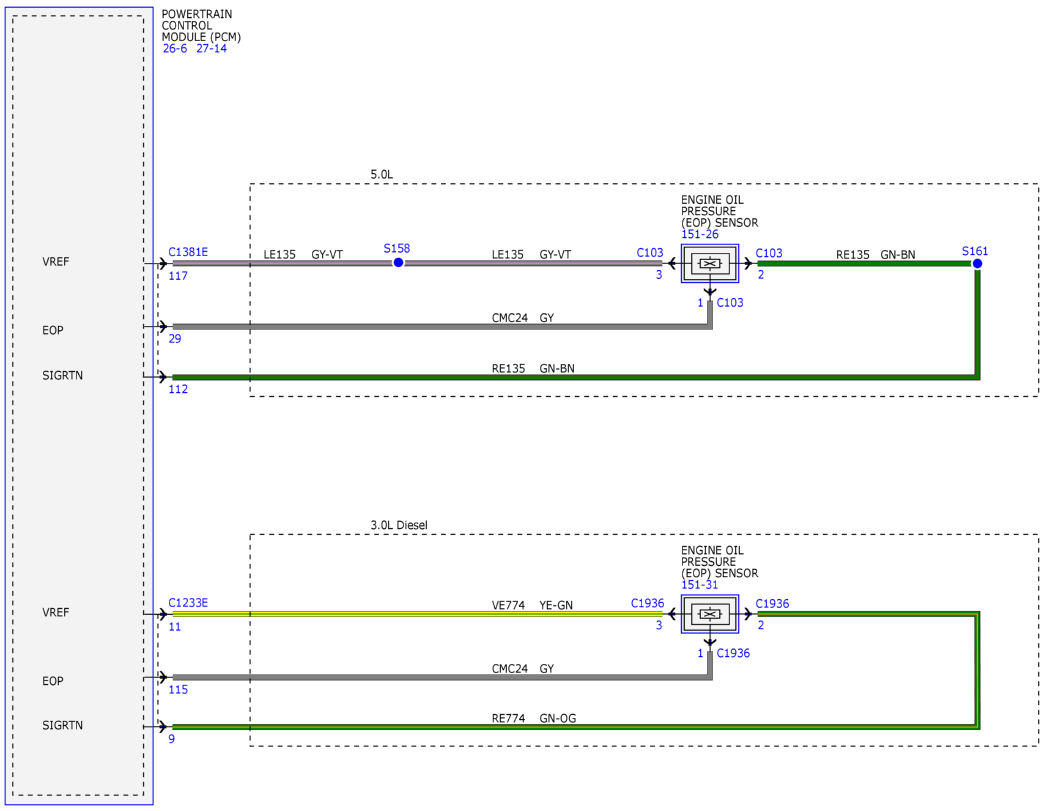

Fig 11: Instrument Cluster Wiring Diagram (11 Of 11)

Courtesy of FORD MOTOR COMPANY
