Section 553 (OEM Wiring Diagrams)
>>
Horn/Cigar Lighter
Horn/Cigar Lighter
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

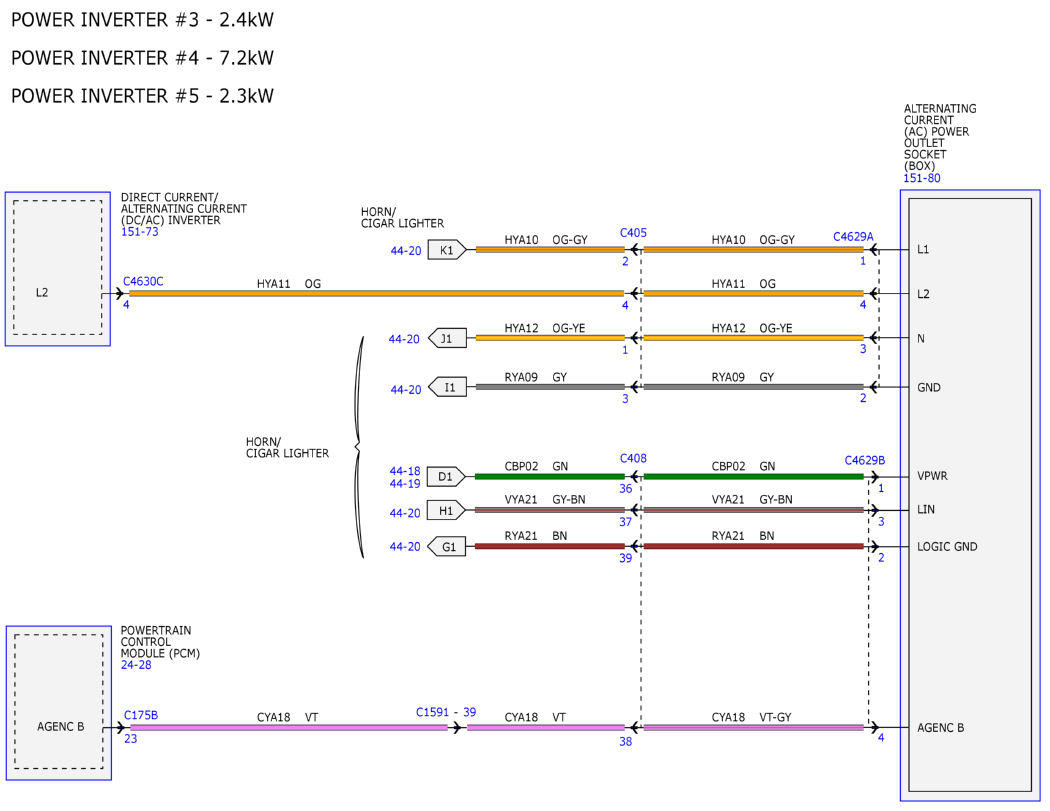

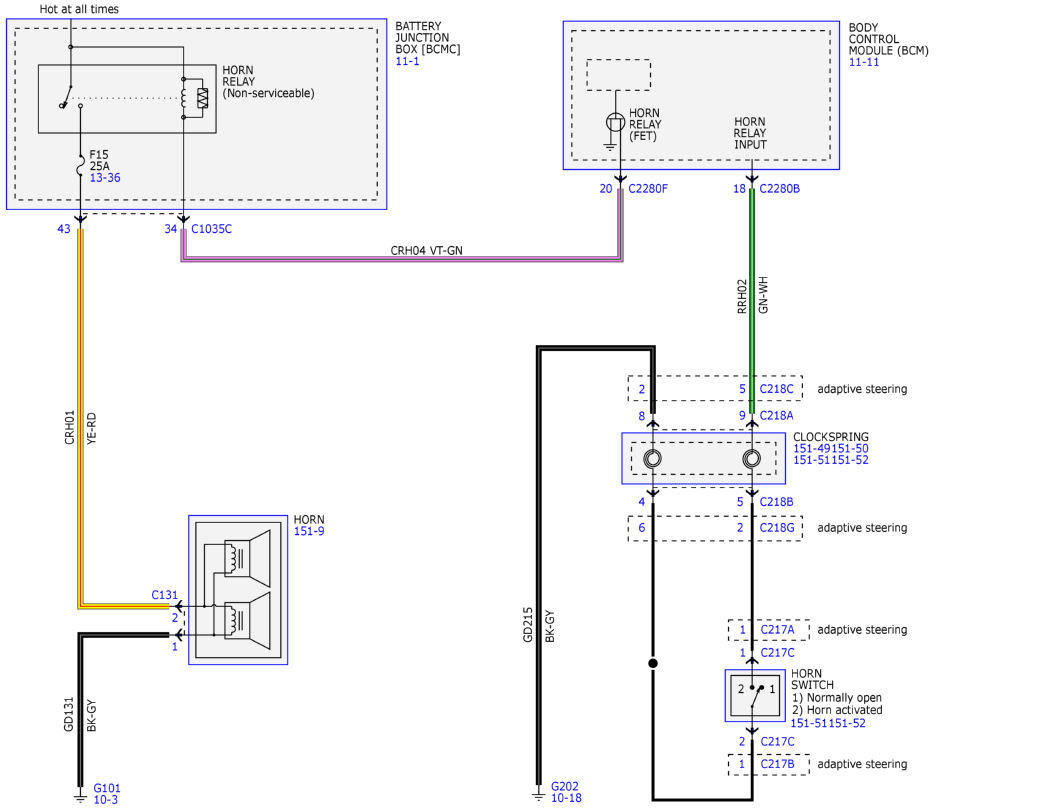

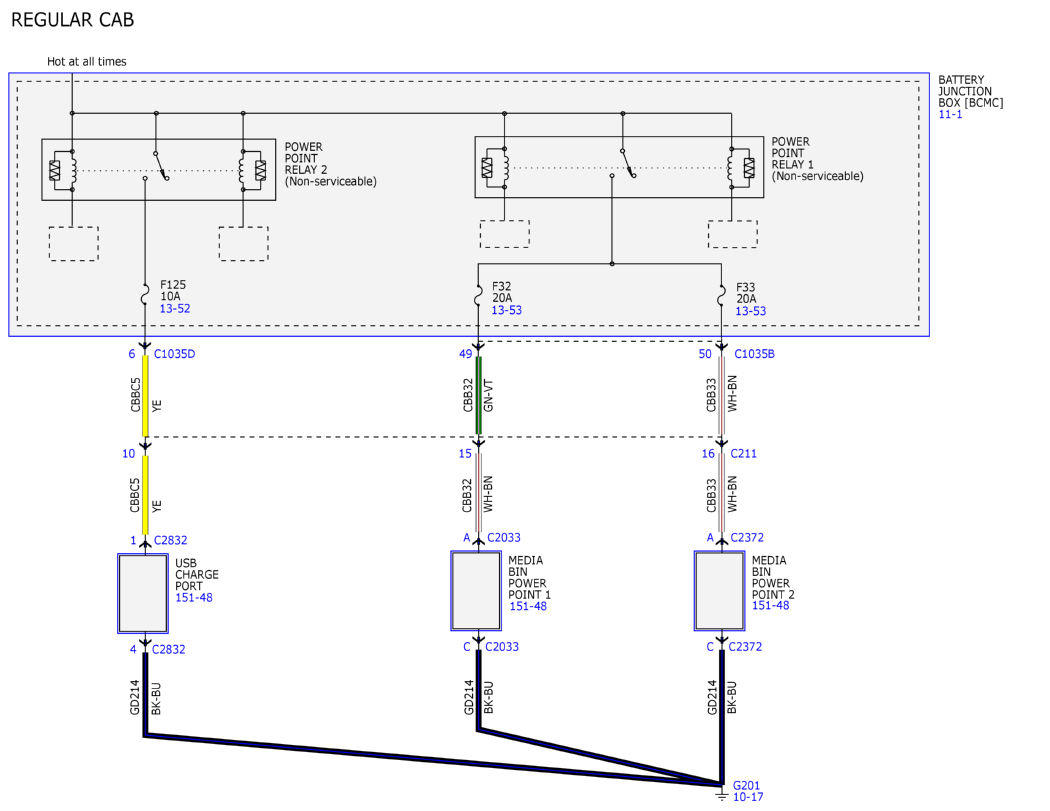

Fig 1: Horn/Cigar Lighter Wiring Diagram (1 Of 21)
Courtesy of FORD MOTOR COMPANY

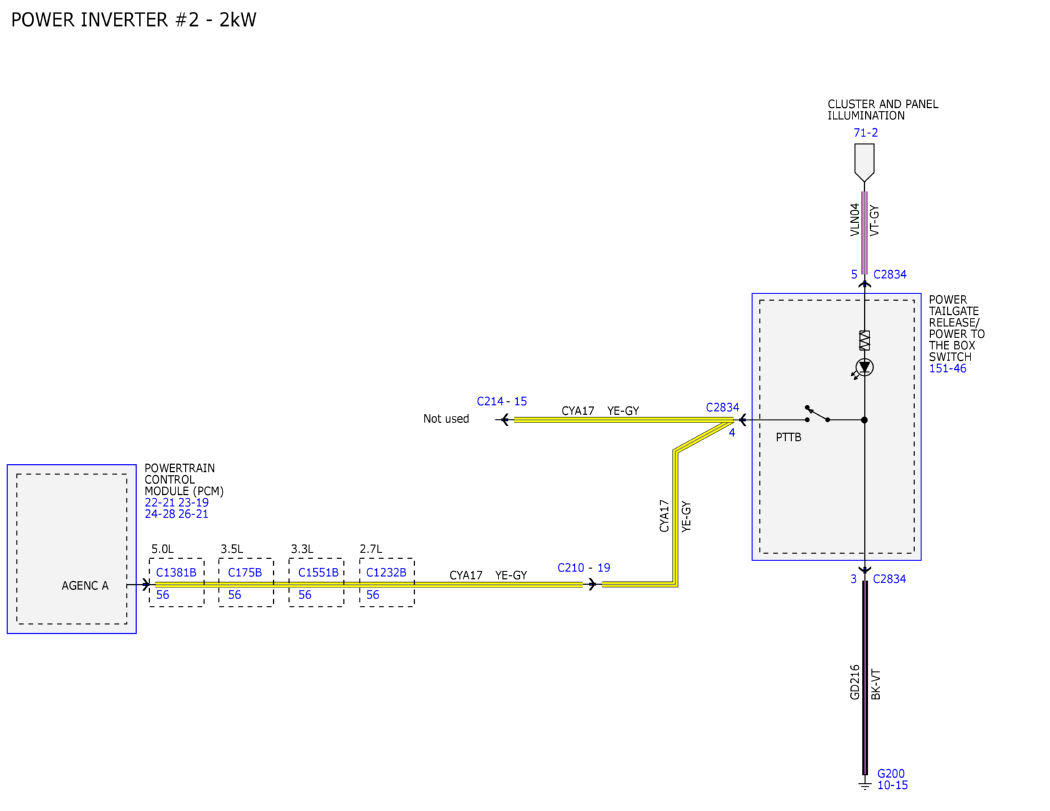

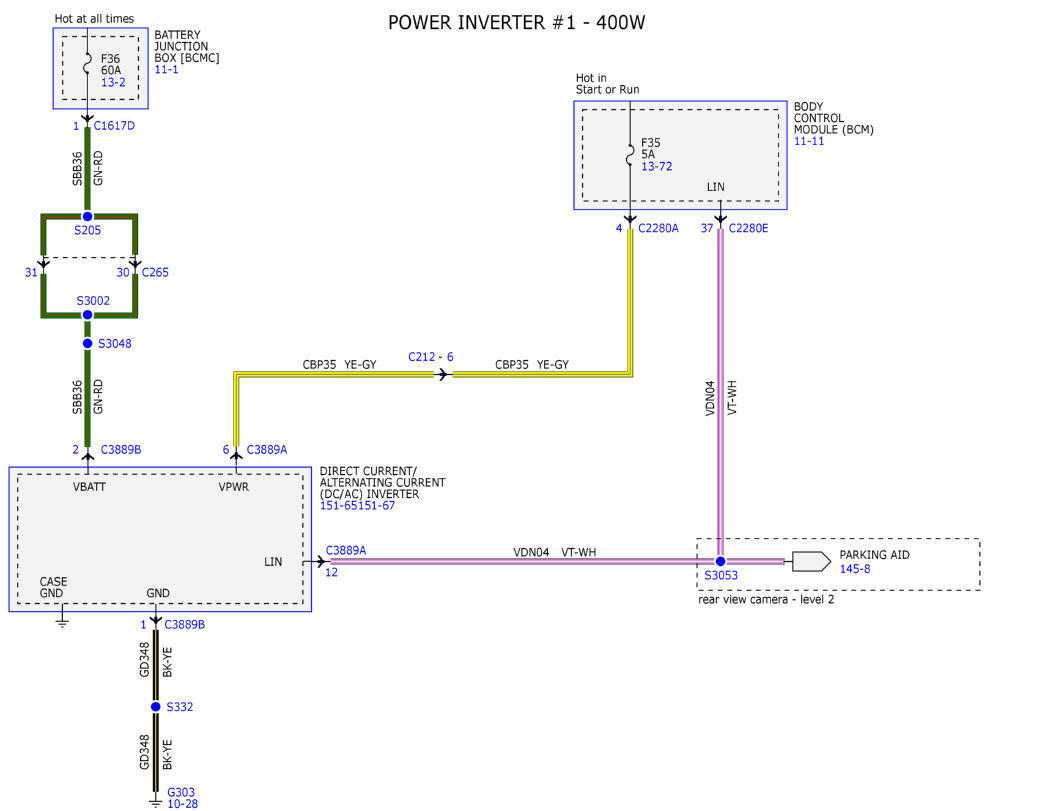

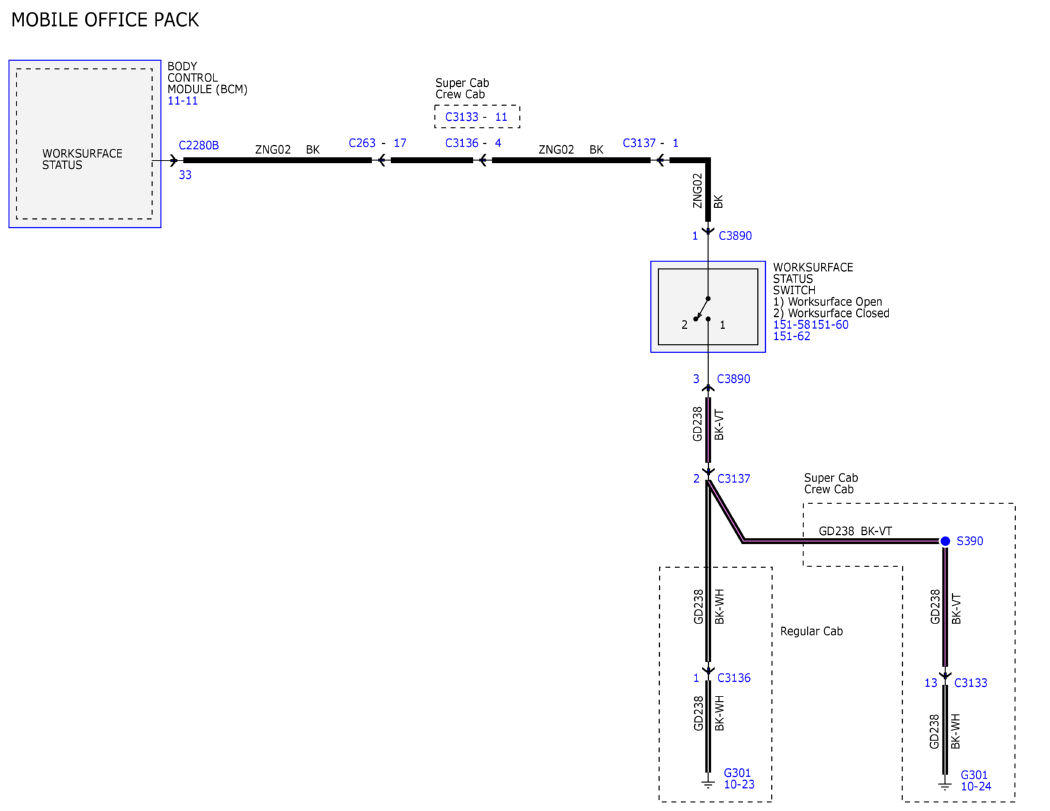

Fig 2: Horn/Cigar Lighter Wiring Diagram (2 Of 21)
Courtesy of FORD MOTOR COMPANY

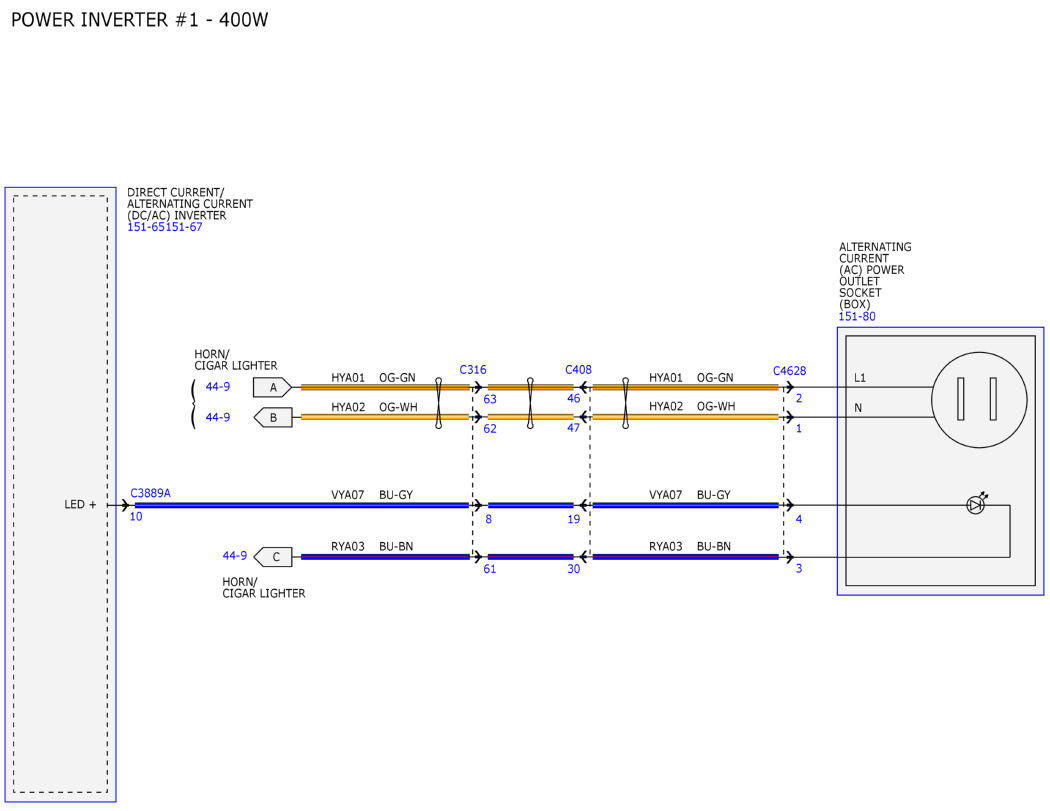

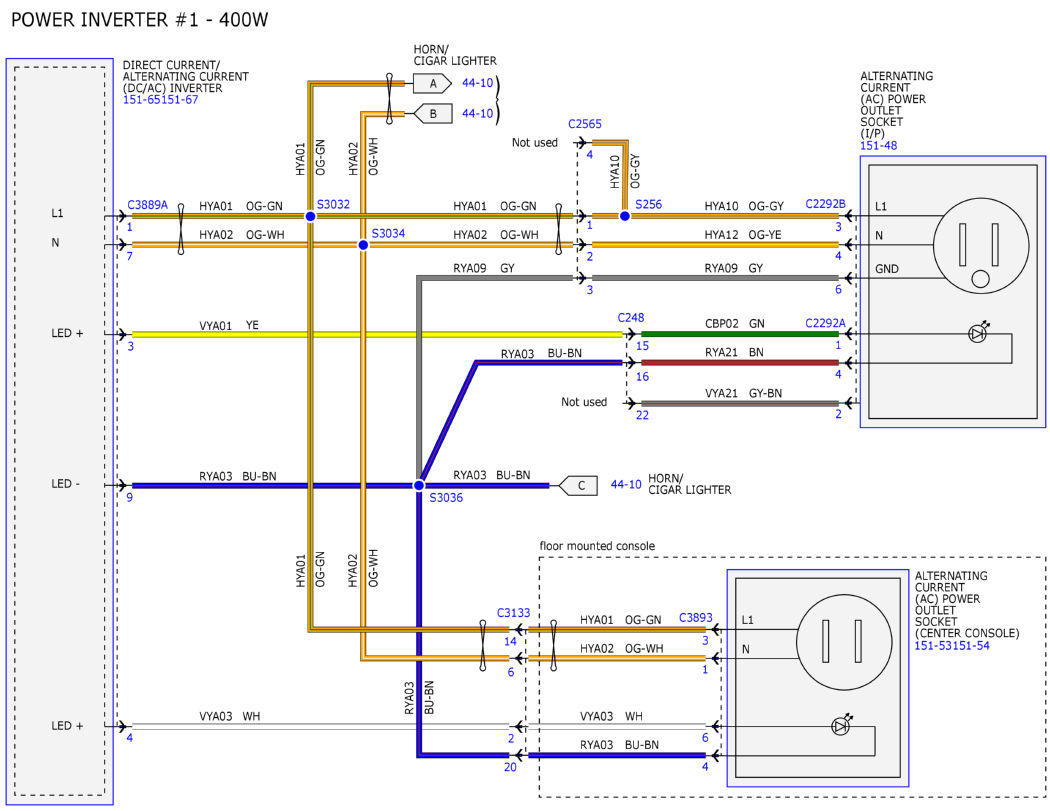

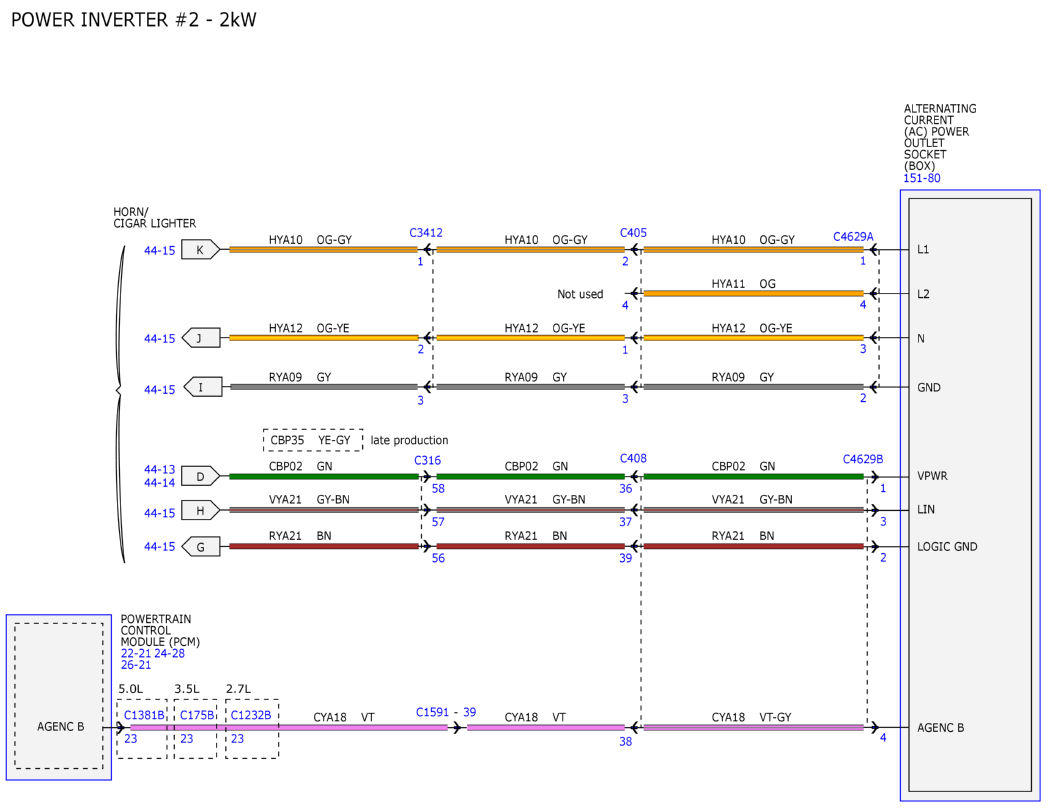

Fig 3: Horn/Cigar Lighter Wiring Diagram (3 Of 21)
Courtesy of FORD MOTOR COMPANY

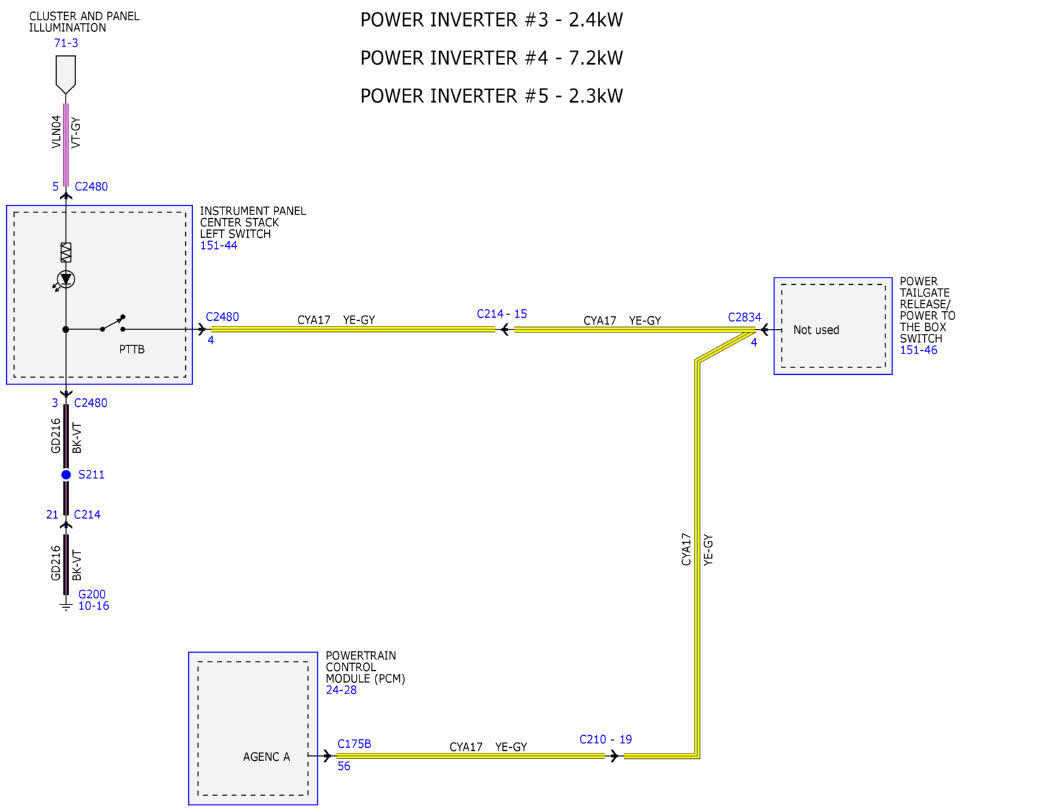

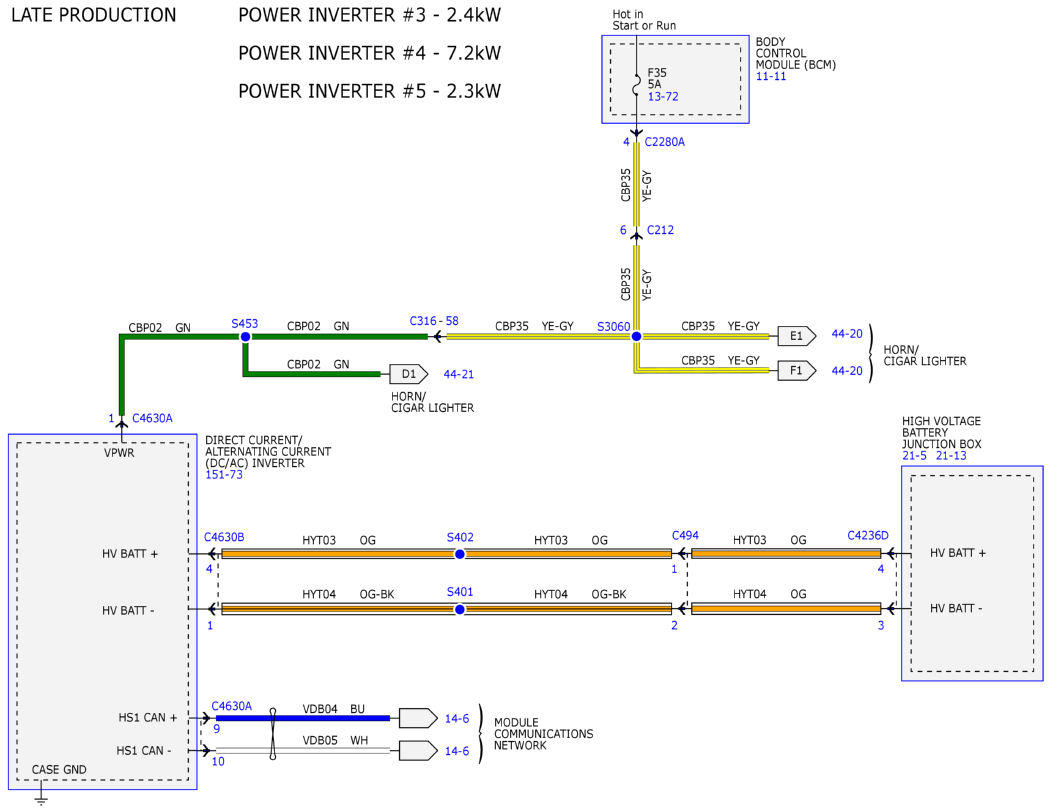

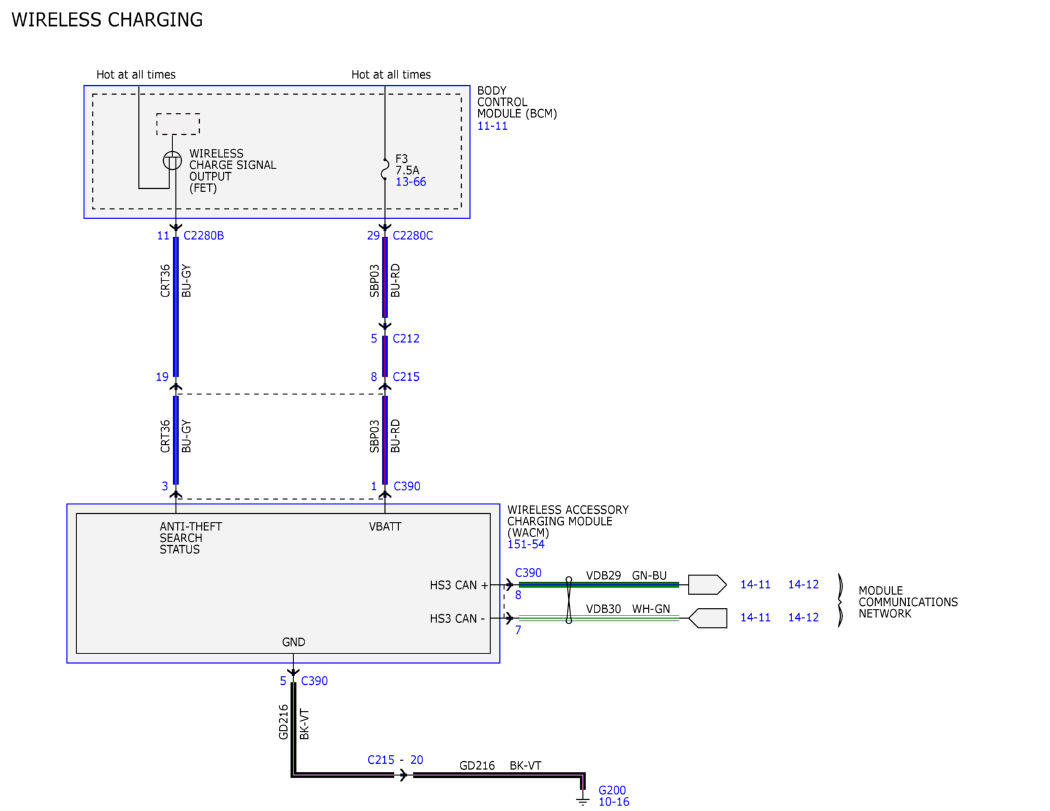

Fig 4: Horn/Cigar Lighter Wiring Diagram (4 Of 21)
Courtesy of FORD MOTOR COMPANY

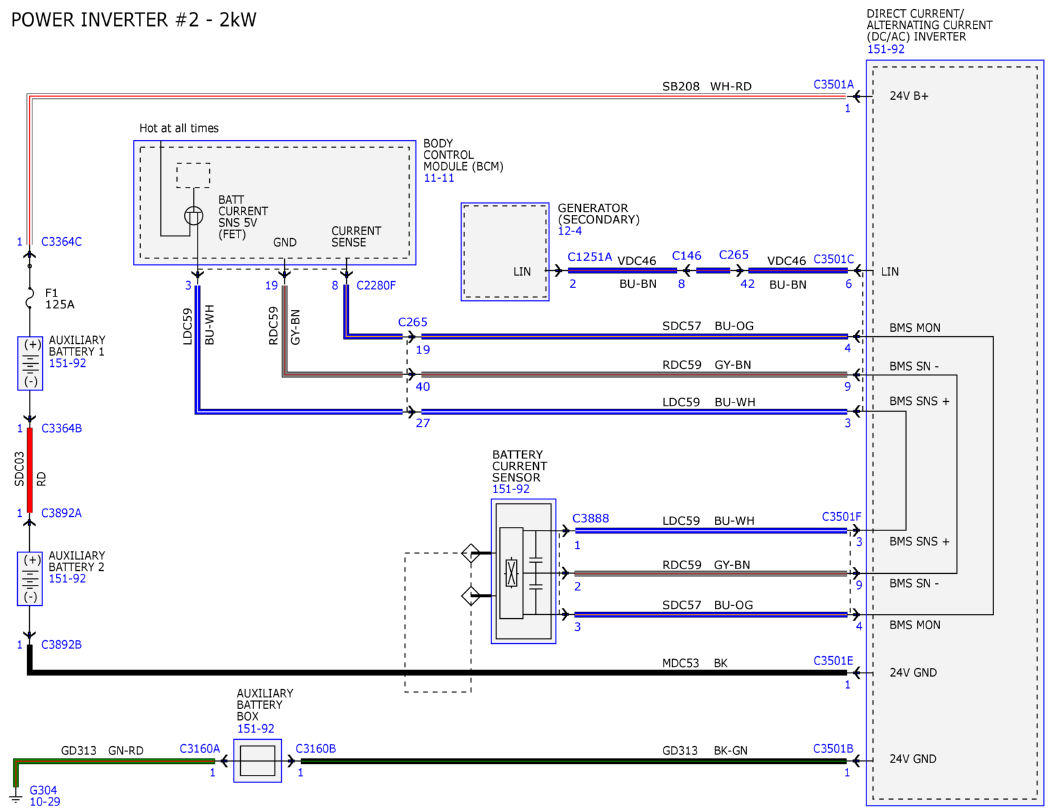

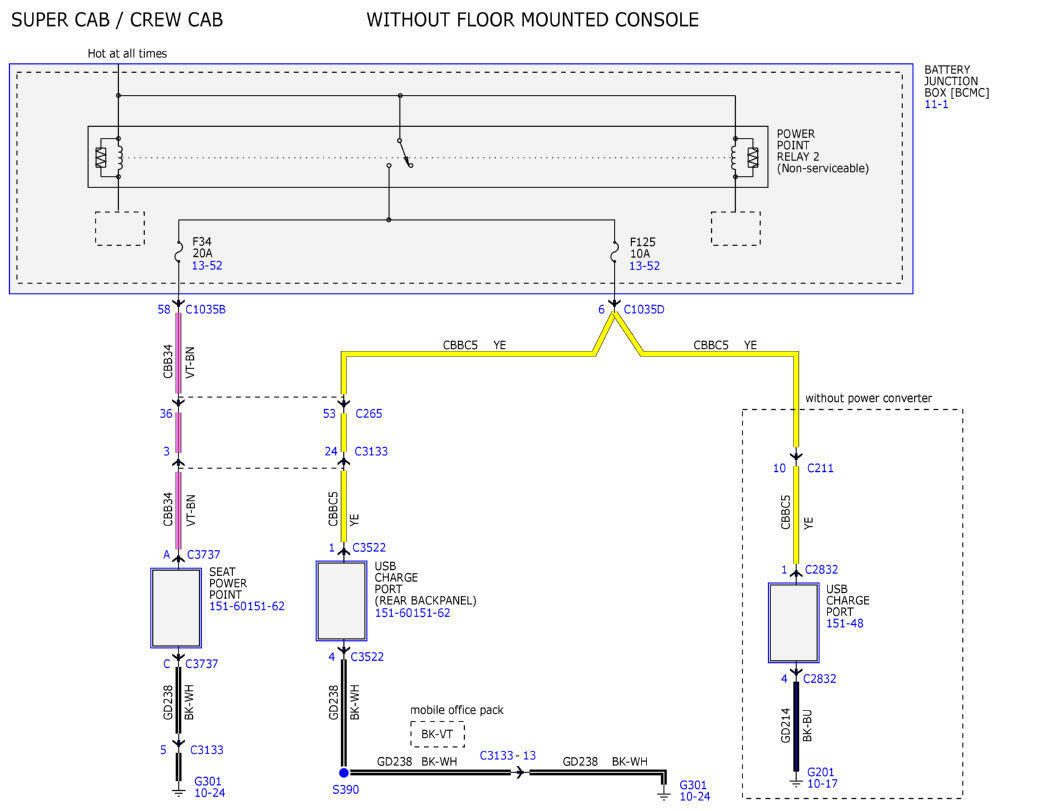

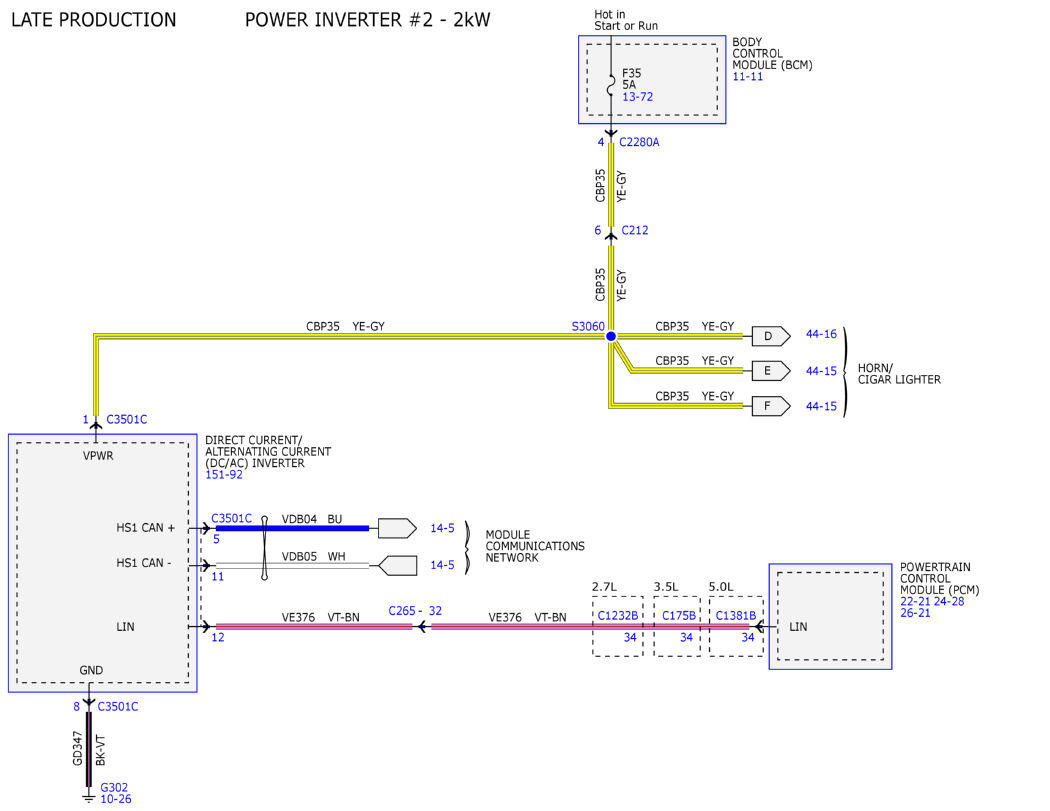

Fig 5: Horn/Cigar Lighter Wiring Diagram (5 Of 21)
Courtesy of FORD MOTOR COMPANY

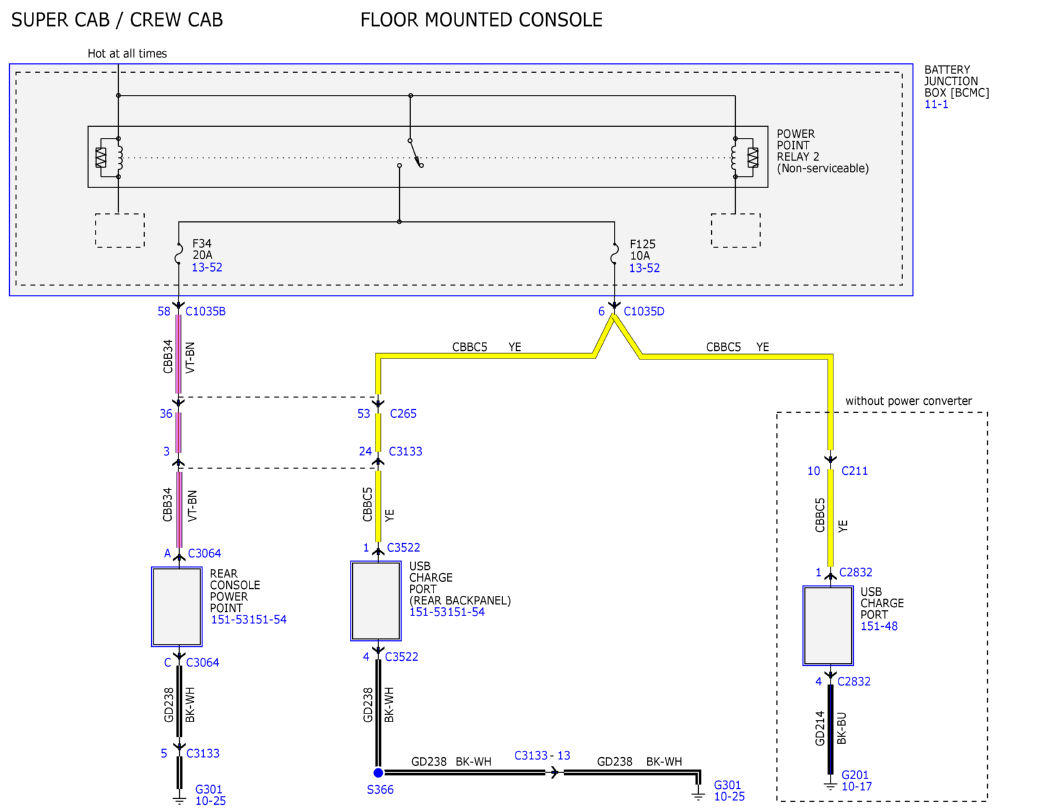

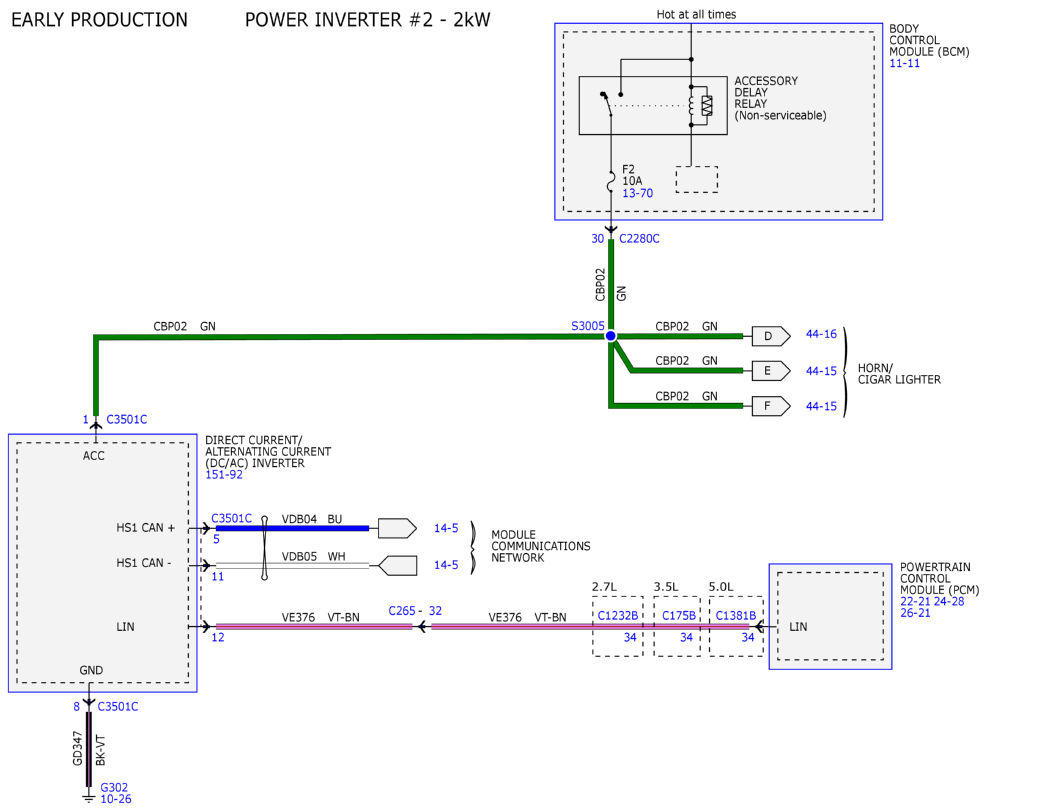

Fig 6: Horn/Cigar Lighter Wiring Diagram (6 Of 21)
Courtesy of FORD MOTOR COMPANY

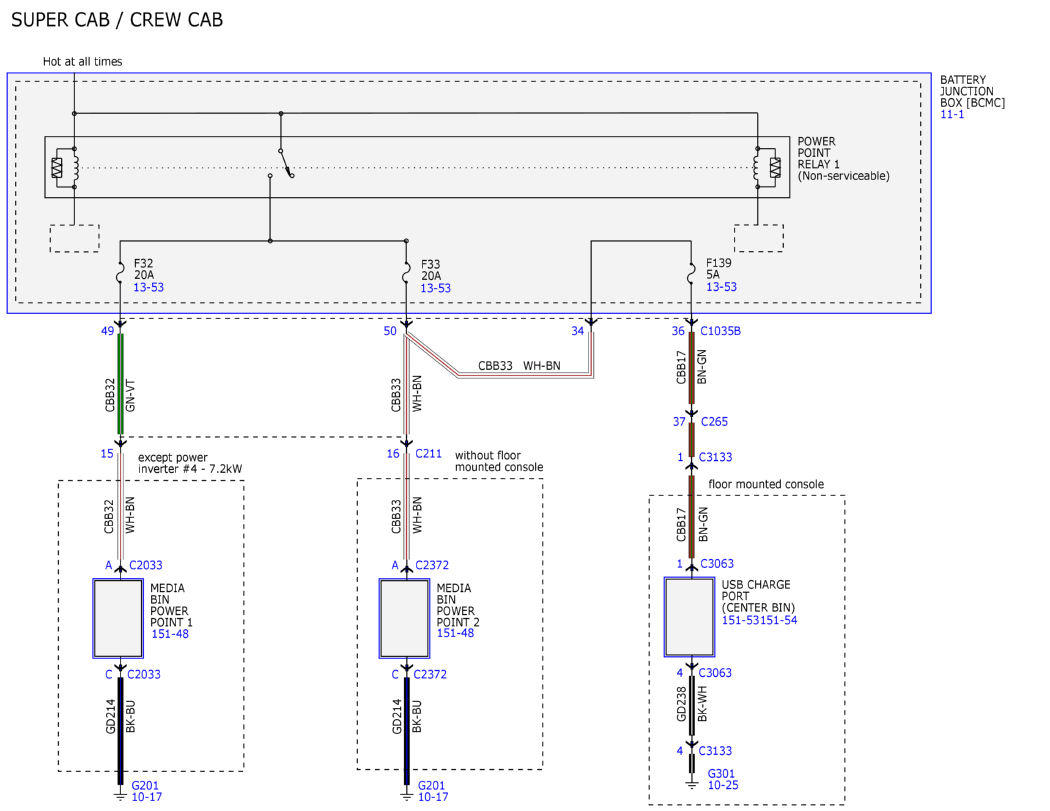

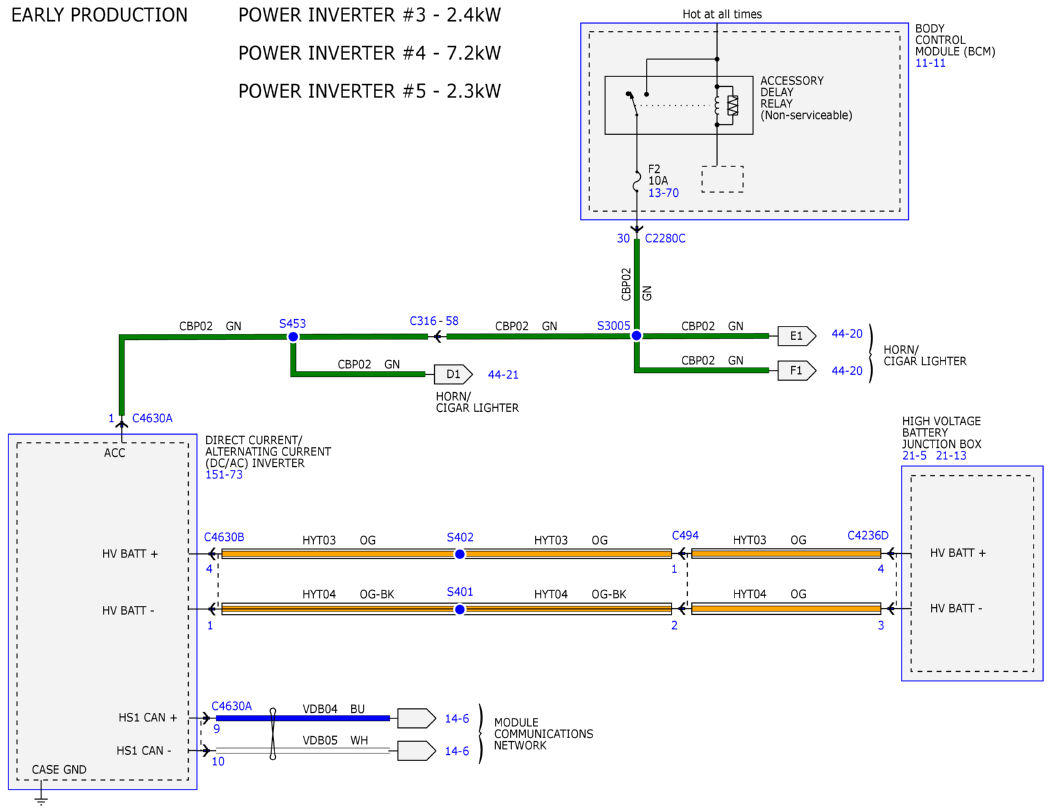

Fig 7: Horn/Cigar Lighter Wiring Diagram (7 Of 21)
Courtesy of FORD MOTOR COMPANY

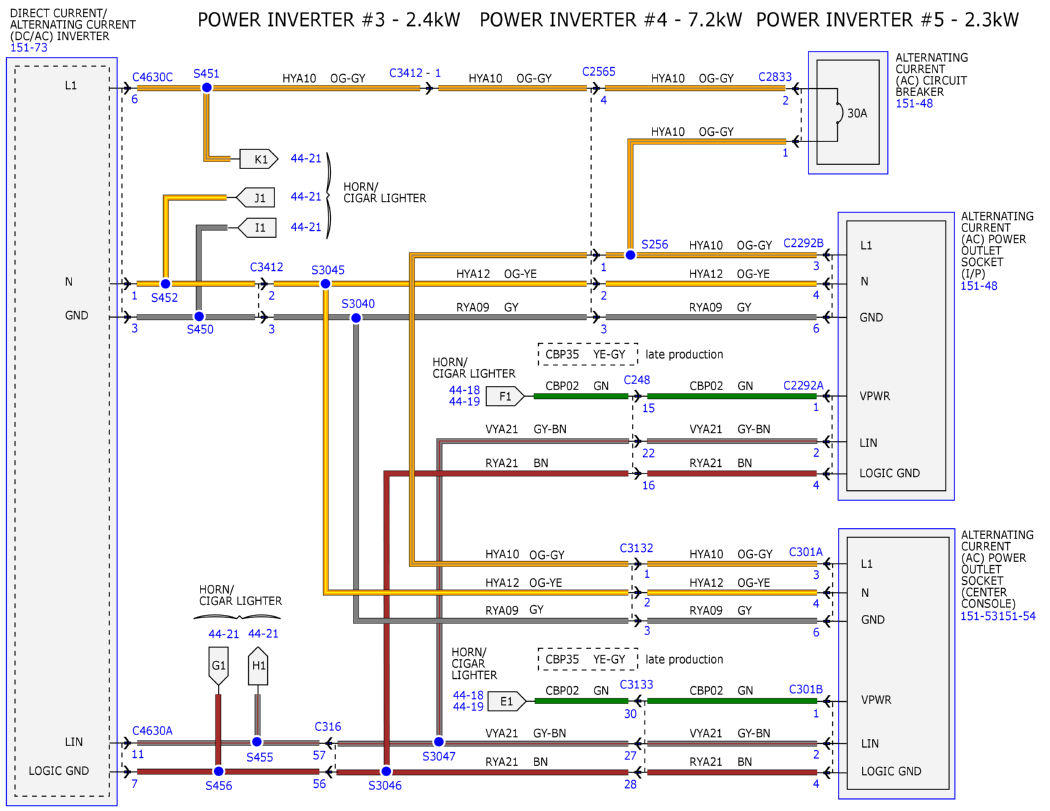

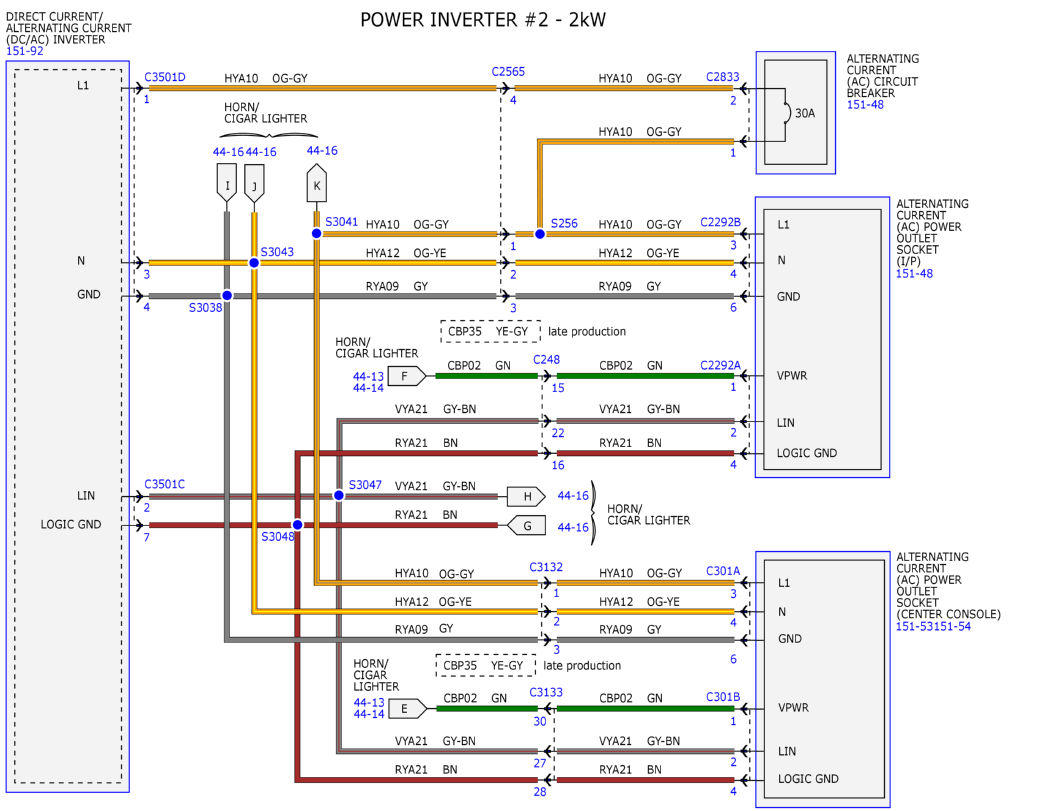

Fig 8: Horn/Cigar Lighter Wiring Diagram (8 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 9: Horn/Cigar Lighter Wiring Diagram (9 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 10: Horn/Cigar Lighter Wiring Diagram (10 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 11: Horn/Cigar Lighter Wiring Diagram (11 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 12: Horn/Cigar Lighter Wiring Diagram (12 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 13: Horn/Cigar Lighter Wiring Diagram (13 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 14: Horn/Cigar Lighter Wiring Diagram (14 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 15: Horn/Cigar Lighter Wiring Diagram (15 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 16: Horn/Cigar Lighter Wiring Diagram (16 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 17: Horn/Cigar Lighter Wiring Diagram (17 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 18: Horn/Cigar Lighter Wiring Diagram (18 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 19: Horn/Cigar Lighter Wiring Diagram (19 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 20: Horn/Cigar Lighter Wiring Diagram (20 Of 21)
Courtesy of FORD MOTOR COMPANY
Fig 21: Horn/Cigar Lighter Wiring Diagram (21 Of 21)
Courtesy of FORD MOTOR COMPANY
