Heated Window
Heated Window
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Heated Window Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR COMPANY
Fig 2: Heated Window Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR COMPANY

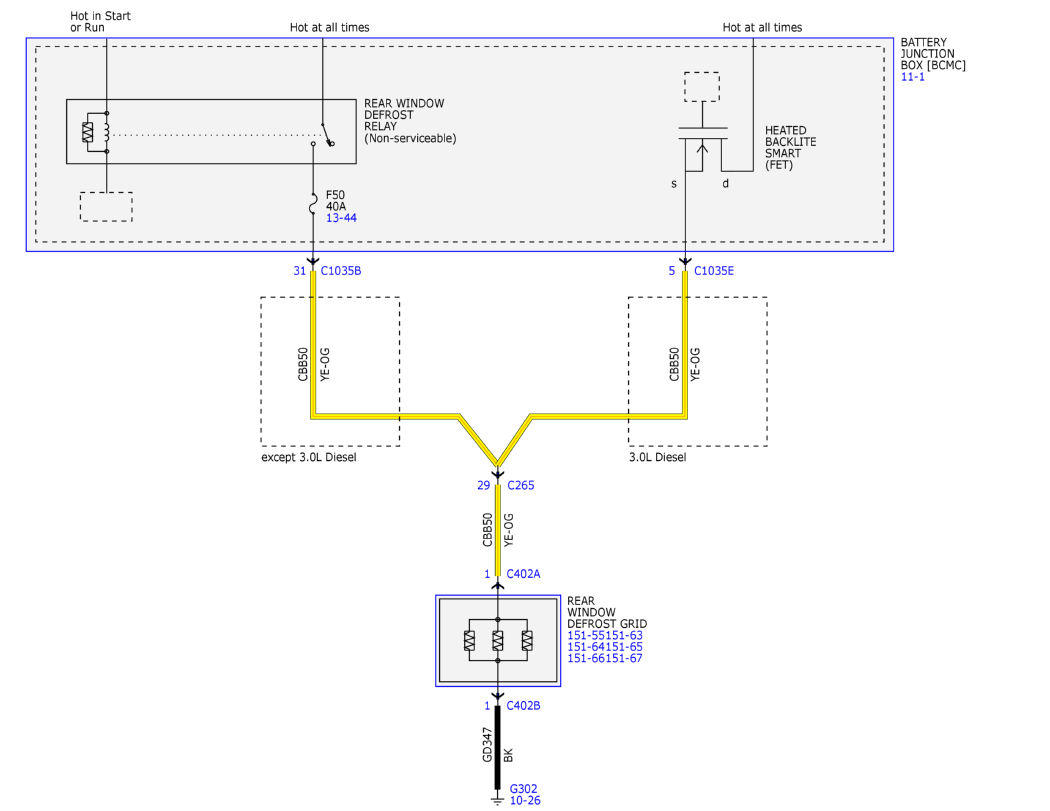

Fig 3: Heated Window Wiring Diagram (3 Of 3)
Courtesy of FORD MOTOR COMPANY
