Electronic Engine Controls - Hybrid

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

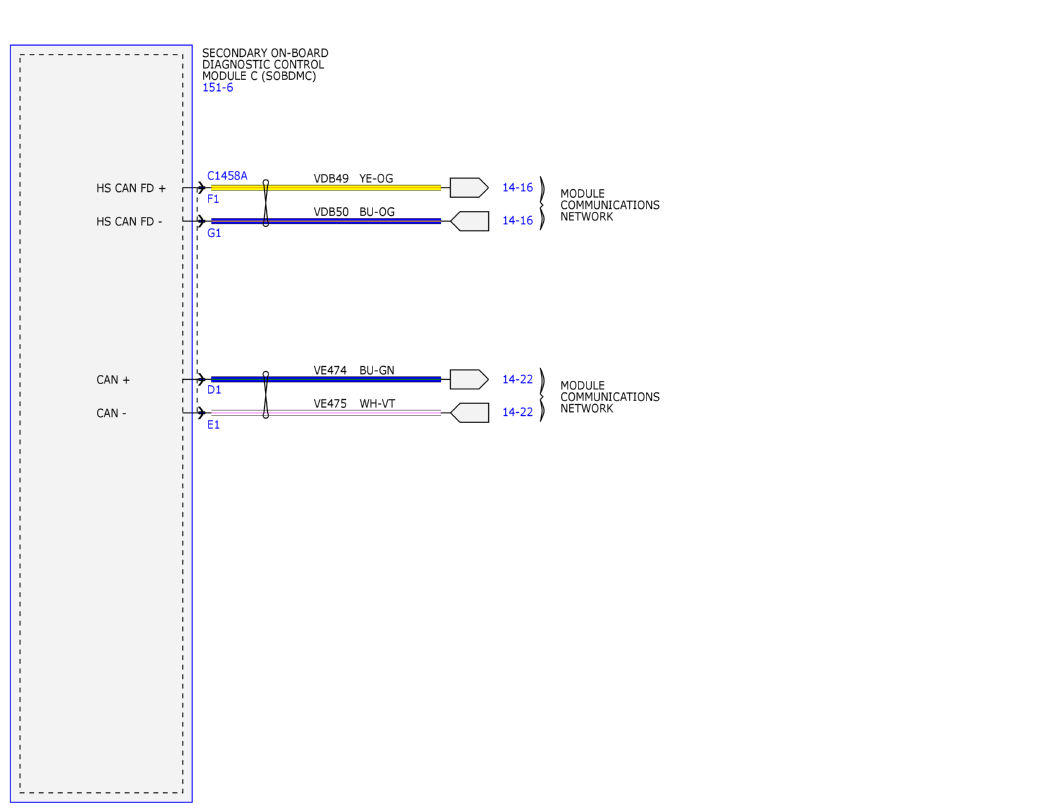

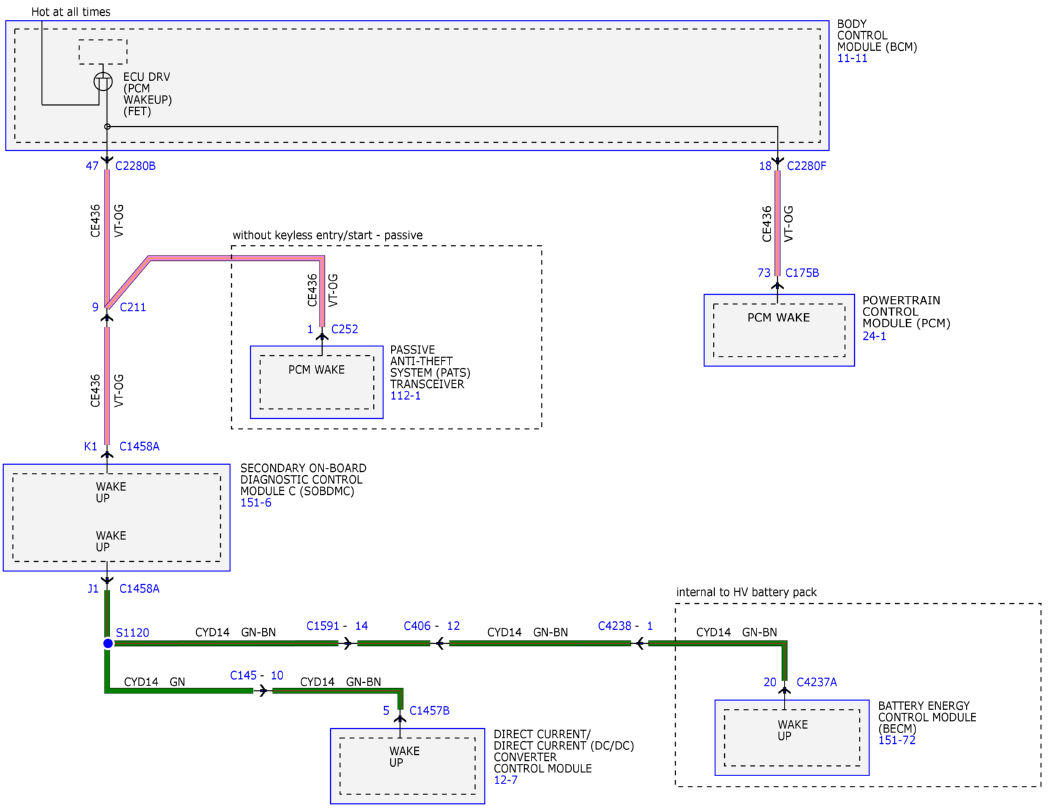

Fig 1: Electronic Engine Controls Wiring Diagram - Hybrid (1 Of 15)

Courtesy of FORD MOTOR COMPANY

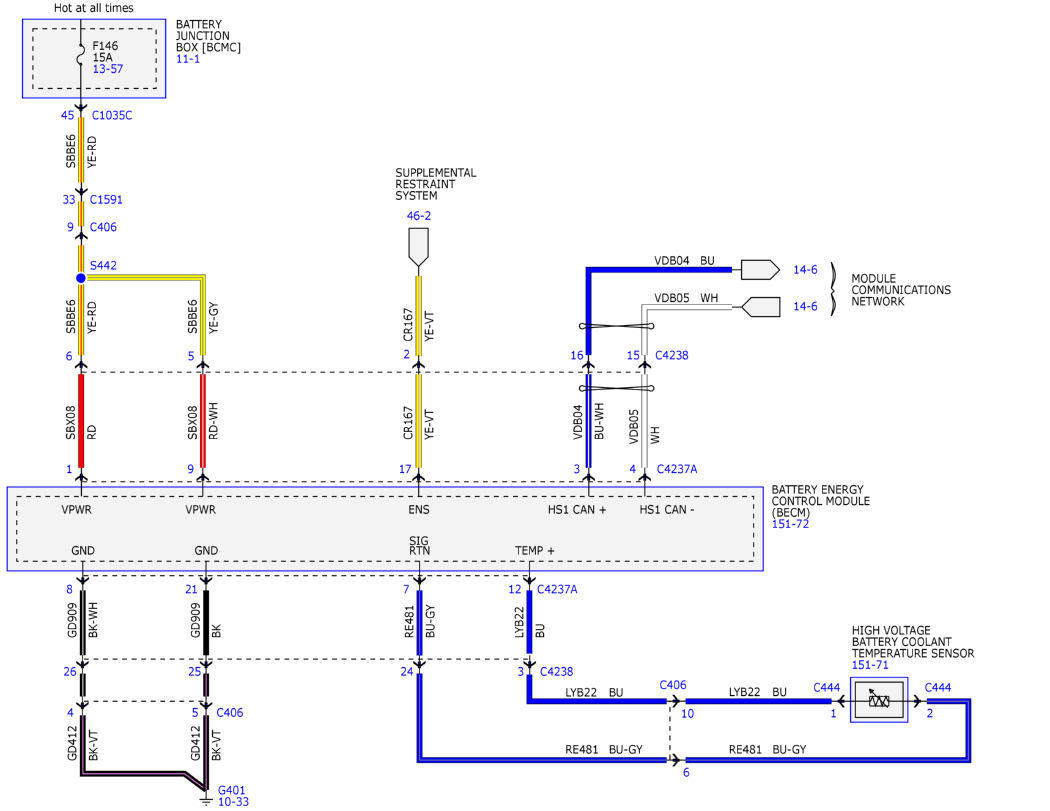

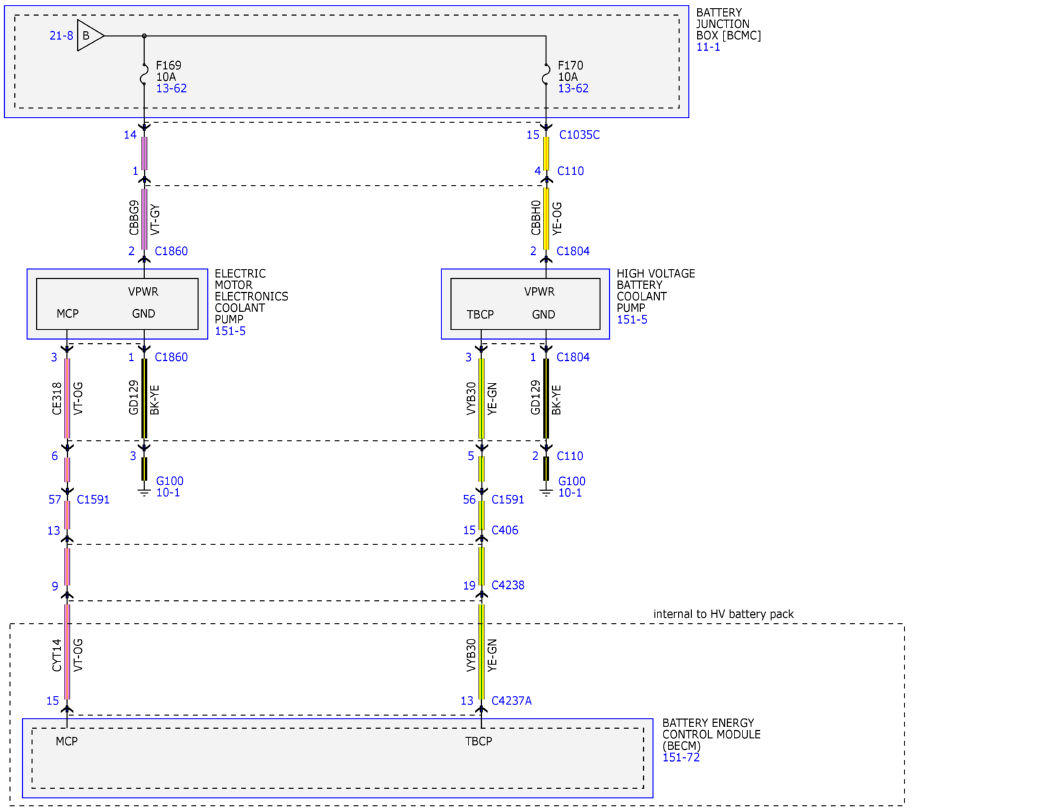

Fig 2: Electronic Engine Controls Wiring Diagram - Hybrid (2 Of 15)

Courtesy of FORD MOTOR COMPANY

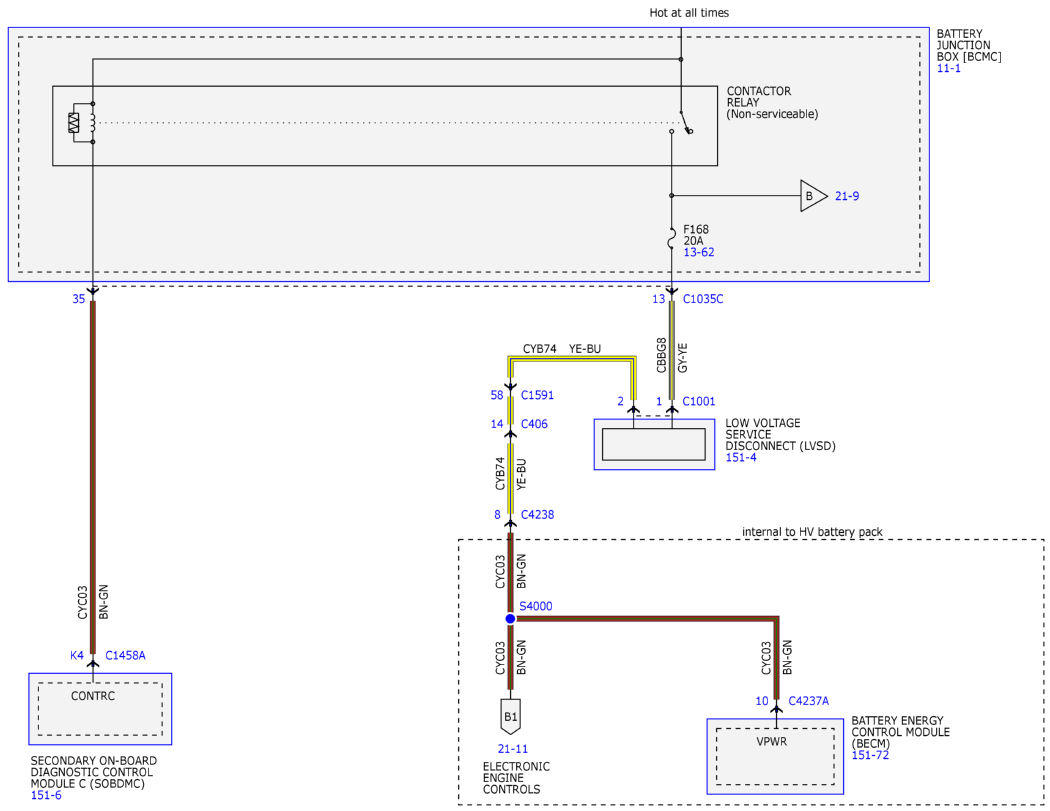

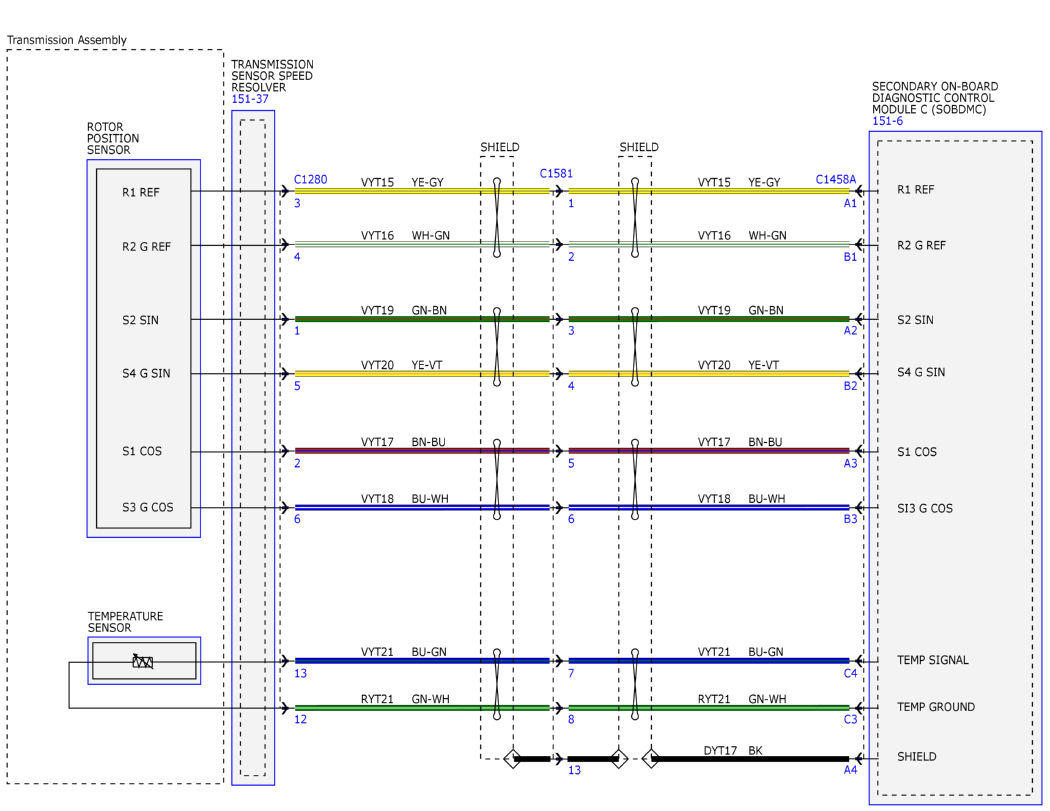

Fig 3: Electronic Engine Controls Wiring Diagram - Hybrid (3 Of 15)

Courtesy of FORD MOTOR COMPANY

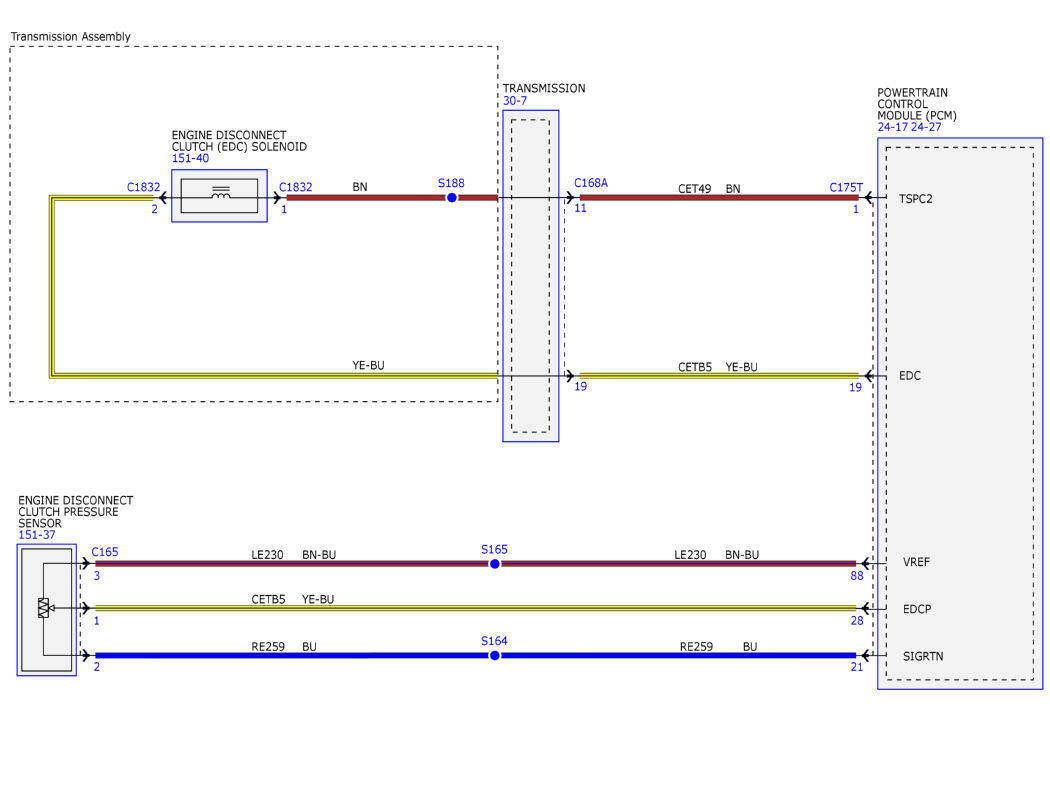

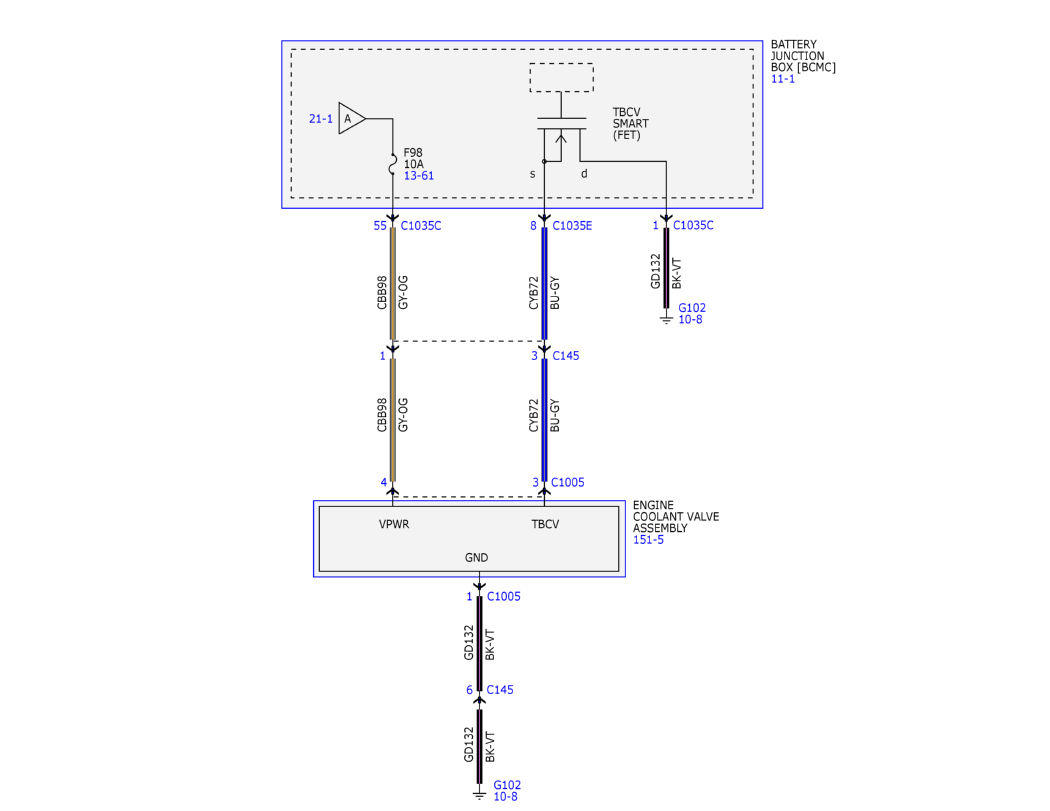

Fig 4: Electronic Engine Controls Wiring Diagram - Hybrid (4 Of 15)

Courtesy of FORD MOTOR COMPANY

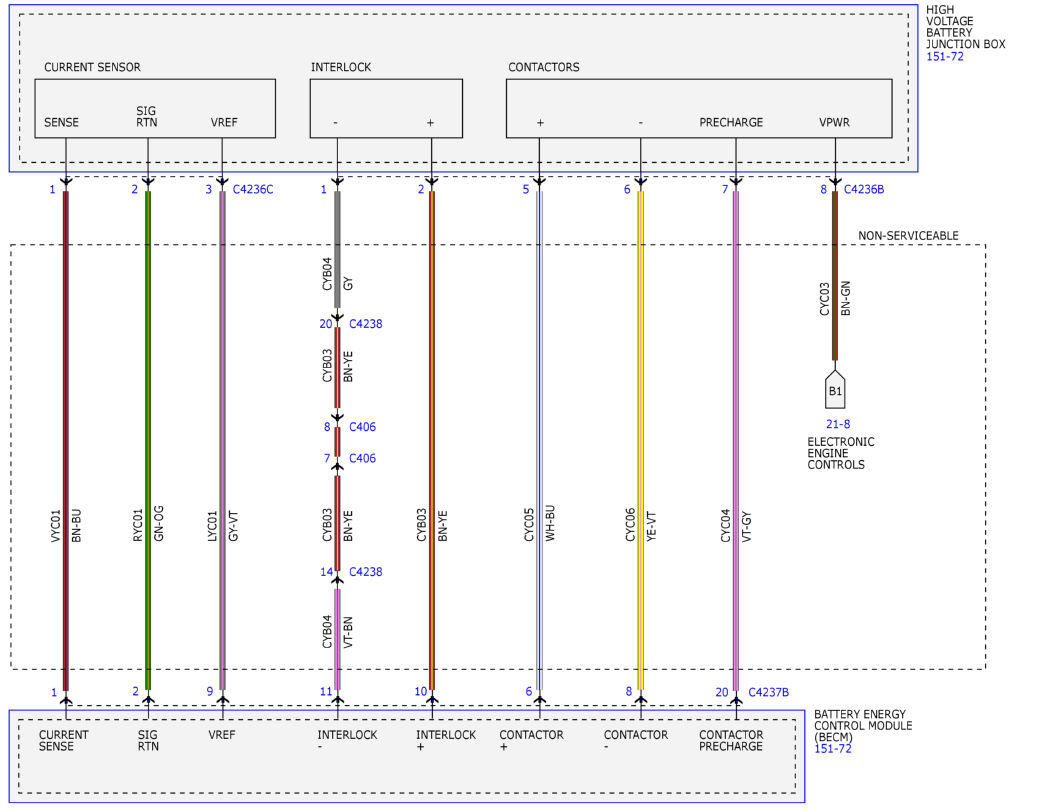

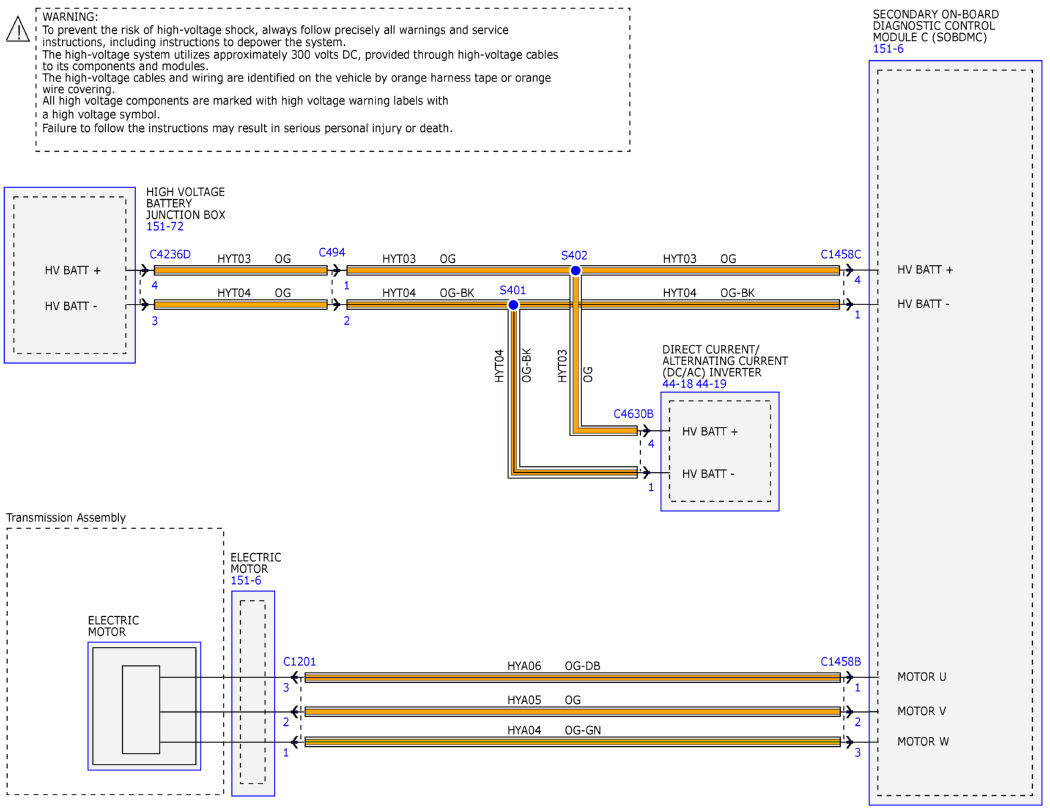

Fig 5: Electronic Engine Controls Wiring Diagram - Hybrid (5 Of 15)

Courtesy of FORD MOTOR COMPANY

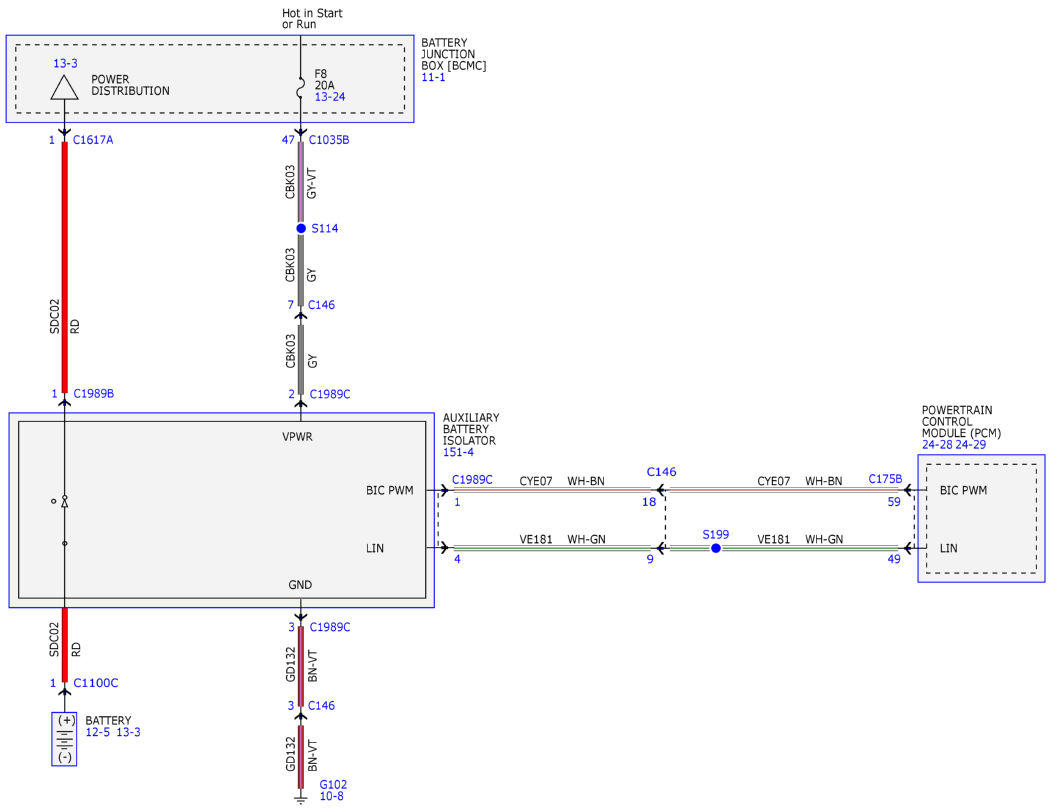

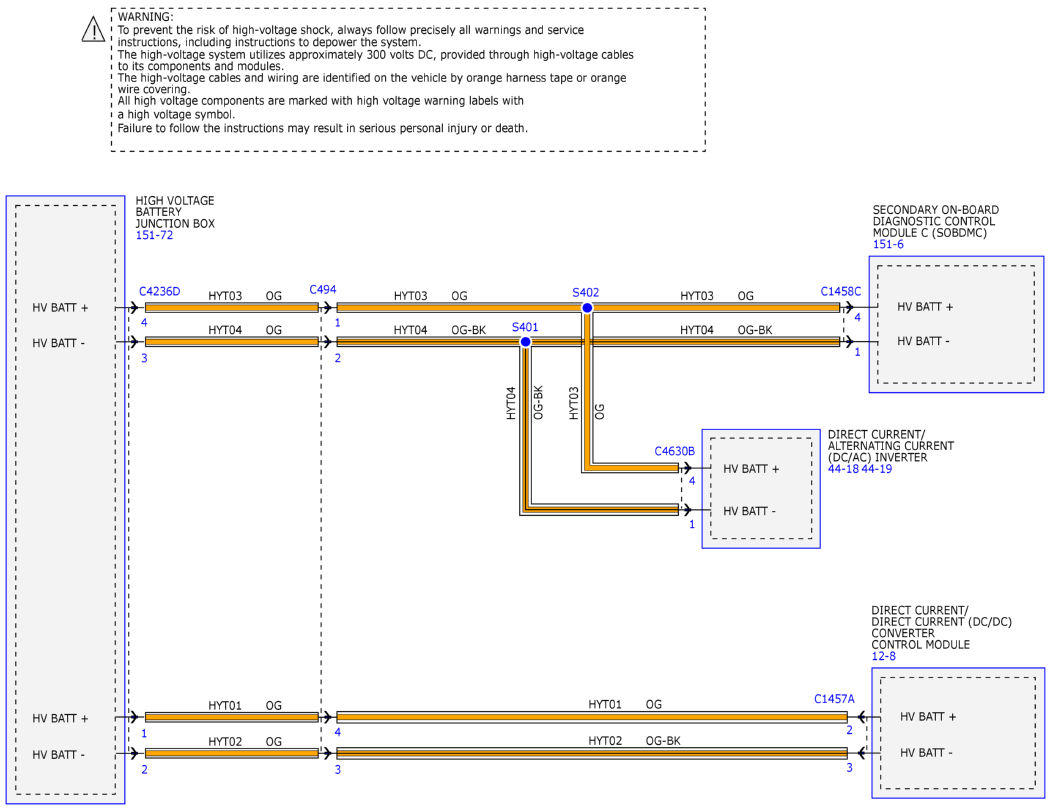

Fig 6: Electronic Engine Controls Wiring Diagram - Hybrid (6 Of 15)

Courtesy of FORD MOTOR COMPANY

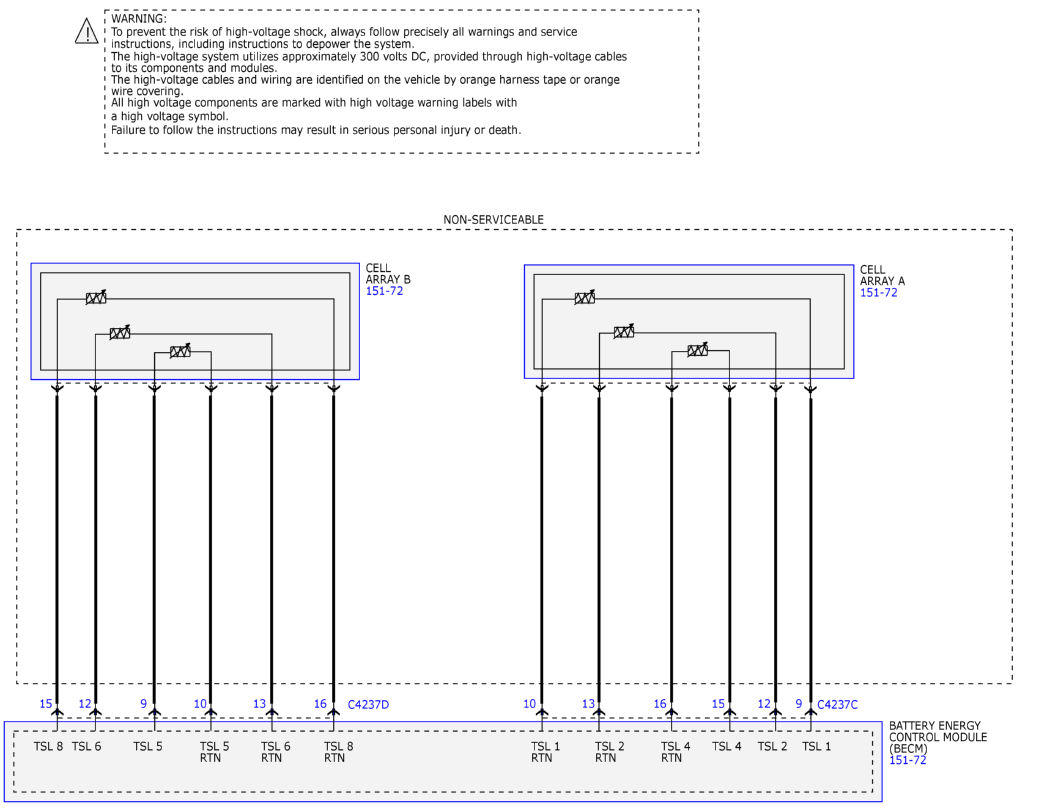

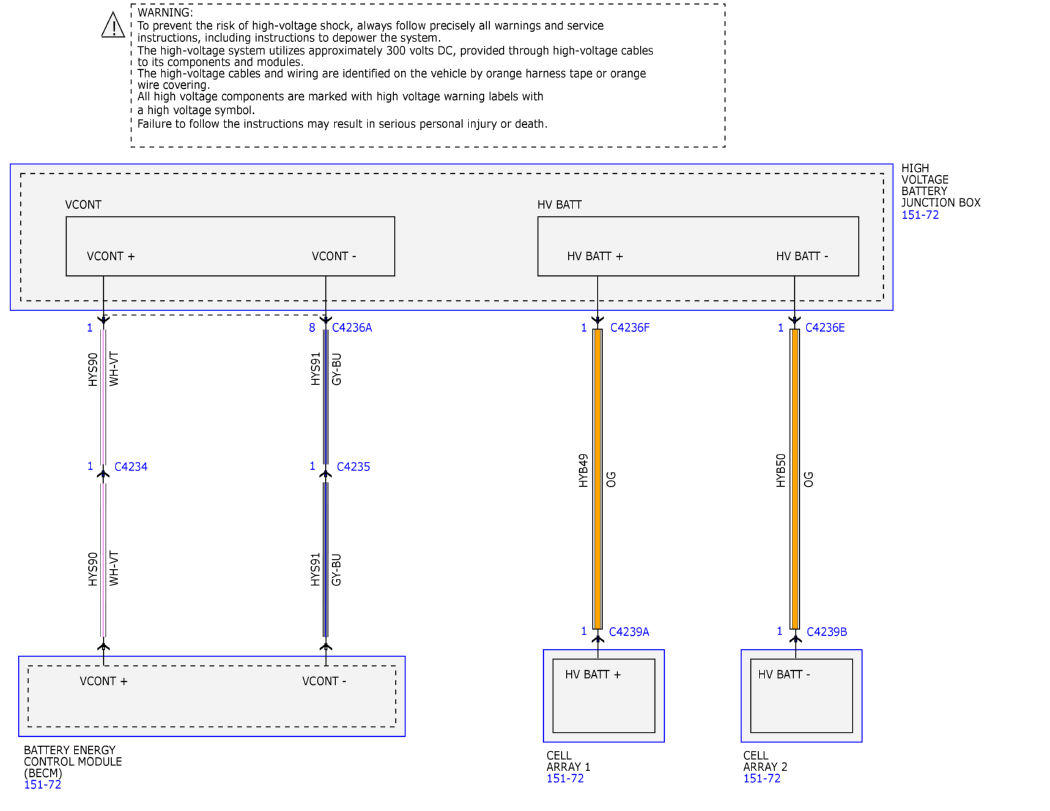

Fig 7: Electronic Engine Controls Wiring Diagram - Hybrid (7 Of 15)

Courtesy of FORD MOTOR COMPANY

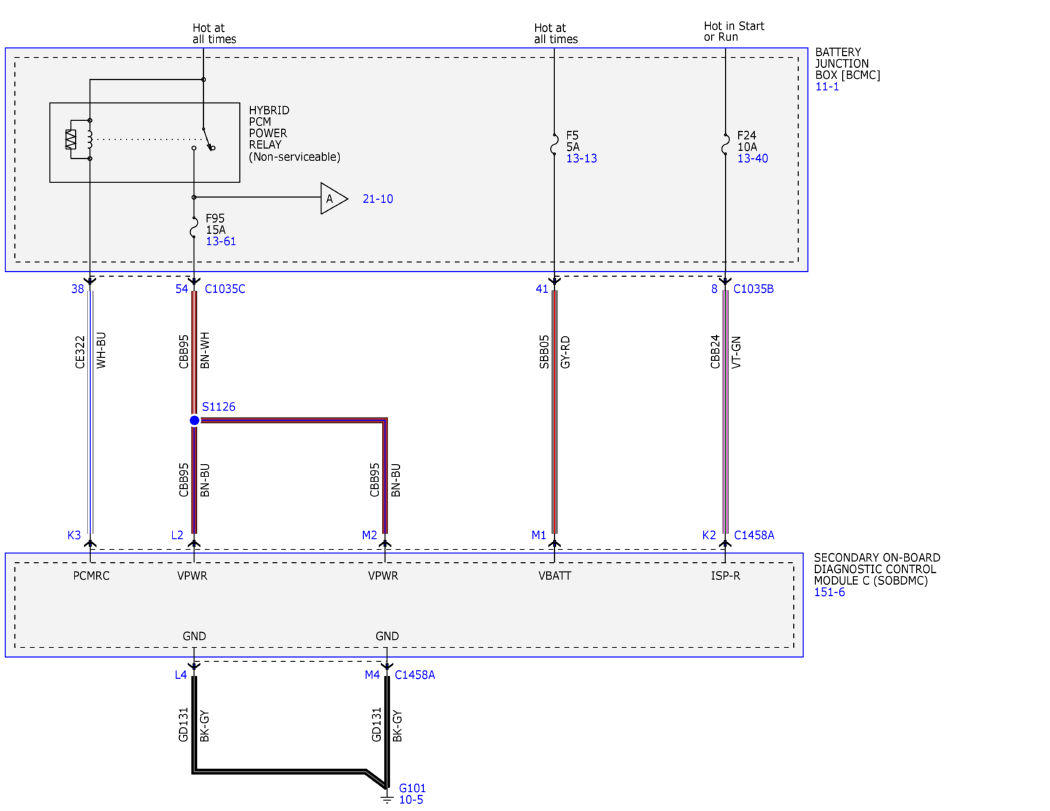

Fig 8: Electronic Engine Controls Wiring Diagram - Hybrid (8 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls Wiring Diagram - Hybrid (9 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls Wiring Diagram - Hybrid (10 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls Wiring Diagram - Hybrid (11 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 12: Electronic Engine Controls Wiring Diagram - Hybrid (12 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 13: Electronic Engine Controls Wiring Diagram - Hybrid (13 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 14: Electronic Engine Controls Wiring Diagram - Hybrid (14 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 15: Electronic Engine Controls Wiring Diagram - Hybrid (15 Of 15)

Courtesy of FORD MOTOR COMPANY
