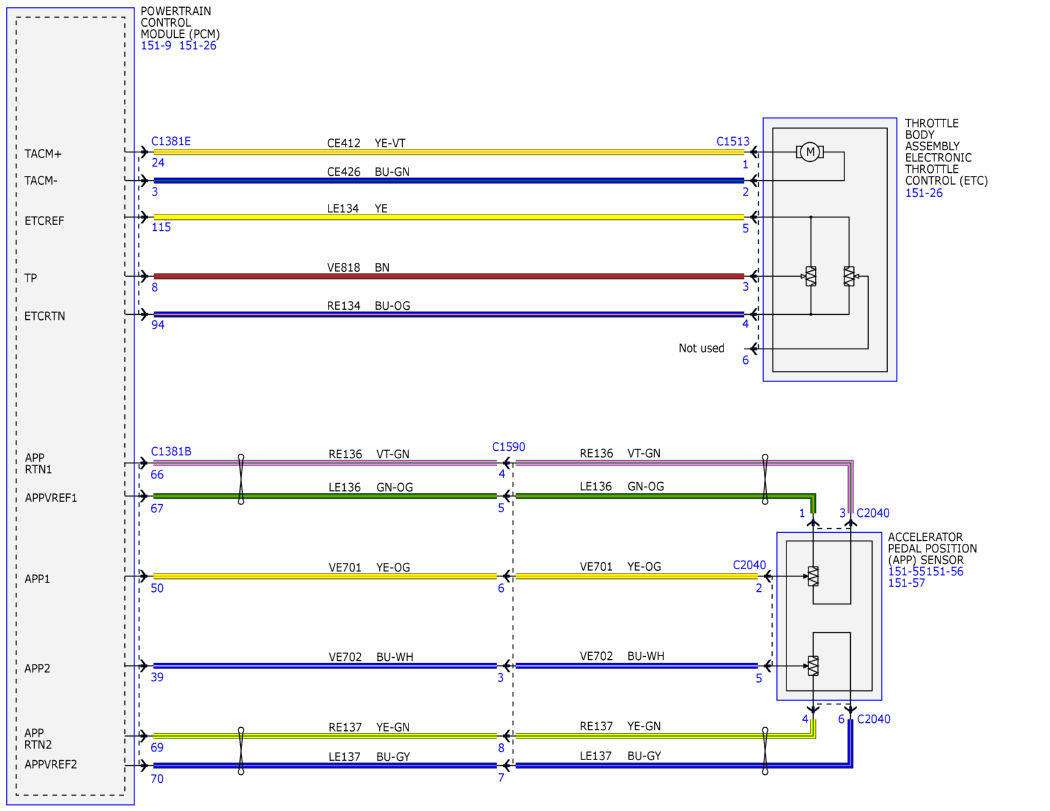

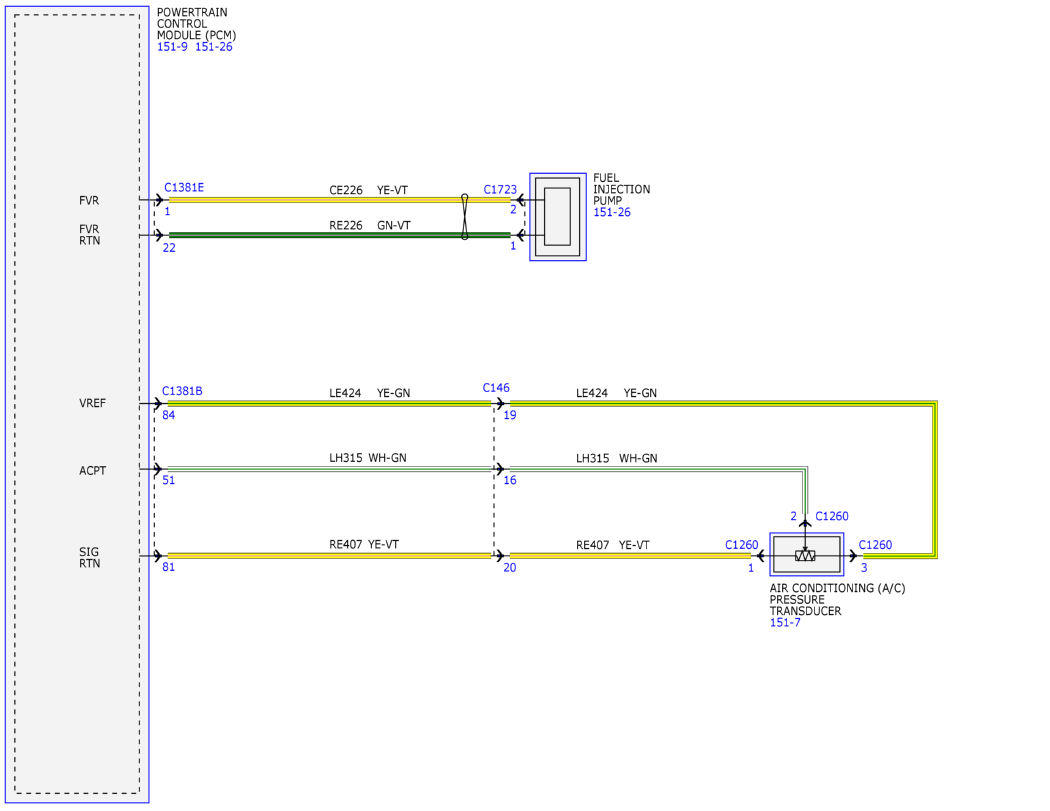

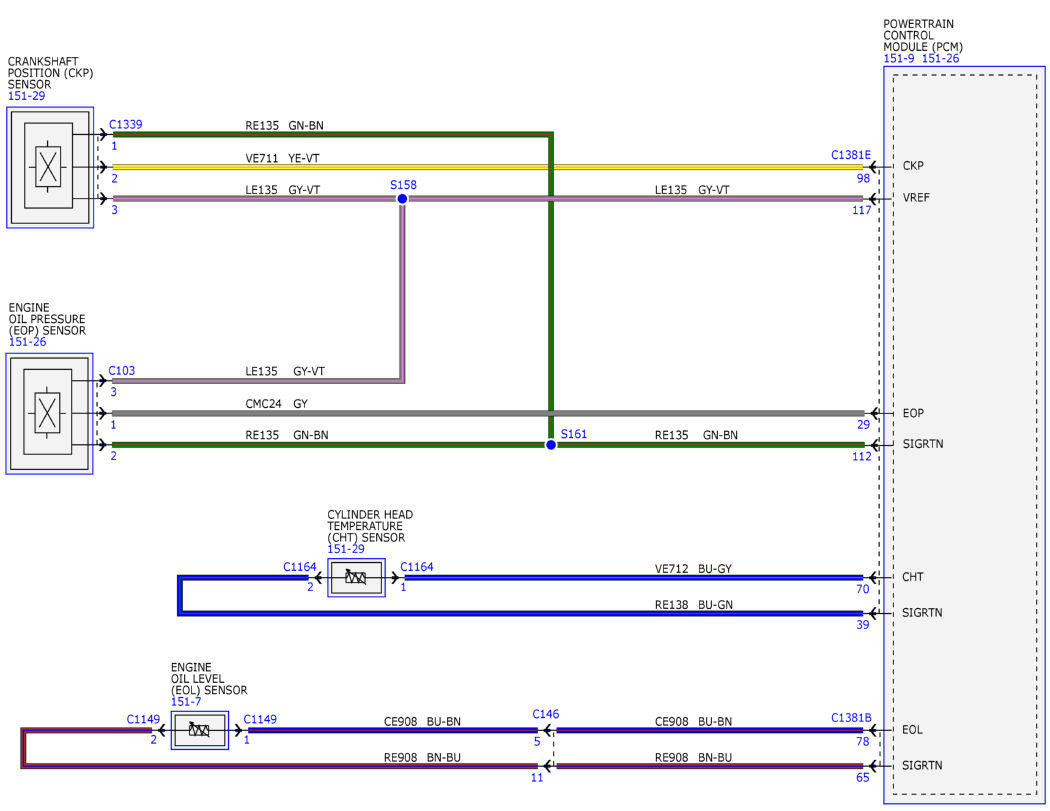

Fig 1: Electronic Engine Controls Wiring Diagram - 5.0L (1 Of 22)
Courtesy of FORD MOTOR COMPANY

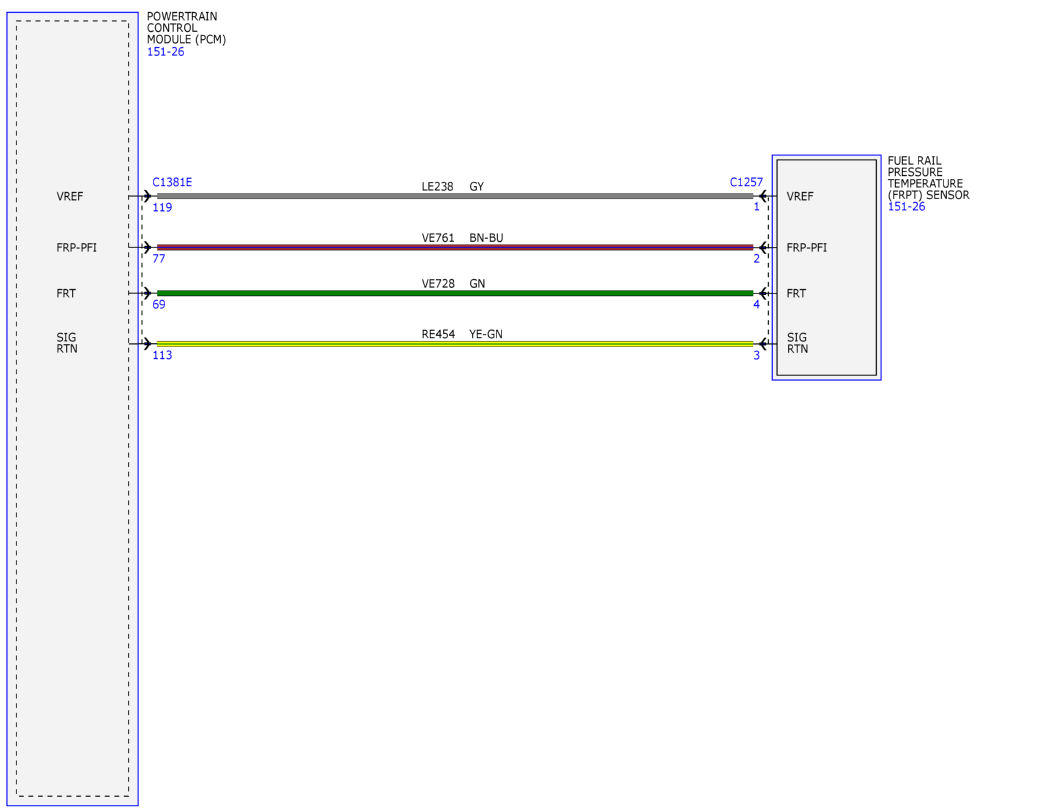

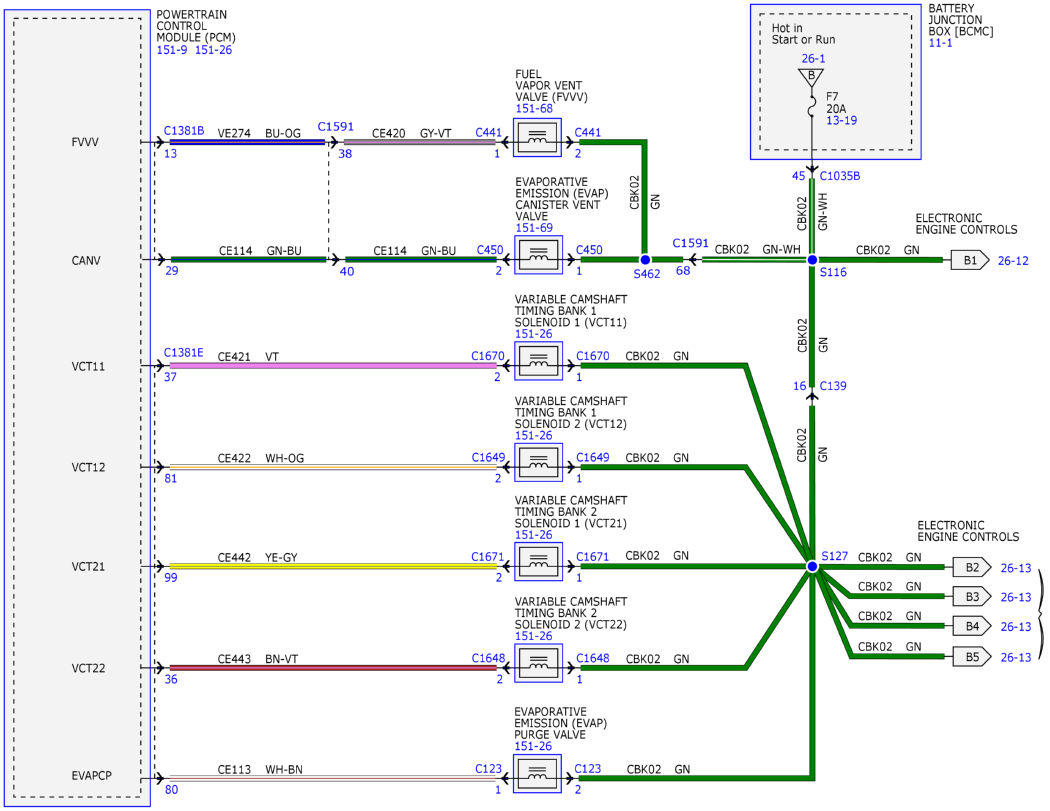

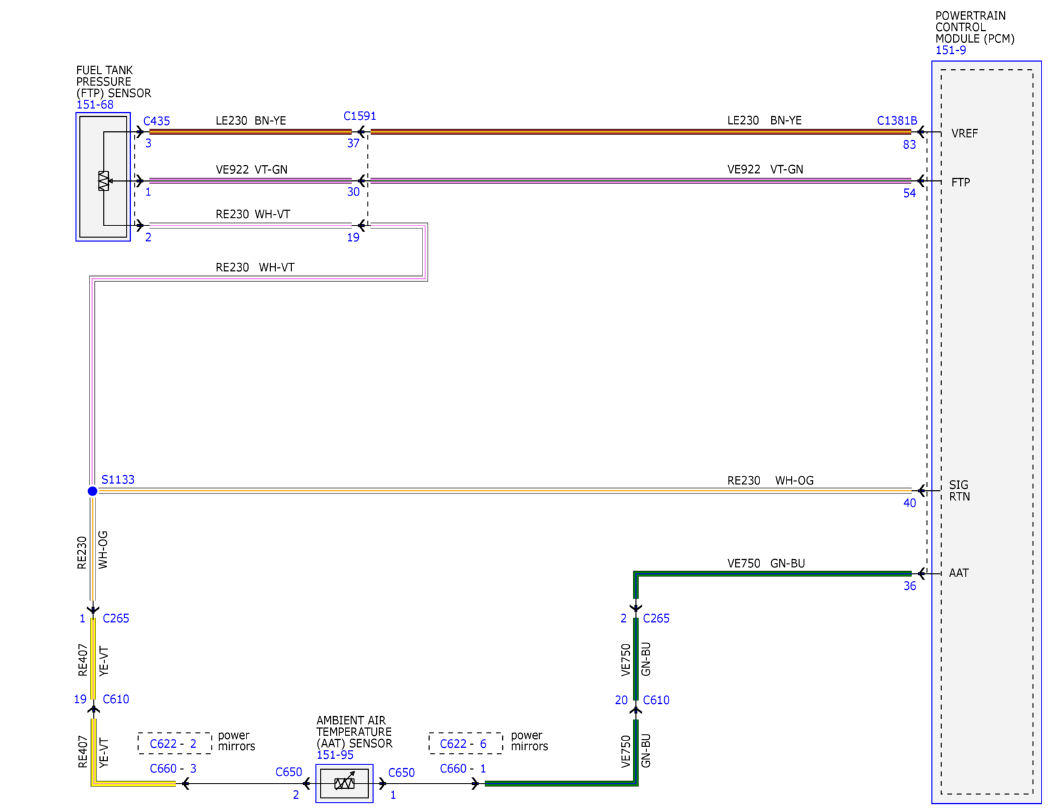

Fig 2: Electronic Engine Controls Wiring Diagram - 5.0L (2 Of 22)
Courtesy of FORD MOTOR COMPANY

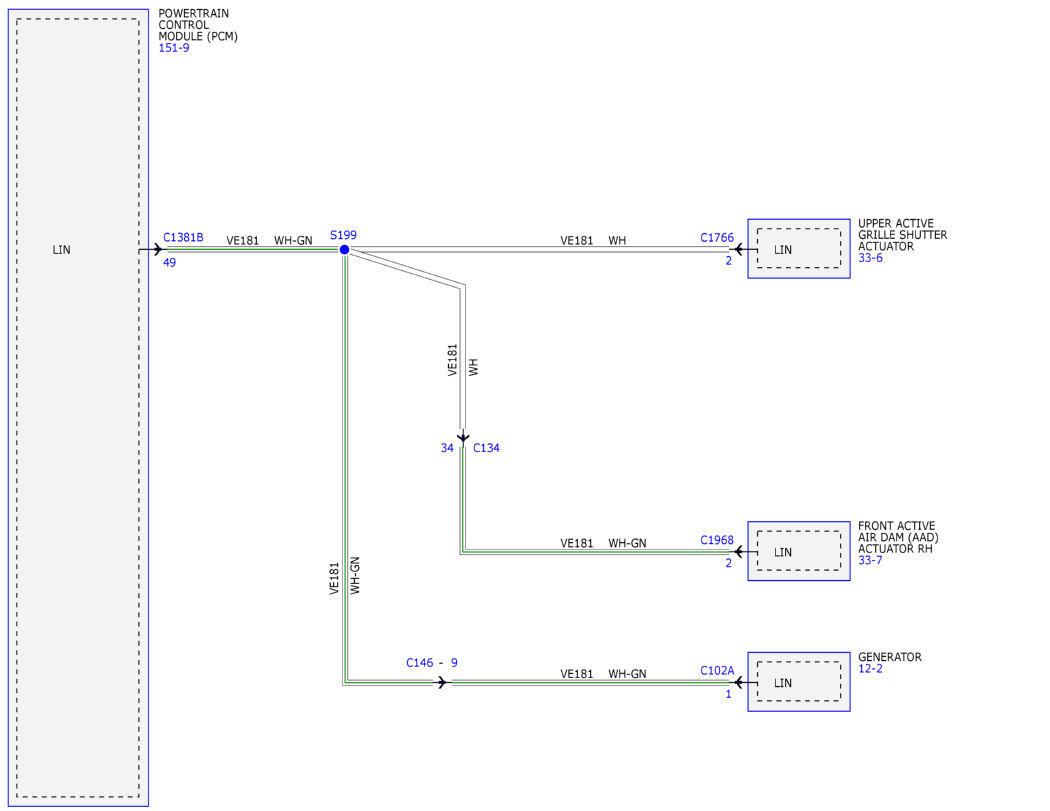

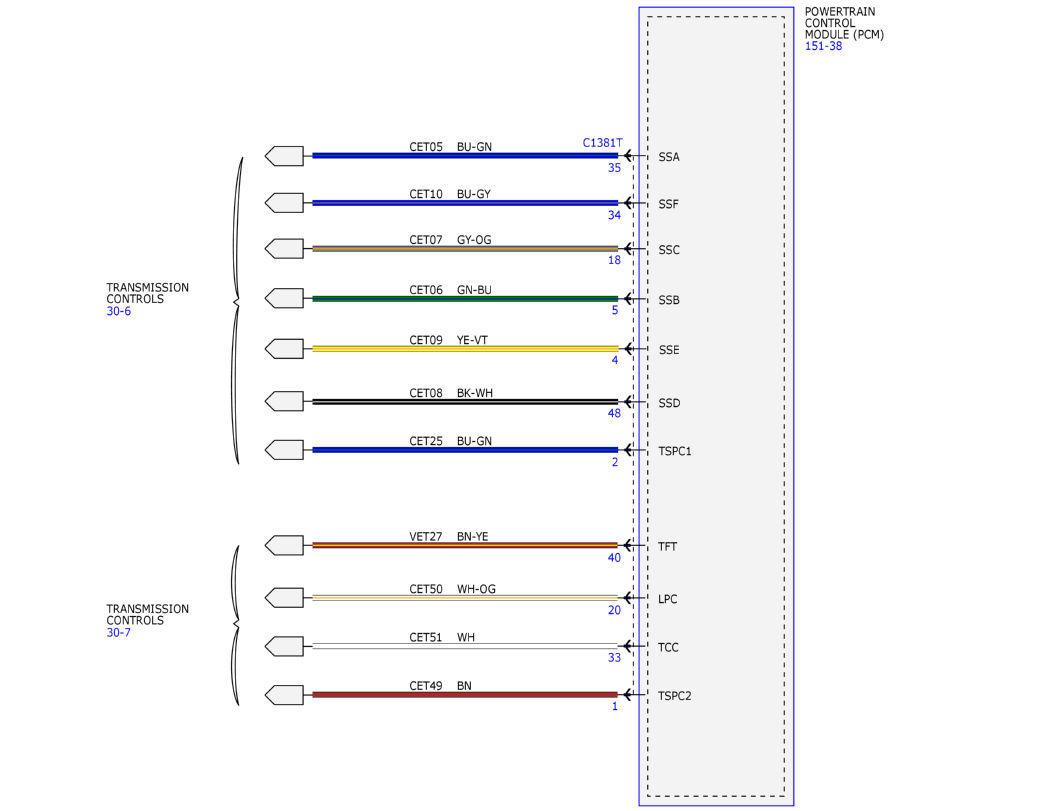

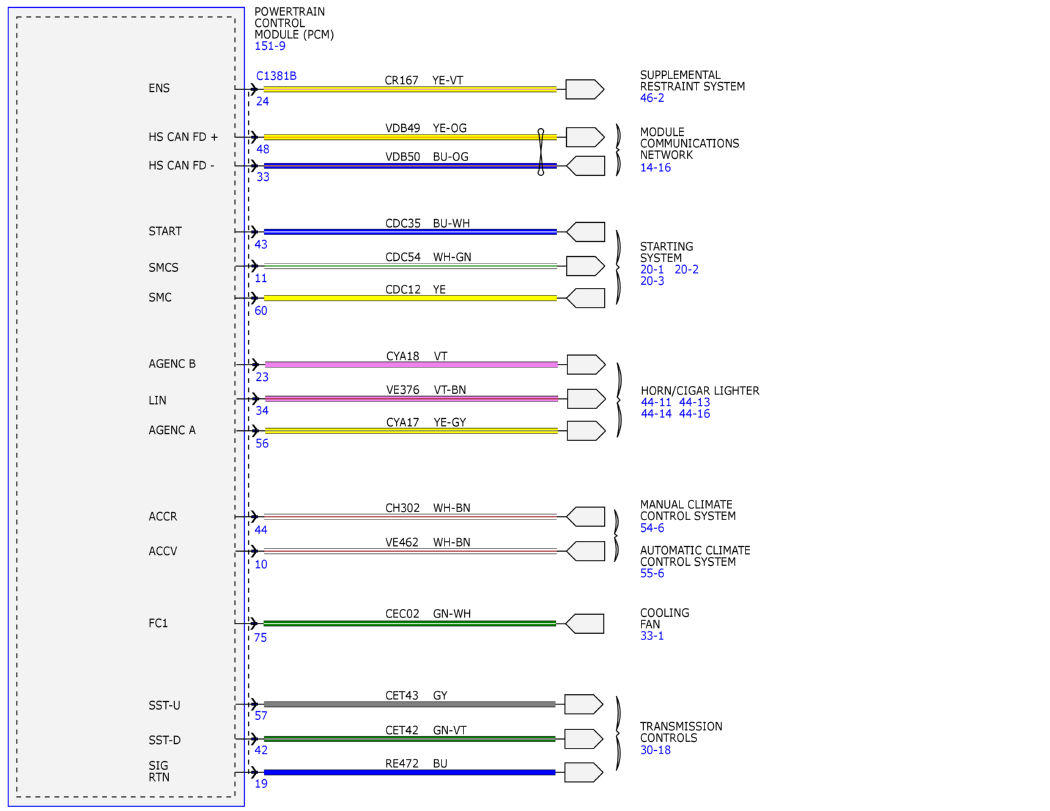

Fig 3: Electronic Engine Controls Wiring Diagram - 5.0L (3 Of 22)
Courtesy of FORD MOTOR COMPANY

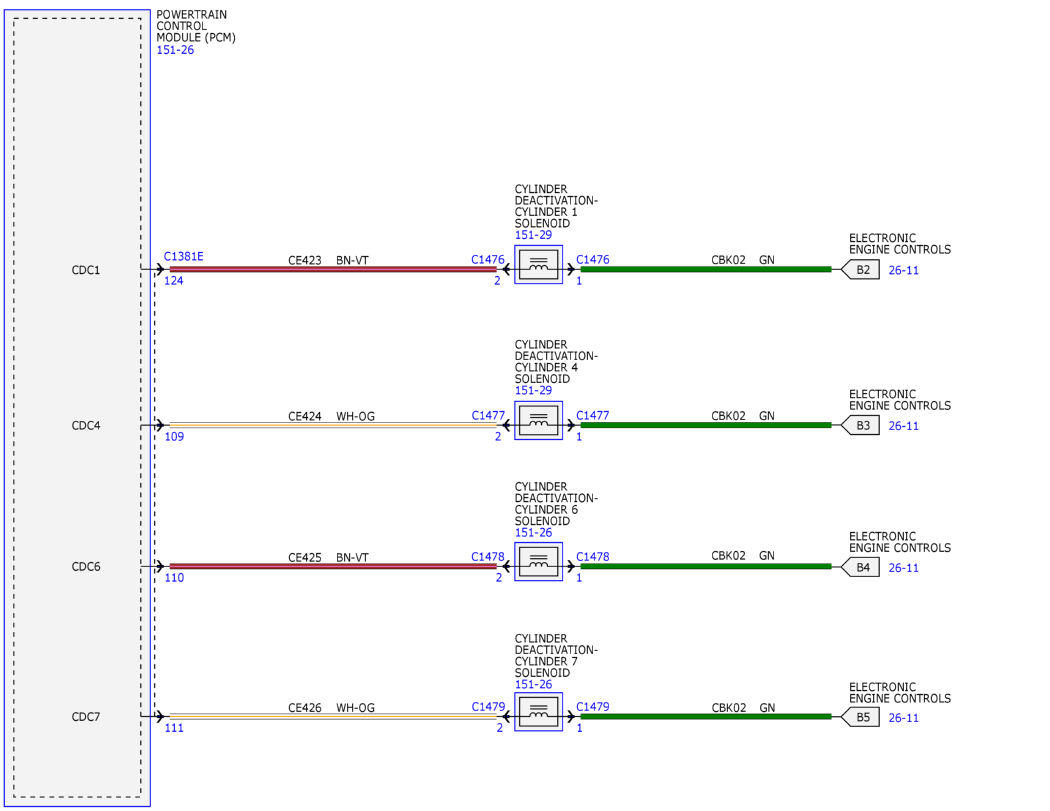

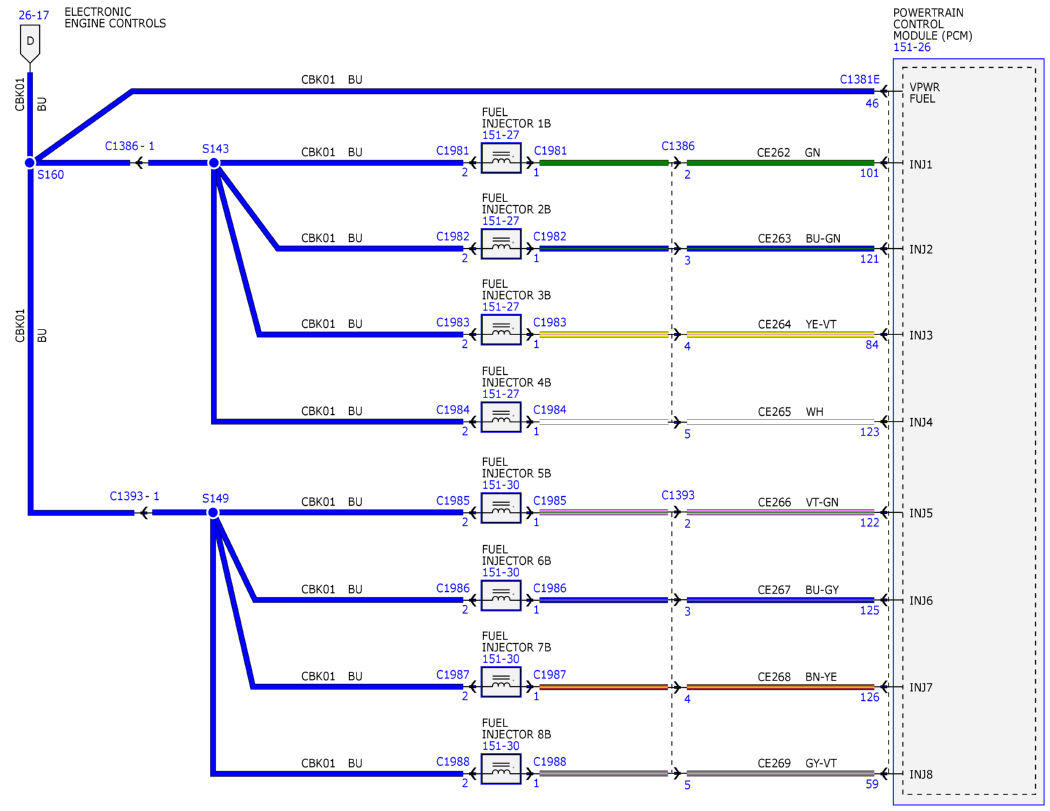

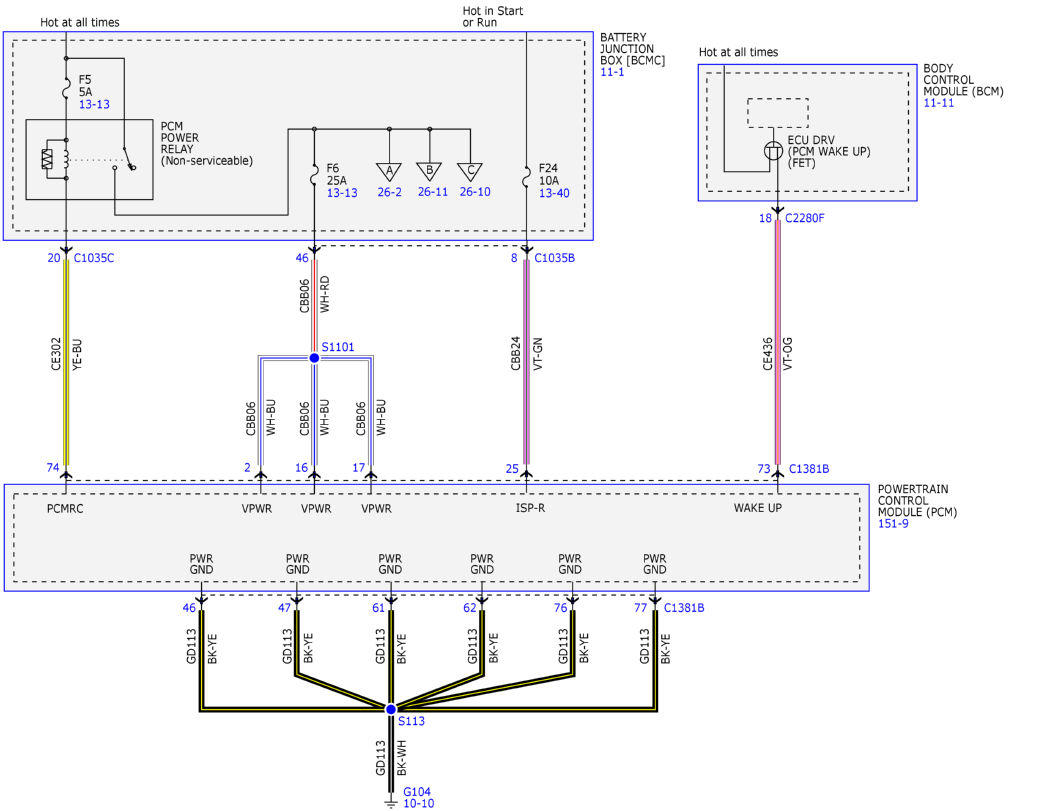

Fig 4: Electronic Engine Controls Wiring Diagram - 5.0L (4 Of 22)
Courtesy of FORD MOTOR COMPANY

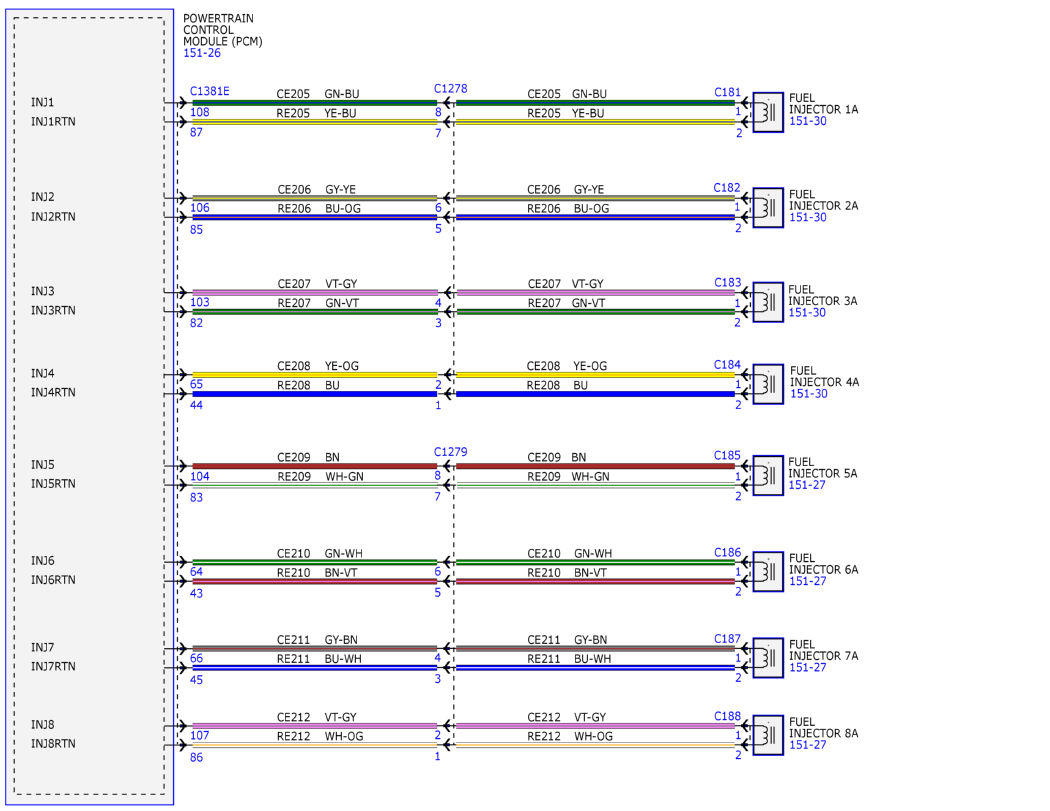

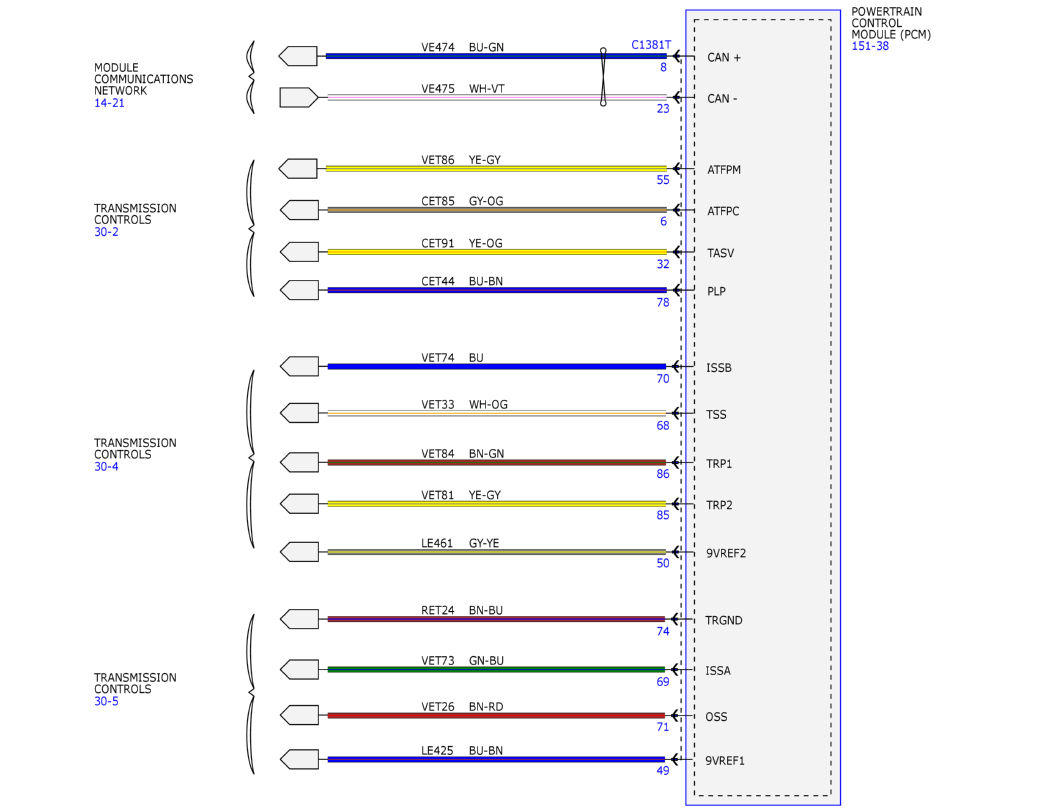

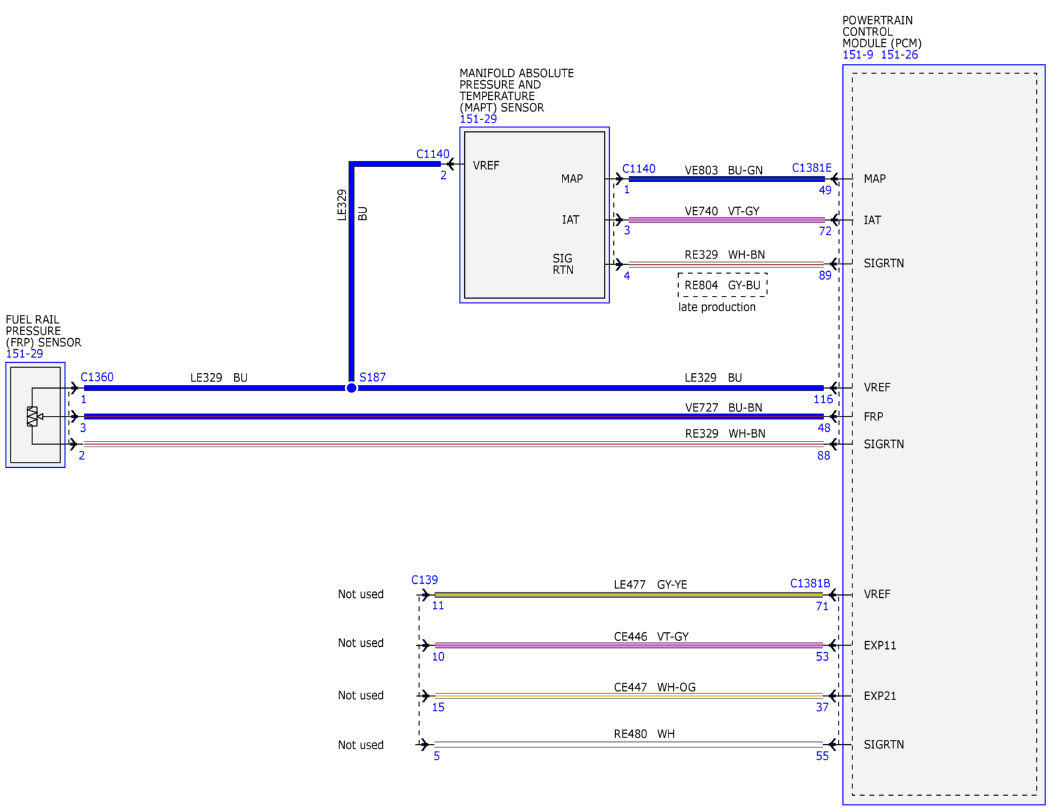

Fig 5: Electronic Engine Controls Wiring Diagram - 5.0L (5 Of 22)
Courtesy of FORD MOTOR COMPANY

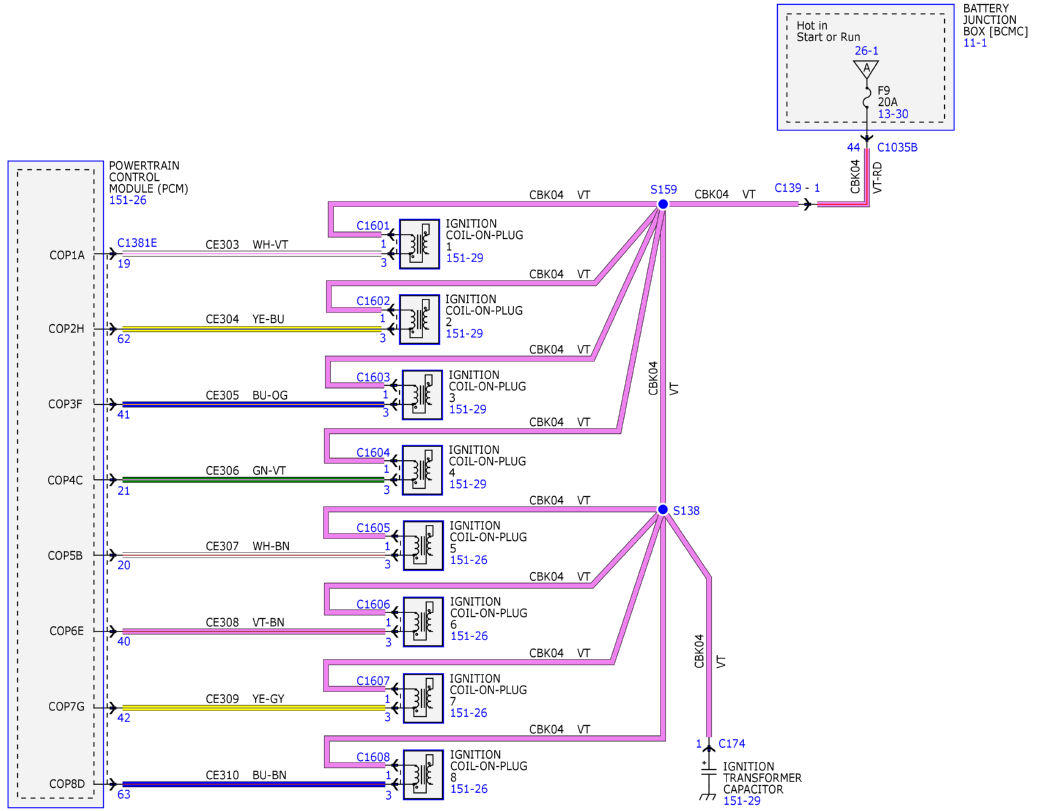

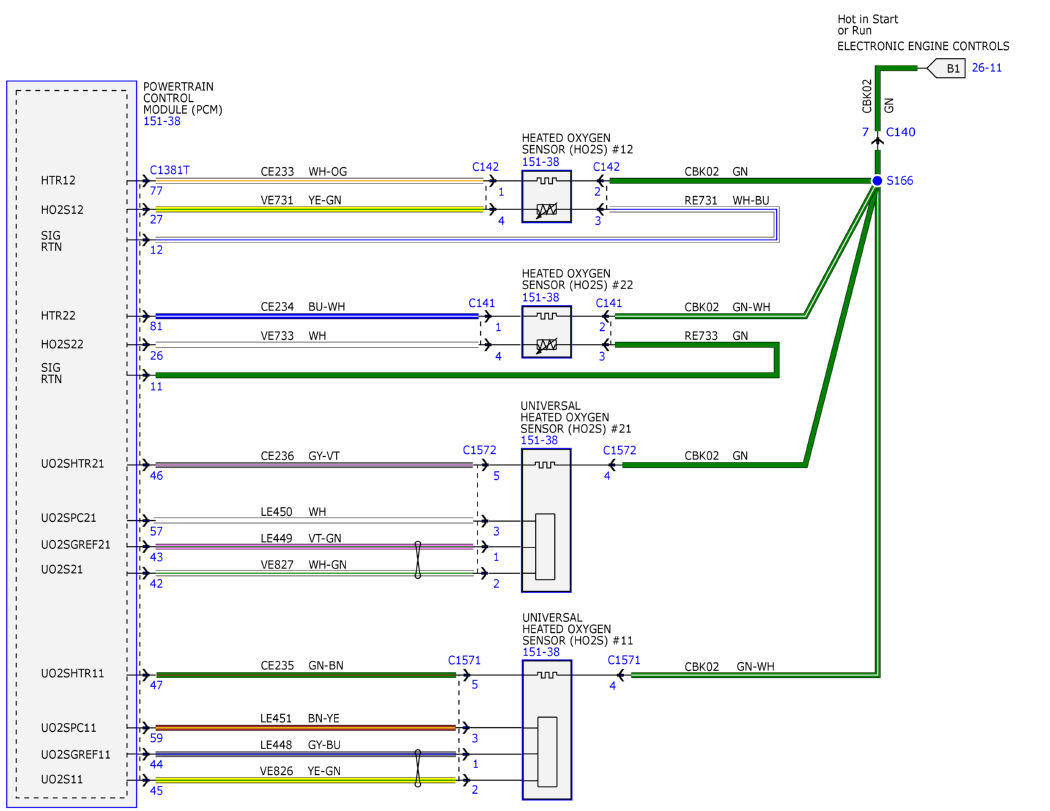

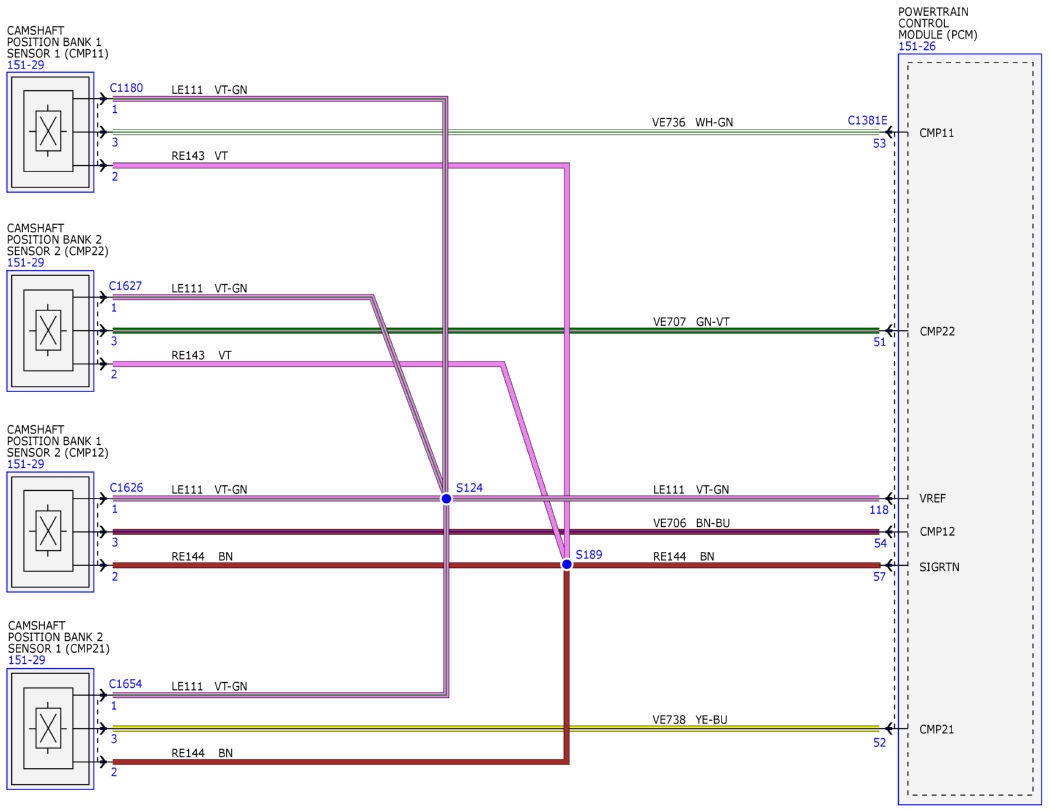

Fig 6: Electronic Engine Controls Wiring Diagram - 5.0L (6 Of 22)
Courtesy of FORD MOTOR COMPANY

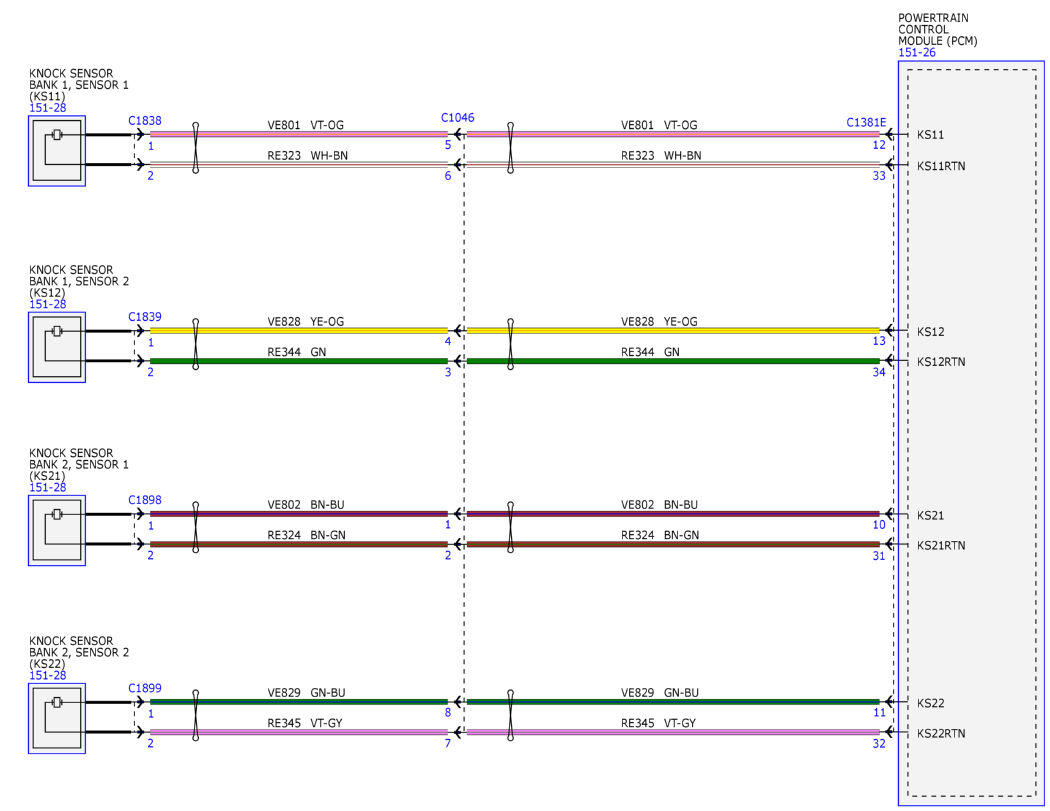

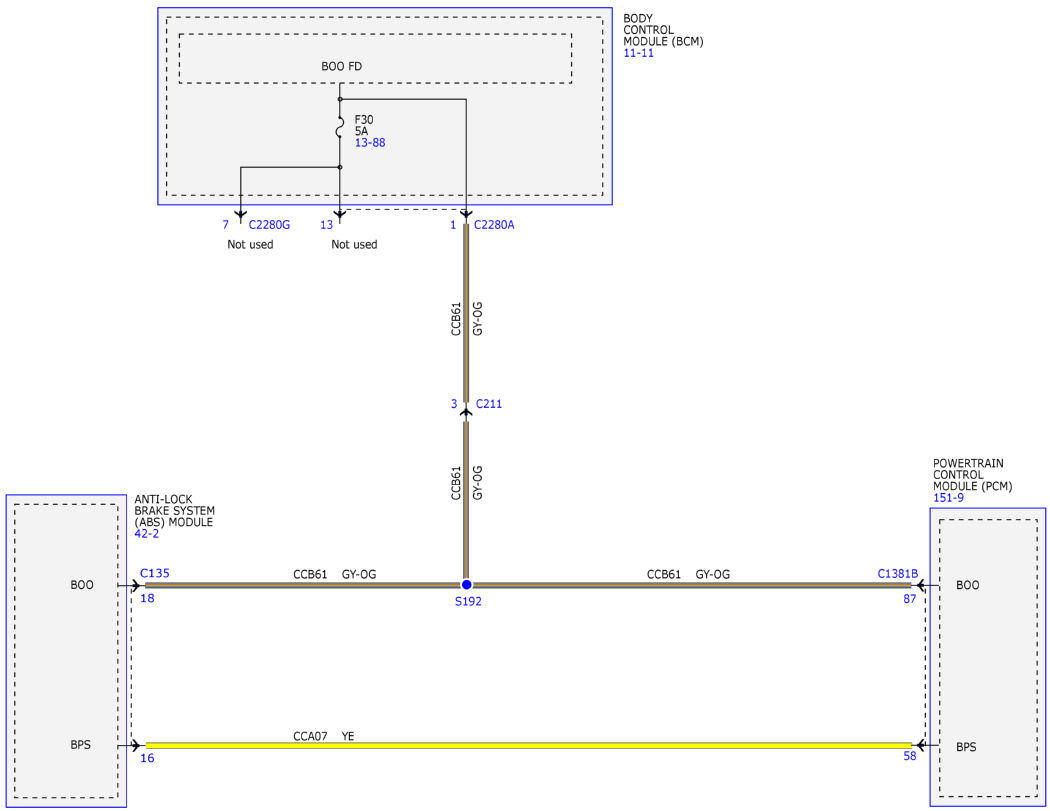

Fig 7: Electronic Engine Controls Wiring Diagram - 5.0L (7 Of 22)
Courtesy of FORD MOTOR COMPANY

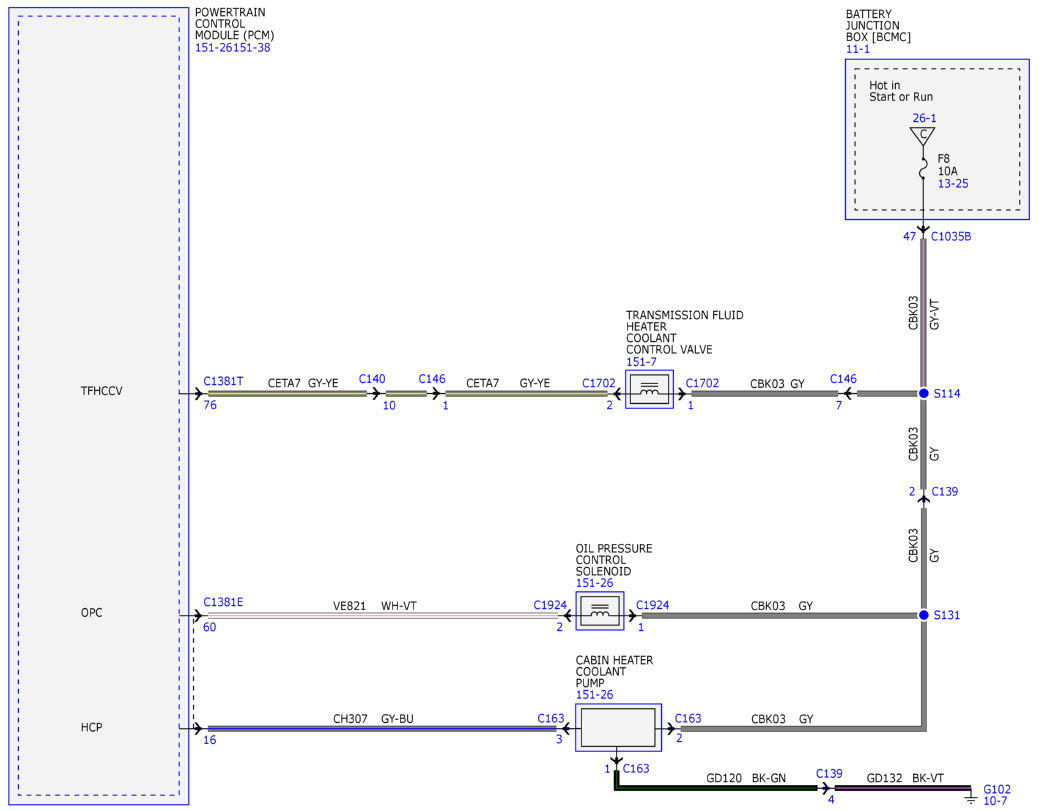

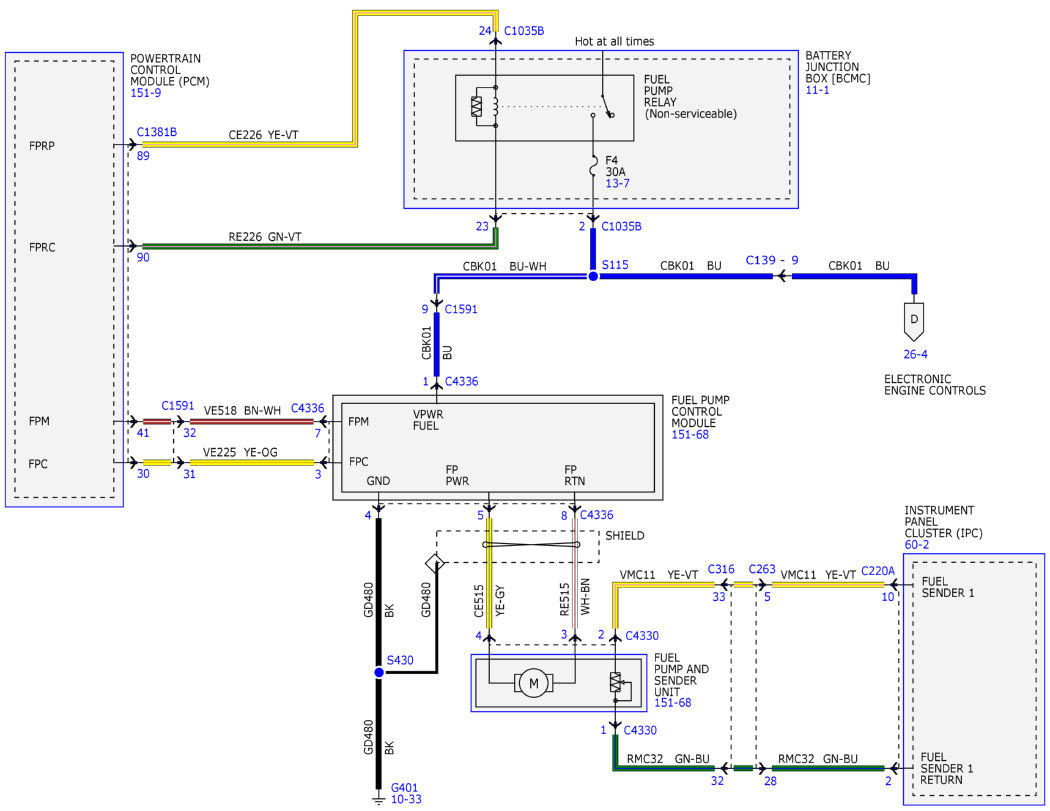

Fig 8: Electronic Engine Controls Wiring Diagram - 5.0L (8 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 9: Electronic Engine Controls Wiring Diagram - 5.0L (9 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 10: Electronic Engine Controls Wiring Diagram - 5.0L (10 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 11: Electronic Engine Controls Wiring Diagram - 5.0L (11 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 12: Electronic Engine Controls Wiring Diagram - 5.0L (12 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 13: Electronic Engine Controls Wiring Diagram - 5.0L (13 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 14: Electronic Engine Controls Wiring Diagram - 5.0L (14 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 15: Electronic Engine Controls Wiring Diagram - 5.0L (15 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 16: Electronic Engine Controls Wiring Diagram - 5.0L (16 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 17: Electronic Engine Controls Wiring Diagram - 5.0L (17 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 18: Electronic Engine Controls Wiring Diagram - 5.0L (18 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 19: Electronic Engine Controls Wiring Diagram - 5.0L (19 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 20: Electronic Engine Controls Wiring Diagram - 5.0L (20 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 21: Electronic Engine Controls Wiring Diagram - 5.0L (21 Of 22)
Courtesy of FORD MOTOR COMPANY
Fig 22: Electronic Engine Controls Wiring Diagram - 5.0L (22 Of 22)
Courtesy of FORD MOTOR COMPANY
