Section 553 (OEM Wiring Diagrams)
>>
Electronic Engine Controls - 3.5L
Electronic Engine Controls - 3.5L
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

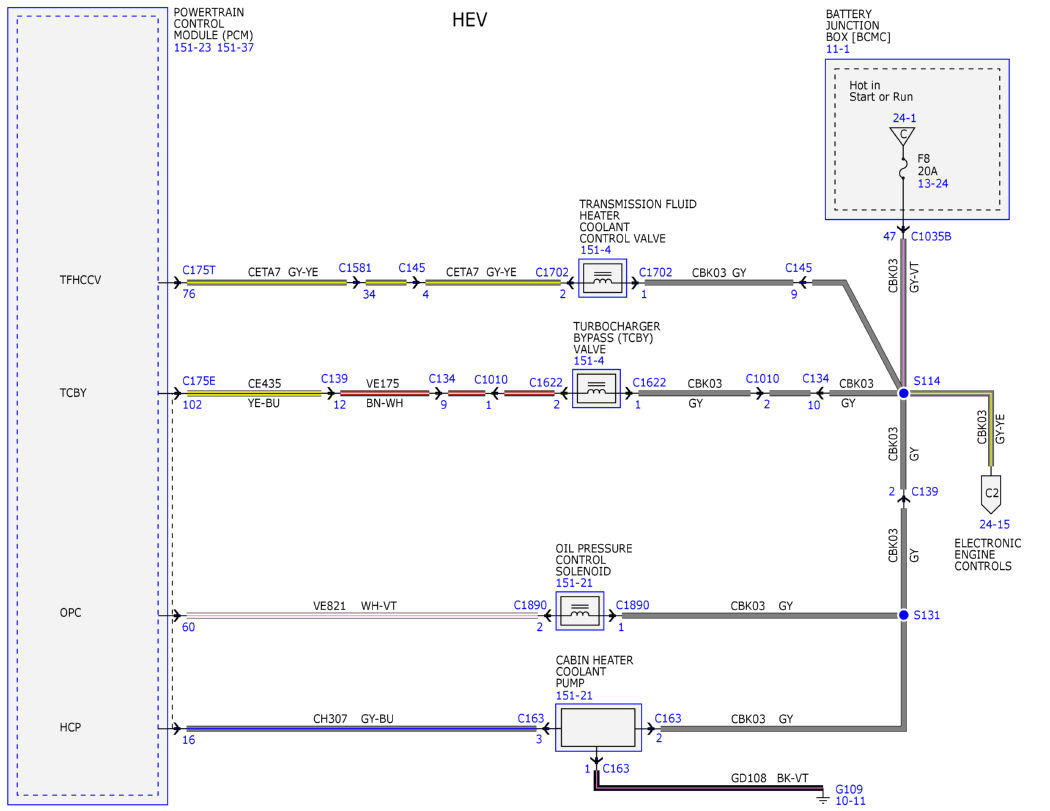

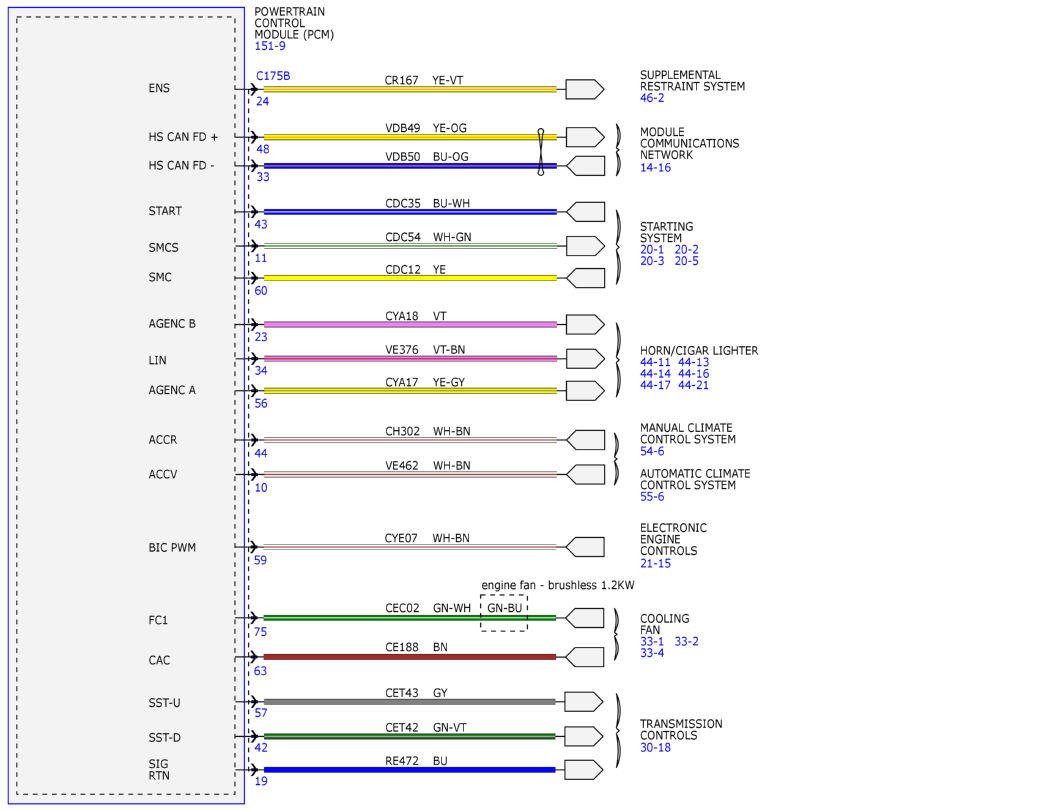

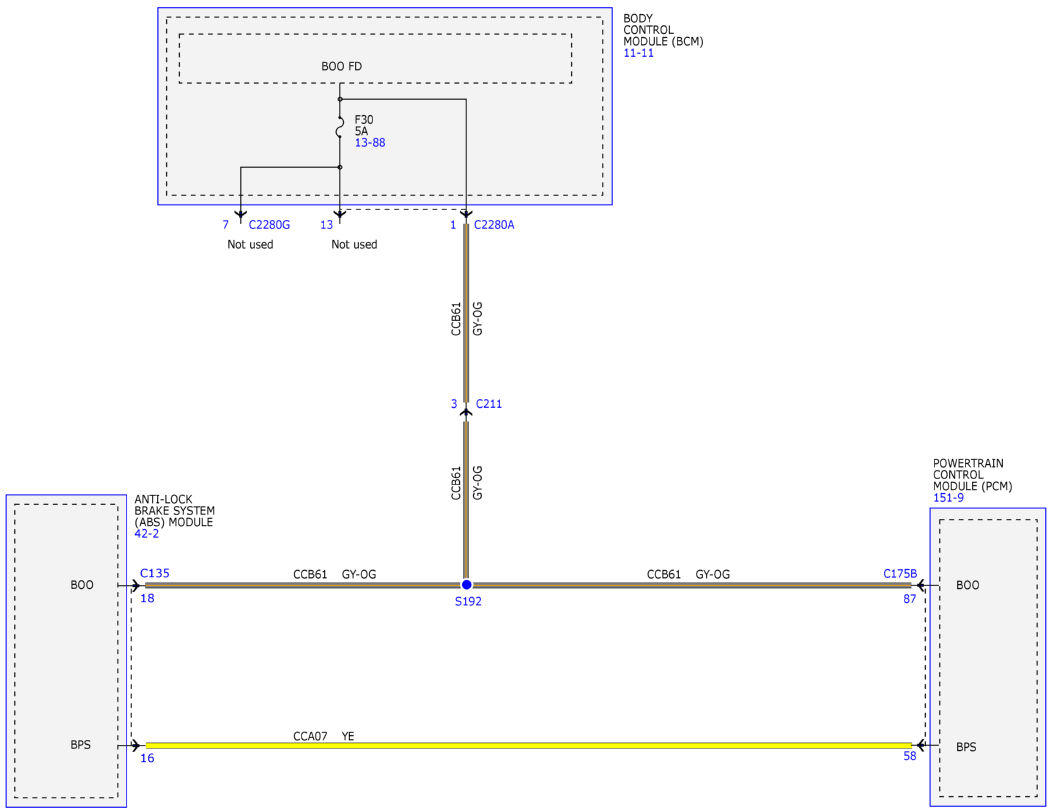

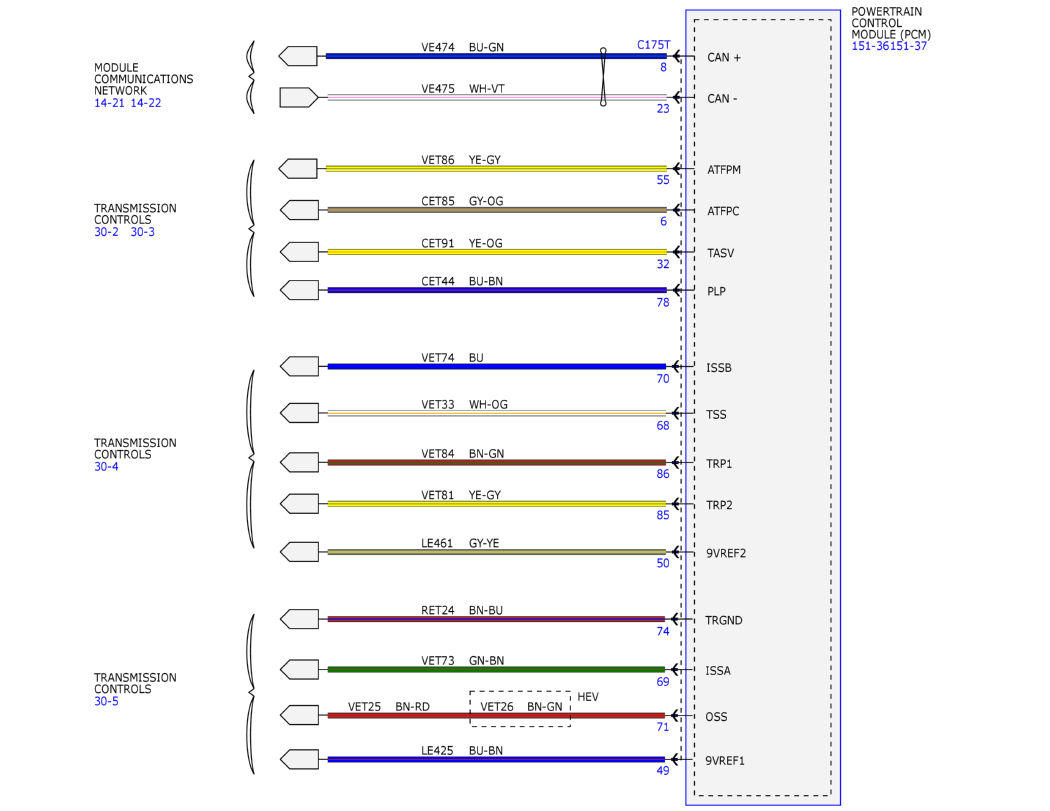

Fig 1: Electronic Engine Controls Wiring Diagram - 3.5L (1 Of 29)
Courtesy of FORD MOTOR COMPANY

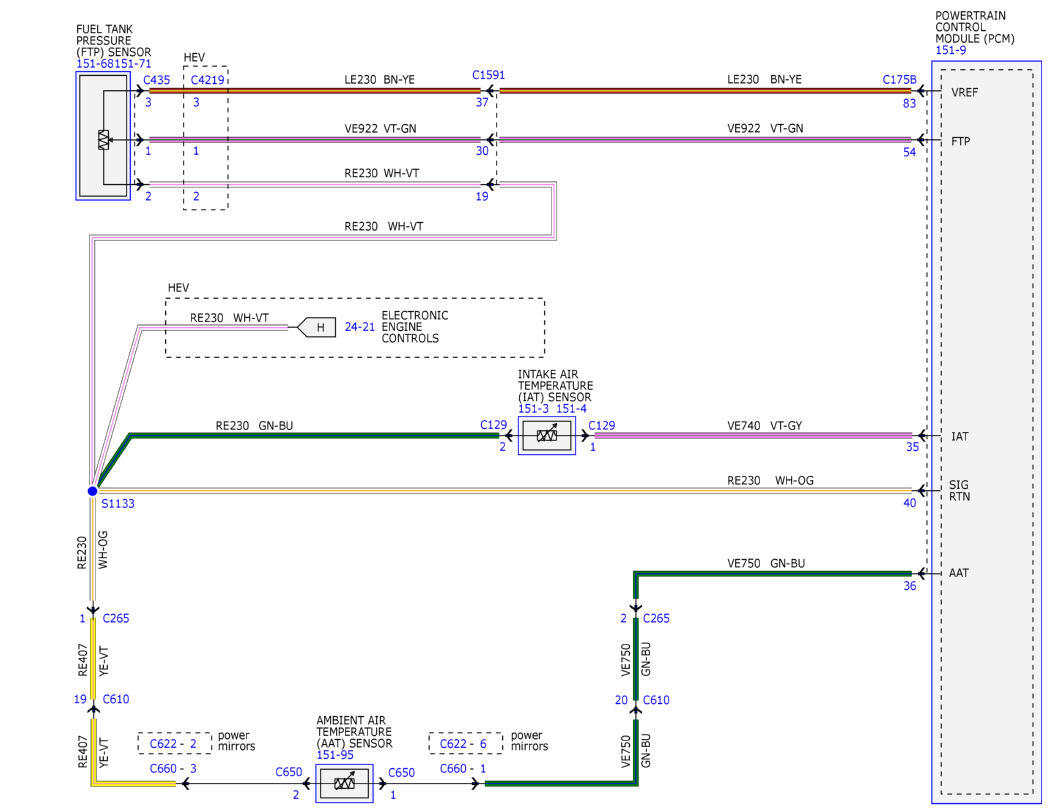

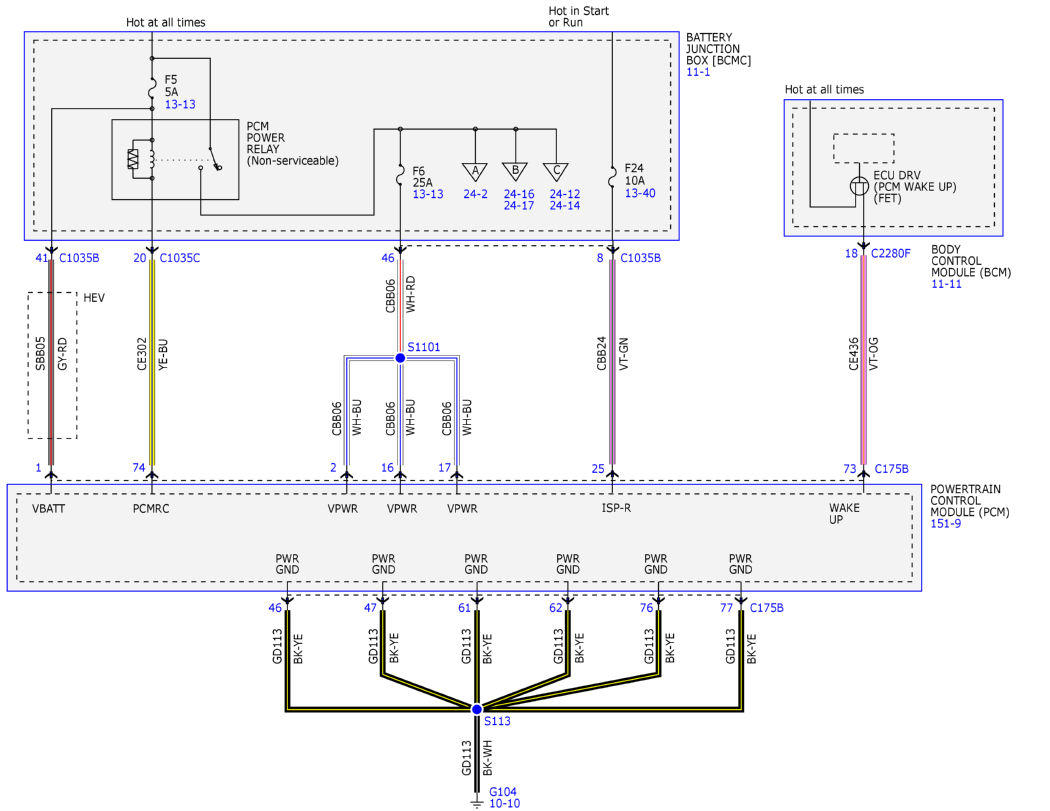

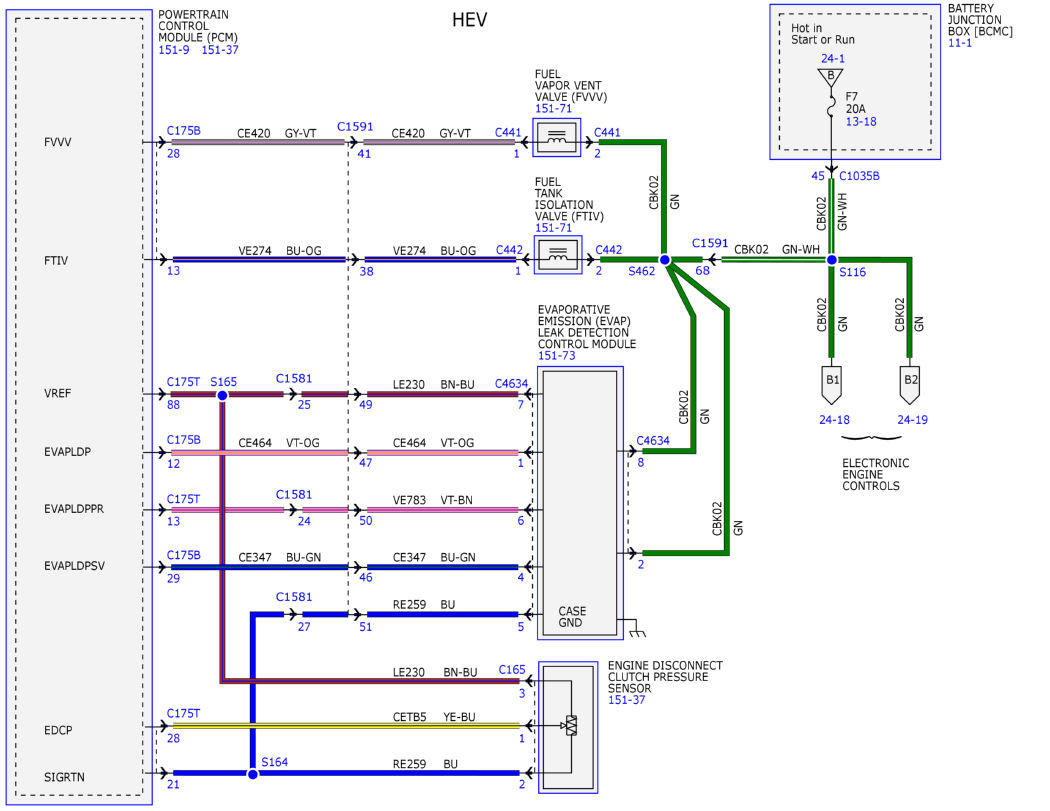

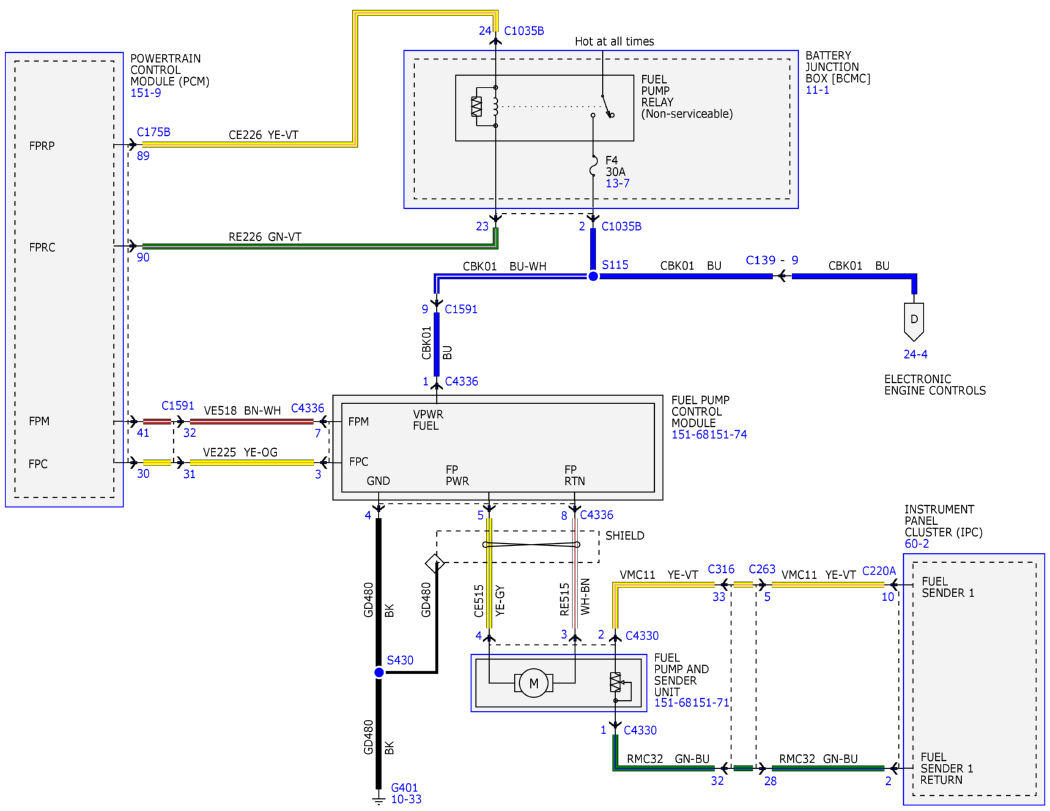

Fig 2: Electronic Engine Controls Wiring Diagram - 3.5L (2 Of 29)
Courtesy of FORD MOTOR COMPANY

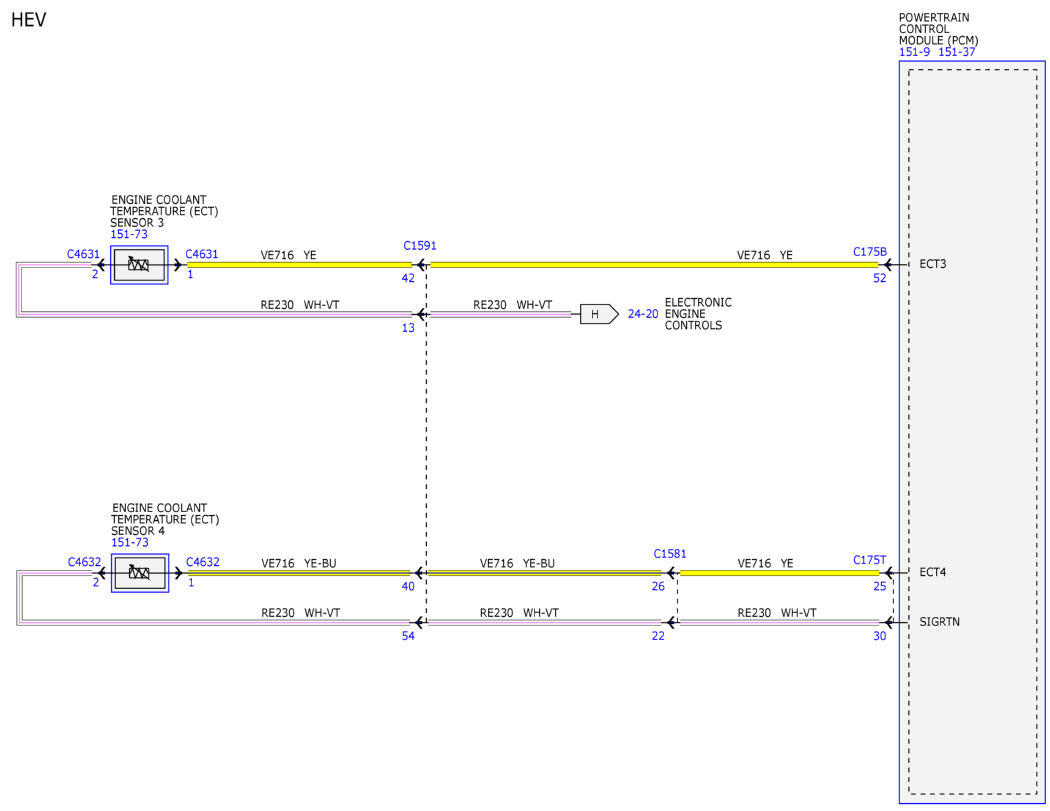

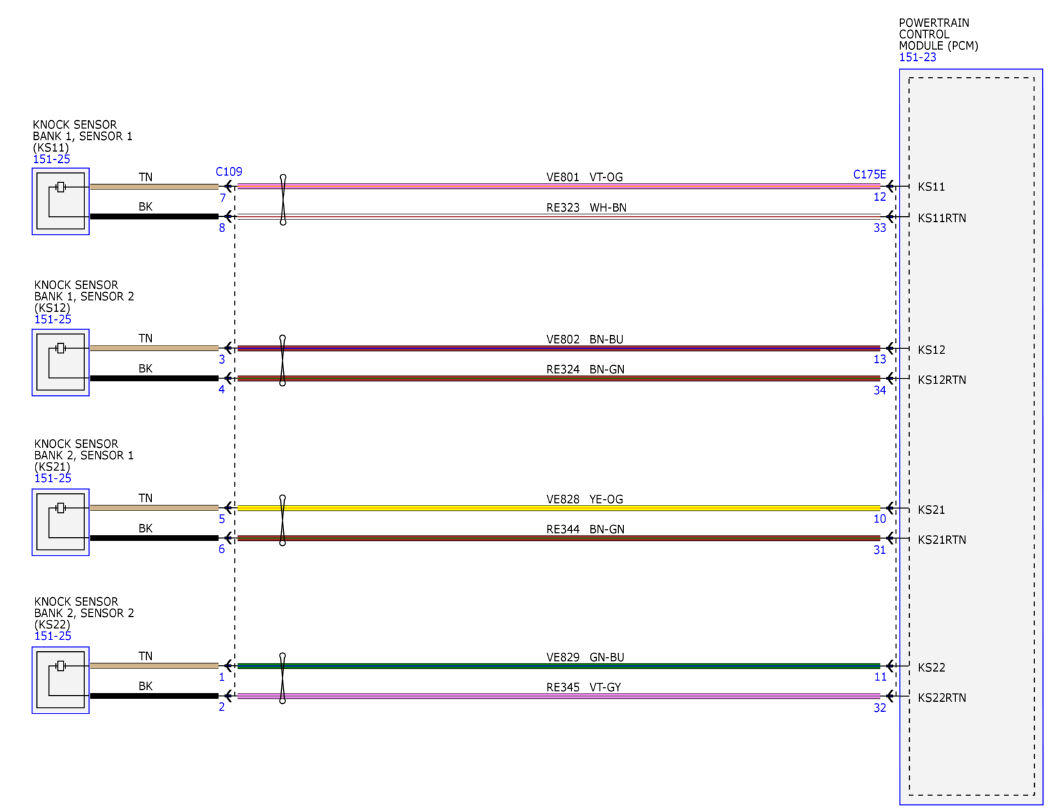

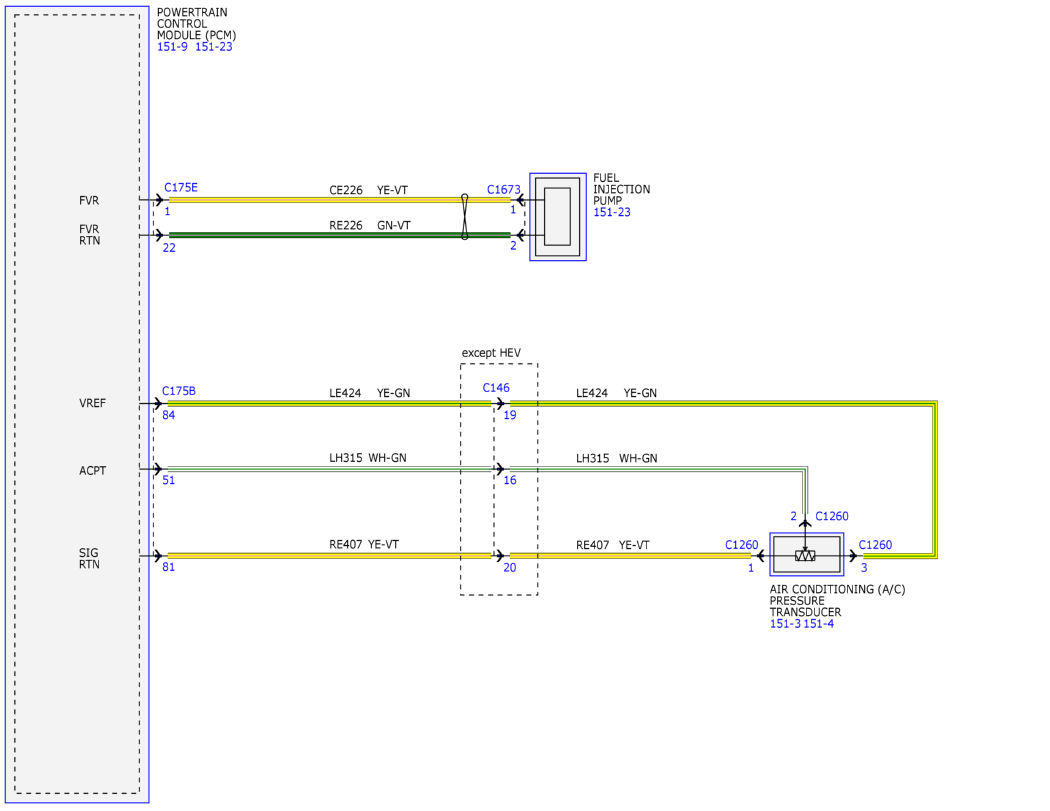

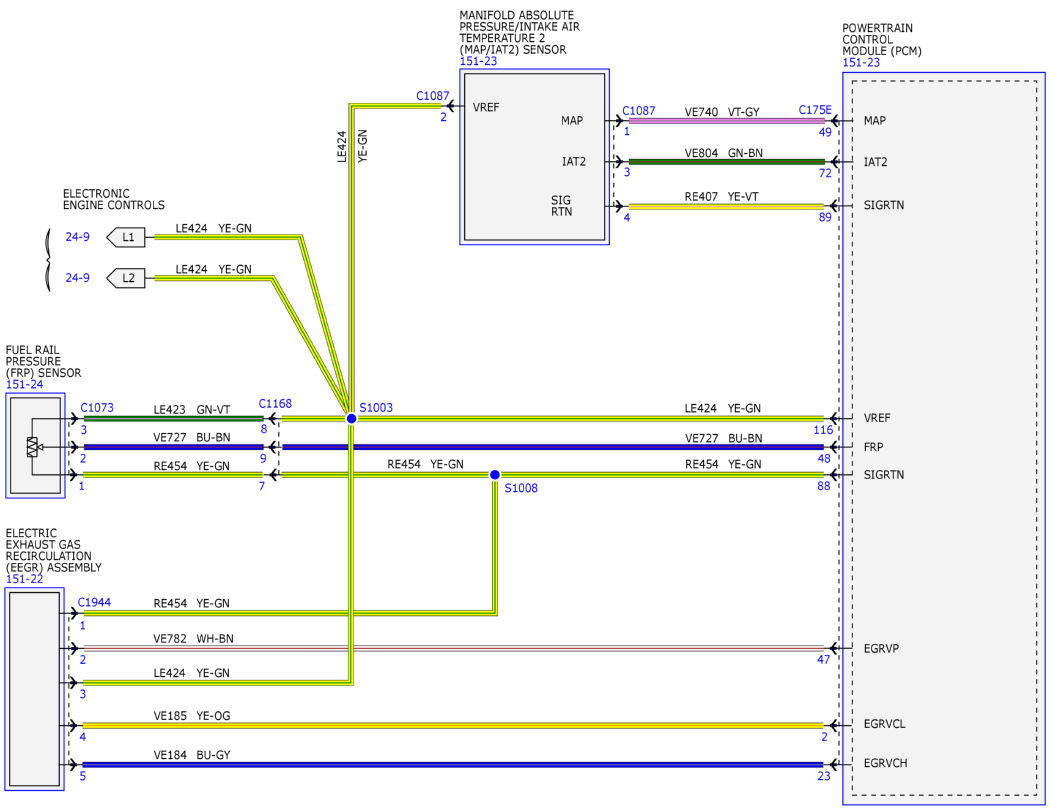

Fig 3: Electronic Engine Controls Wiring Diagram - 3.5L (3 Of 29)
Courtesy of FORD MOTOR COMPANY

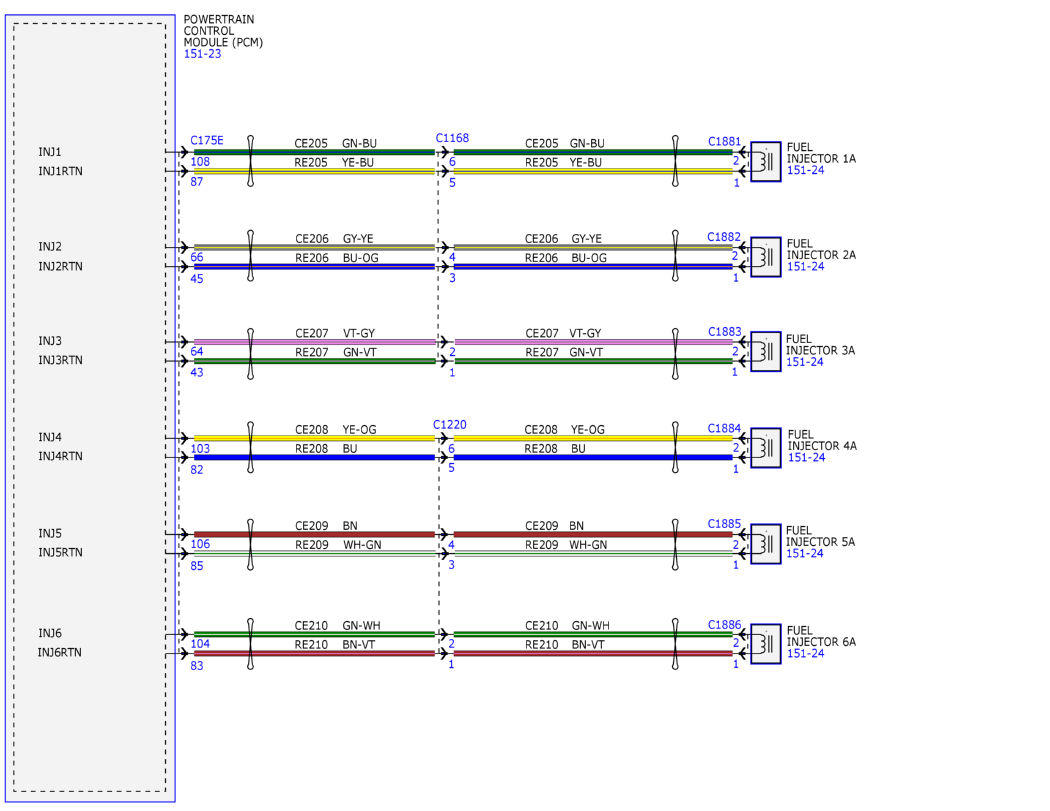

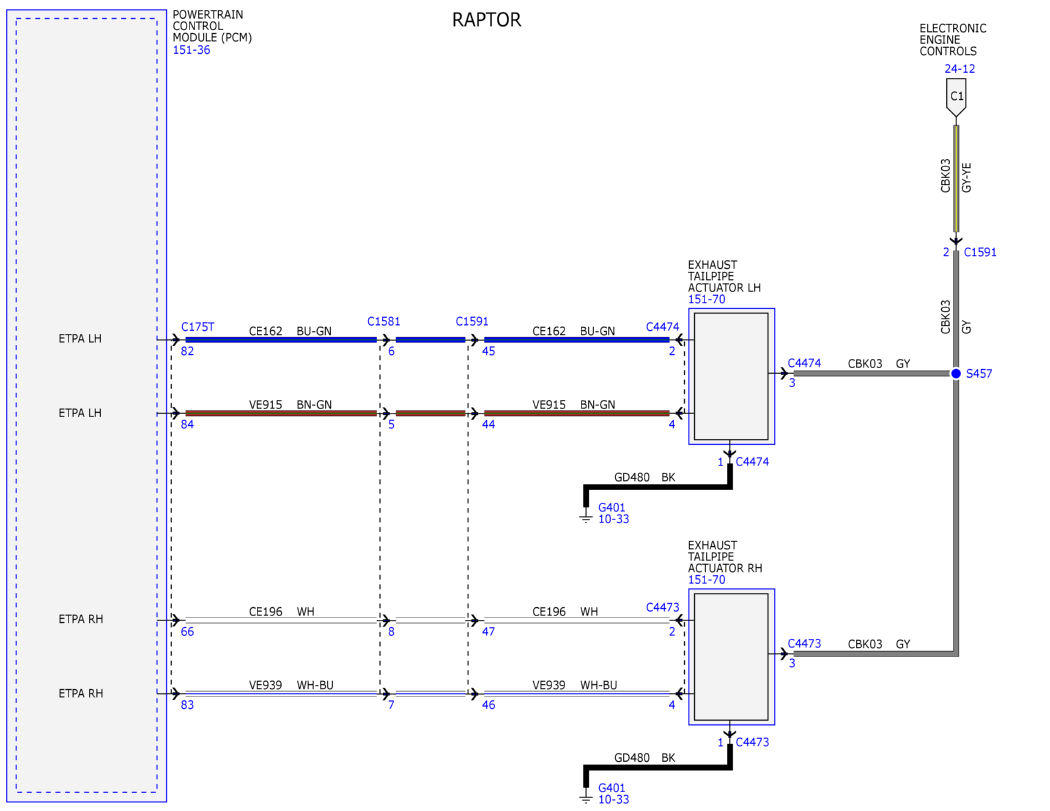

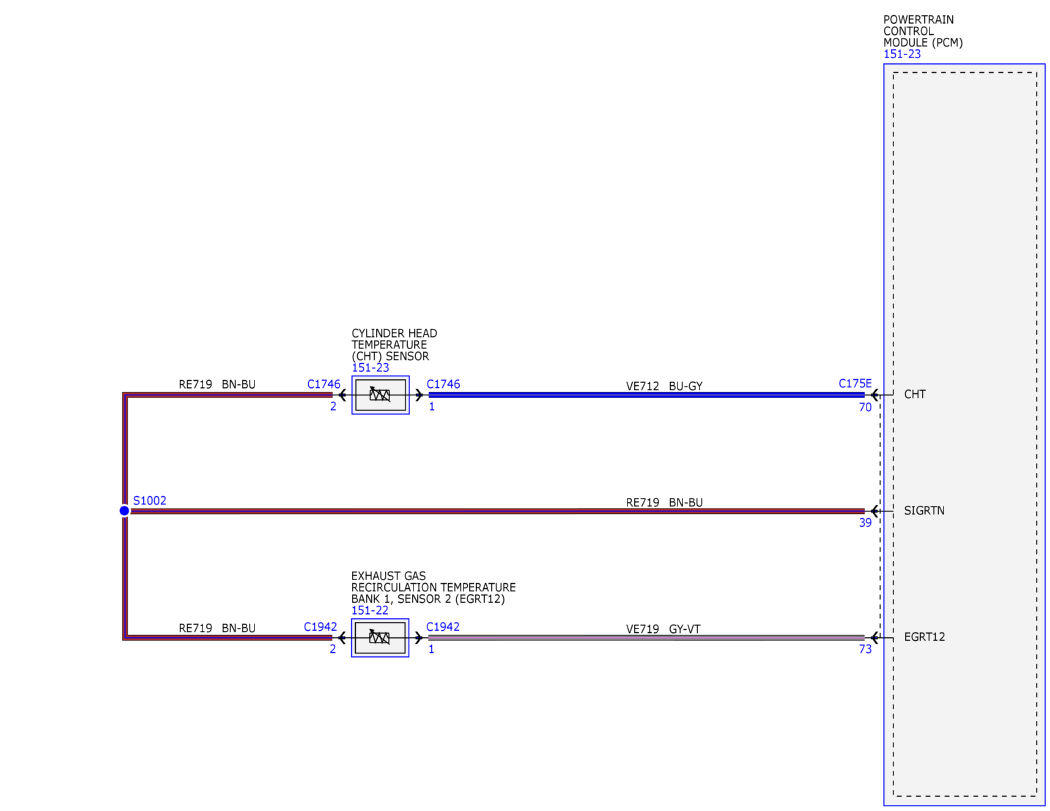

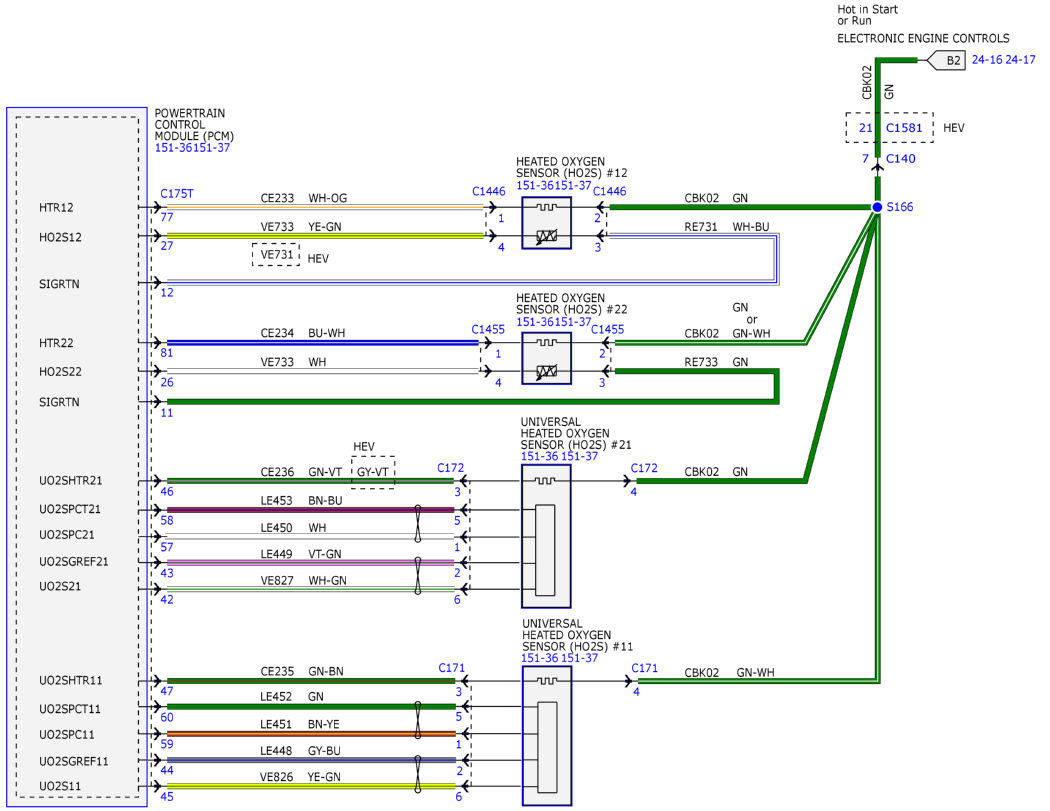

Fig 4: Electronic Engine Controls Wiring Diagram - 3.5L (4 Of 29)
Courtesy of FORD MOTOR COMPANY

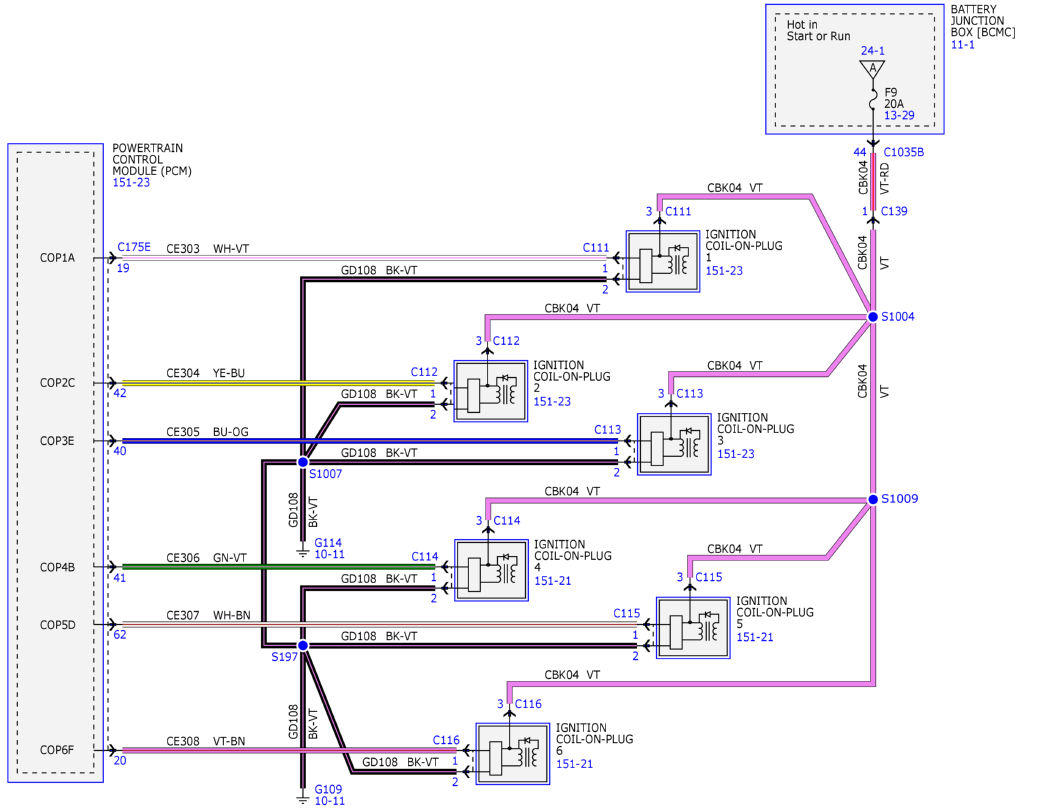

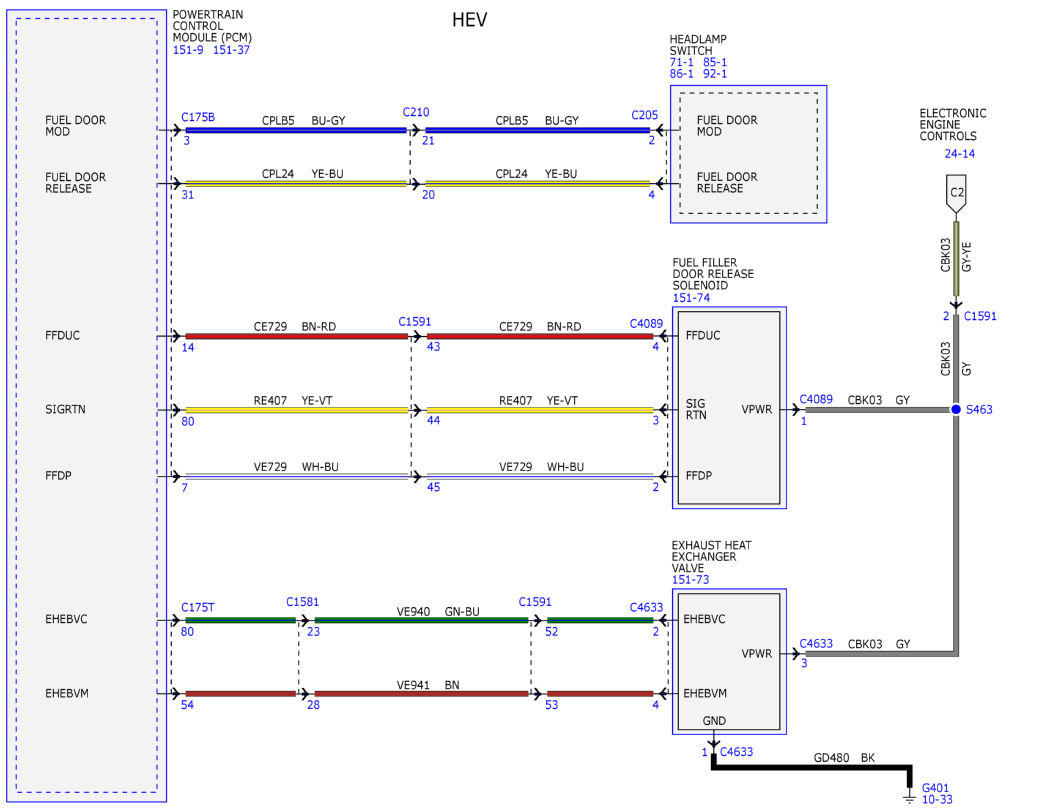

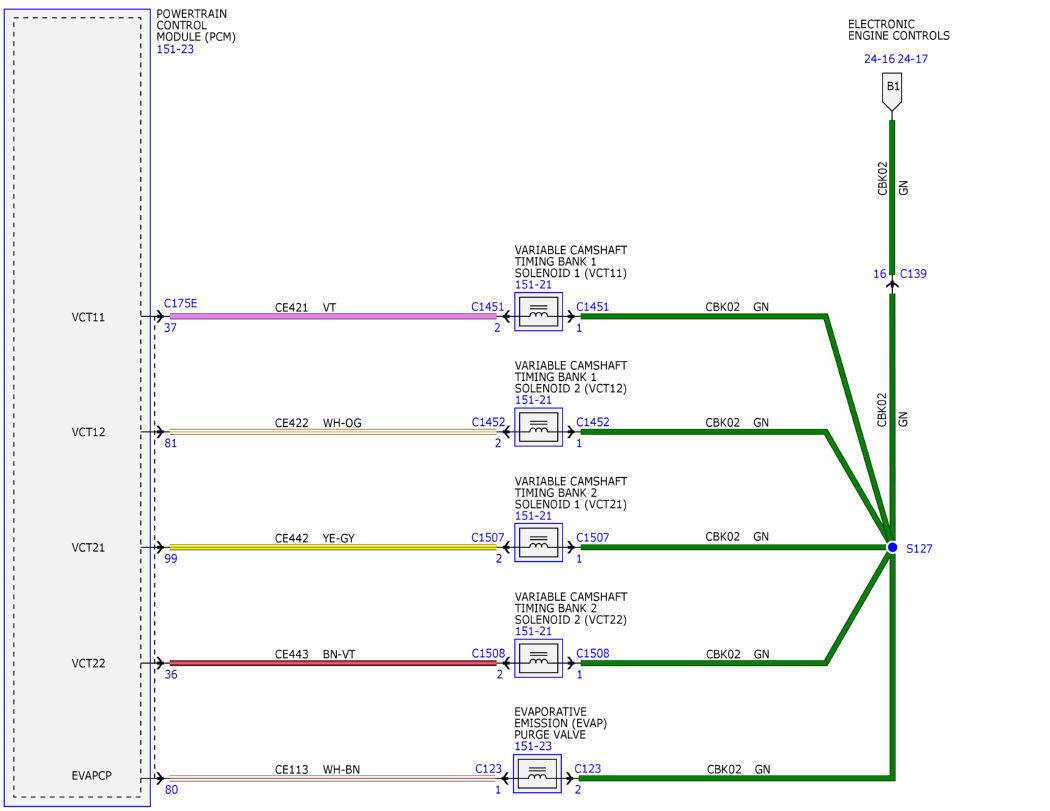

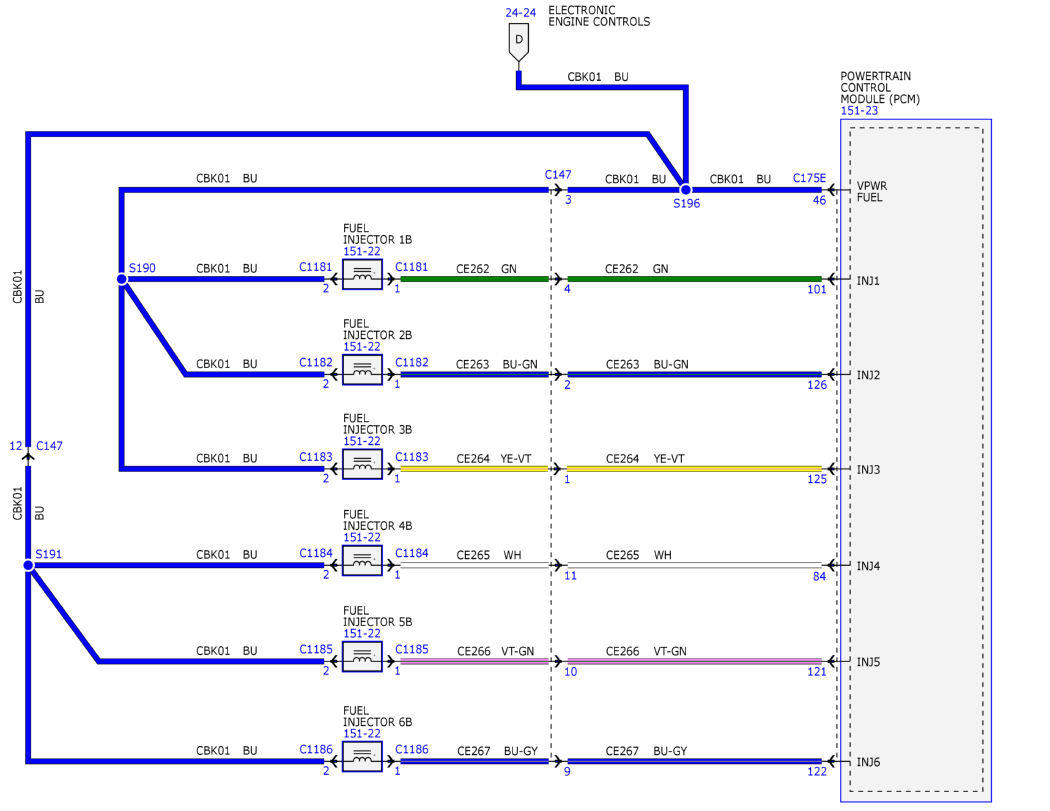

Fig 5: Electronic Engine Controls Wiring Diagram - 3.5L (5 Of 29)
Courtesy of FORD MOTOR COMPANY

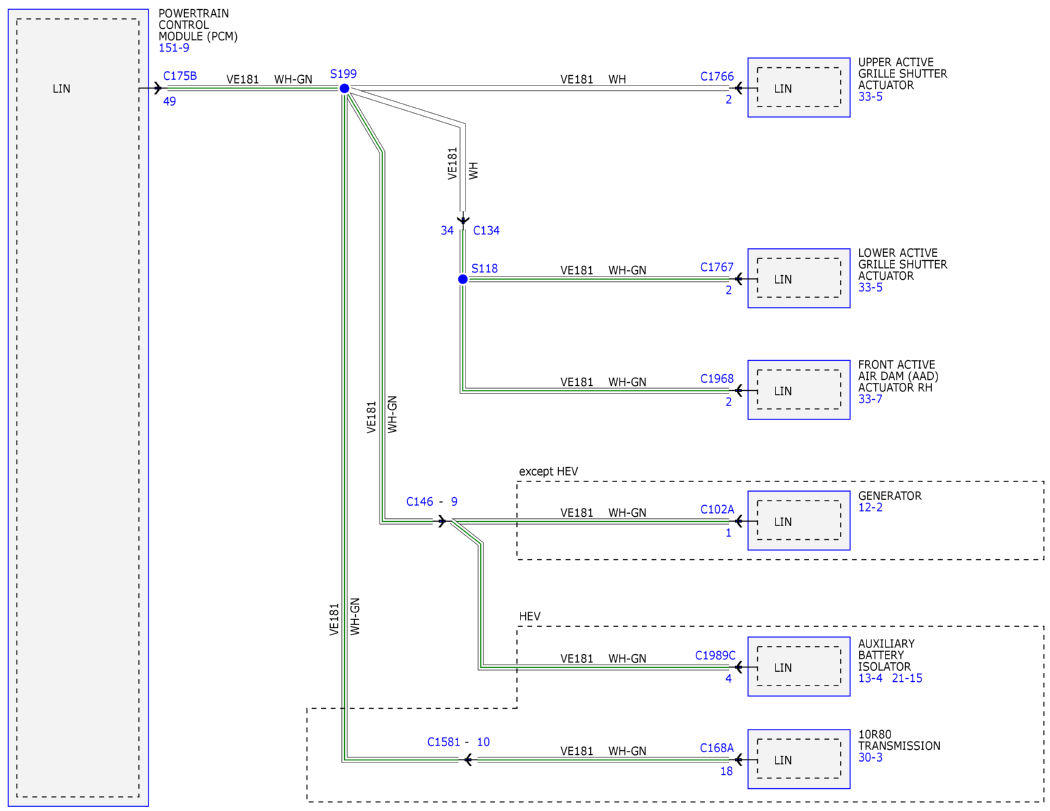

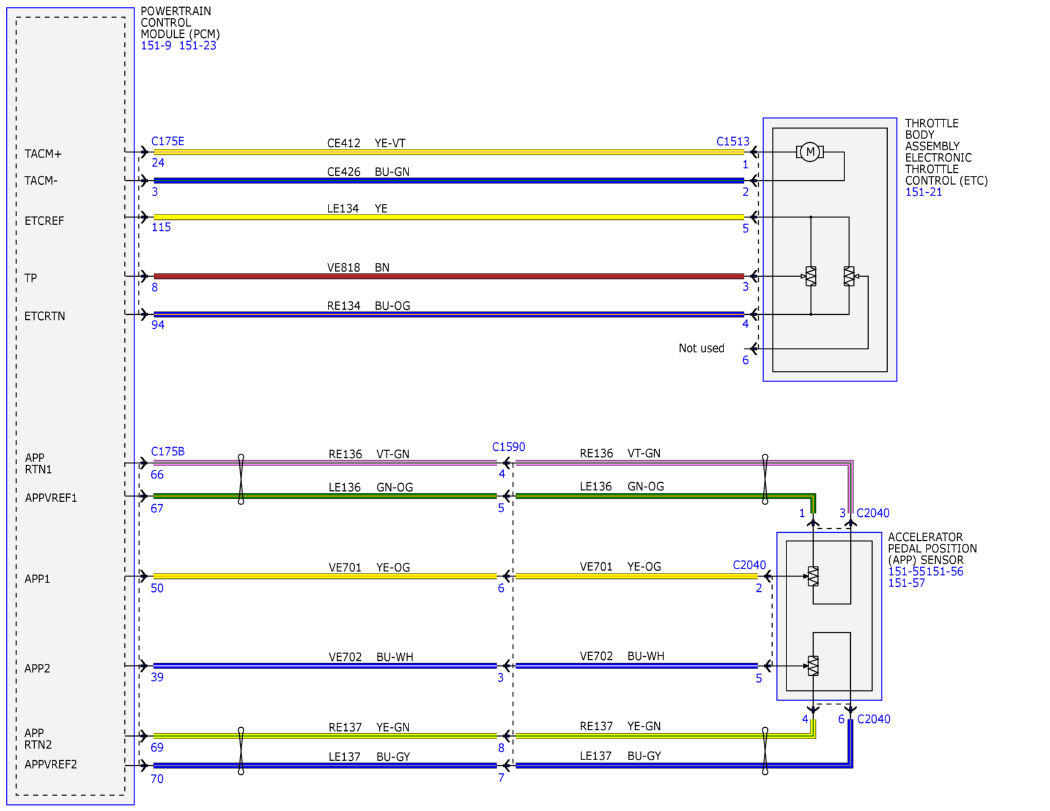

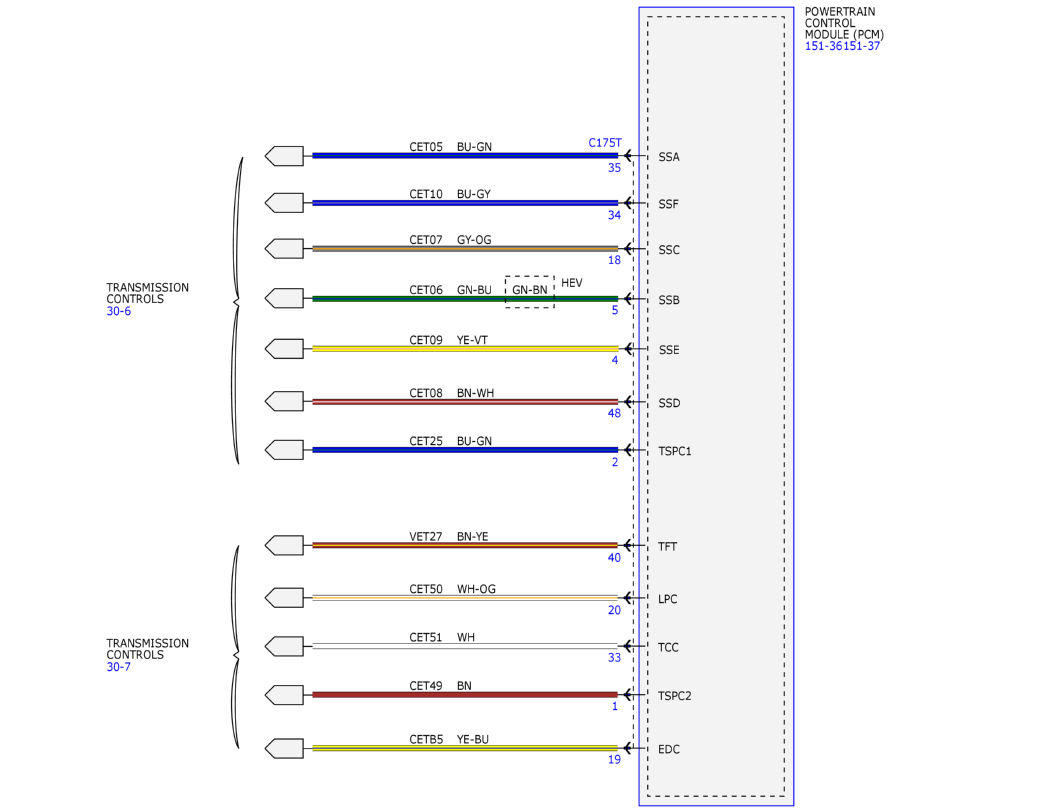

Fig 6: Electronic Engine Controls Wiring Diagram - 3.5L (6 Of 29)
Courtesy of FORD MOTOR COMPANY

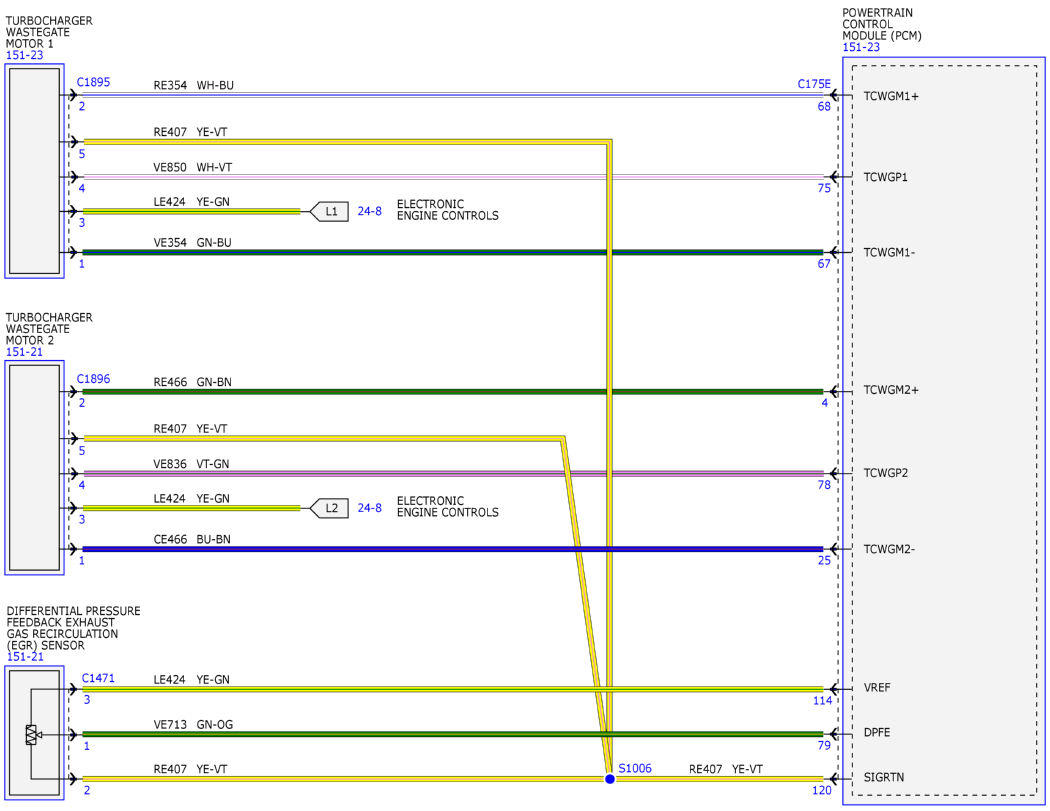

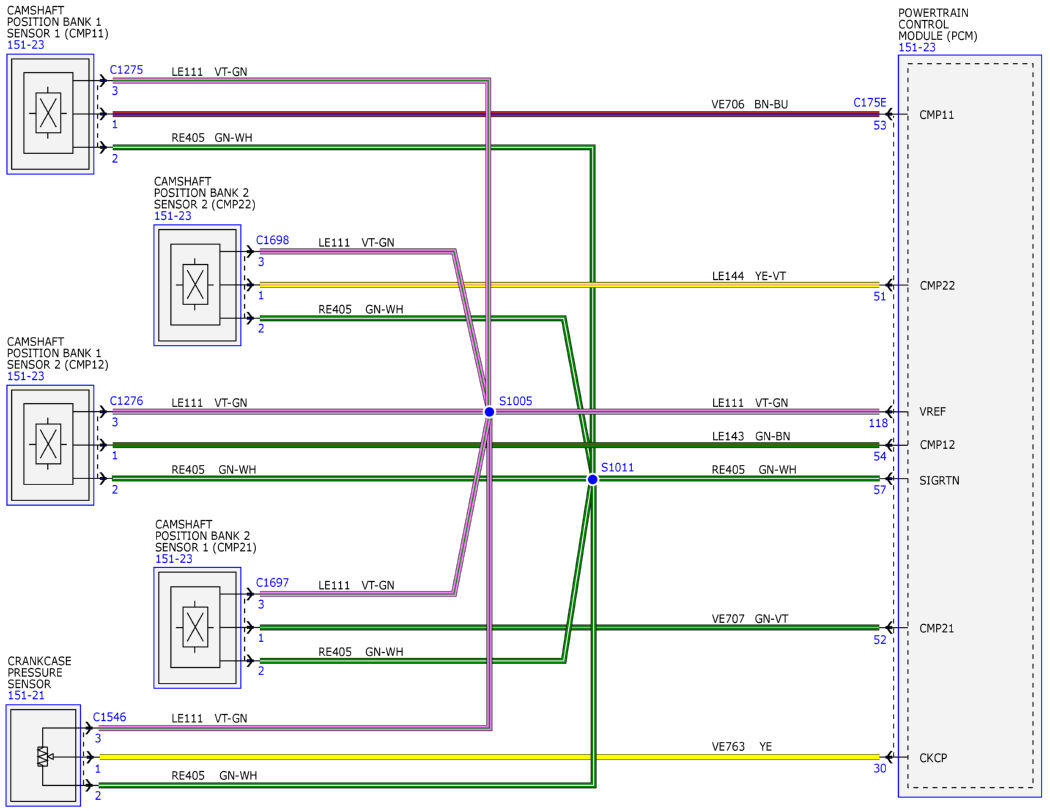

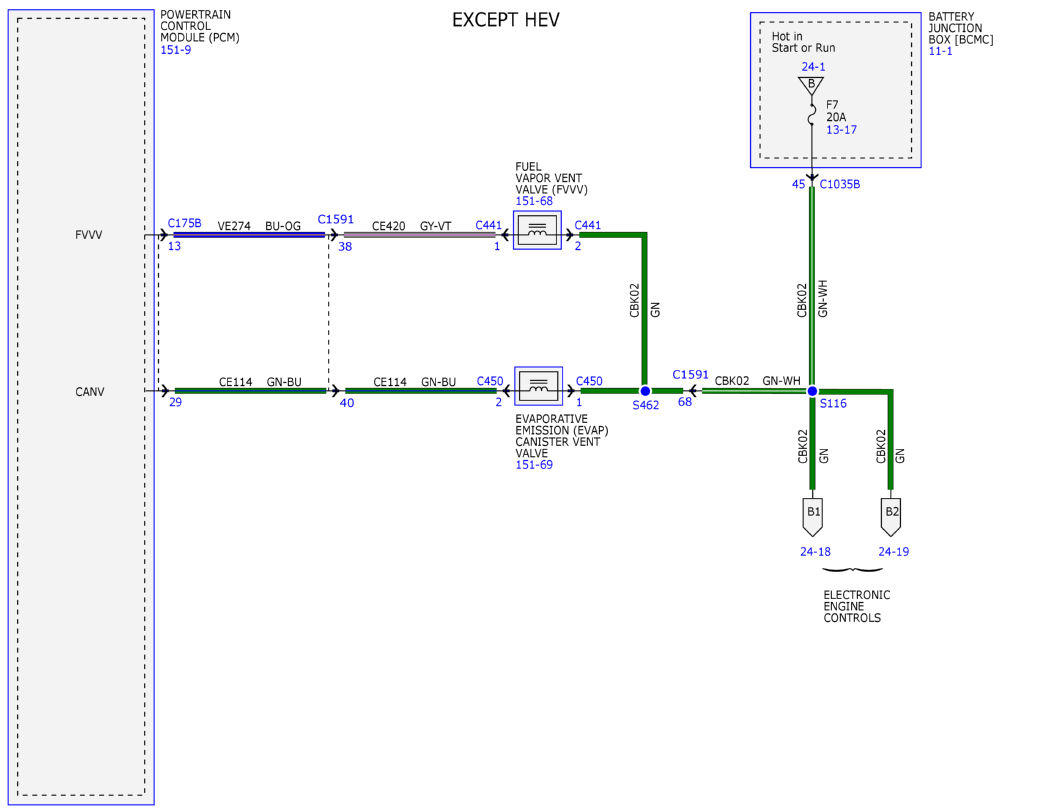

Fig 7: Electronic Engine Controls Wiring Diagram - 3.5L (7 Of 29)
Courtesy of FORD MOTOR COMPANY

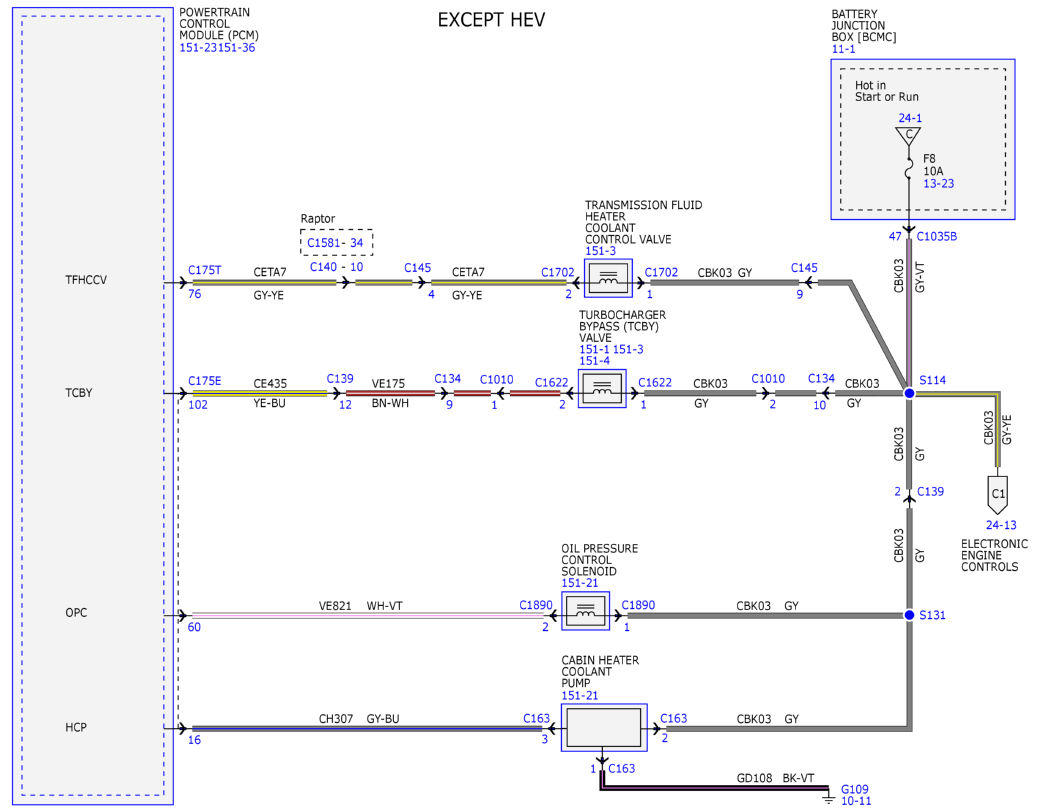

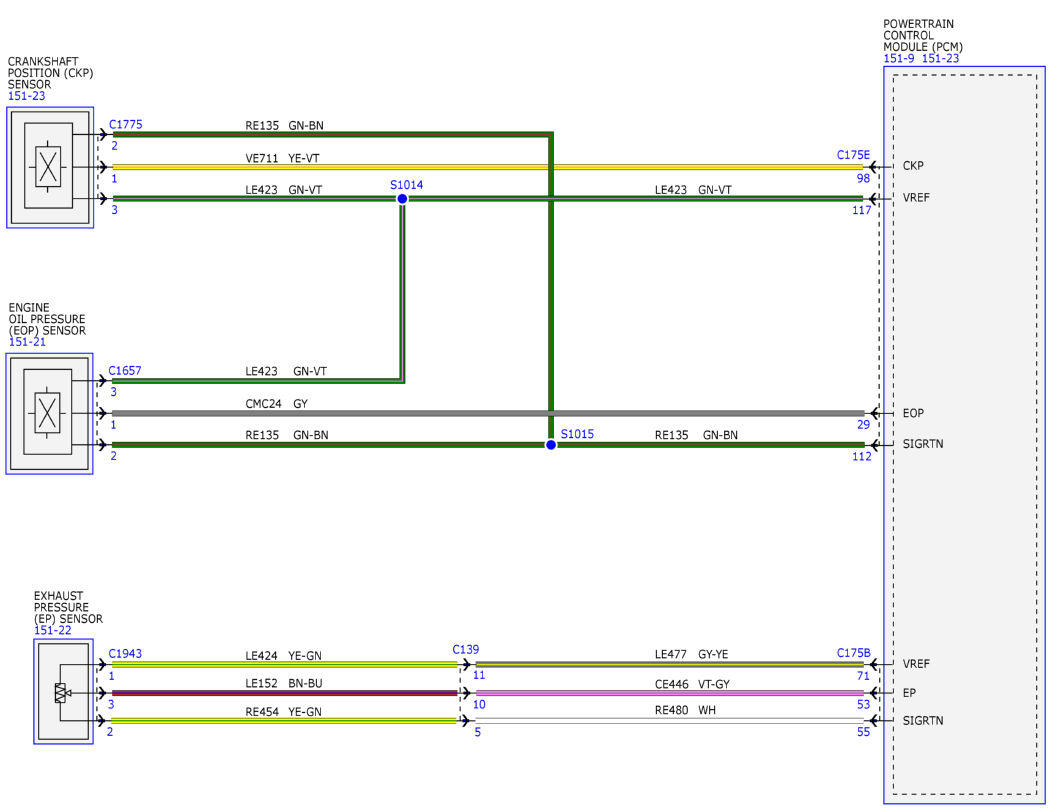

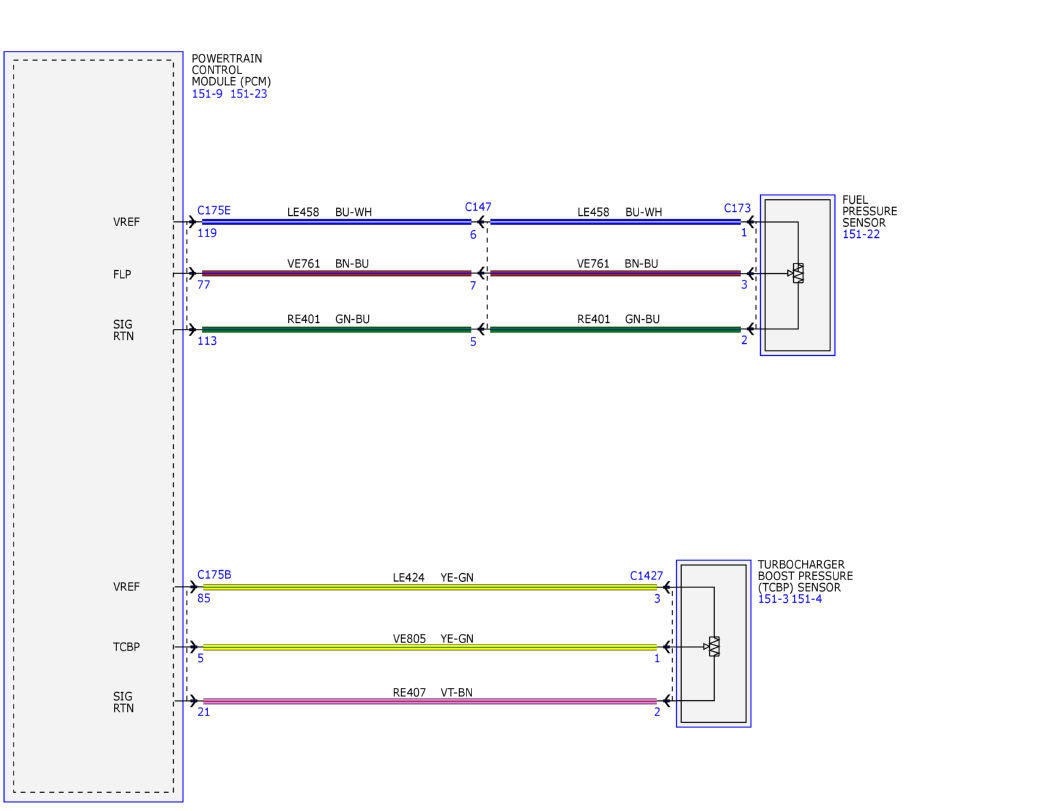

Fig 8: Electronic Engine Controls Wiring Diagram - 3.5L (8 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 9: Electronic Engine Controls Wiring Diagram - 3.5L (9 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 10: Electronic Engine Controls Wiring Diagram - 3.5L (10 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 11: Electronic Engine Controls Wiring Diagram - 3.5L (11 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 12: Electronic Engine Controls Wiring Diagram - 3.5L (12 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 13: Electronic Engine Controls Wiring Diagram - 3.5L (13 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 14: Electronic Engine Controls Wiring Diagram - 3.5L (14 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 15: Electronic Engine Controls Wiring Diagram - 3.5L (15 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 16: Electronic Engine Controls Wiring Diagram - 3.5L (16 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 17: Electronic Engine Controls Wiring Diagram - 3.5L (17 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 18: Electronic Engine Controls Wiring Diagram - 3.5L (18 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 19: Electronic Engine Controls Wiring Diagram - 3.5L (19 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 20: Electronic Engine Controls Wiring Diagram - 3.5L (20 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 21: Electronic Engine Controls Wiring Diagram - 3.5L (21 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 22: Electronic Engine Controls Wiring Diagram - 3.5L (22 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 23: Electronic Engine Controls Wiring Diagram - 3.5L (23 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 24: Electronic Engine Controls Wiring Diagram - 3.5L (24 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 25: Electronic Engine Controls Wiring Diagram - 3.5L (25 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 26: Electronic Engine Controls Wiring Diagram - 3.5L (26 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 27: Electronic Engine Controls Wiring Diagram - 3.5L (27 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 28: Electronic Engine Controls Wiring Diagram - 3.5L (28 Of 29)
Courtesy of FORD MOTOR COMPANY
Fig 29: Electronic Engine Controls Wiring Diagram - 3.5L (29 Of 29)
Courtesy of FORD MOTOR COMPANY
