Section 553 (OEM Wiring Diagrams)
>>
Electronic Engine Controls - 3.3L TIVCT
Electronic Engine Controls - 3.3L TIVCT
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

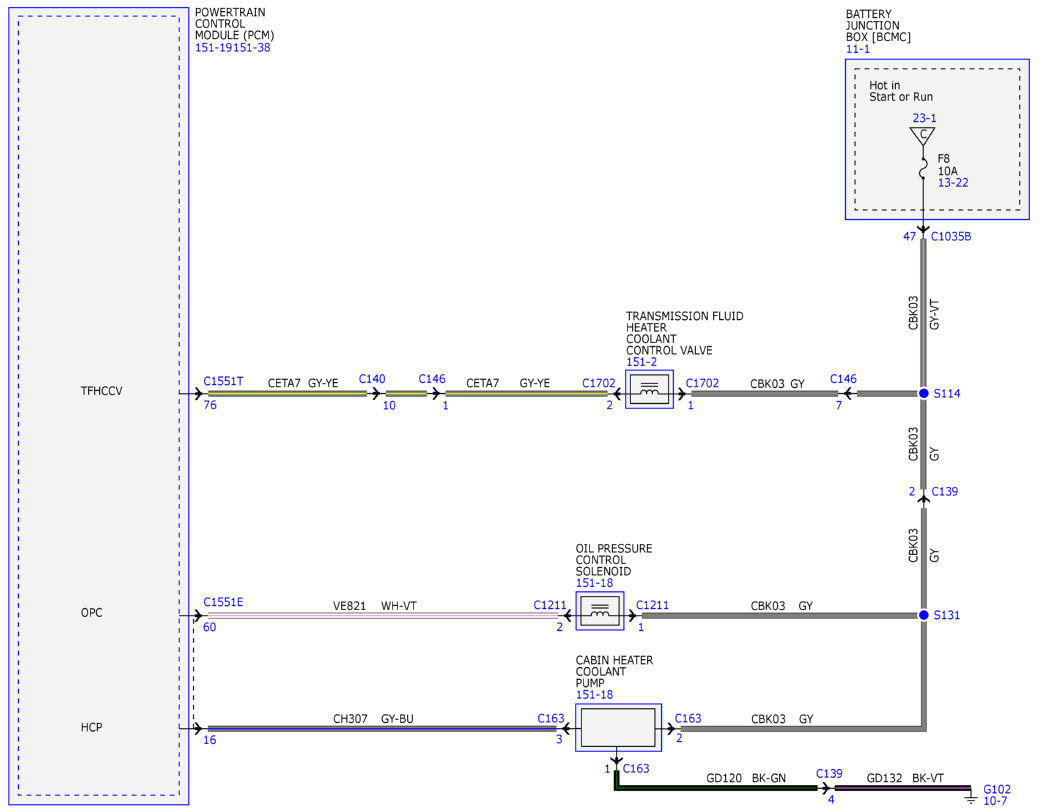

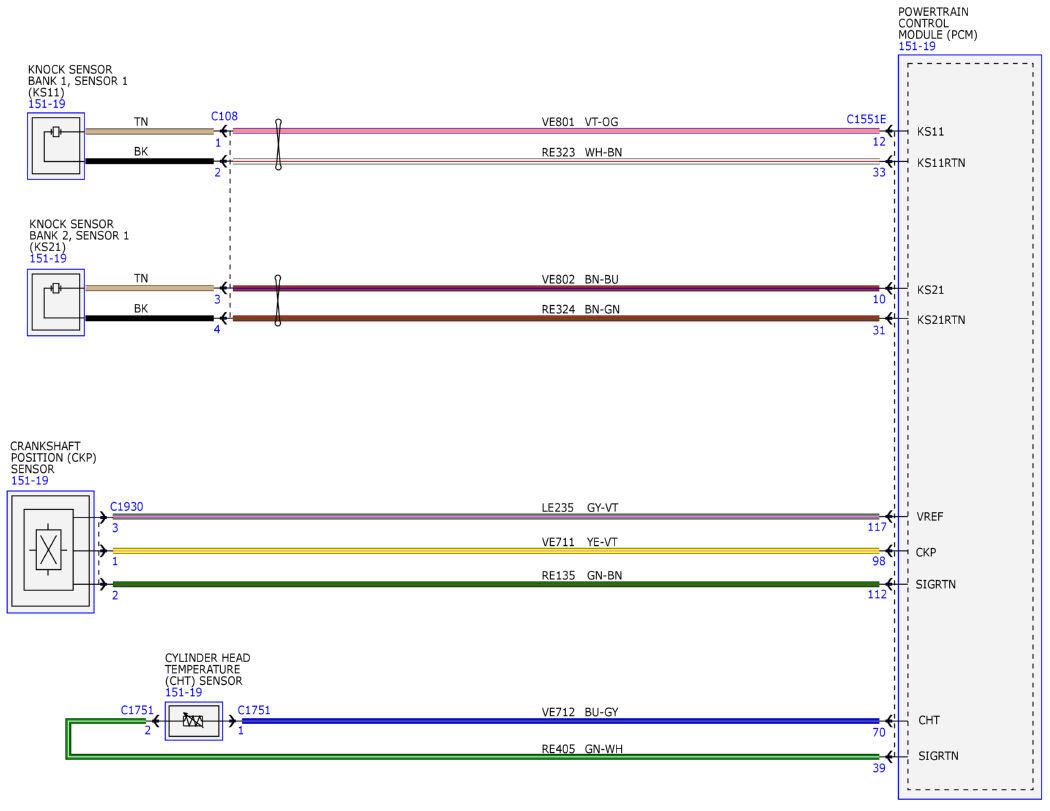

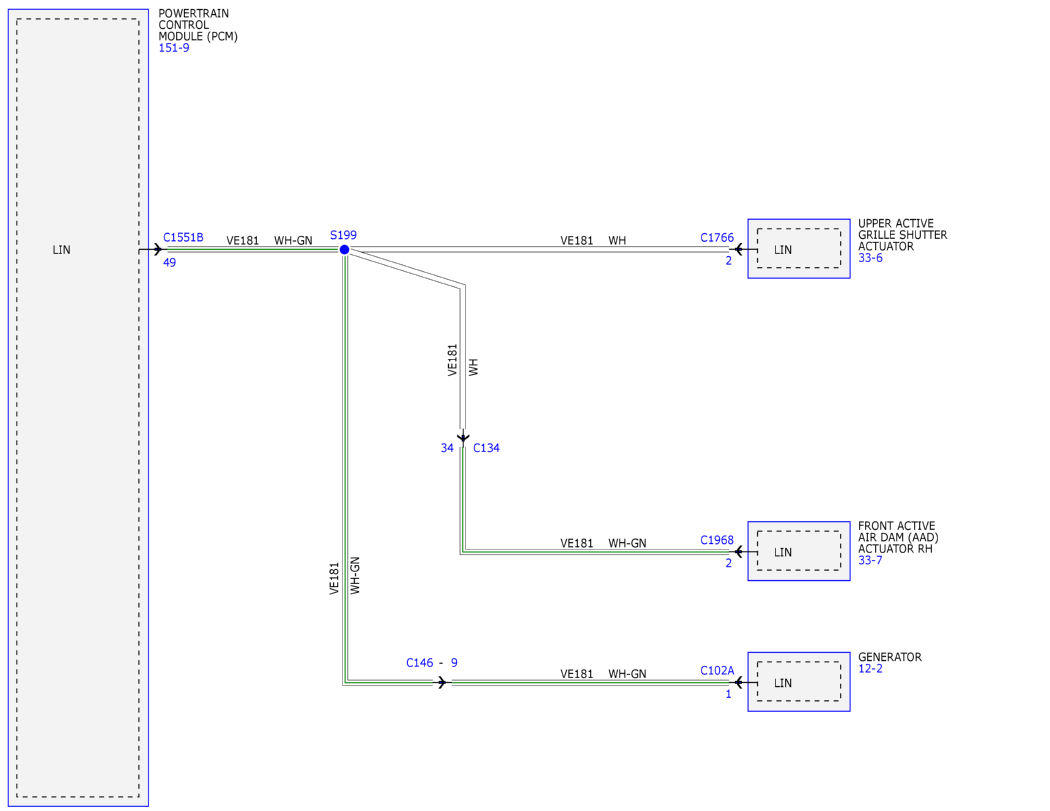

Fig 1: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (1 Of 20)
Courtesy of FORD MOTOR COMPANY

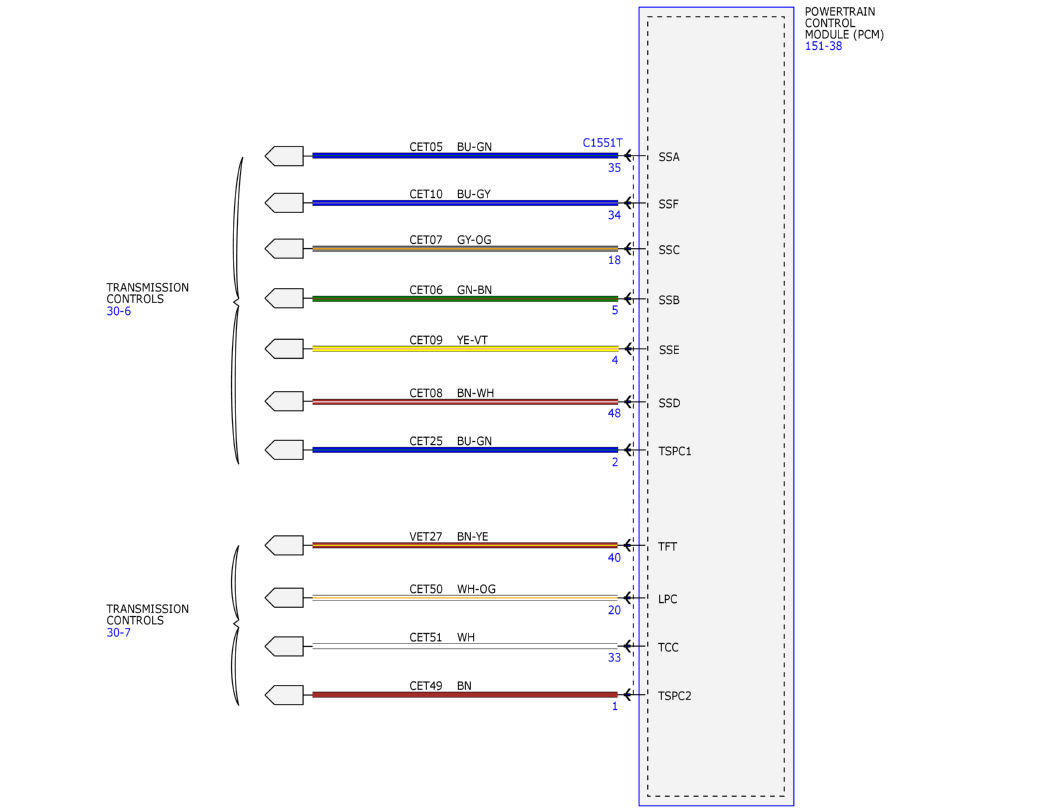

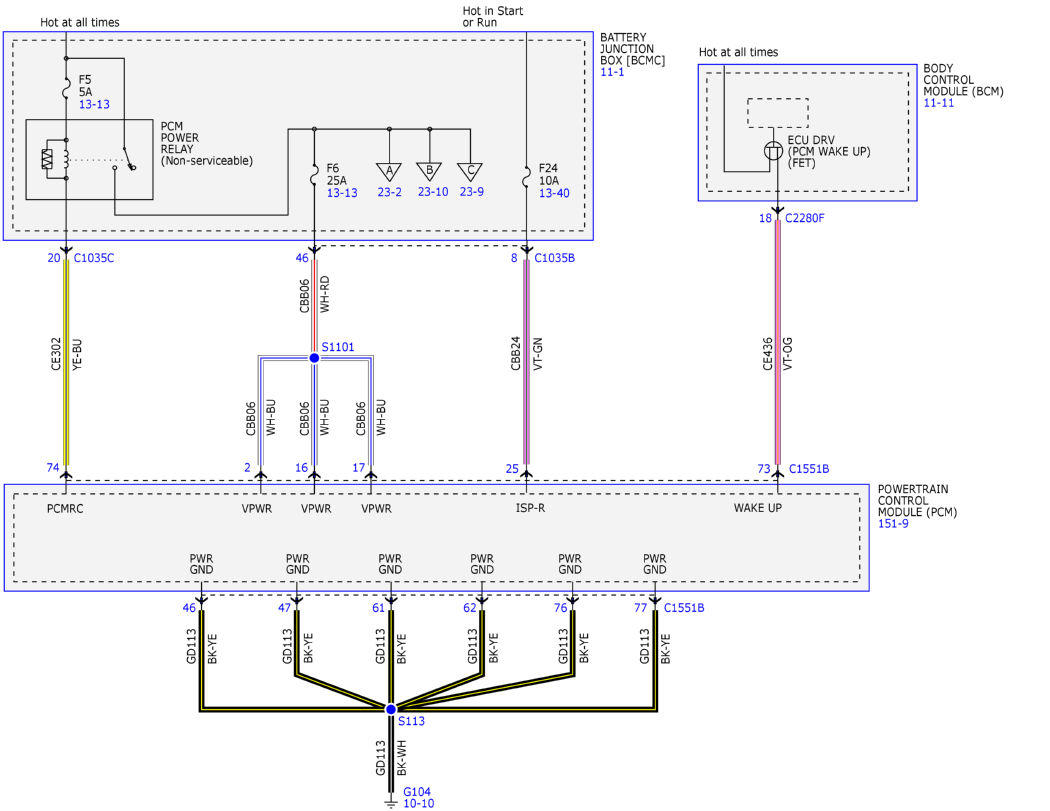

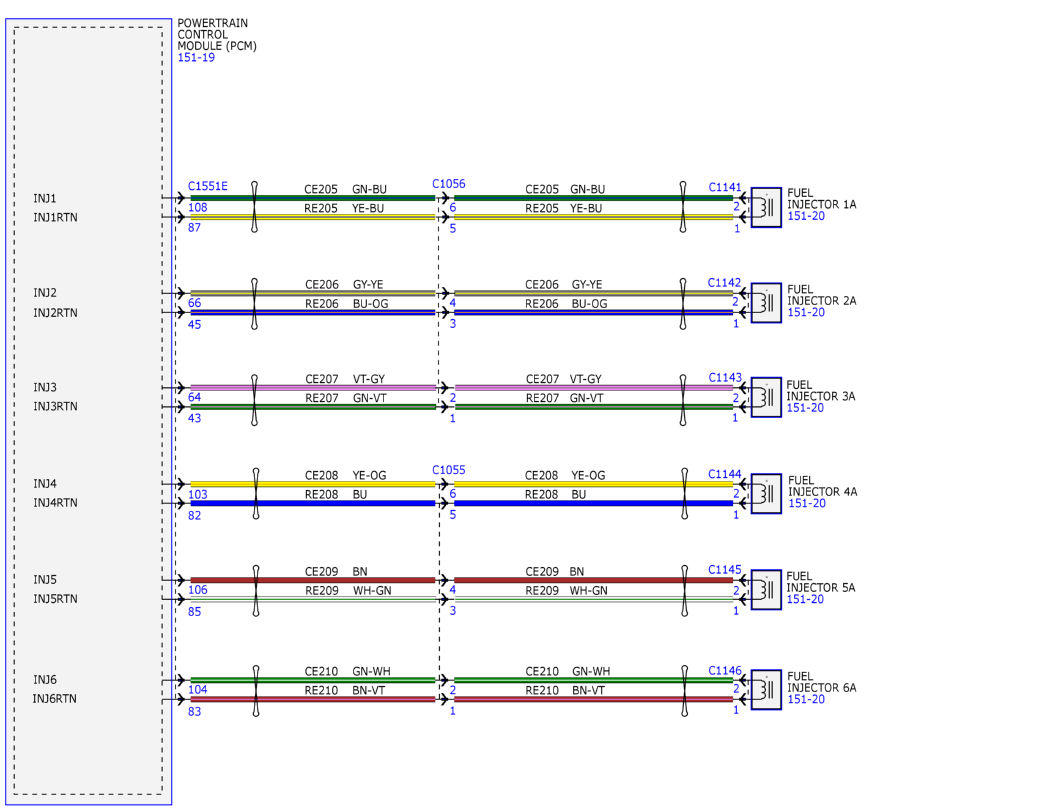

Fig 2: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (2 Of 20)
Courtesy of FORD MOTOR COMPANY

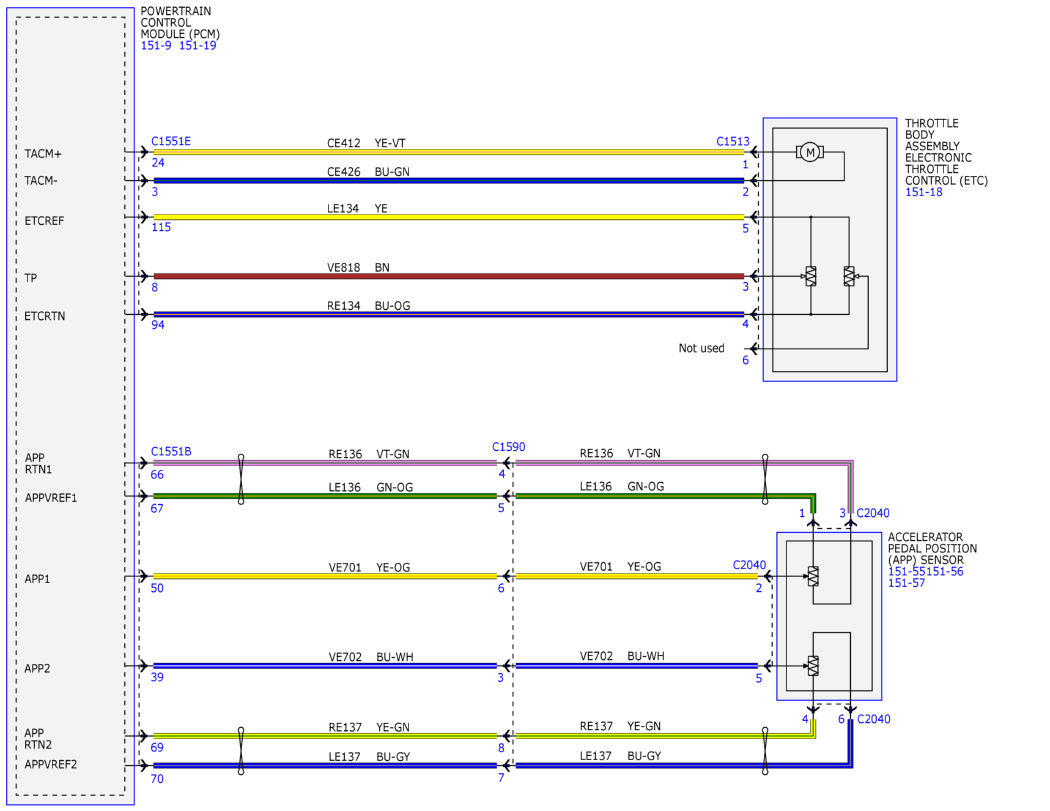

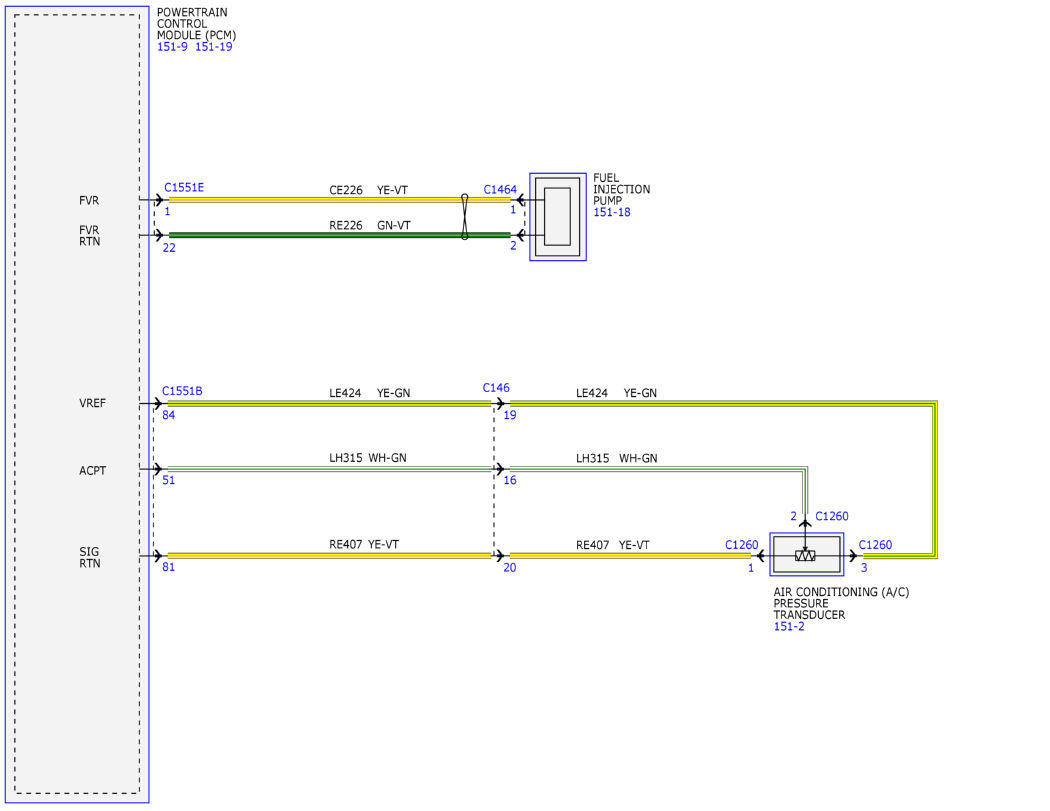

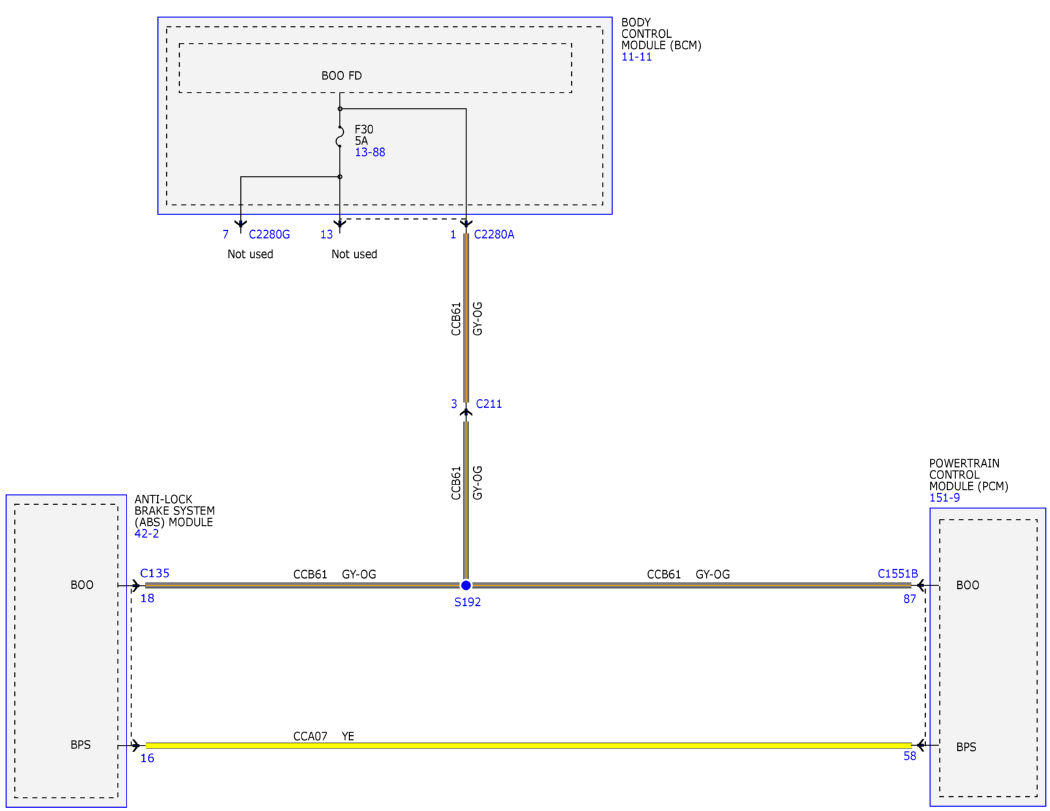

Fig 3: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (3 Of 20)
Courtesy of FORD MOTOR COMPANY

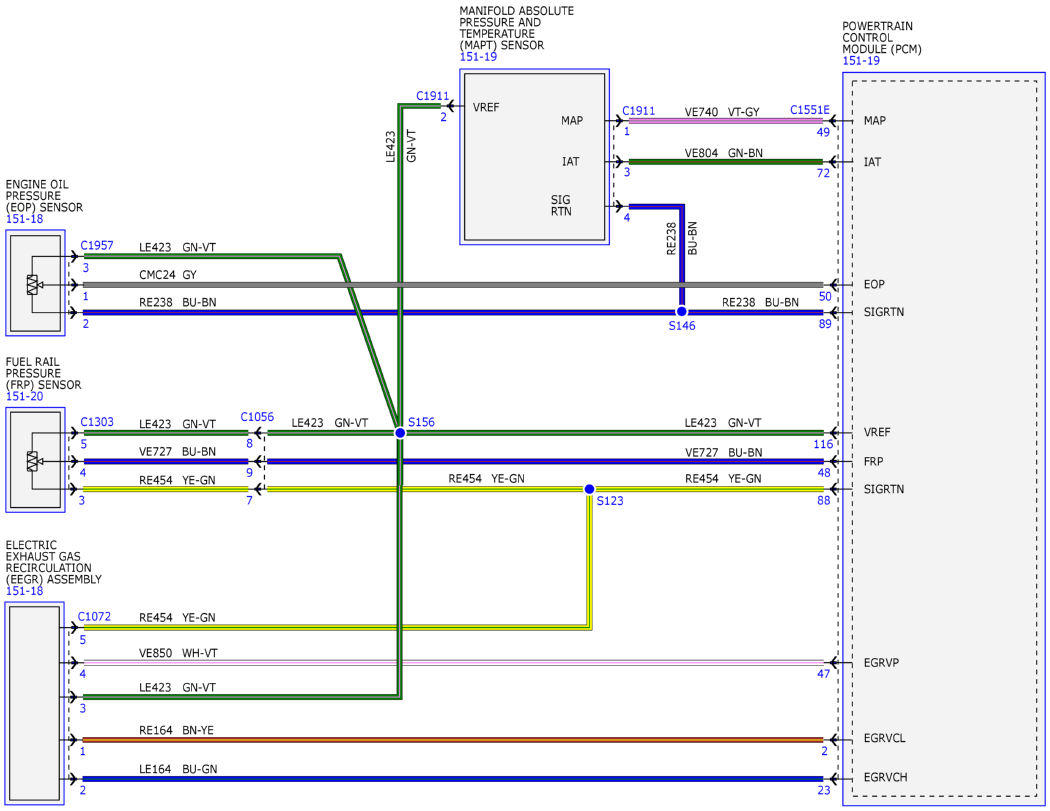

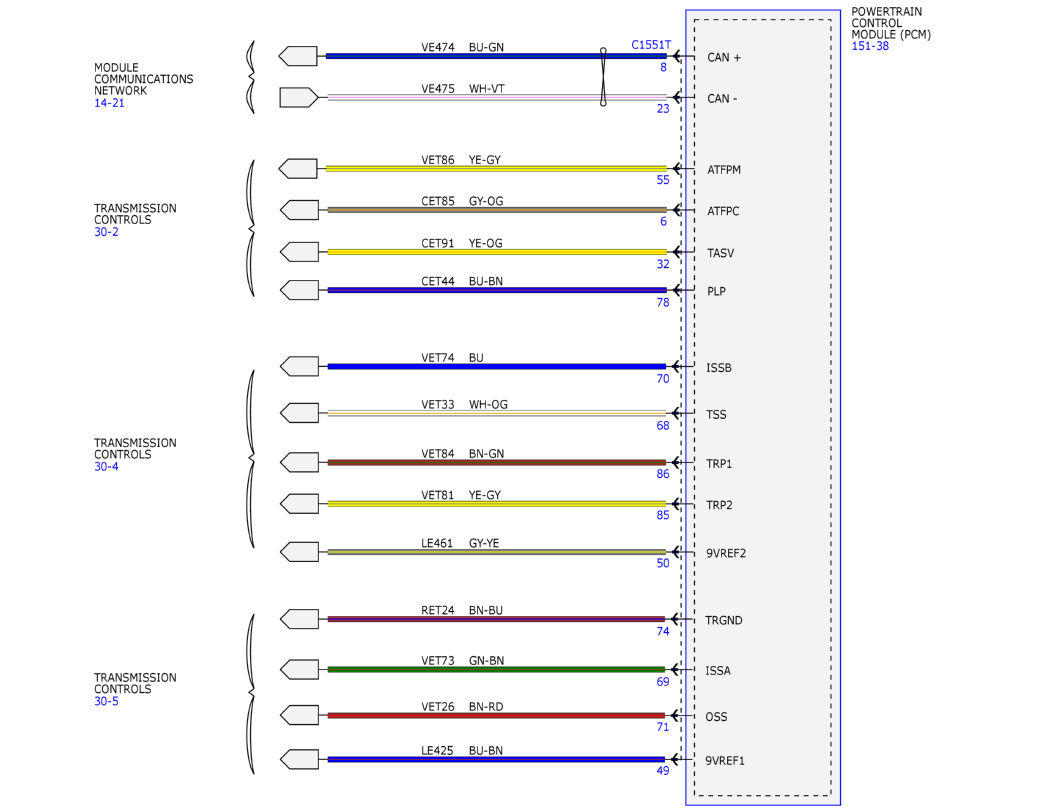

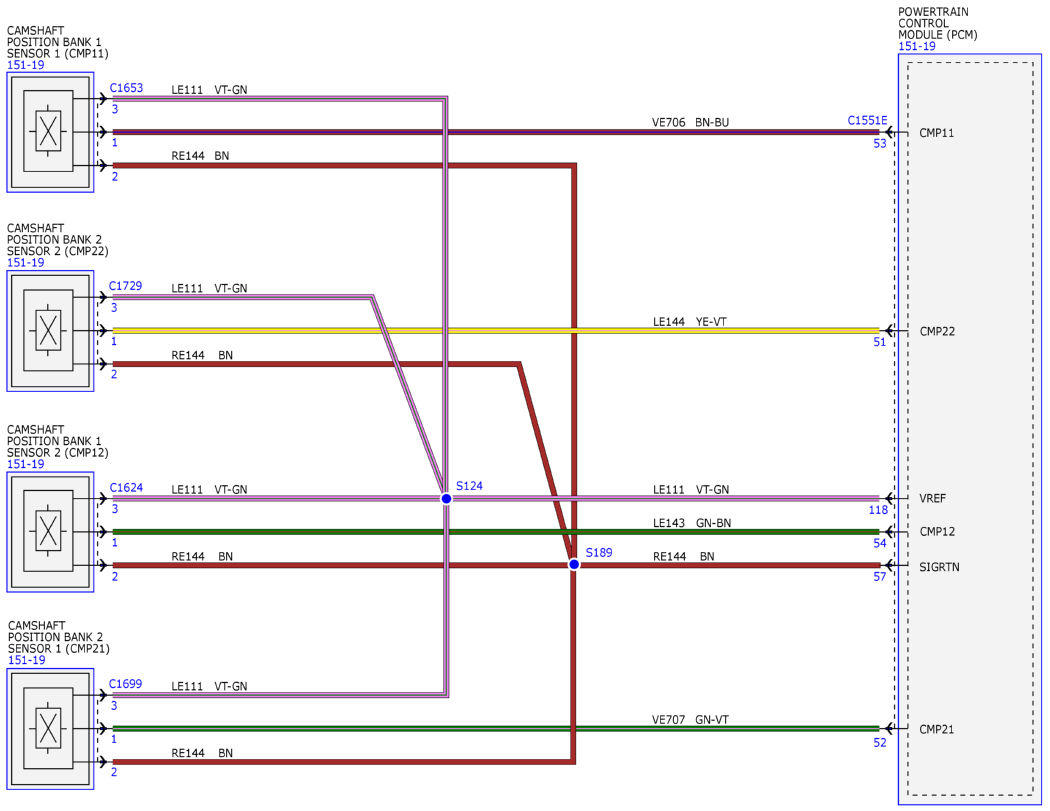

Fig 4: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (4 Of 20)
Courtesy of FORD MOTOR COMPANY

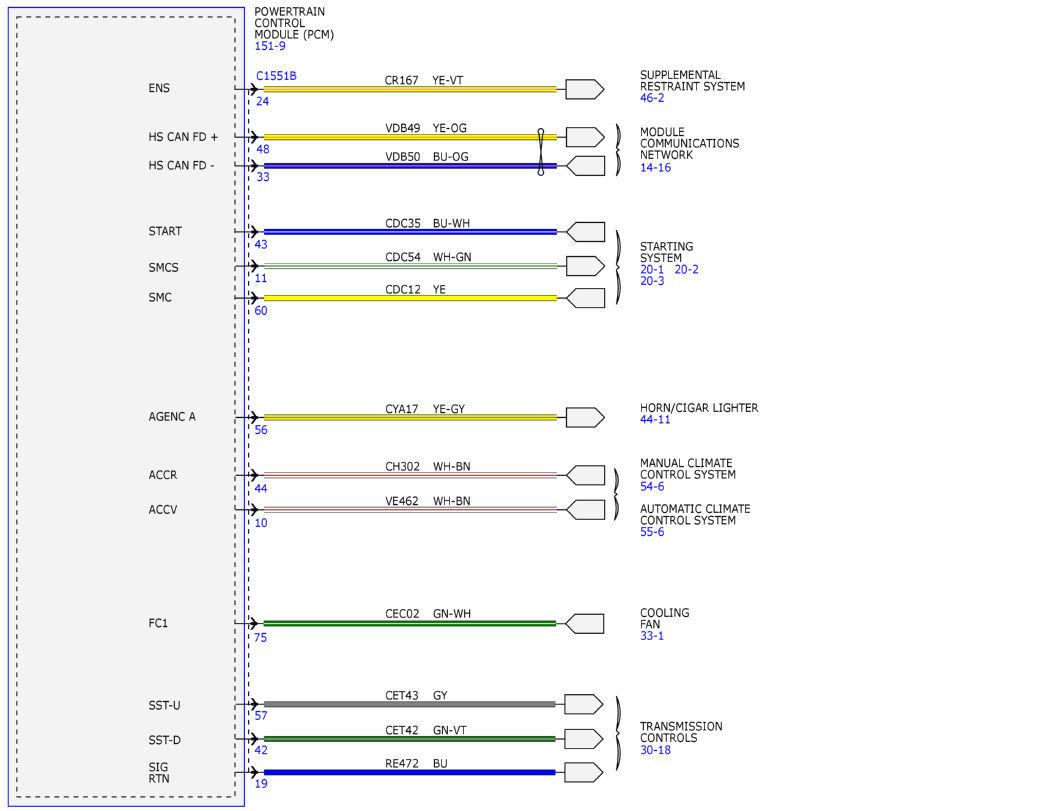

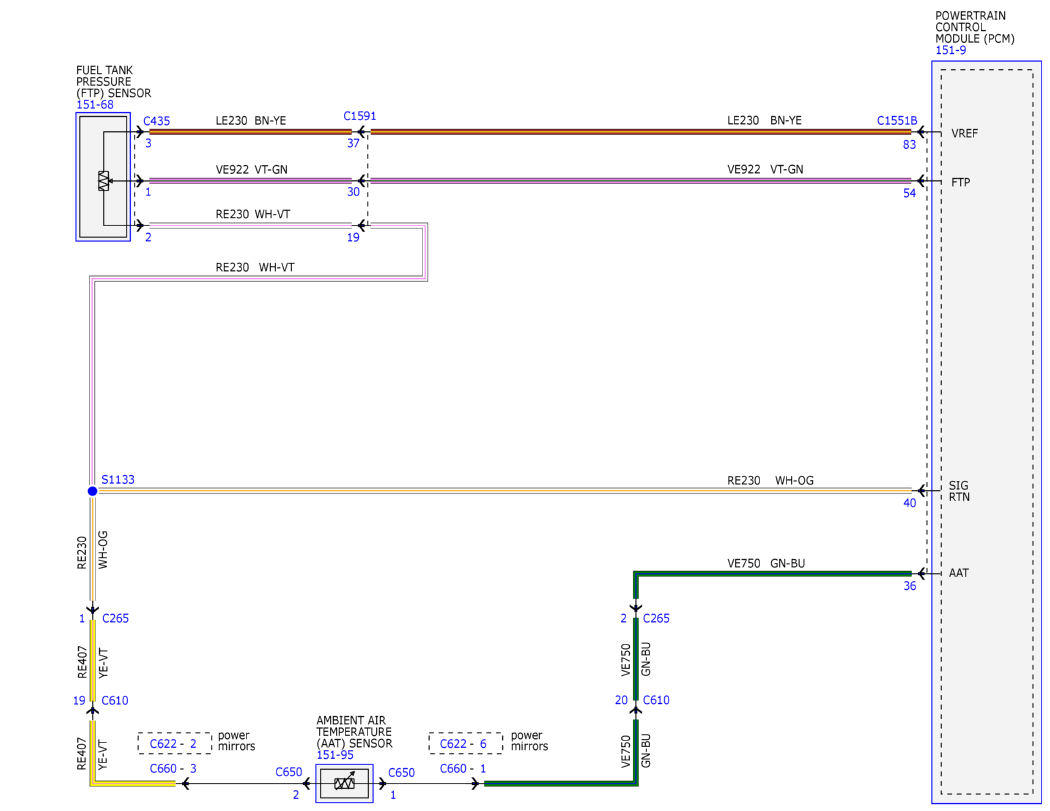

Fig 5: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (5 Of 20)
Courtesy of FORD MOTOR COMPANY

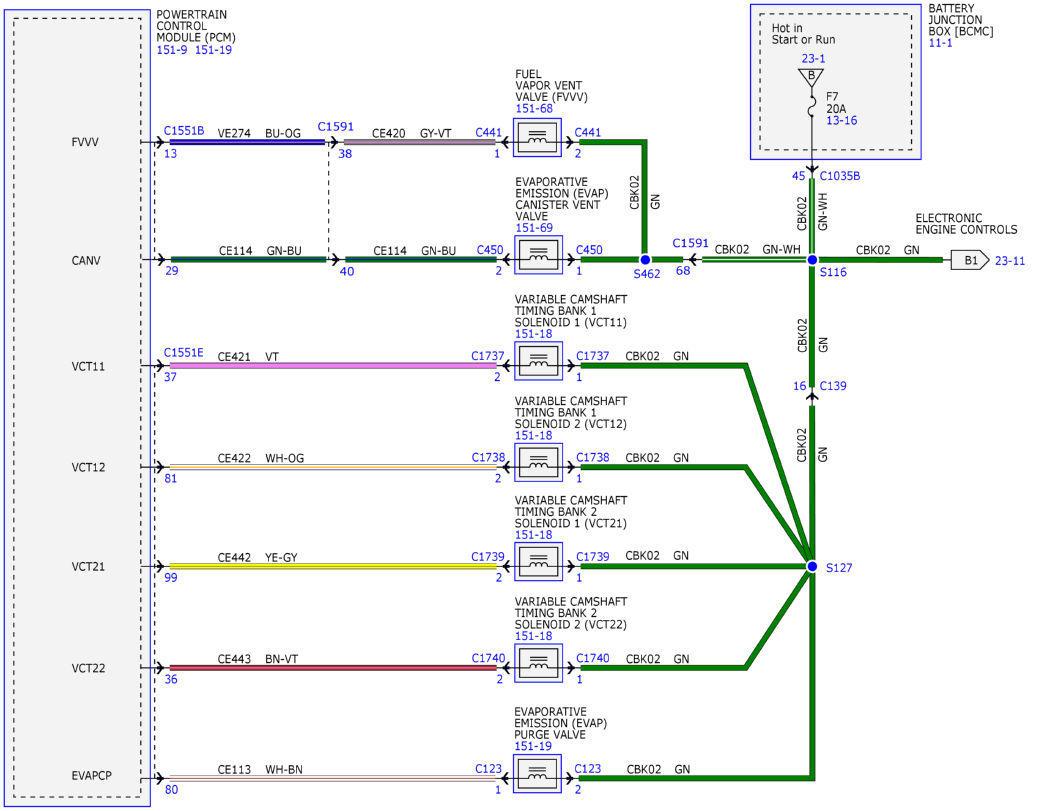

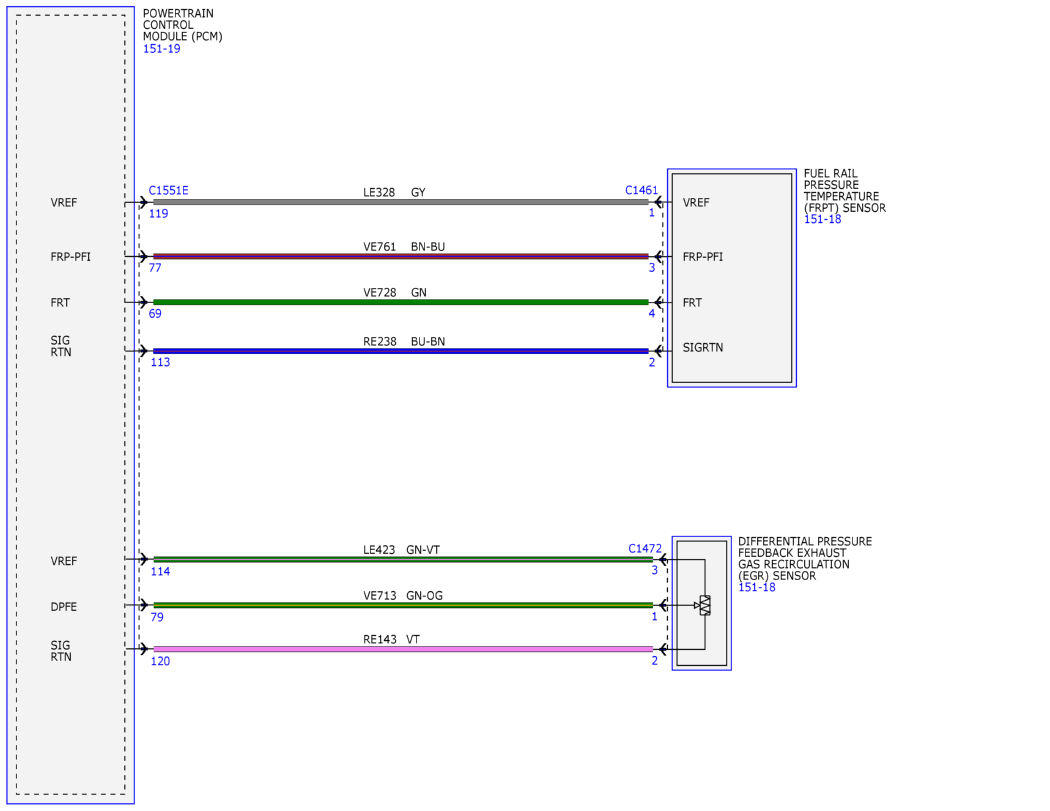

Fig 6: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (6 Of 20)
Courtesy of FORD MOTOR COMPANY

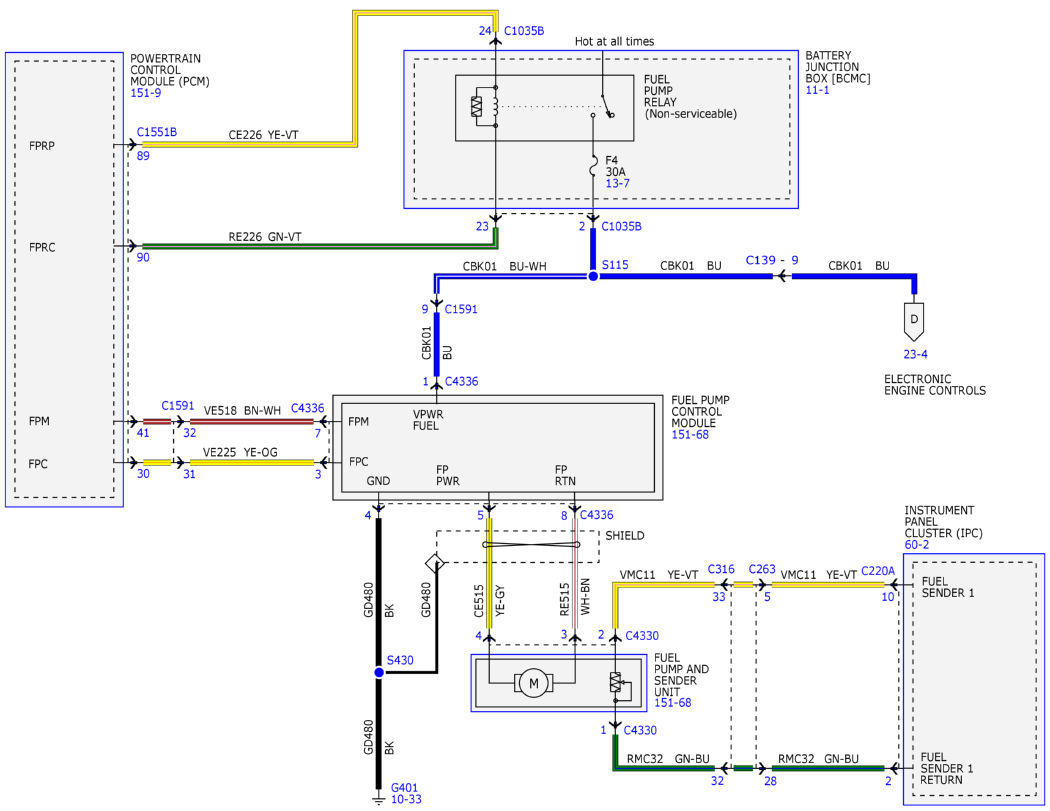

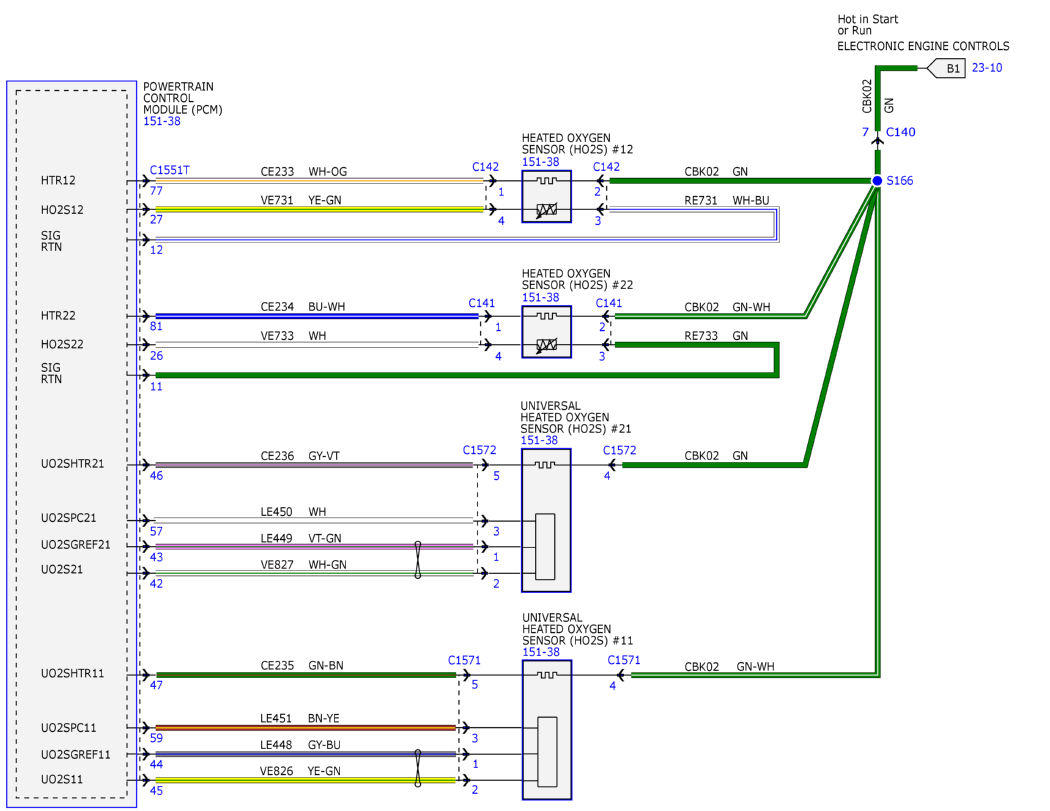

Fig 7: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (7 Of 20)
Courtesy of FORD MOTOR COMPANY

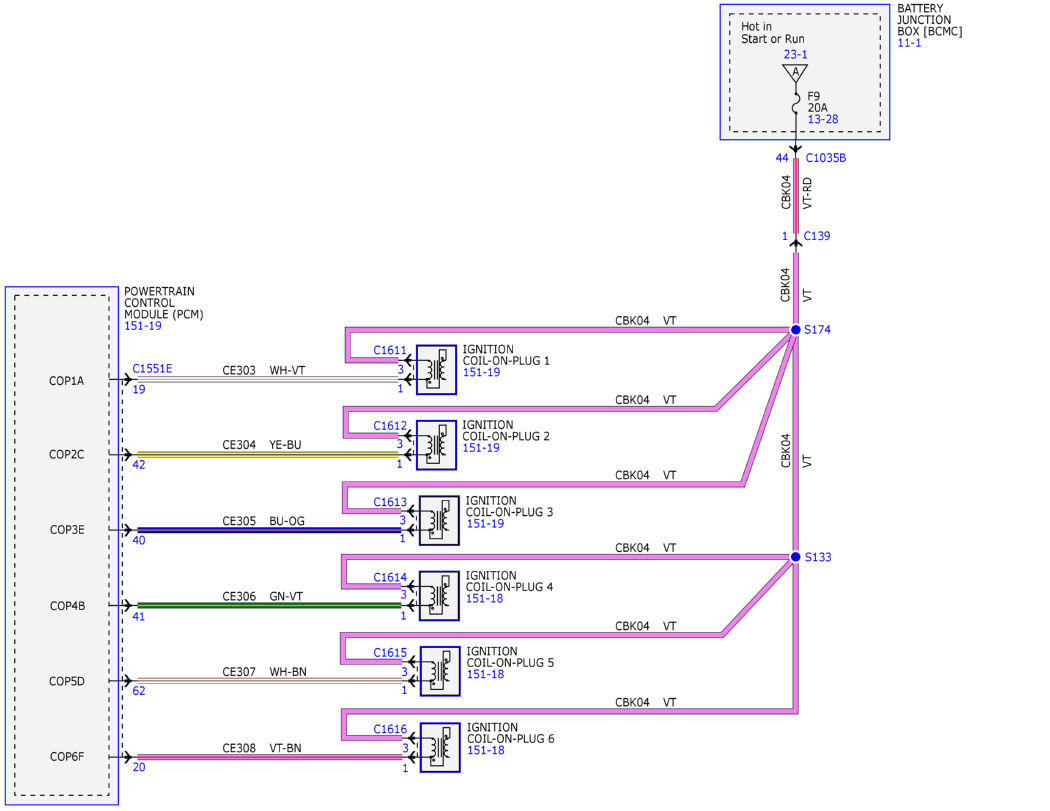

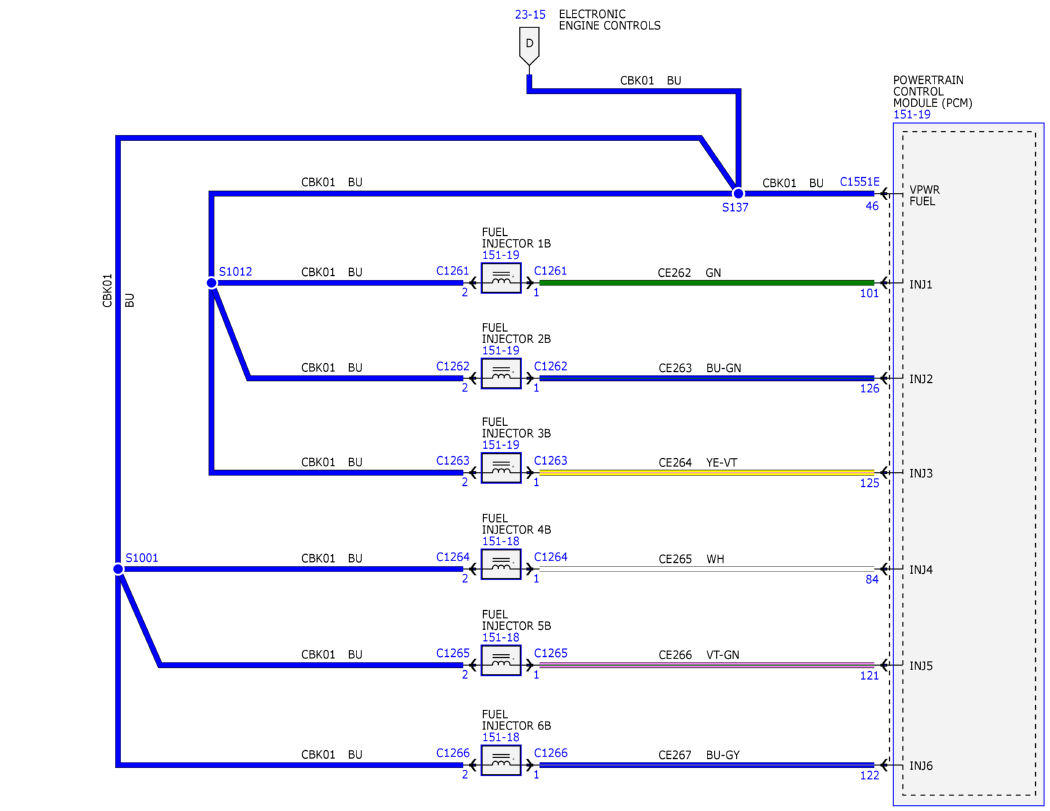

Fig 8: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (8 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 9: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (9 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 10: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (10 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 11: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (11 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 12: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (12 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 13: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (13 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 14: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (14 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 15: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (15 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 16: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (16 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 17: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (17 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 18: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (18 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 19: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (19 Of 20)
Courtesy of FORD MOTOR COMPANY
Fig 20: Electronic Engine Controls Wiring Diagram - 3.3L TIVCT (20 Of 20)
Courtesy of FORD MOTOR COMPANY
