Automatic Climate Control System

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

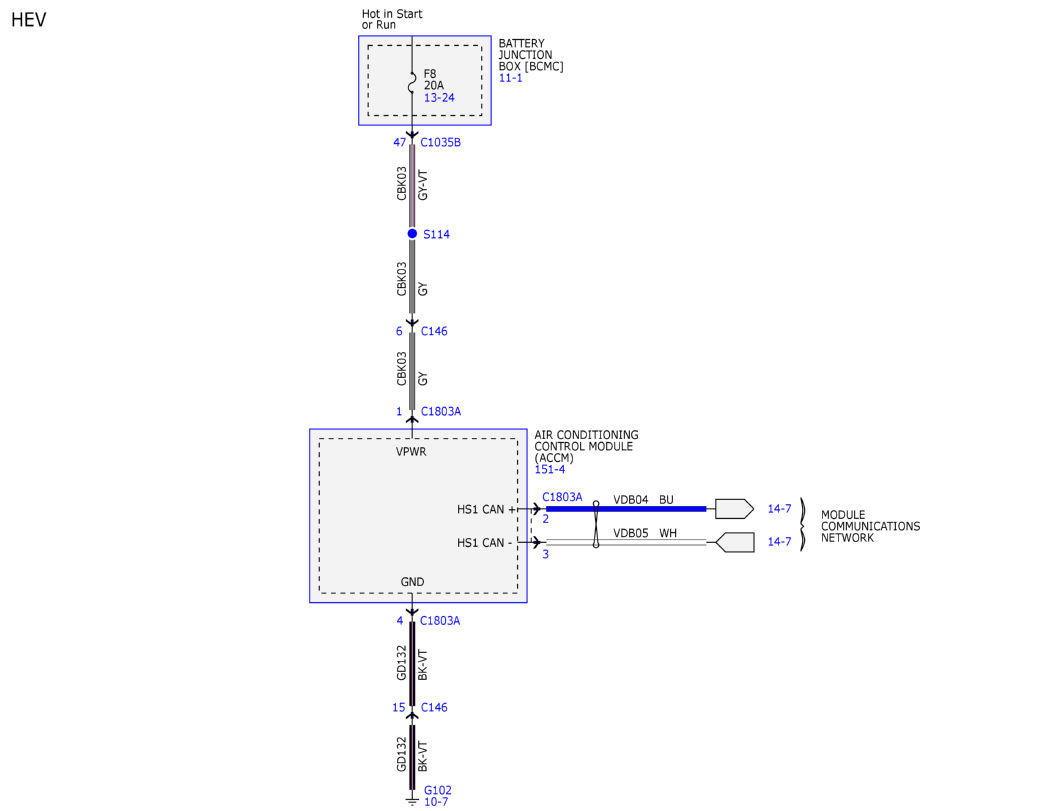

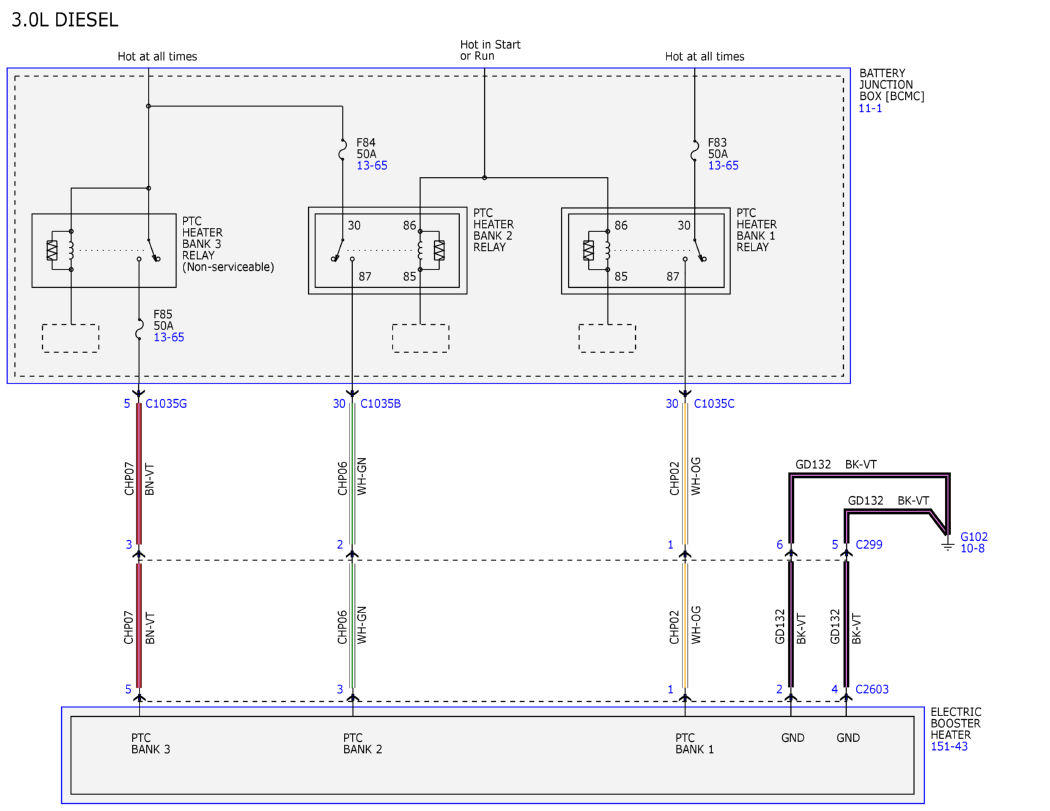

Fig 1: Automatic Climate Control System Wiring Diagram (1 Of 14)

Courtesy of FORD MOTOR COMPANY

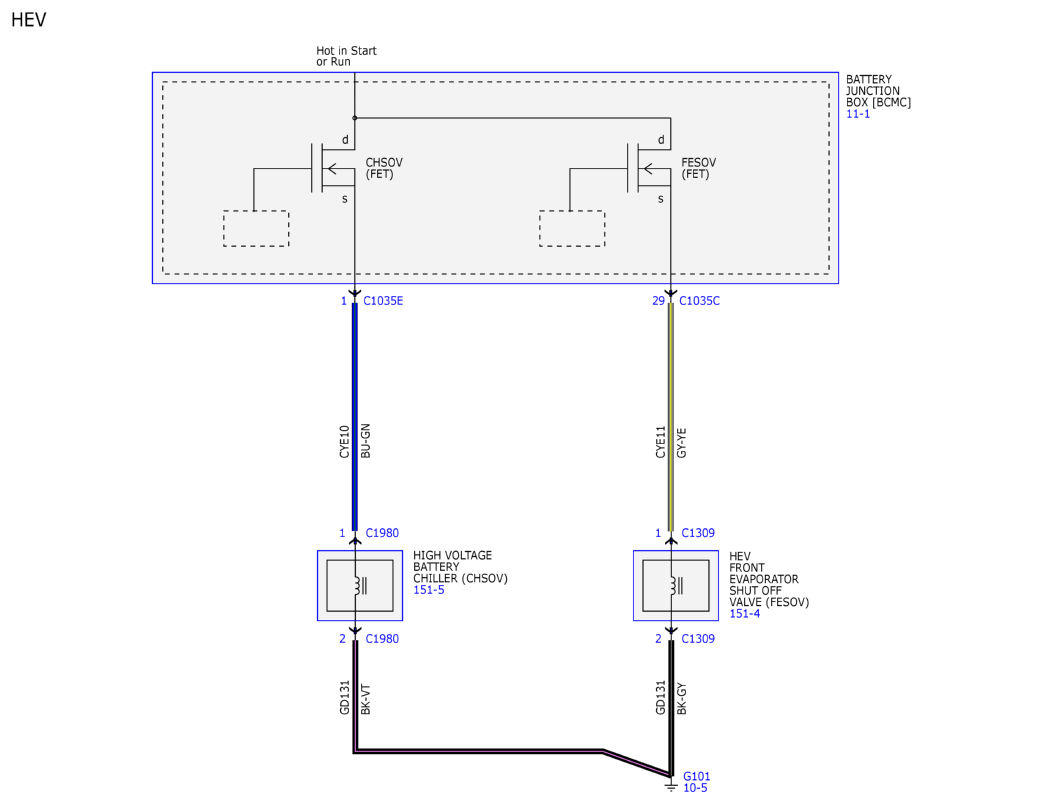

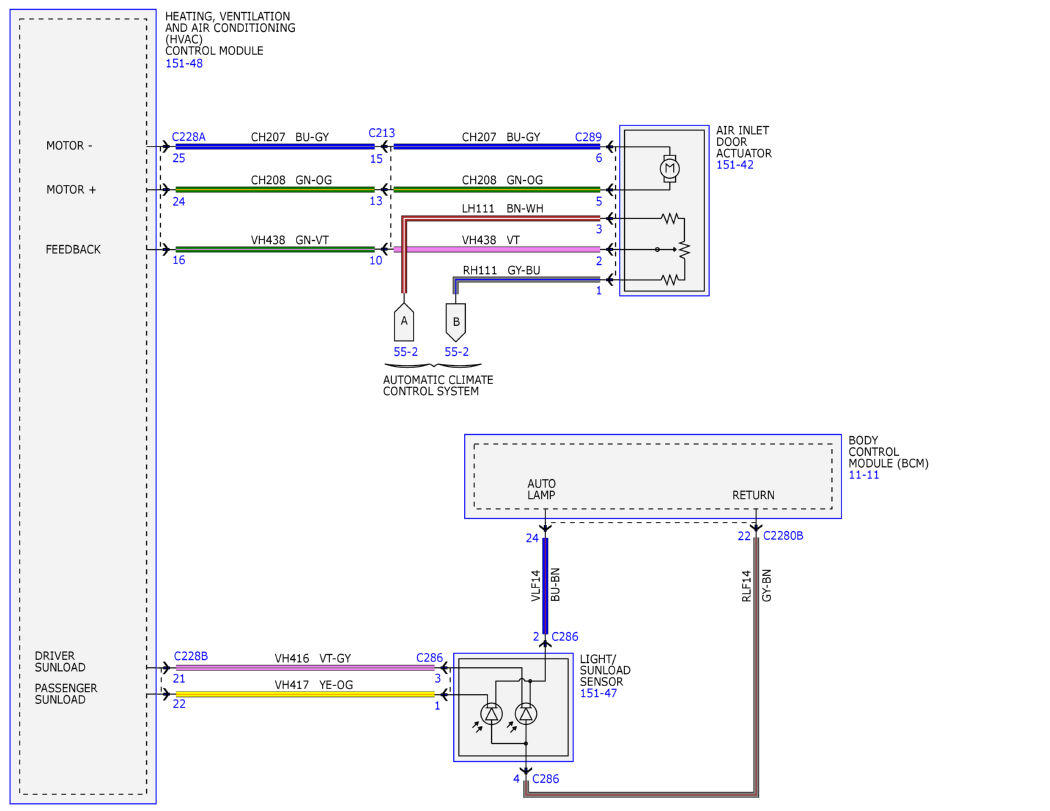

Fig 2: Automatic Climate Control System Wiring Diagram (2 Of 14)

Courtesy of FORD MOTOR COMPANY

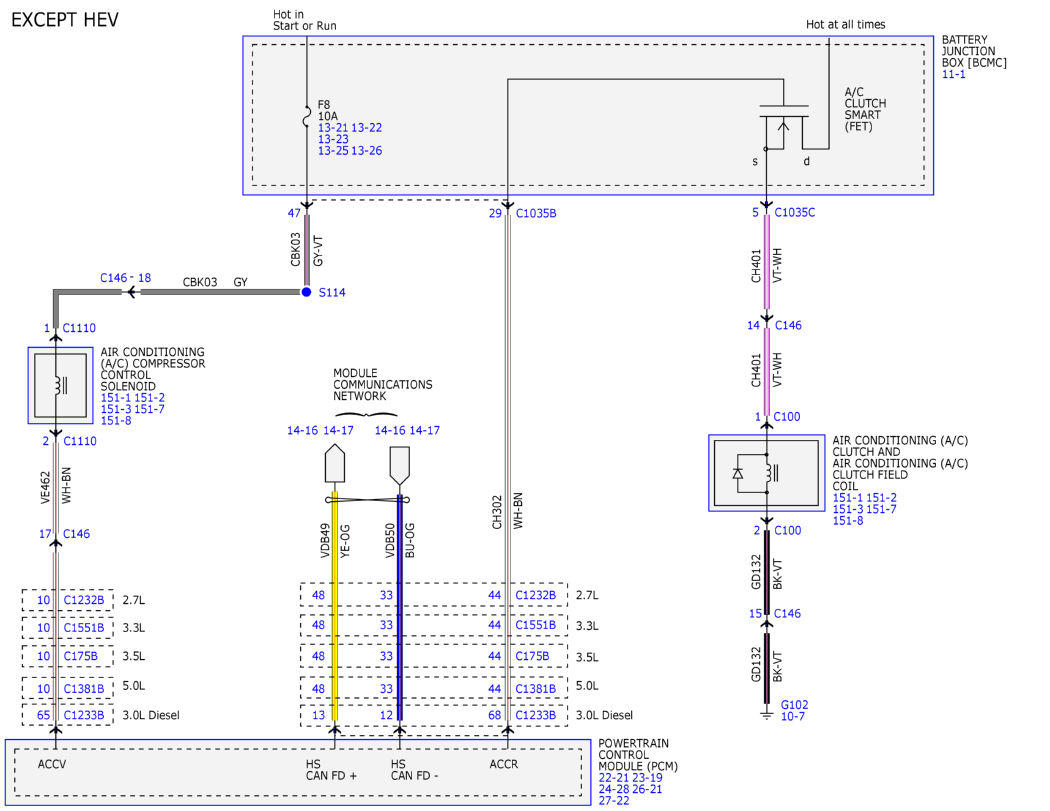

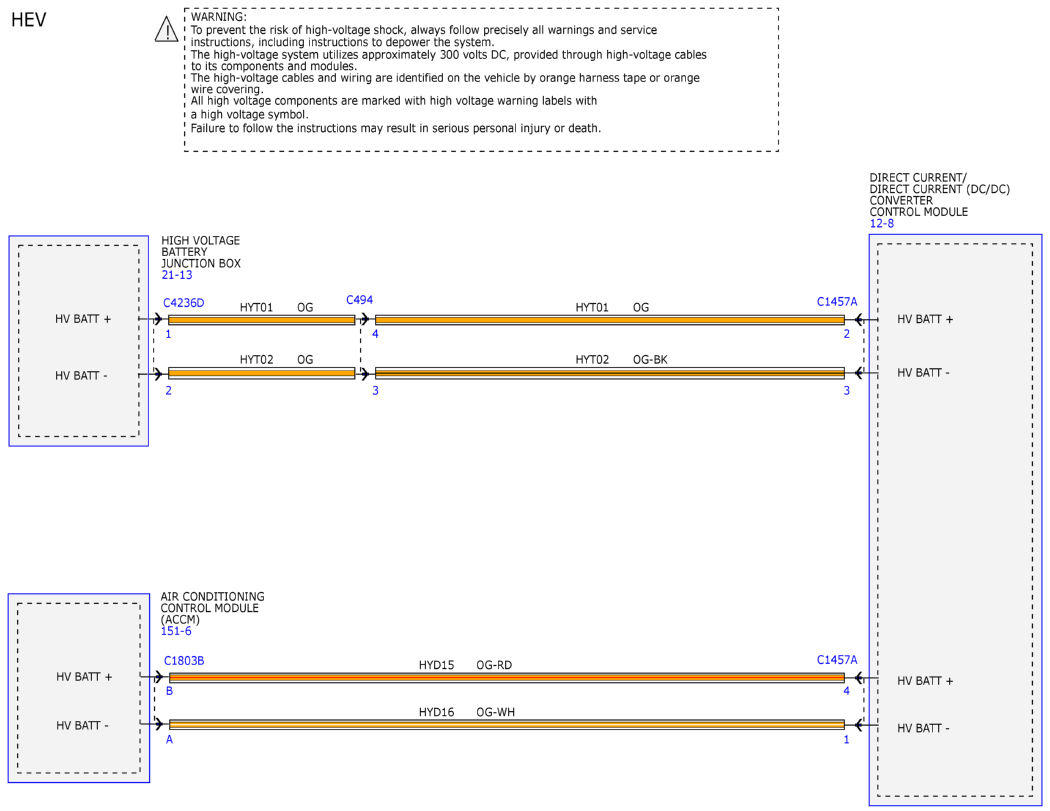

Fig 3: Automatic Climate Control System Wiring Diagram (3 Of 14)

Courtesy of FORD MOTOR COMPANY

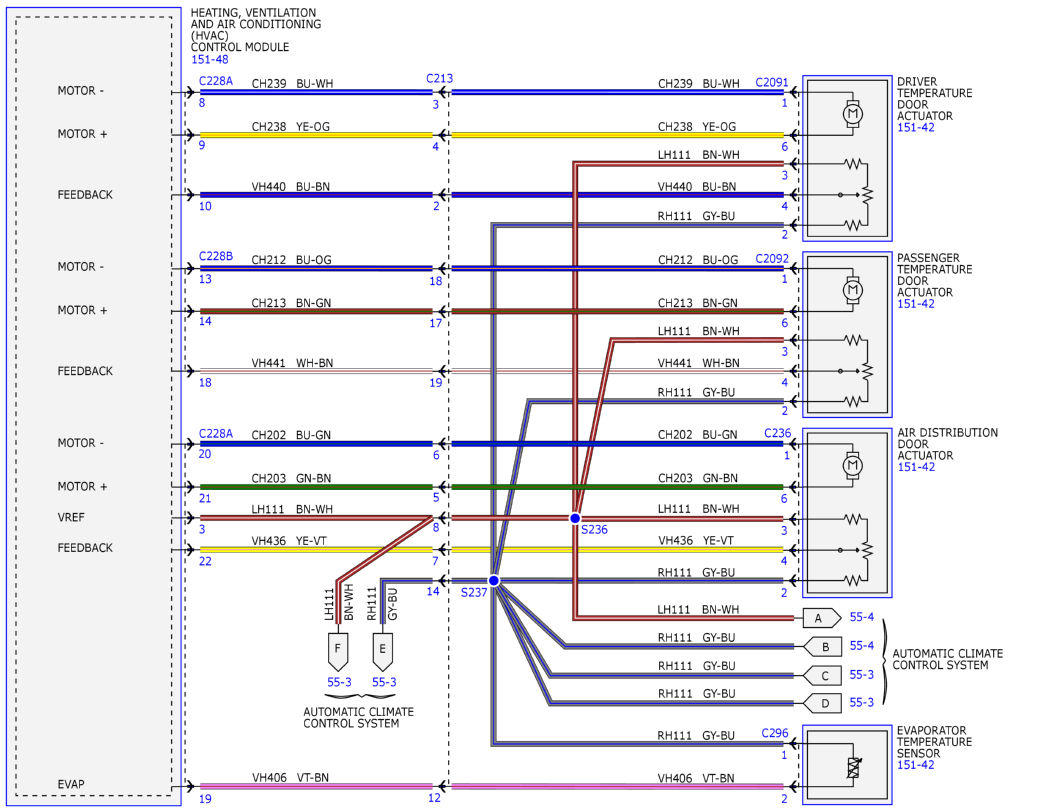

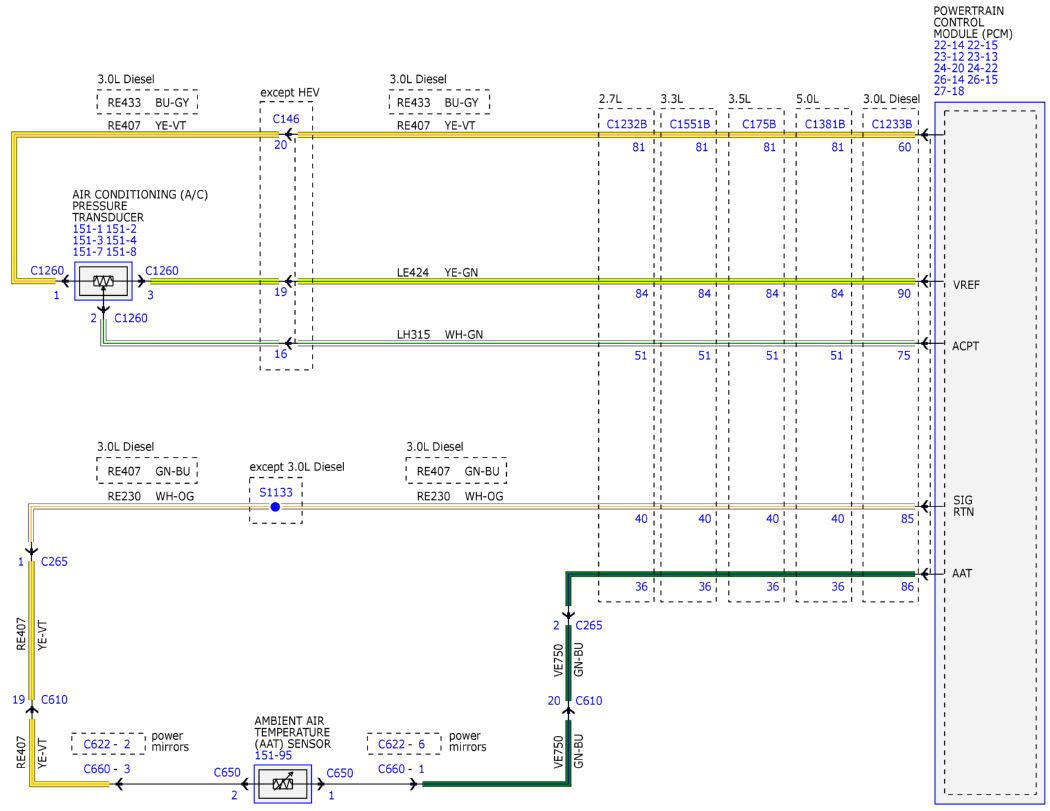

Fig 4: Automatic Climate Control System Wiring Diagram (4 Of 14)

Courtesy of FORD MOTOR COMPANY

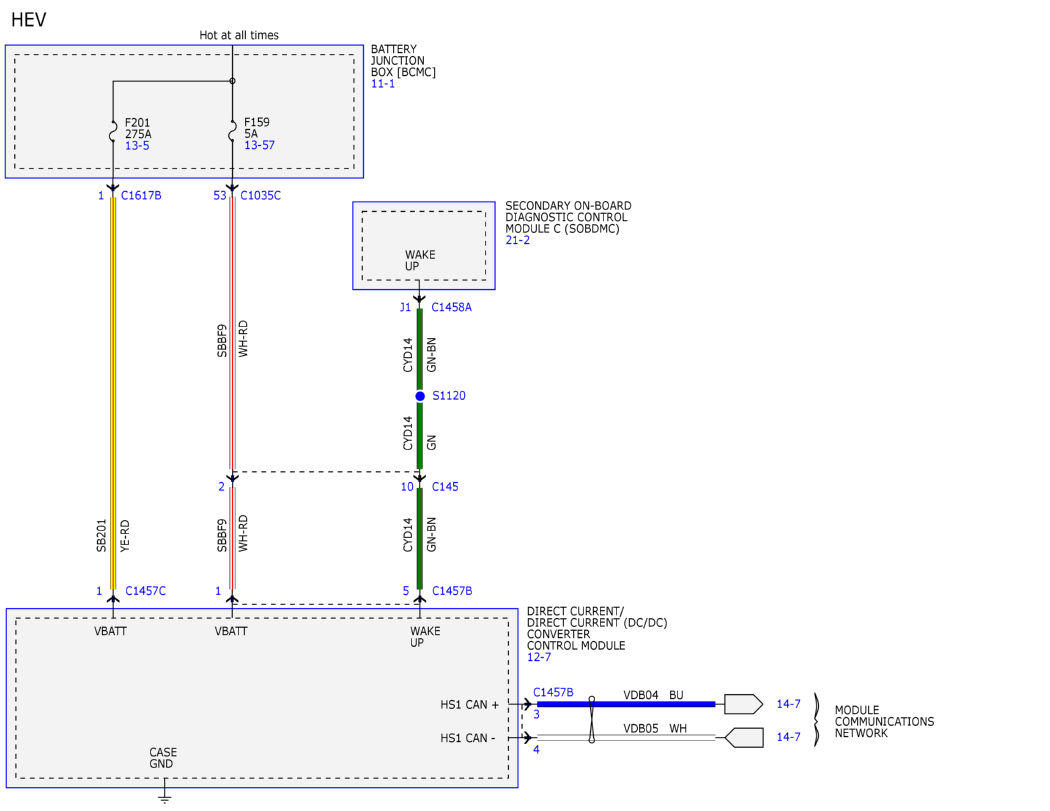

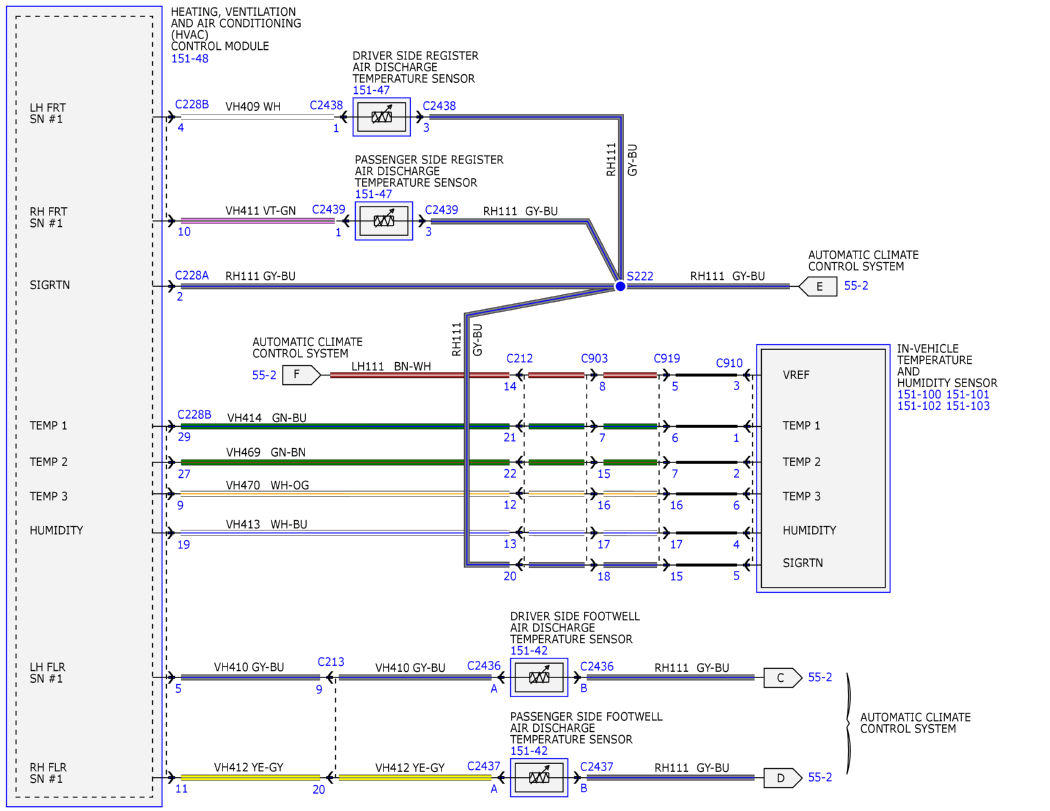

Fig 5: Automatic Climate Control System Wiring Diagram (5 Of 14)

Courtesy of FORD MOTOR COMPANY

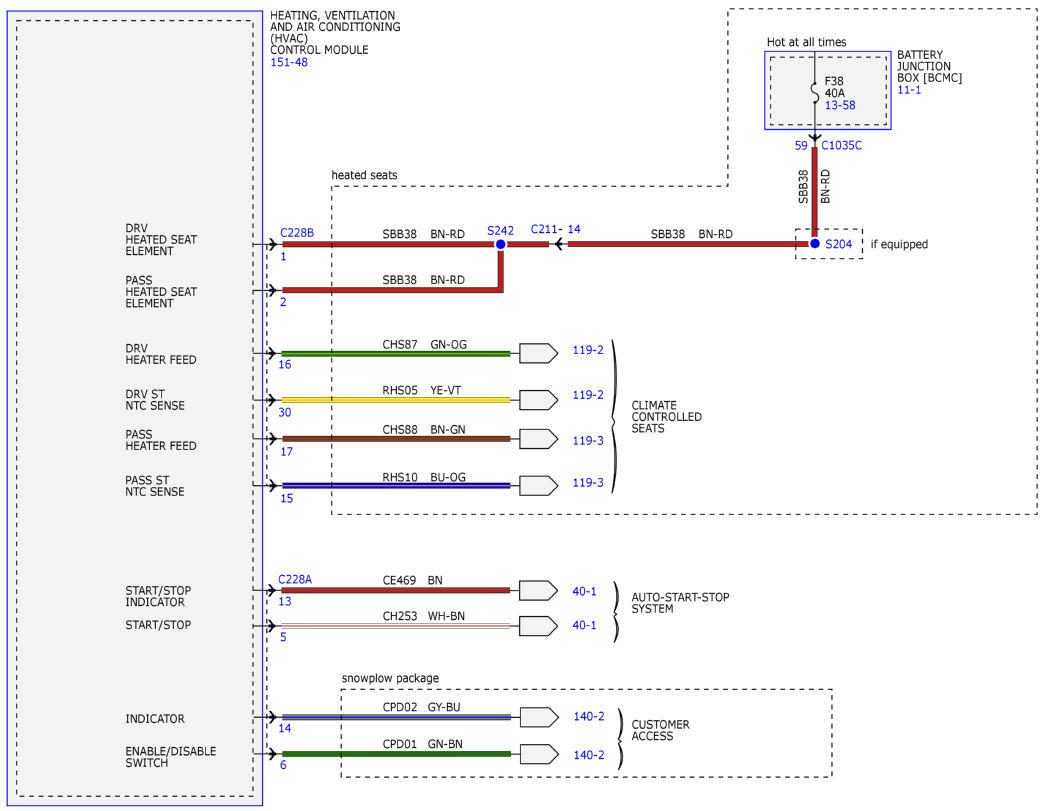

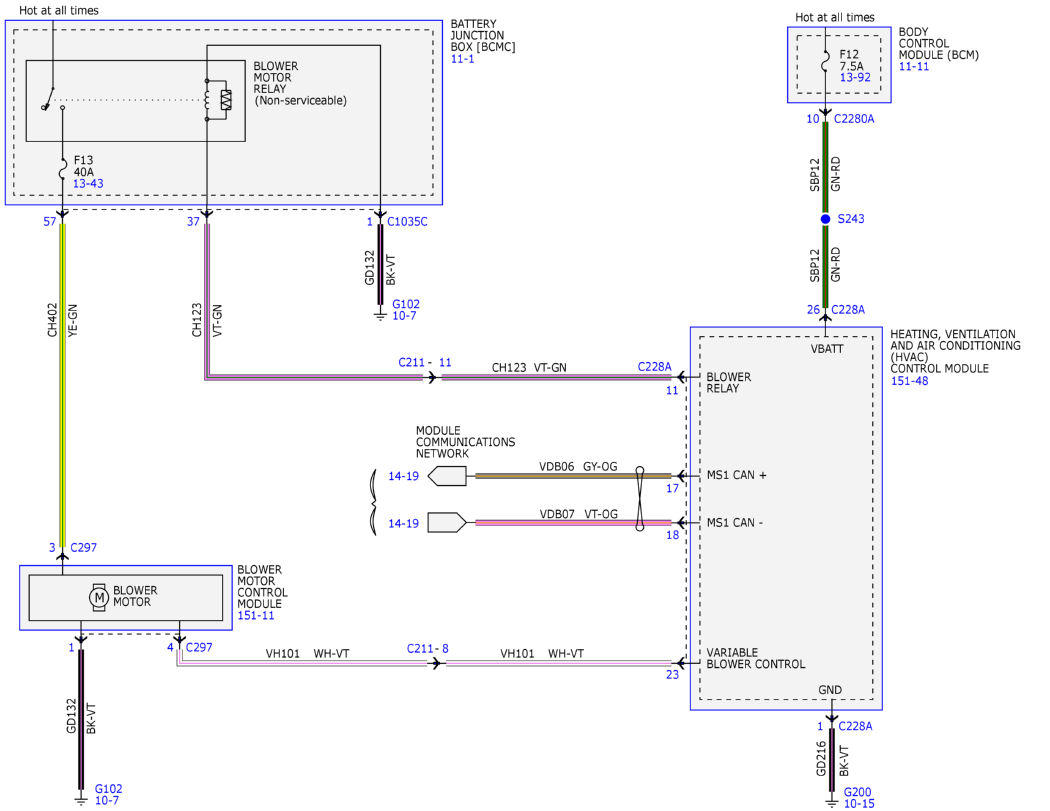

Fig 6: Automatic Climate Control System Wiring Diagram (6 Of 14)

Courtesy of FORD MOTOR COMPANY

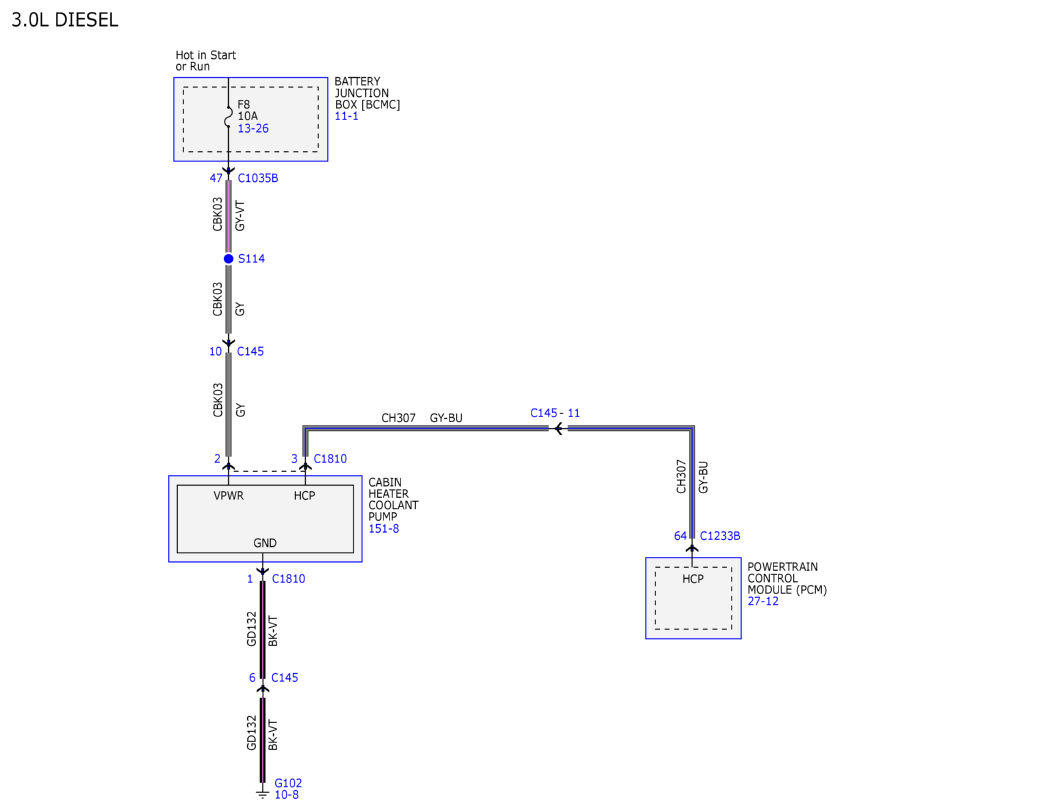

Fig 7: Automatic Climate Control System Wiring Diagram (7 Of 14)

Courtesy of FORD MOTOR COMPANY

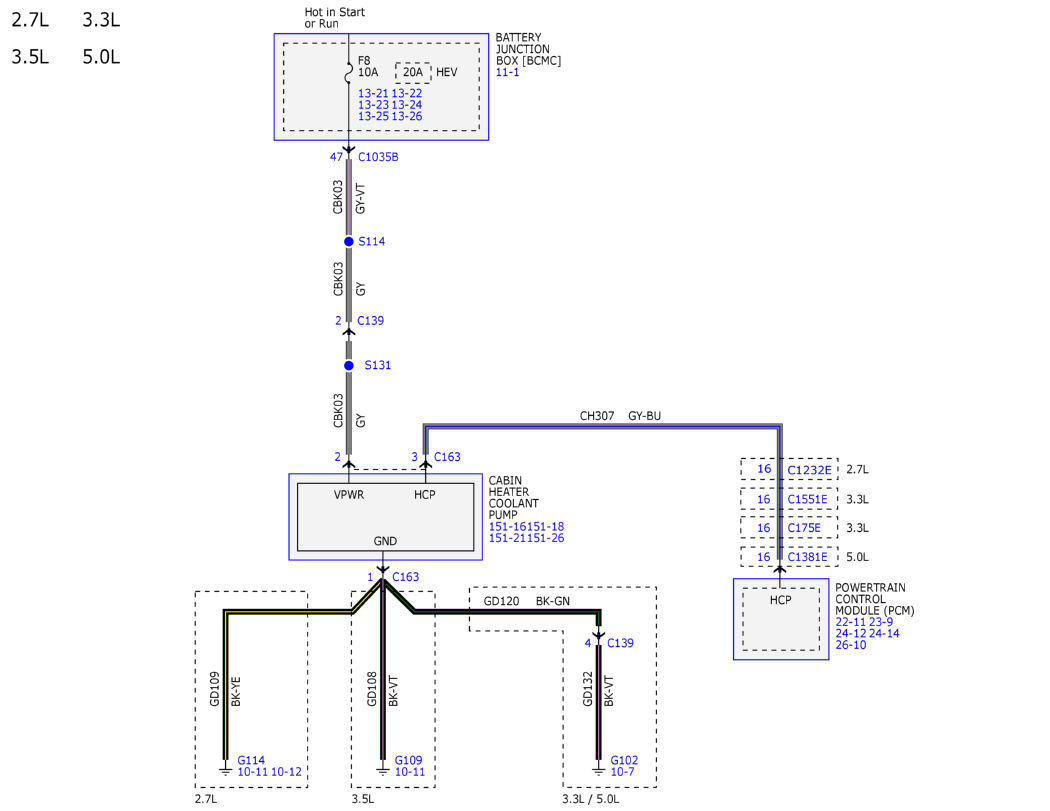

Fig 8: Automatic Climate Control System Wiring Diagram (8 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Automatic Climate Control System Wiring Diagram (9 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Automatic Climate Control System Wiring Diagram (10 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Automatic Climate Control System Wiring Diagram (11 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Automatic Climate Control System Wiring Diagram (12 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Automatic Climate Control System Wiring Diagram (13 Of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Automatic Climate Control System Wiring Diagram (14 Of 14)

Courtesy of FORD MOTOR COMPANY
