Transit Connect Titanium, Gas/Ethanol
>>
Repair and Diagnosis
>>
External Pages
>>
Different car
>>
Section 553 (OEM Wiring Diagrams)
>>
Audio System/Navigation - SYNC
Audio System/Navigation - SYNC
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

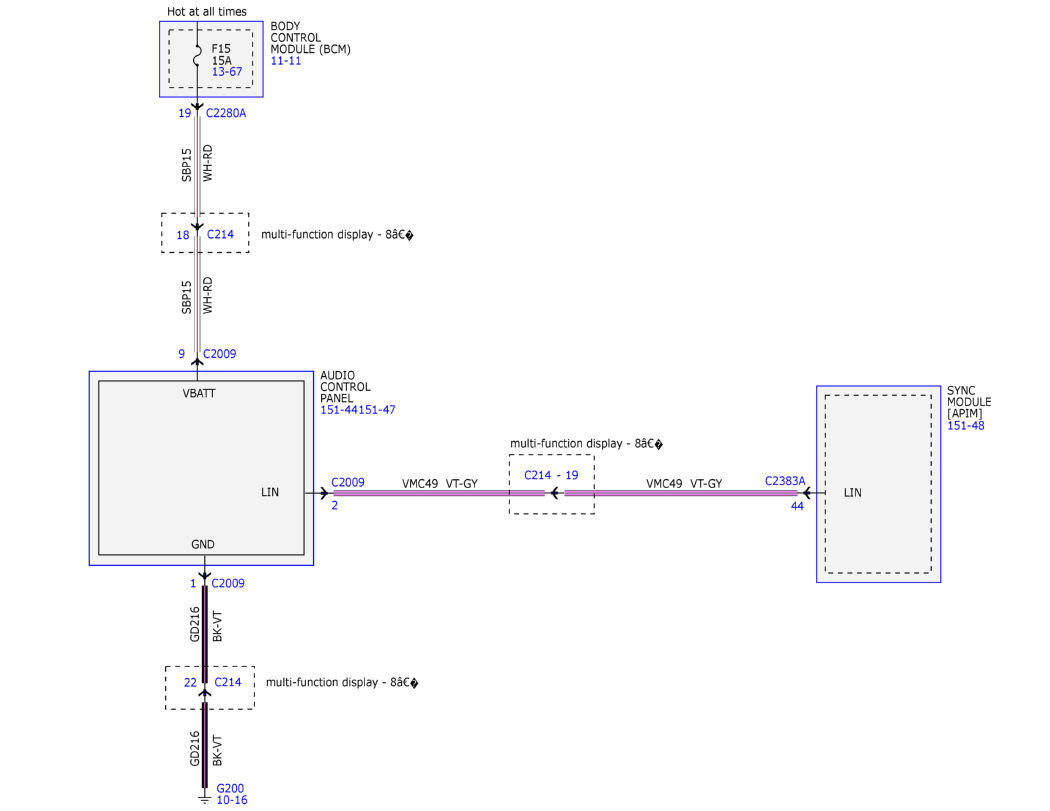

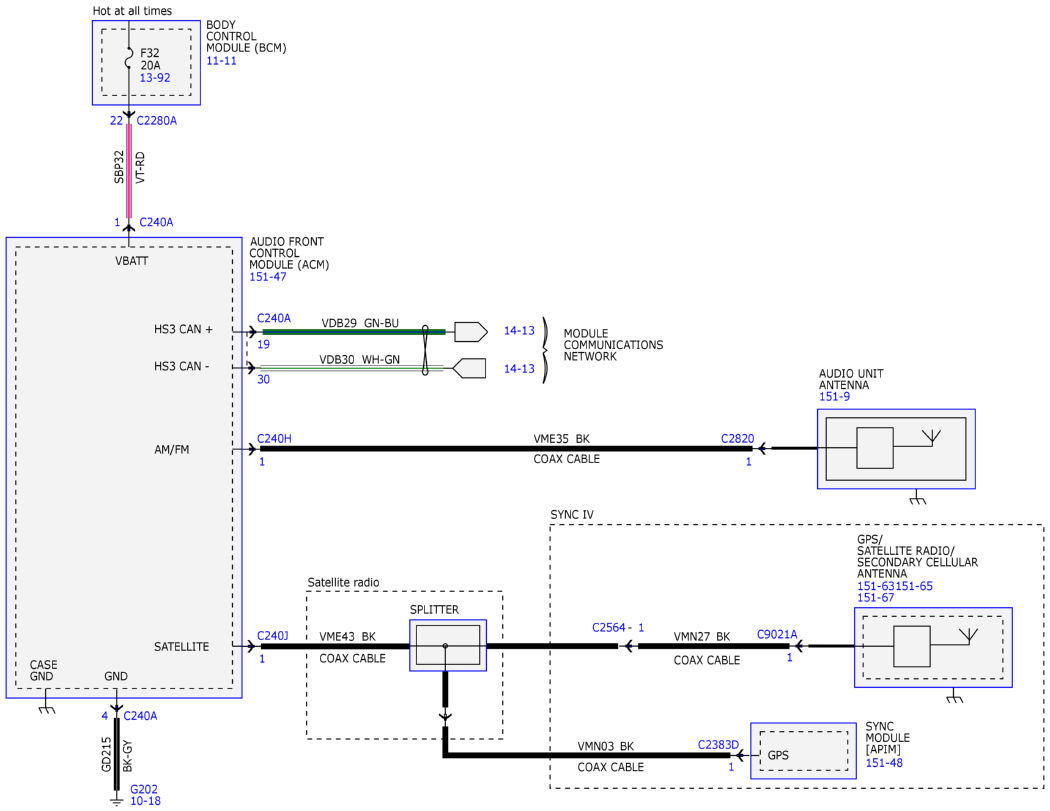

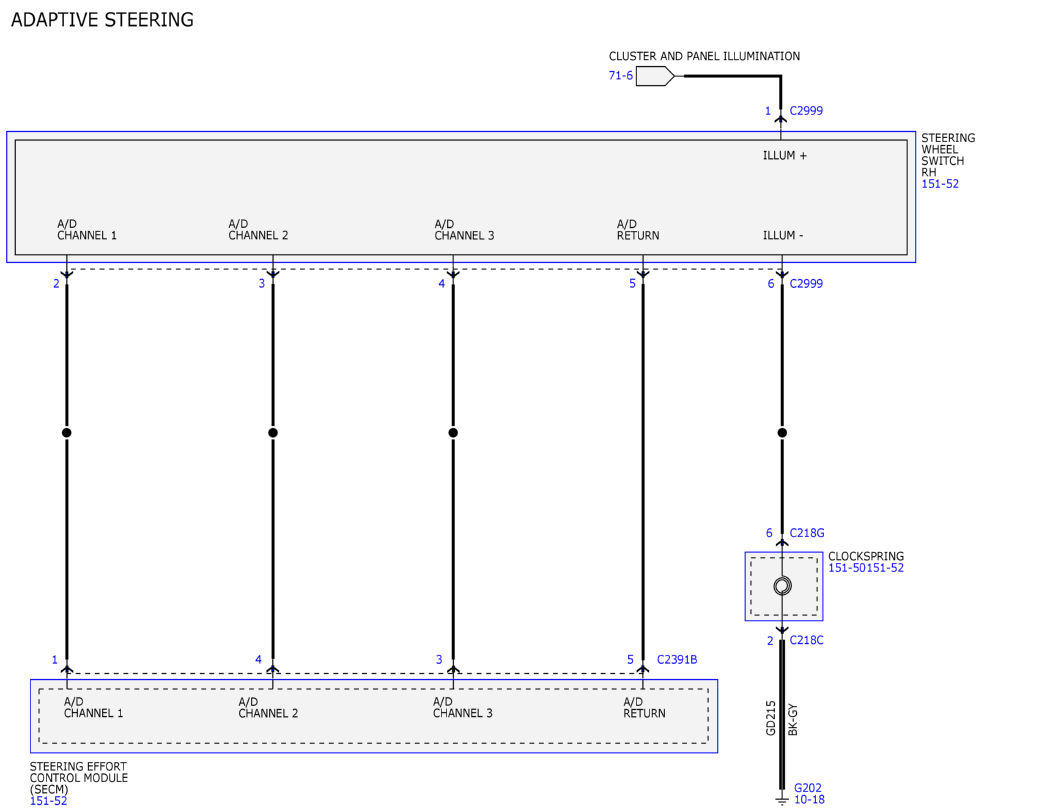

Fig 1: Audio System/Navigation Wiring Diagram - SYNC (1 Of 27)
Courtesy of FORD MOTOR COMPANY

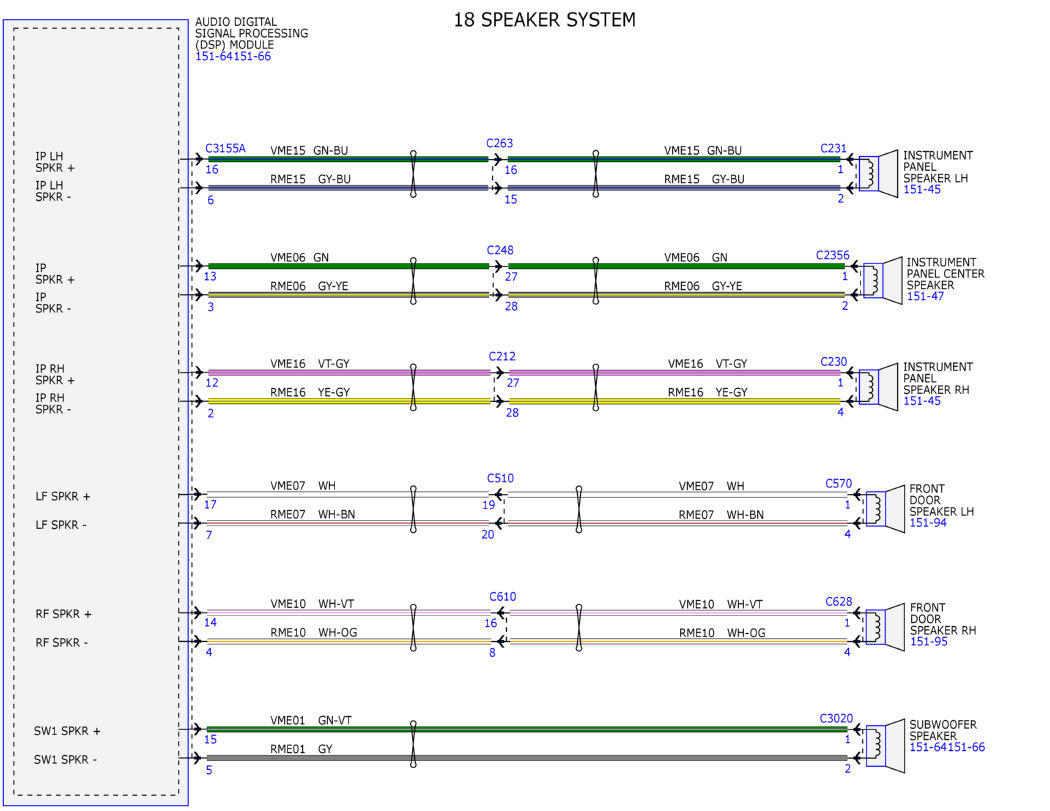

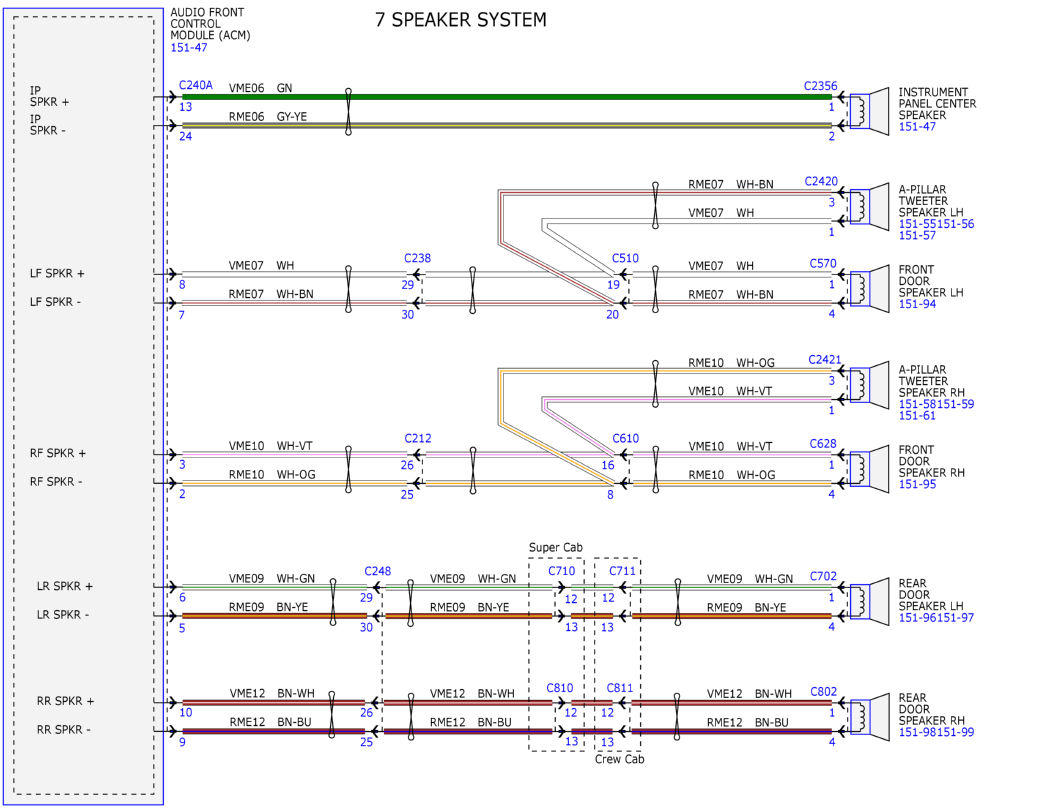

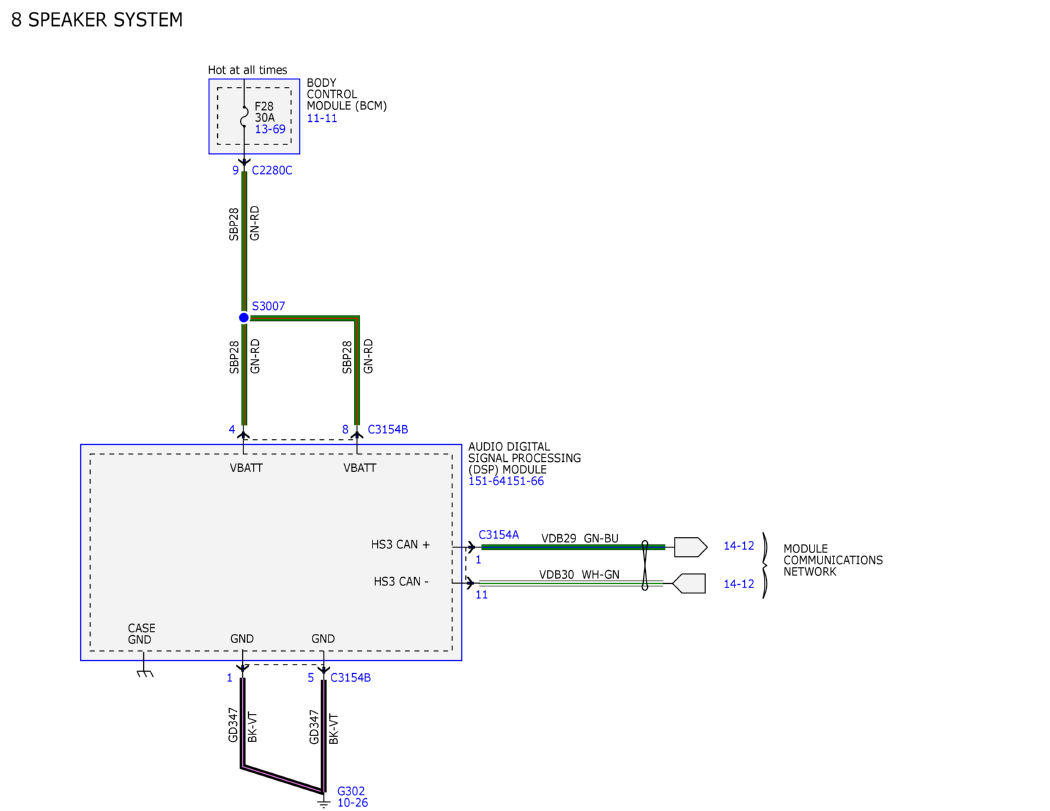

Fig 2: Audio System/Navigation Wiring Diagram - SYNC (2 Of 27)
Courtesy of FORD MOTOR COMPANY

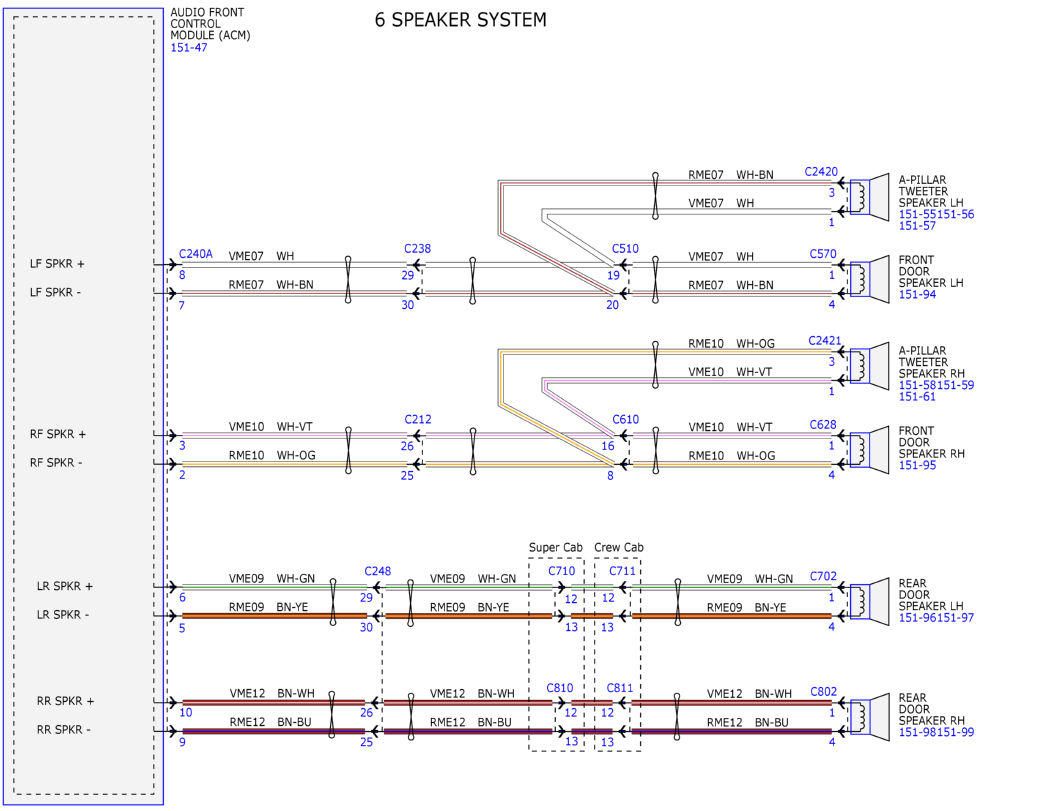

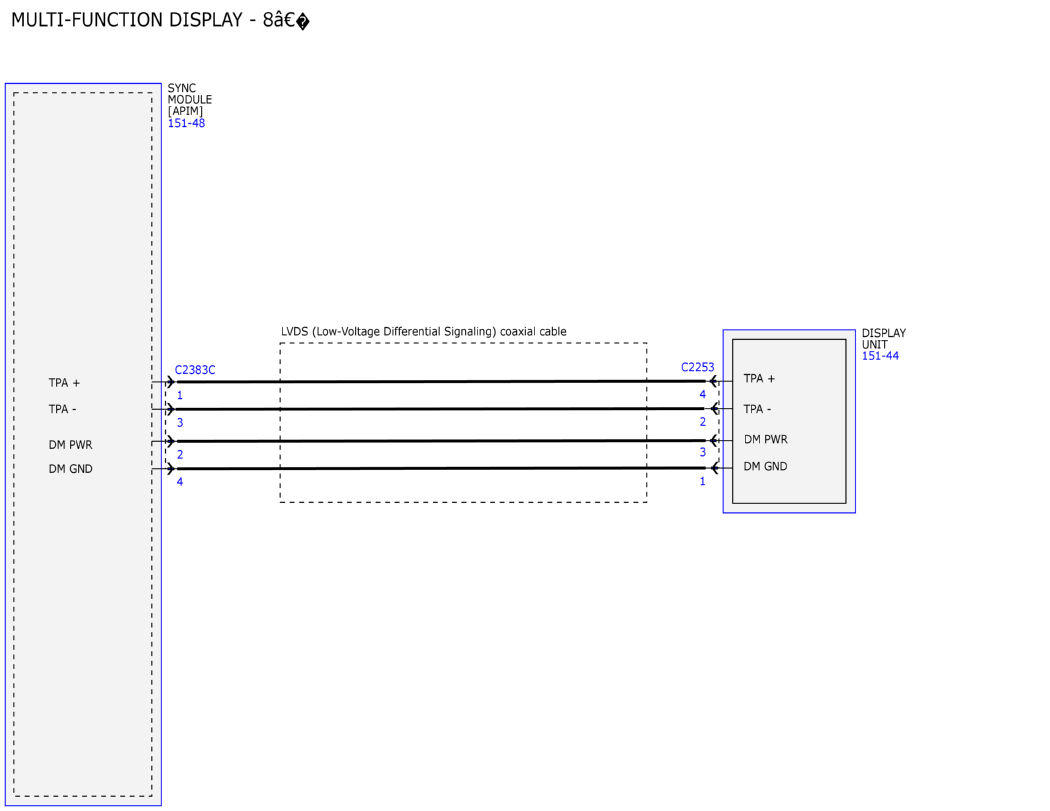

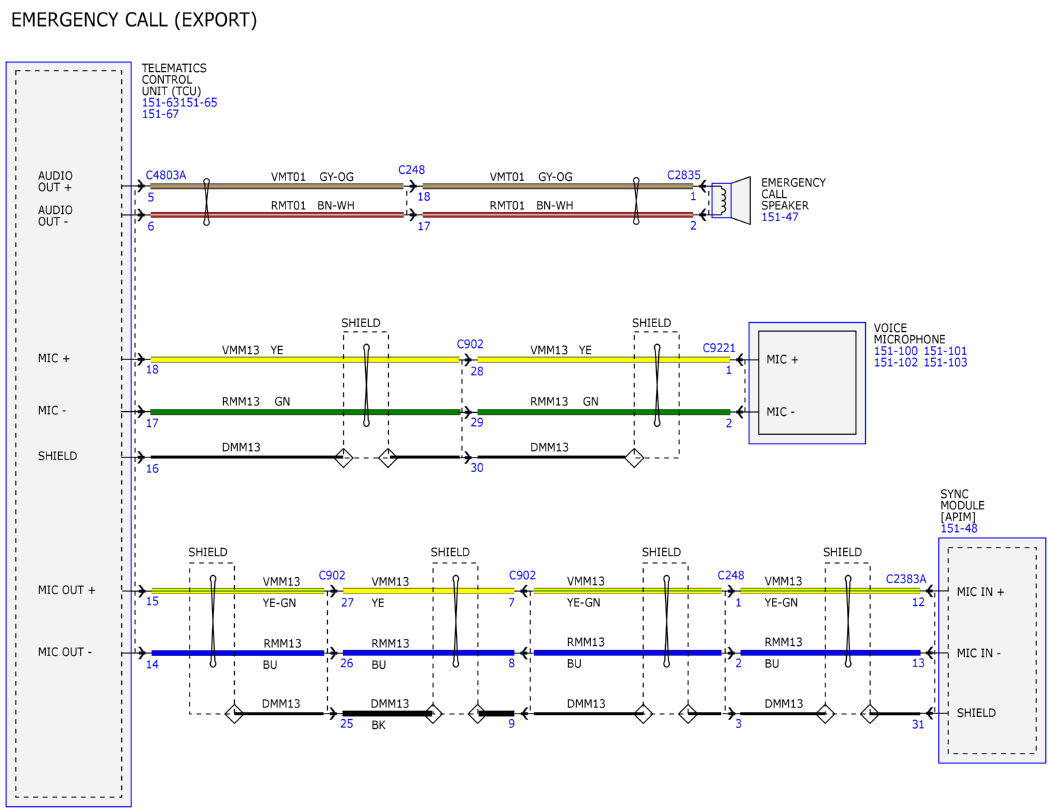

Fig 3: Audio System/Navigation Wiring Diagram - SYNC (3 Of 27)
Courtesy of FORD MOTOR COMPANY

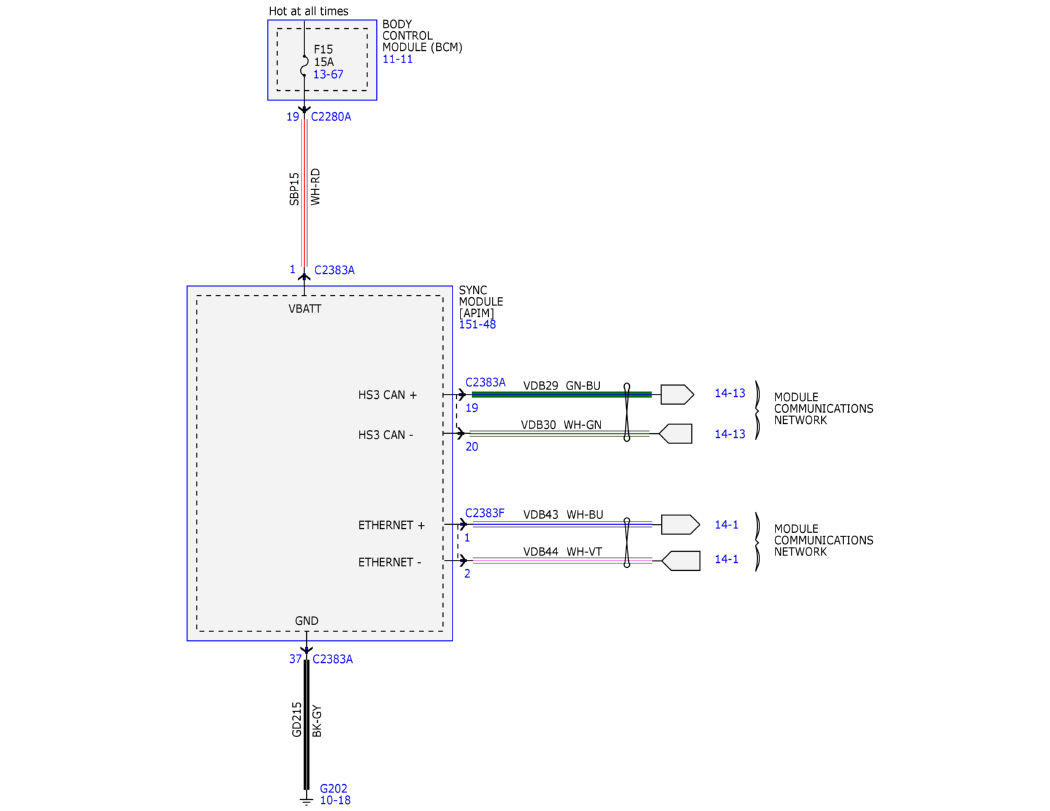

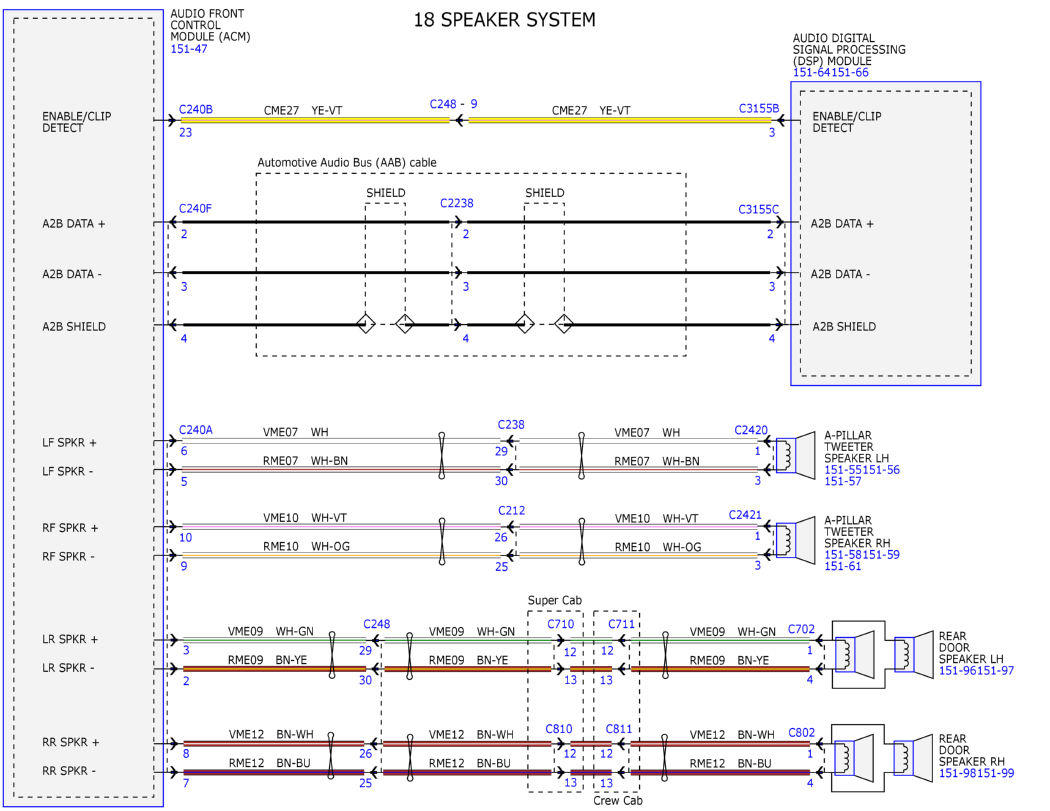

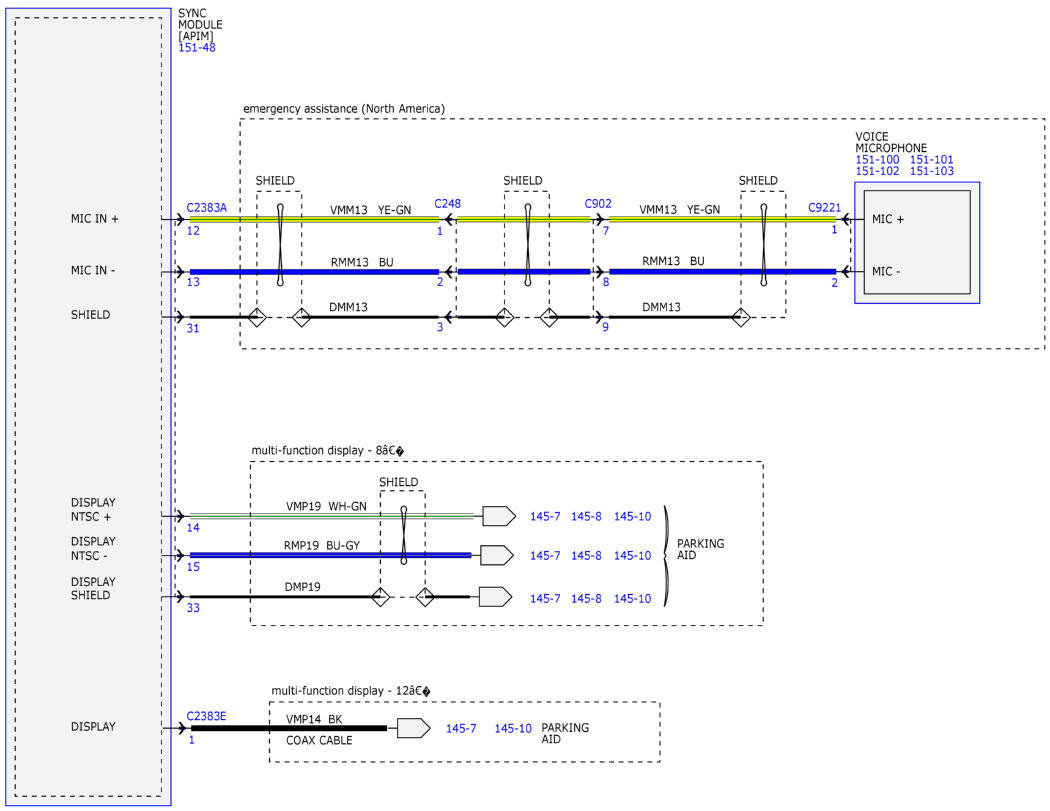

Fig 4: Audio System/Navigation Wiring Diagram - SYNC (4 Of 27)
Courtesy of FORD MOTOR COMPANY

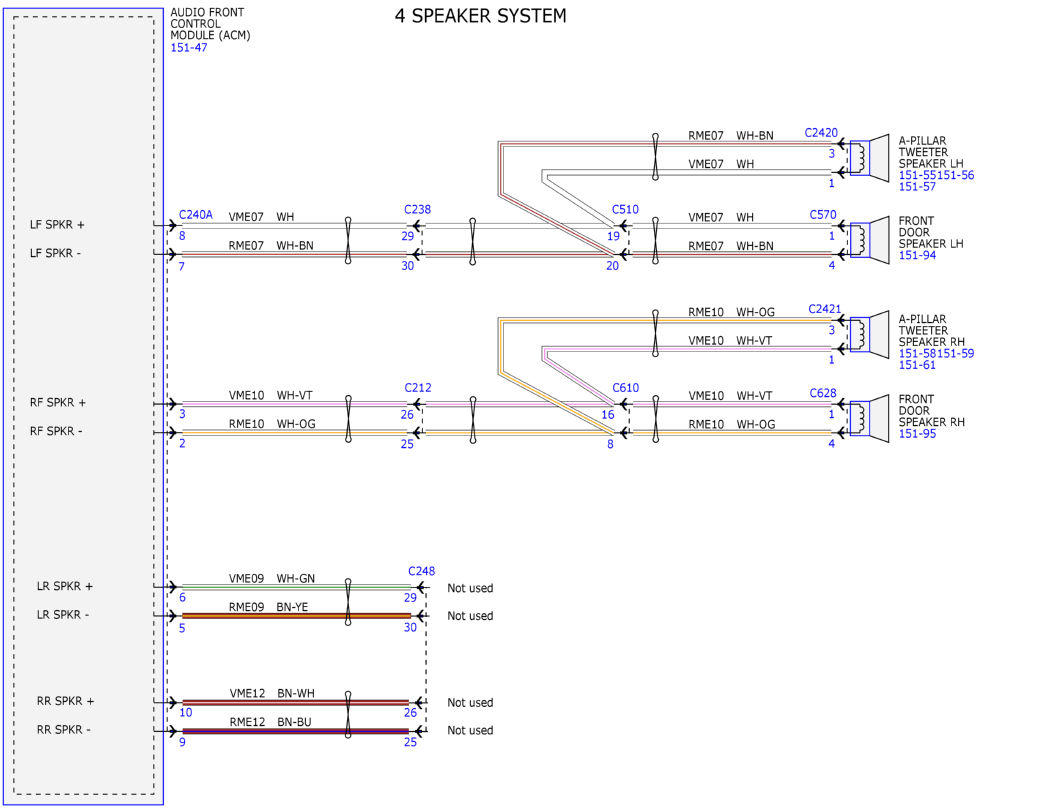

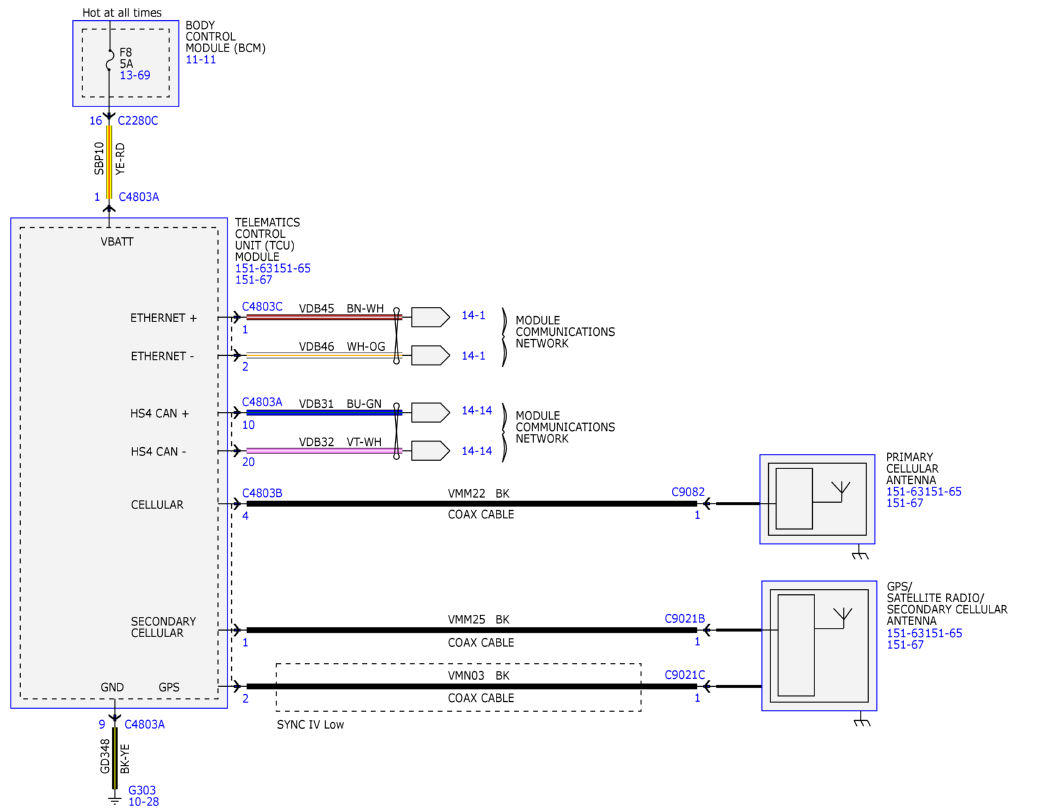

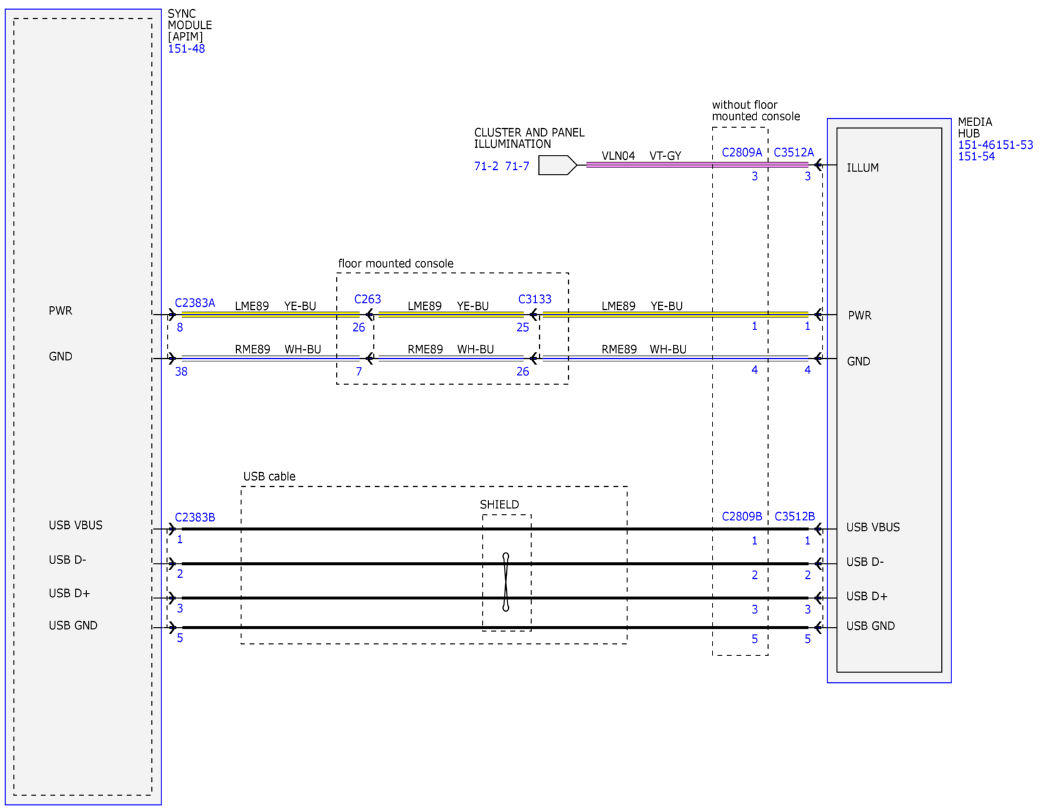

Fig 5: Audio System/Navigation Wiring Diagram - SYNC (5 Of 27)
Courtesy of FORD MOTOR COMPANY

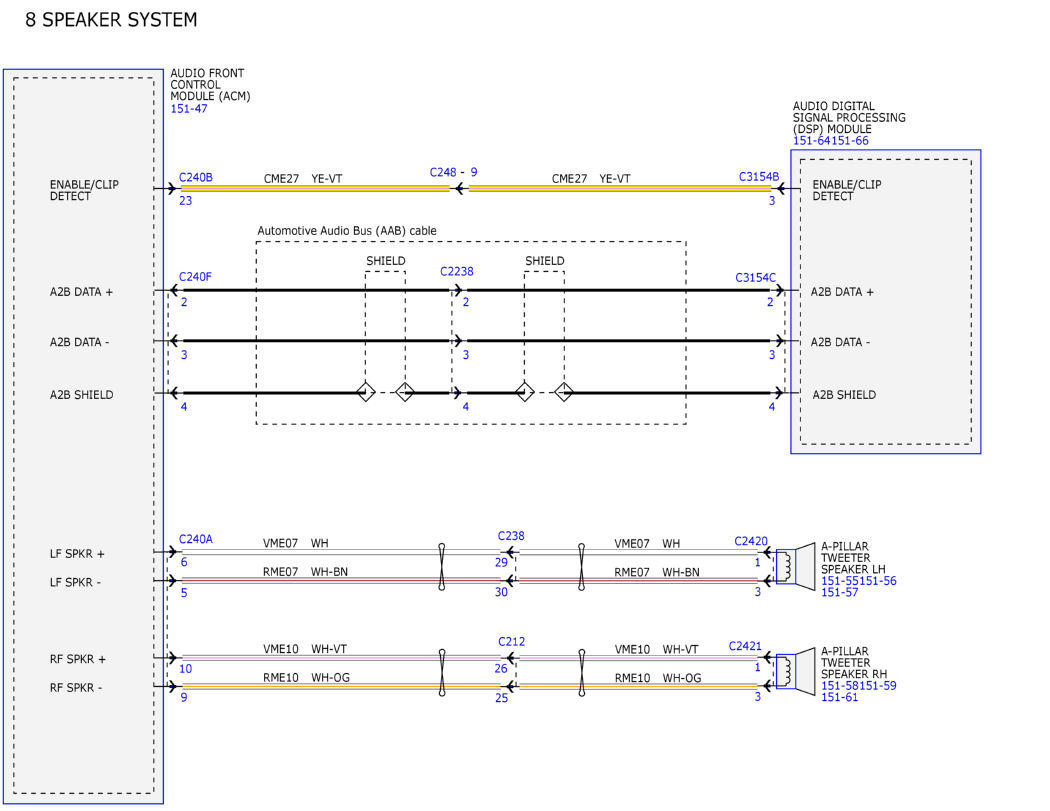

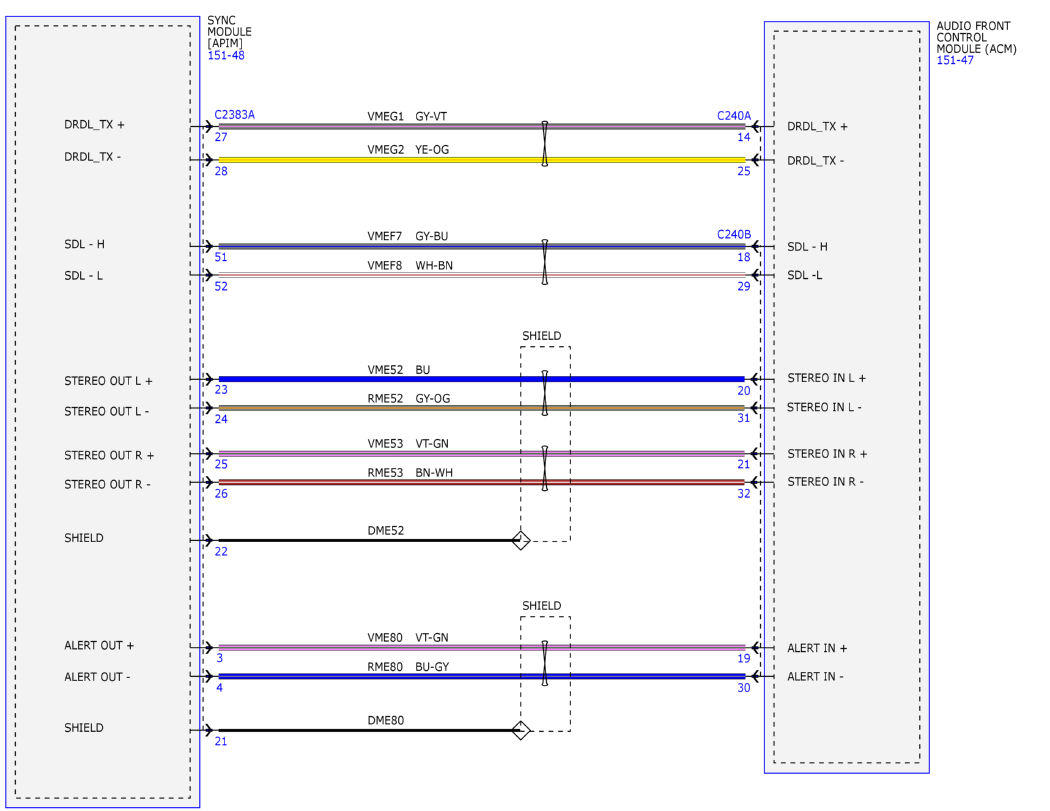

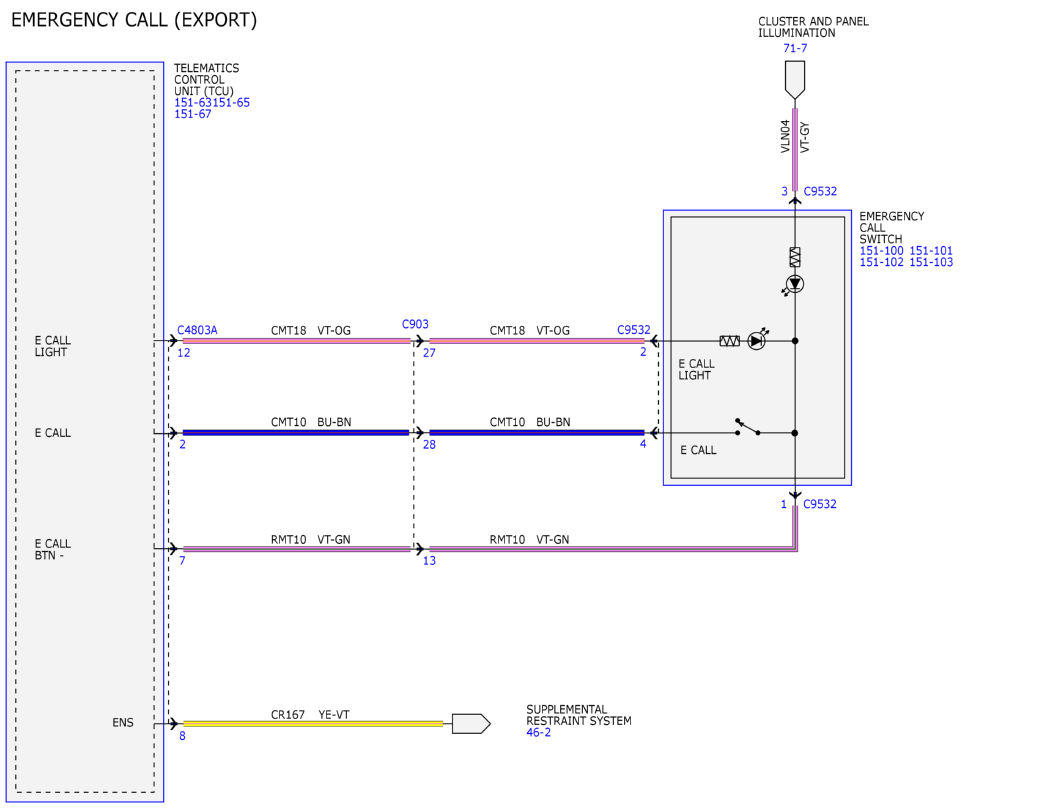

Fig 6: Audio System/Navigation Wiring Diagram - SYNC (6 Of 27)
Courtesy of FORD MOTOR COMPANY

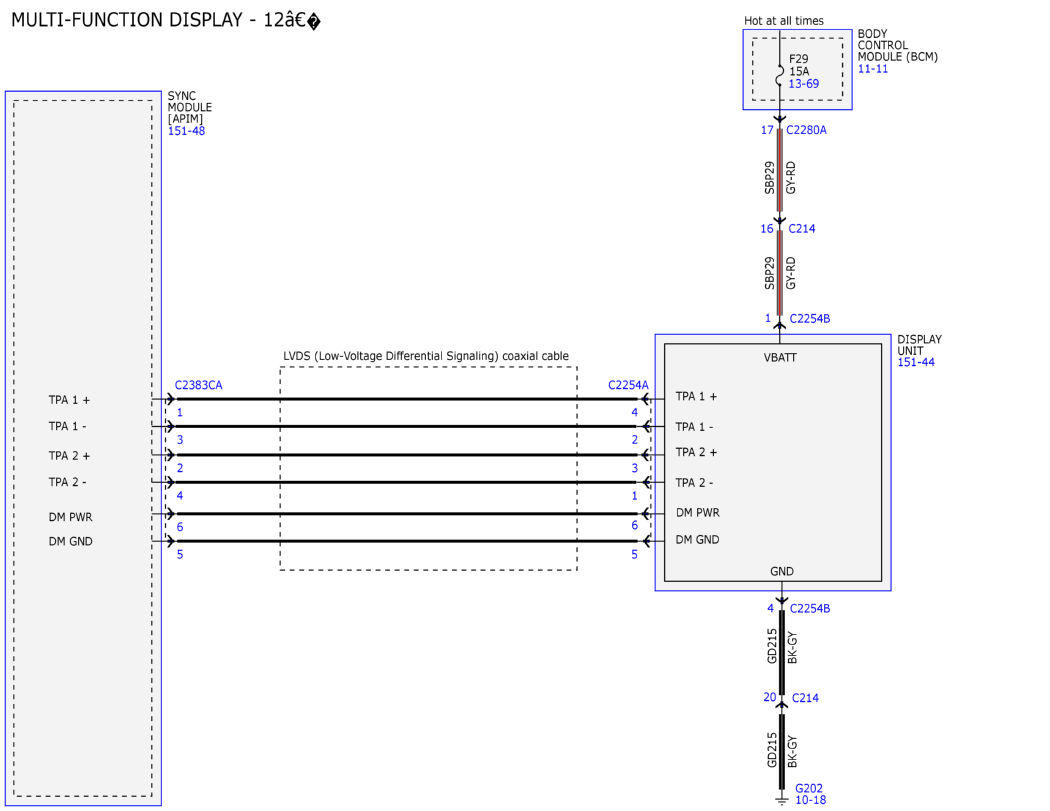

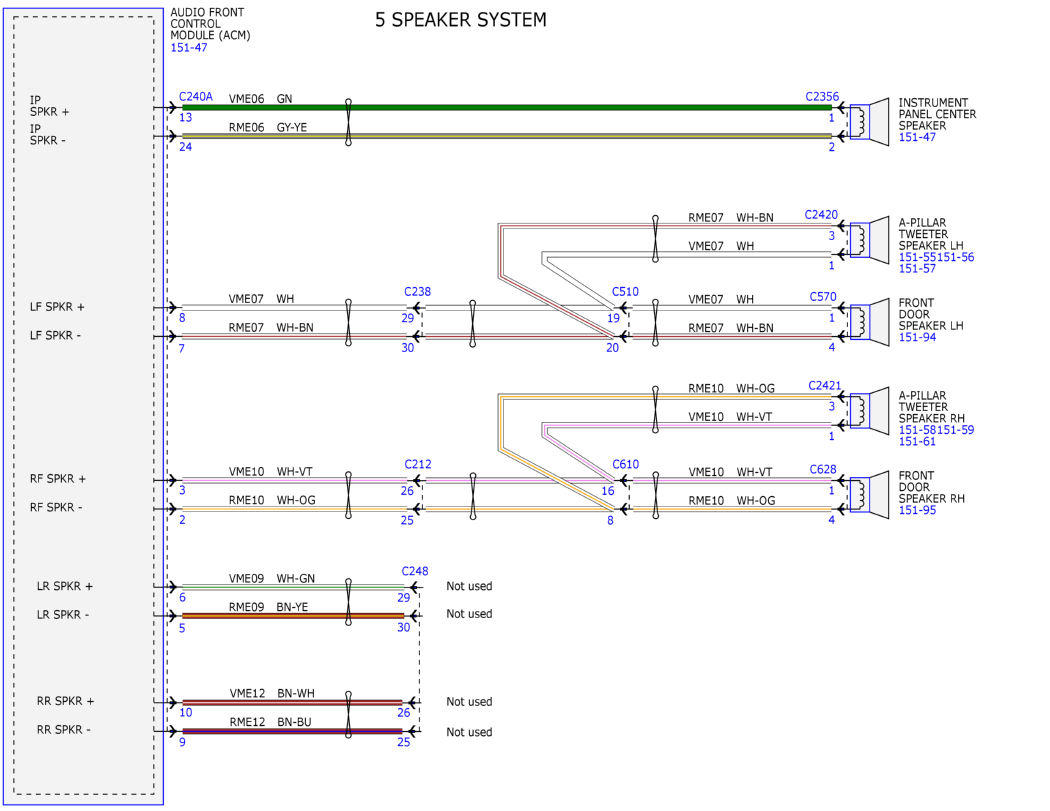

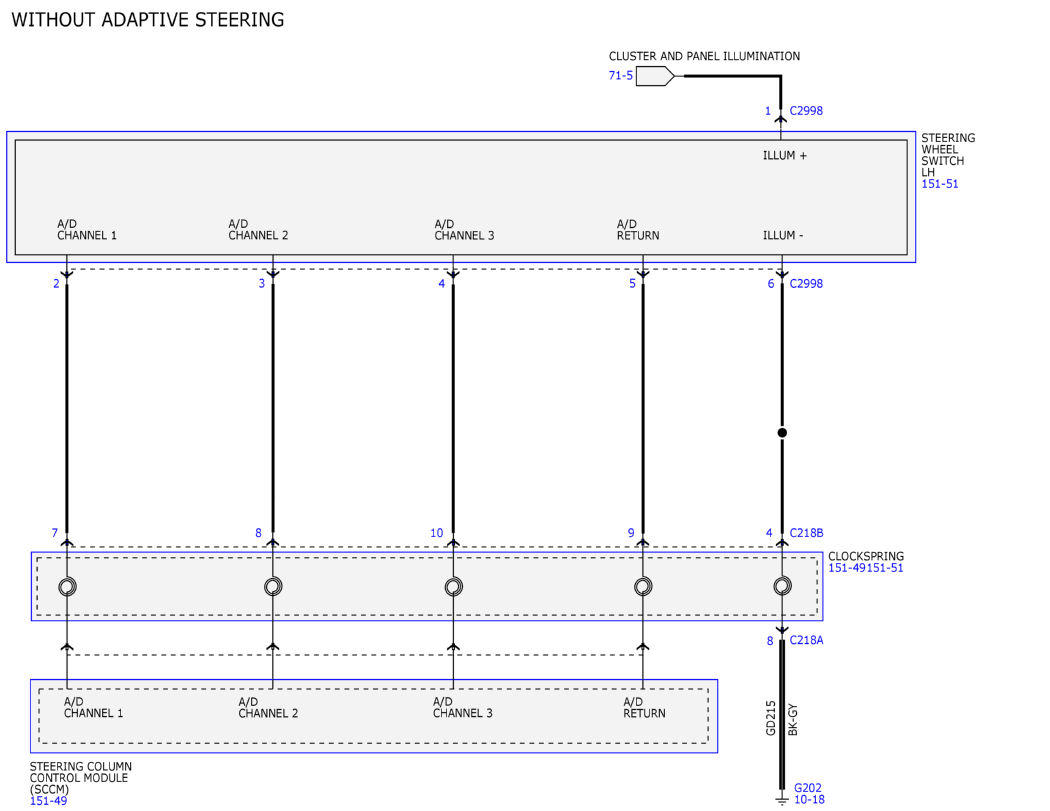

Fig 7: Audio System/Navigation Wiring Diagram - SYNC (7 Of 27)
Courtesy of FORD MOTOR COMPANY

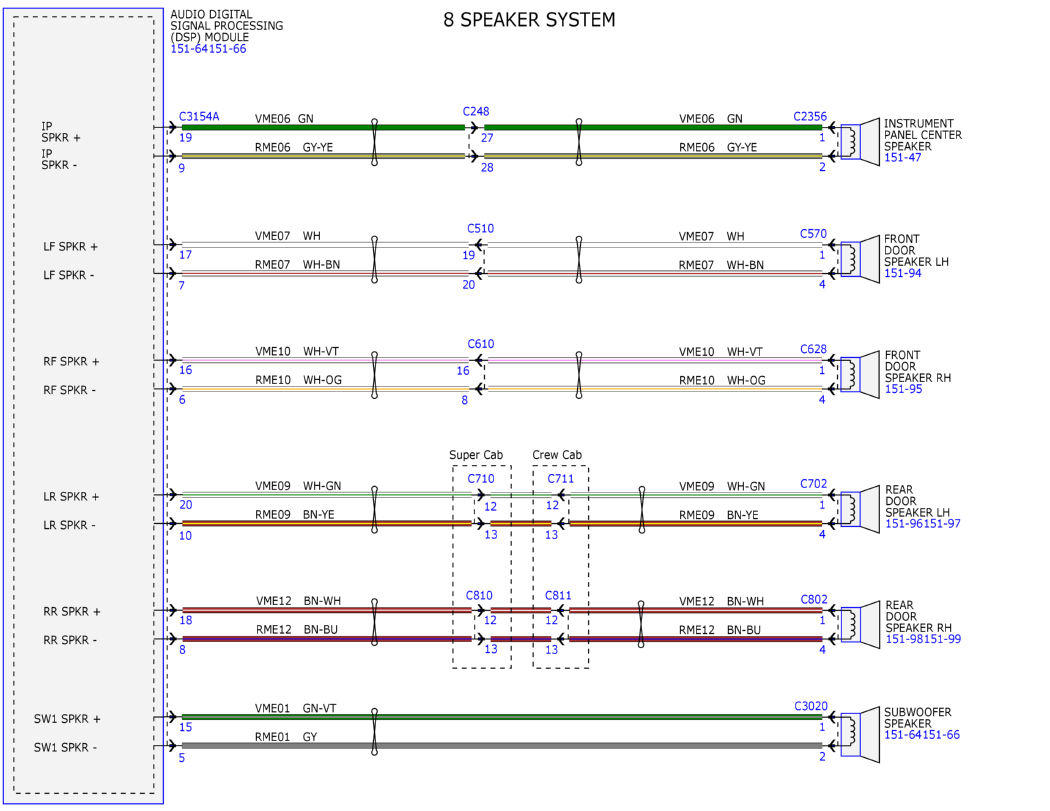

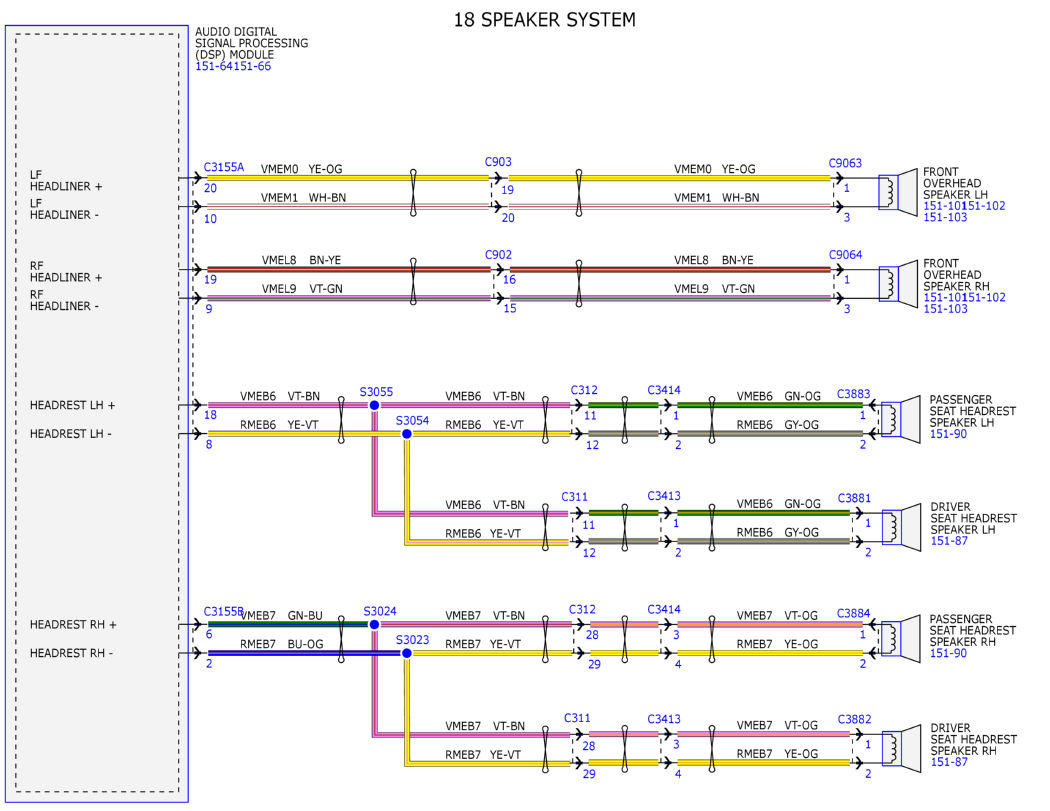

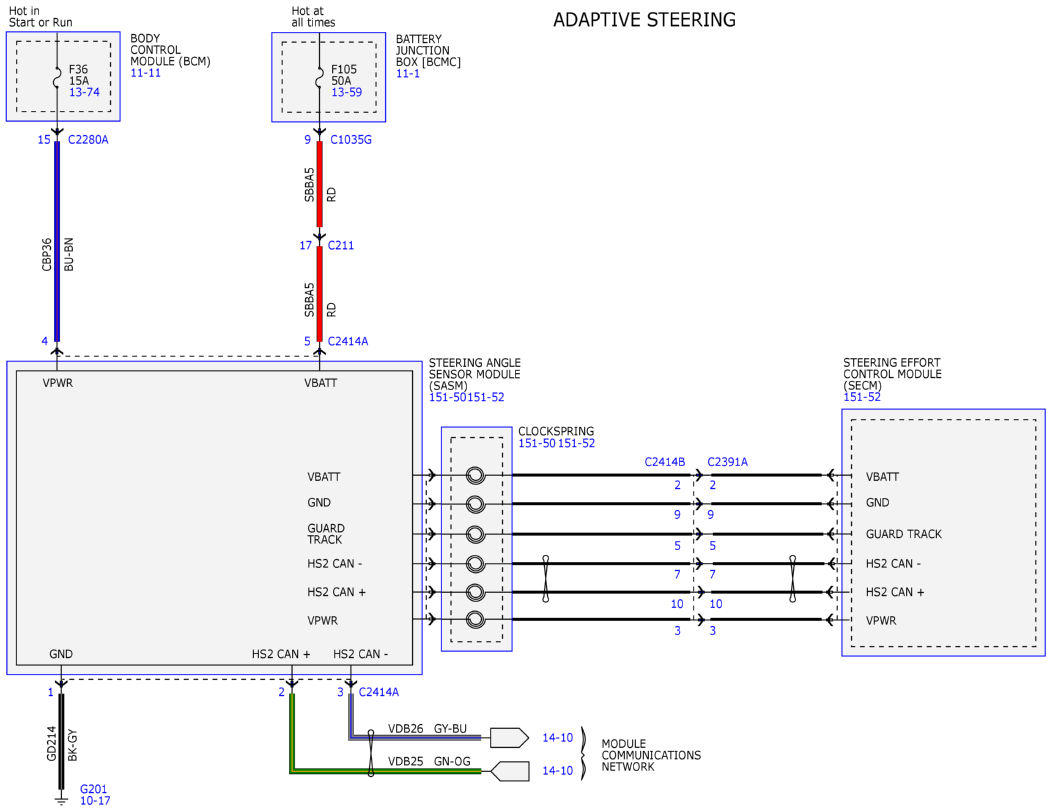

Fig 8: Audio System/Navigation Wiring Diagram - SYNC (8 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation Wiring Diagram - SYNC (9 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation Wiring Diagram - SYNC (10 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation Wiring Diagram - SYNC (11 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation Wiring Diagram - SYNC (12 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 13: Audio System/Navigation Wiring Diagram - SYNC (13 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation Wiring Diagram - SYNC (14 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 15: Audio System/Navigation Wiring Diagram - SYNC (15 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 16: Audio System/Navigation Wiring Diagram - SYNC (16 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 17: Audio System/Navigation Wiring Diagram - SYNC (17 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 18: Audio System/Navigation Wiring Diagram - SYNC (18 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 19: Audio System/Navigation Wiring Diagram - SYNC (19 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 20: Audio System/Navigation Wiring Diagram - SYNC (20 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 21: Audio System/Navigation Wiring Diagram - SYNC (21 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 22: Audio System/Navigation Wiring Diagram - SYNC (22 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 23: Audio System/Navigation Wiring Diagram - SYNC (23 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 24: Audio System/Navigation Wiring Diagram - SYNC (24 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 25: Audio System/Navigation Wiring Diagram - SYNC (25 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 26: Audio System/Navigation Wiring Diagram - SYNC (26 Of 27)
Courtesy of FORD MOTOR COMPANY
Fig 27: Audio System/Navigation Wiring Diagram - SYNC (27 Of 27)
Courtesy of FORD MOTOR COMPANY
