Adjustable Steering Column

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

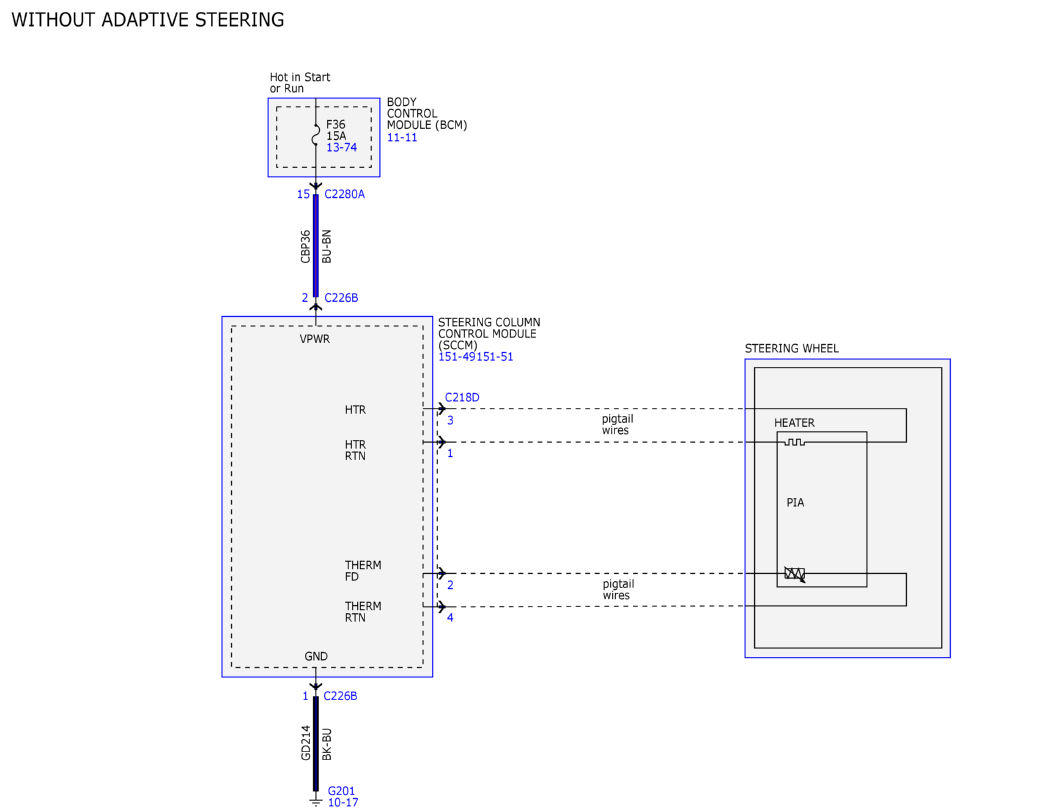

Fig 1: Adjustable Steering Column Wiring Diagram (1 Of 7)

Courtesy of FORD MOTOR COMPANY

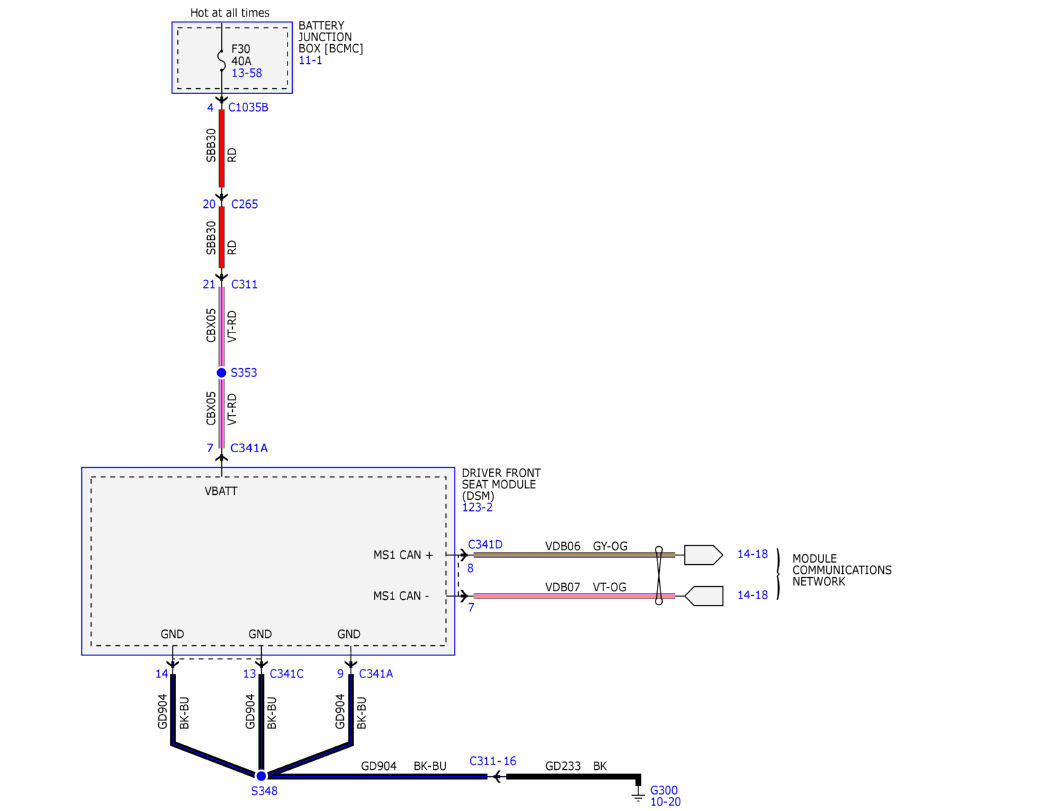

Fig 2: Adjustable Steering Column Wiring Diagram (2 Of 7)

Courtesy of FORD MOTOR COMPANY

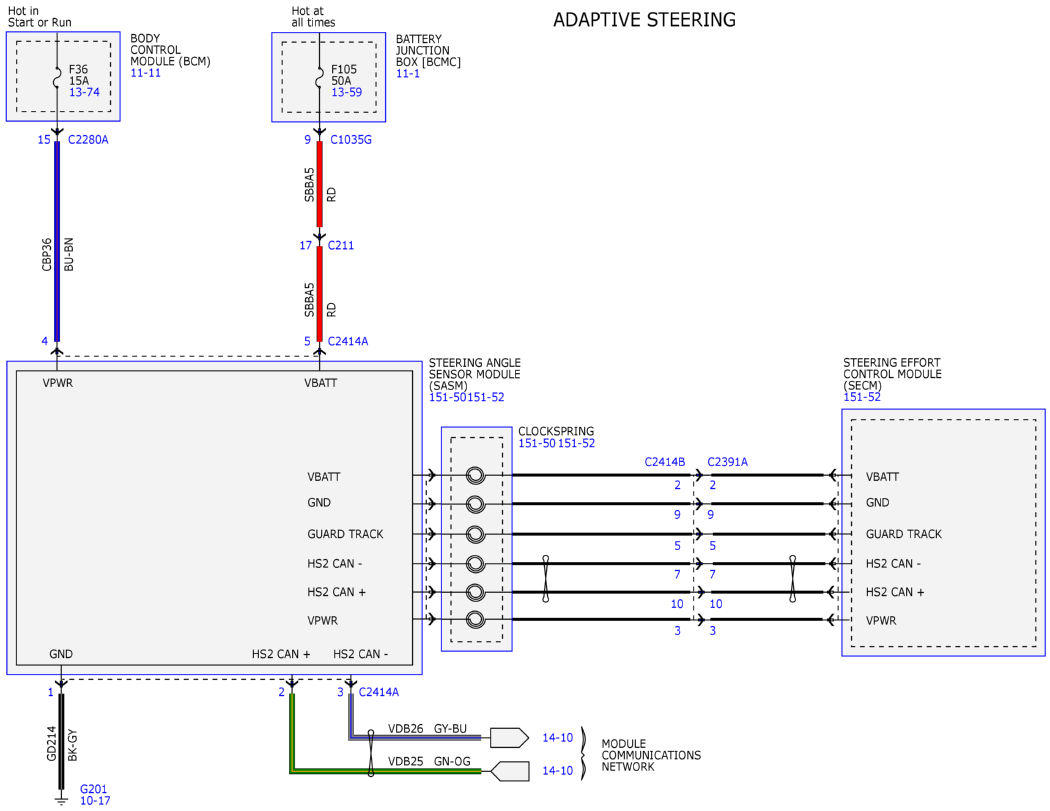

Fig 3: Adjustable Steering Column Wiring Diagram (3 Of 7)

Courtesy of FORD MOTOR COMPANY

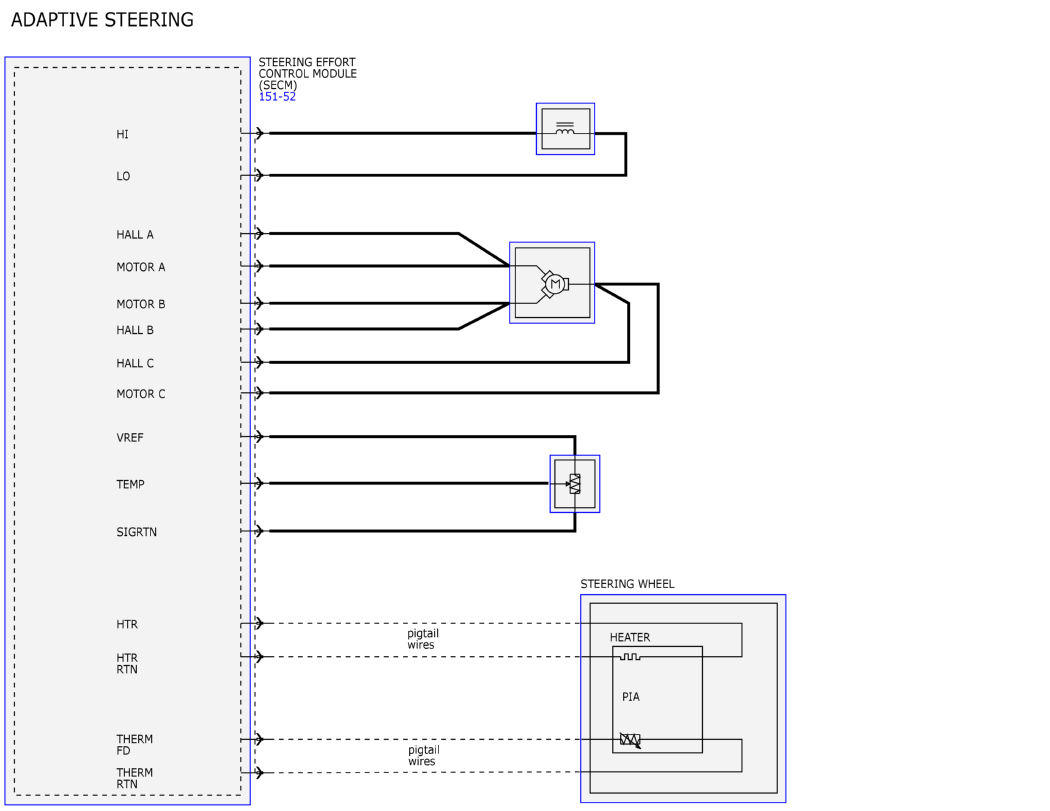

Fig 4: Adjustable Steering Column Wiring Diagram (4 Of 7)

Courtesy of FORD MOTOR COMPANY

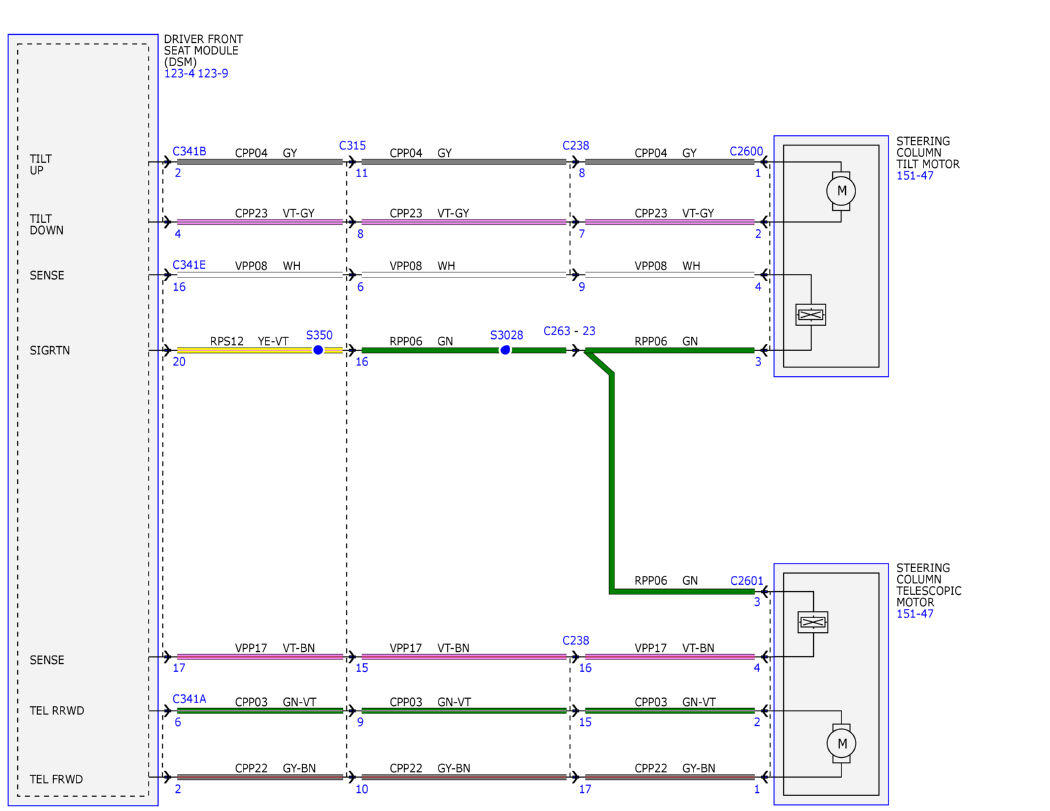

Fig 5: Adjustable Steering Column Wiring Diagram (5 Of 7)

Courtesy of FORD MOTOR COMPANY

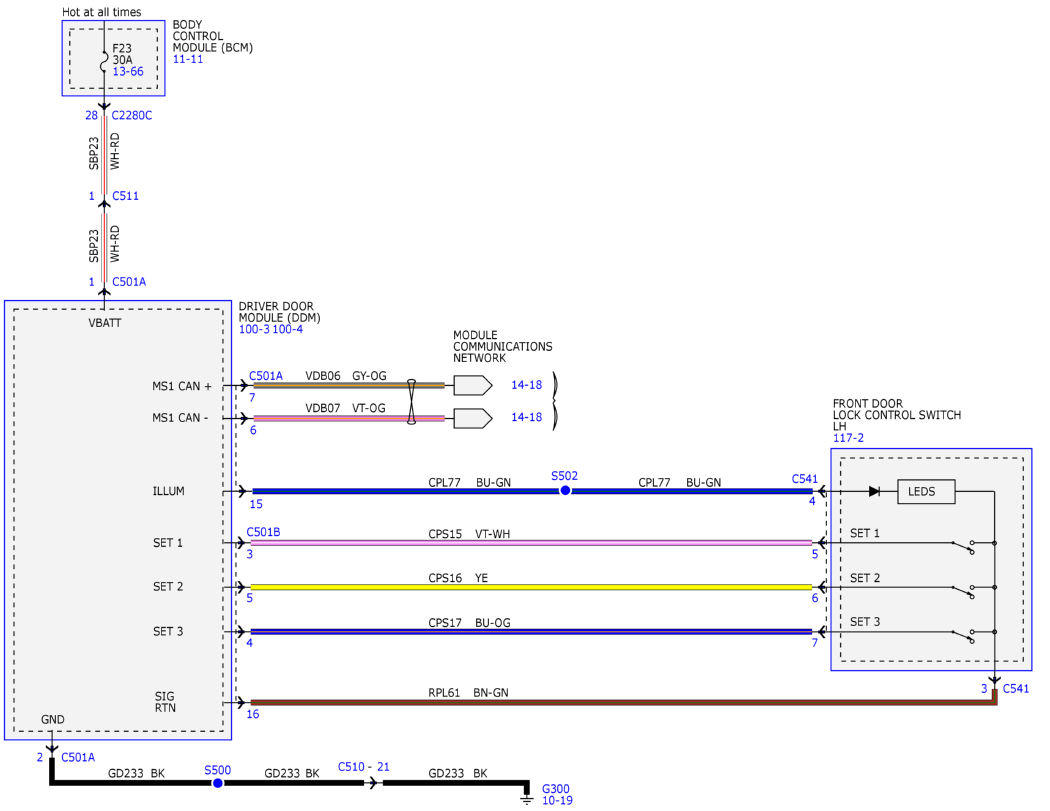

Fig 6: Adjustable Steering Column Wiring Diagram (6 Of 7)

Courtesy of FORD MOTOR COMPANY

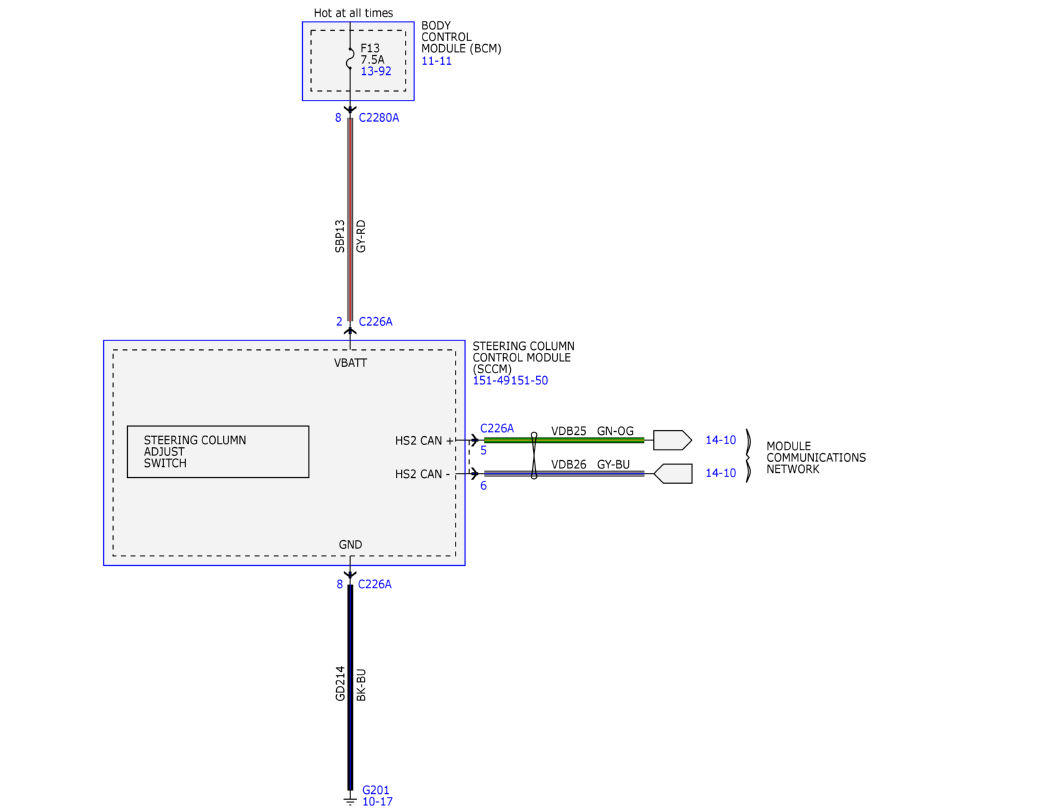

Fig 7: Adjustable Steering Column Wiring Diagram (7 Of 7)

Courtesy of FORD MOTOR COMPANY
