Adjustable Pedal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

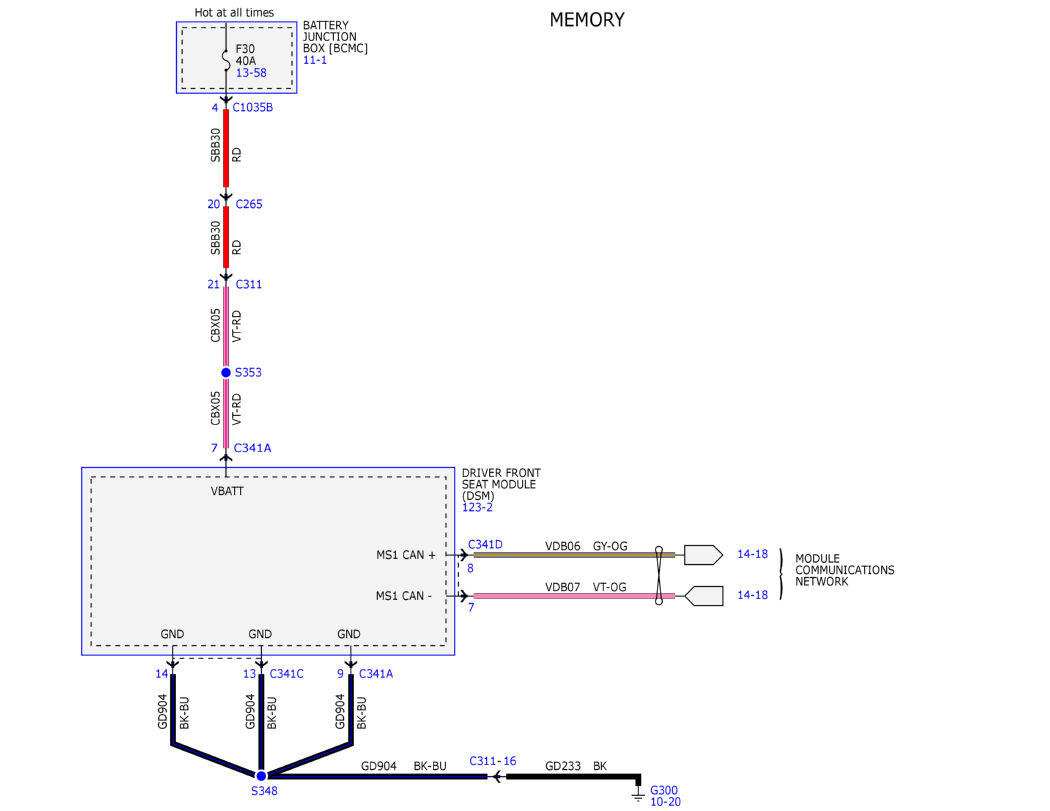

Fig 1: Adjustable Pedal Wiring Diagram (1 Of 4)

Courtesy of FORD MOTOR COMPANY

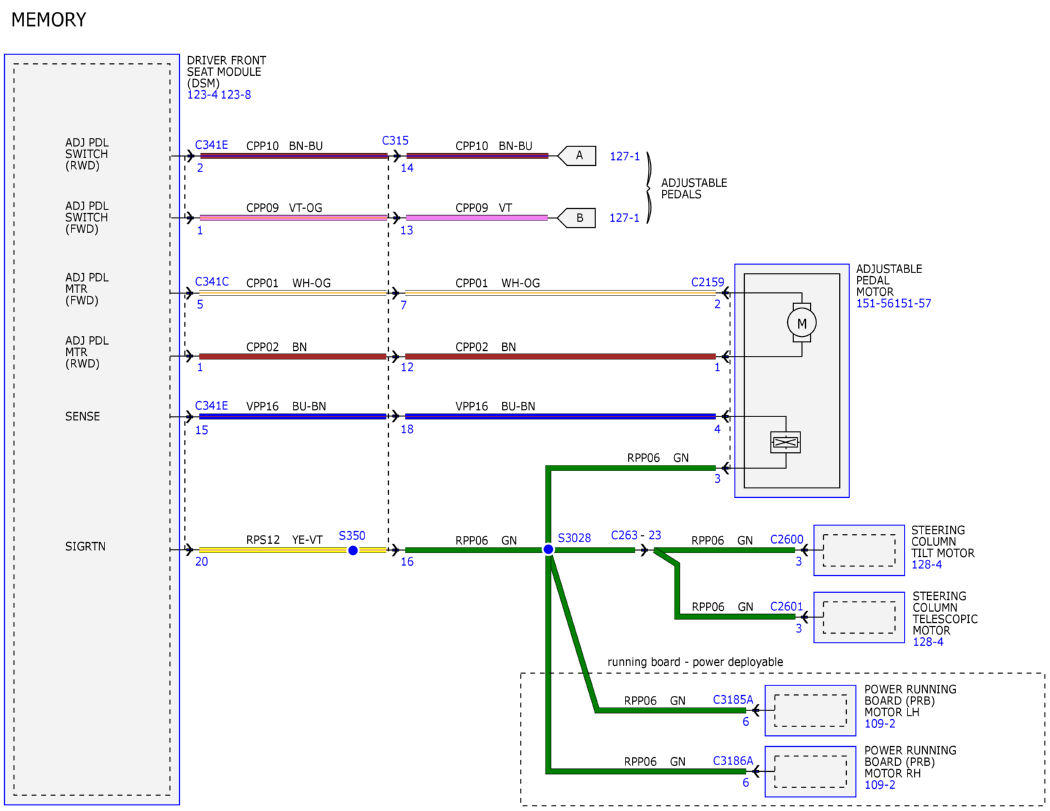

Fig 2: Adjustable Pedal Wiring Diagram (2 Of 4)

Courtesy of FORD MOTOR COMPANY

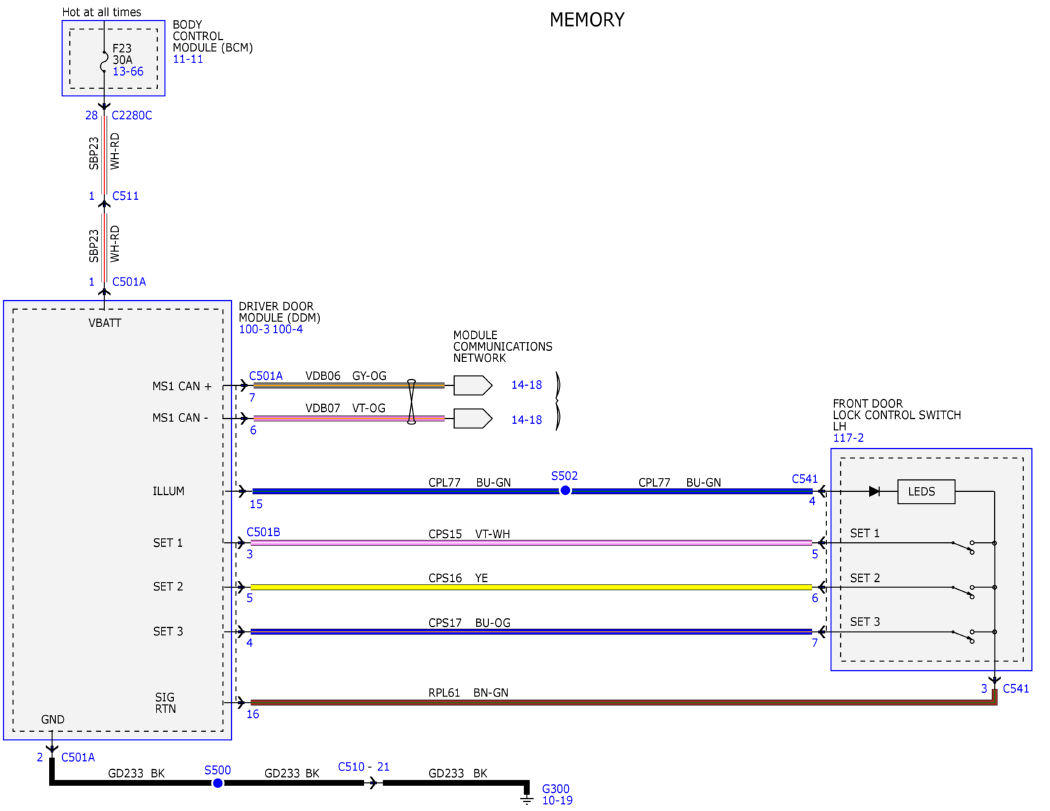

Fig 3: Adjustable Pedal Wiring Diagram (3 Of 4)

Courtesy of FORD MOTOR COMPANY

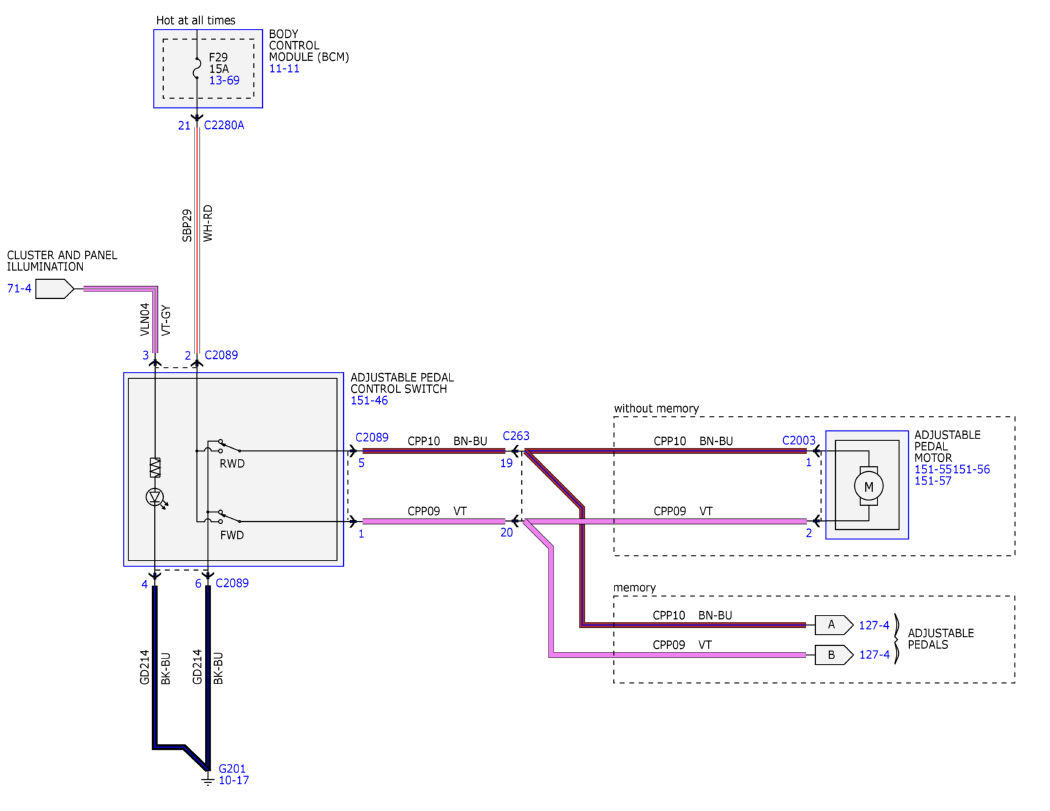

Fig 4: Adjustable Pedal Wiring Diagram (4 Of 4)

Courtesy of FORD MOTOR COMPANY
