Fuse And Relay Location

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

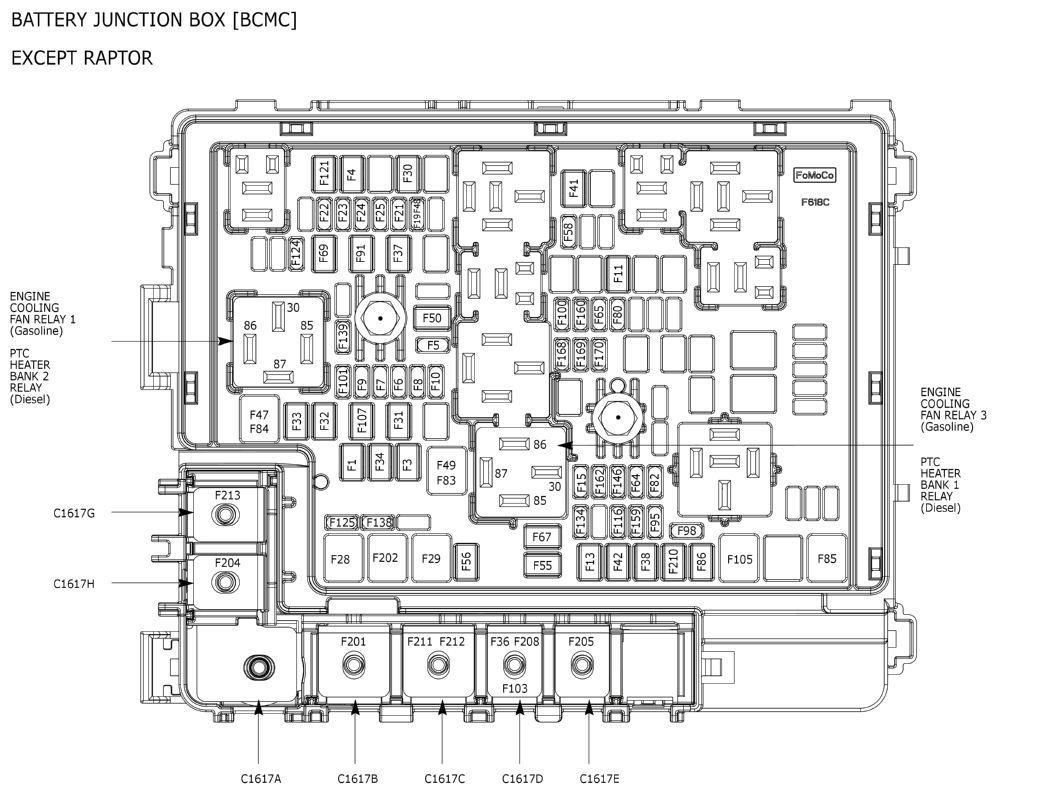

Fig 1: Battery Junction Box [BCMC] Component Location (Except Raptor)

Courtesy of FORD MOTOR COMPANY

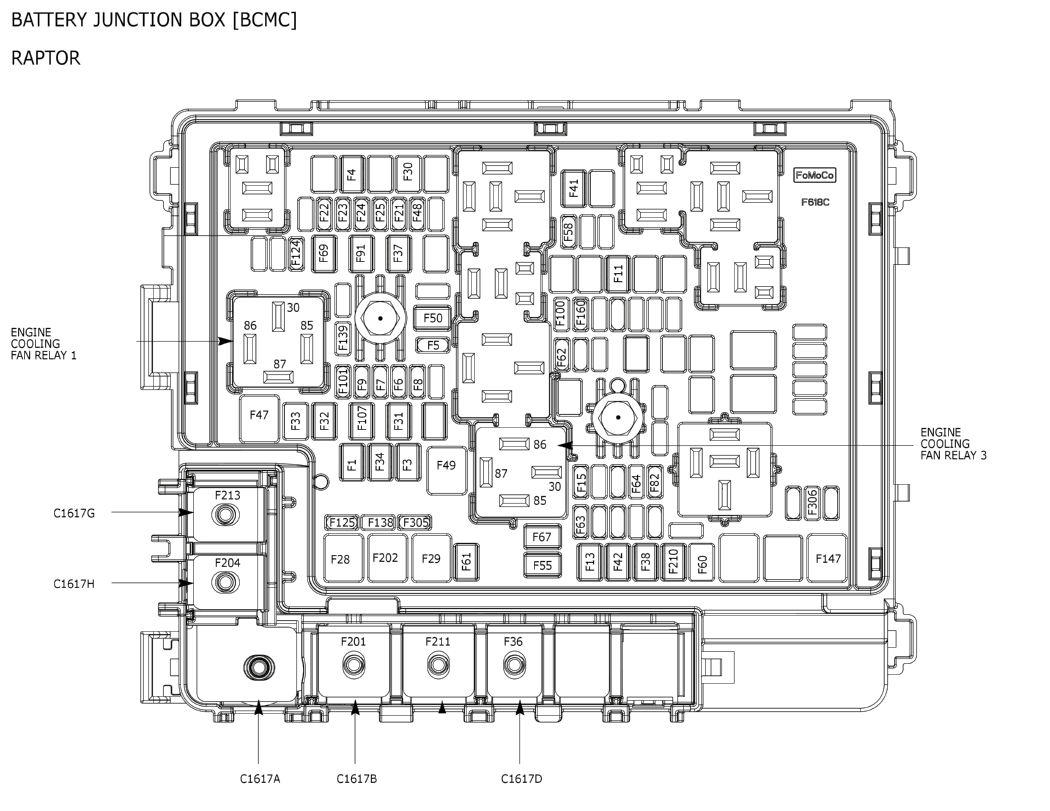

Fig 2: Battery Junction Box [BCMC] Component Location (Raptor)

Courtesy of FORD MOTOR COMPANY

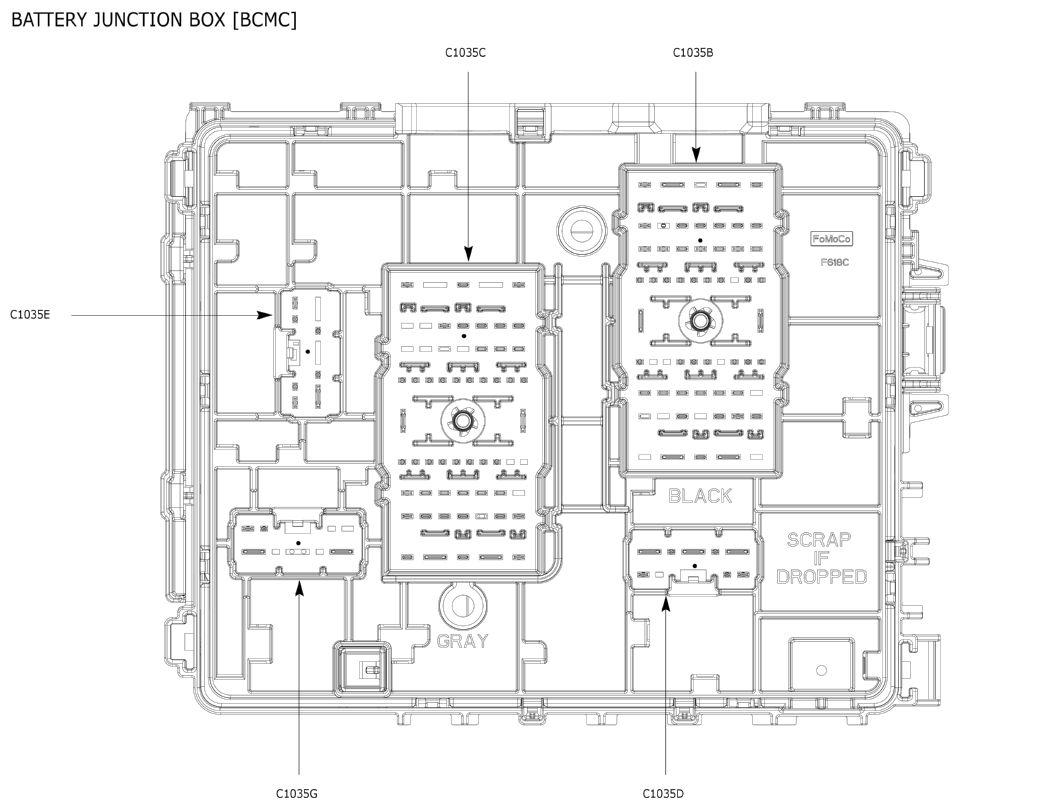

Fig 3: Battery Junction Box [BCMC] Component Location

Courtesy of FORD MOTOR COMPANY

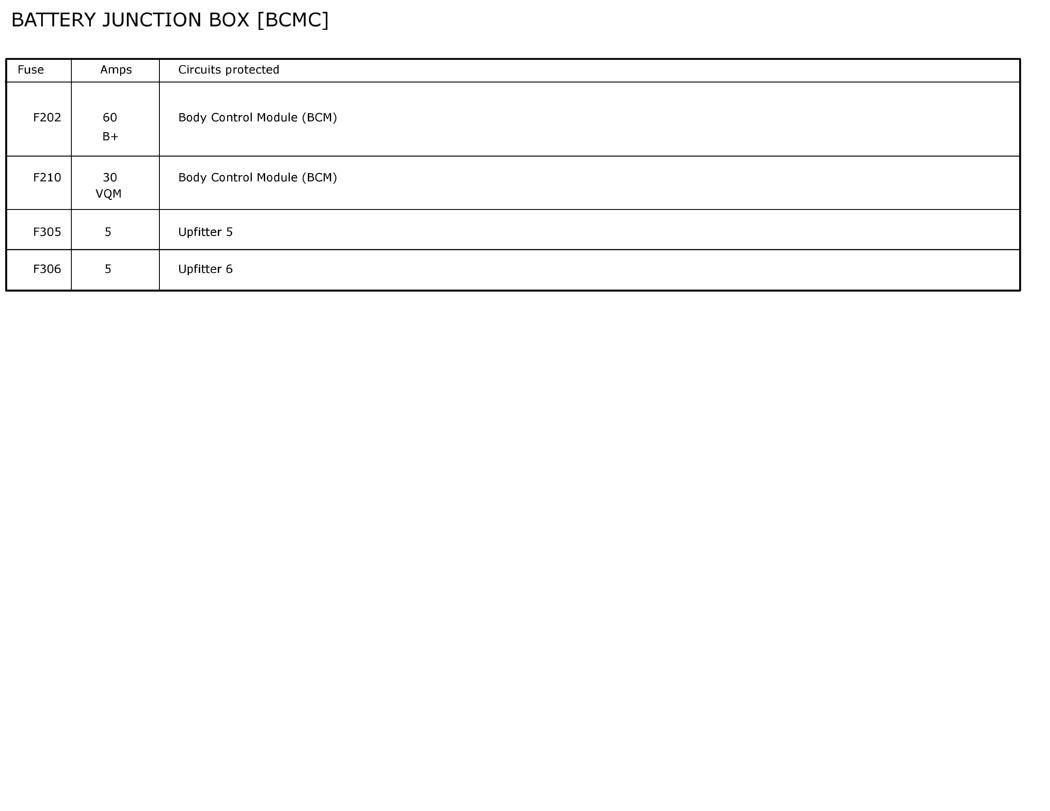

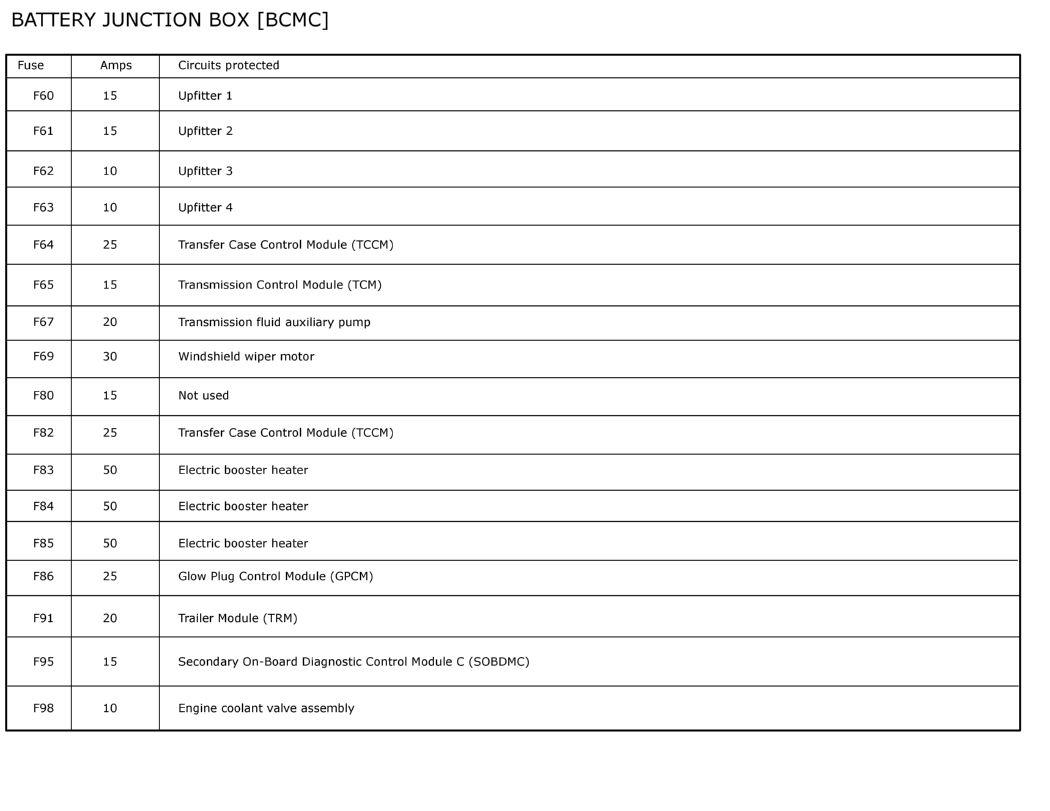

Fig 4: Battery Junction Box [BCMC] Component Location Legend (1 Of 6)

Courtesy of FORD MOTOR COMPANY

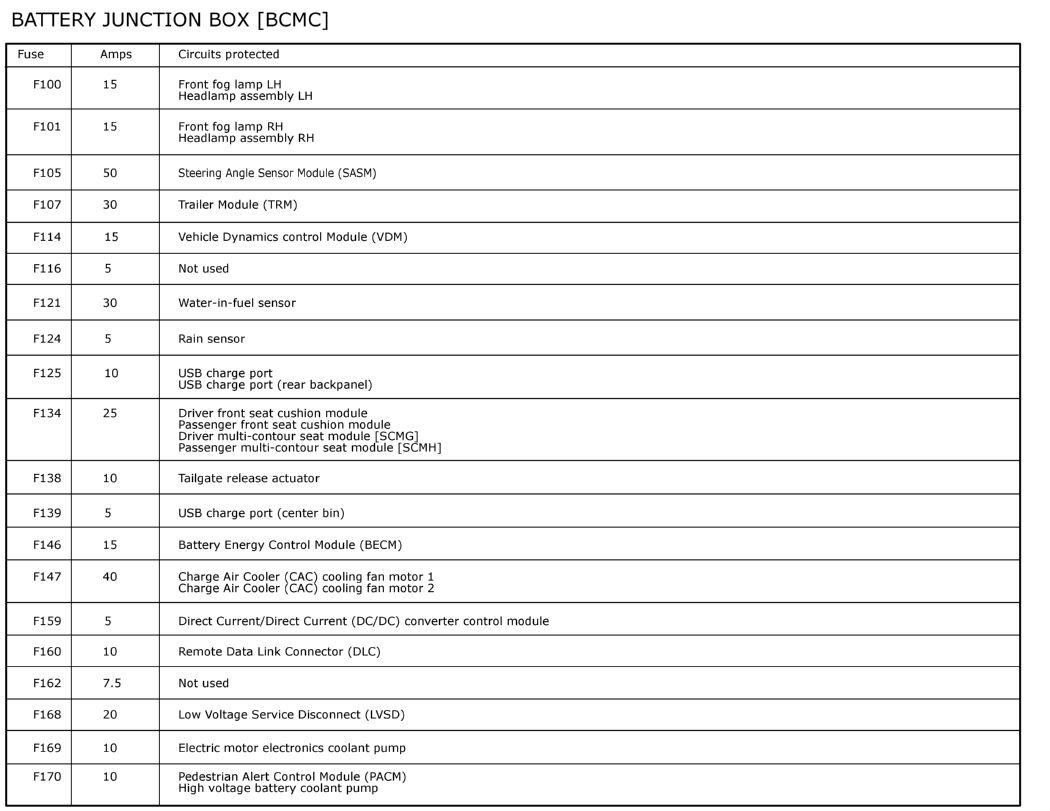

Fig 5: Battery Junction Box [BCMC] Component Location Legend (2 Of 6)

Courtesy of FORD MOTOR COMPANY

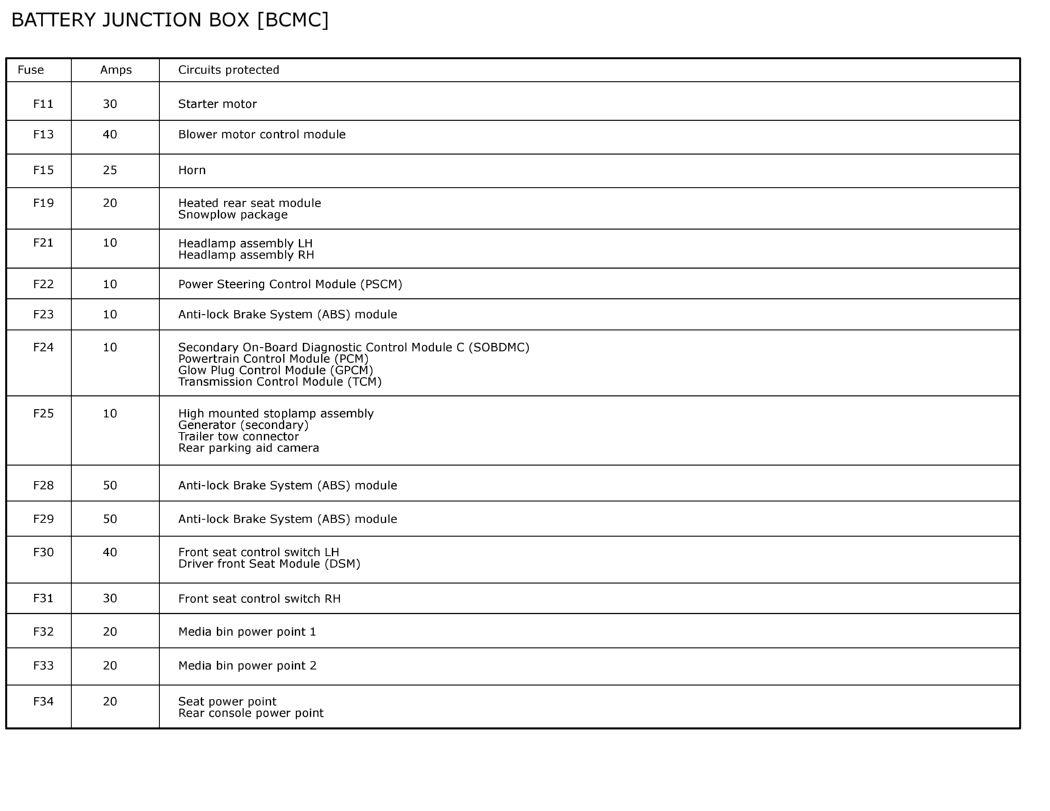

Fig 6: Battery Junction Box [BCMC] Component Location Legend (3 Of 6)

Courtesy of FORD MOTOR COMPANY

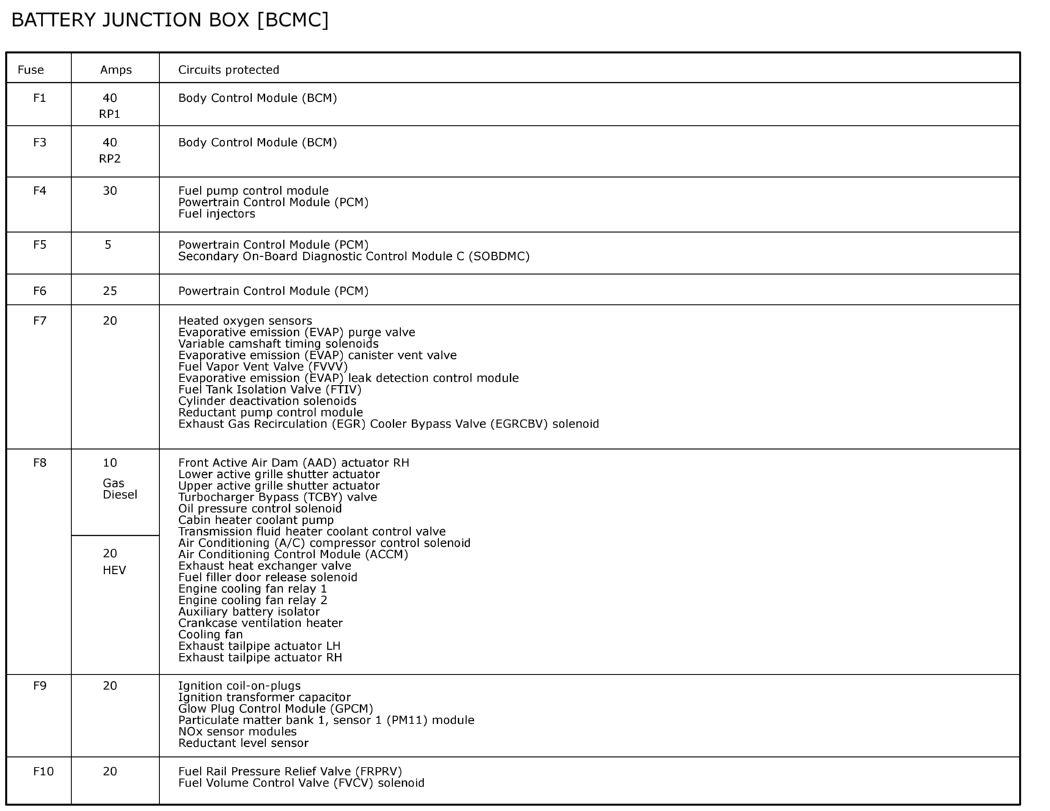

Fig 7: Battery Junction Box [BCMC] Component Location Legend (4 Of 6)

Courtesy of FORD MOTOR COMPANY

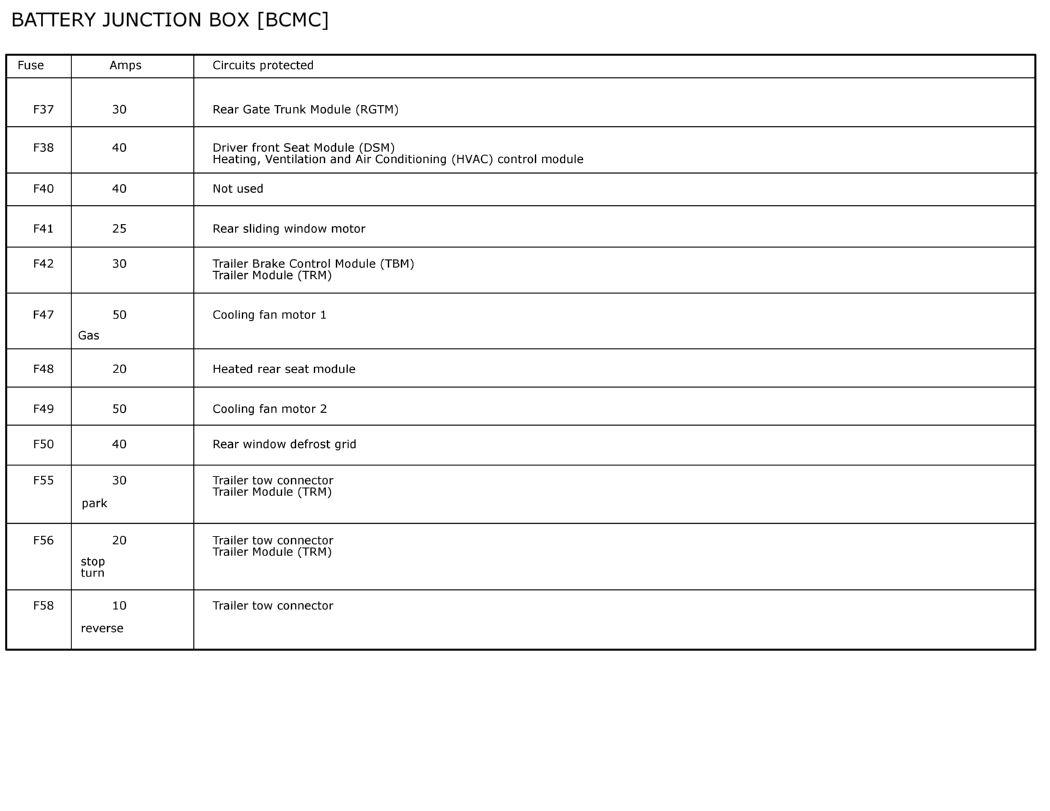

Fig 8: Battery Junction Box [BCMC] Component Location Legend (5 Of 6)

Courtesy of FORD MOTOR COMPANY

Fig 9: Battery Junction Box [BCMC] Component Location Legend (6 Of 6)

Courtesy of FORD MOTOR COMPANY

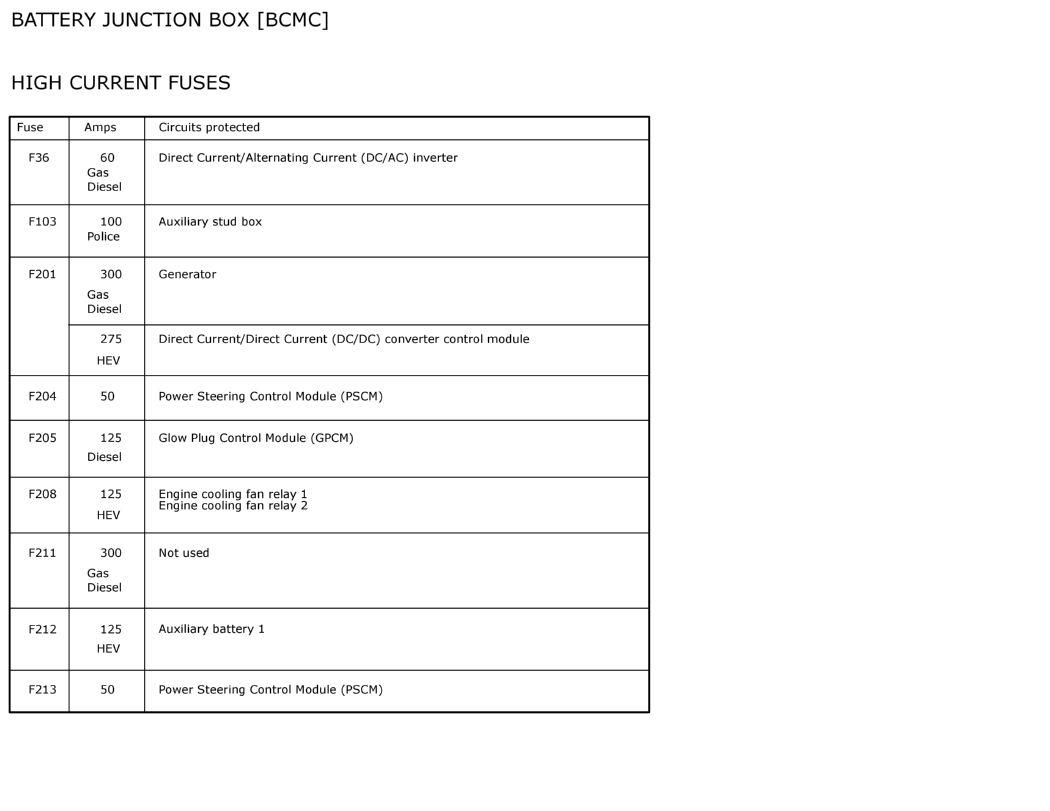

Fig 10: Battery Junction Box [BCMC] Component Location Legend (High Current Fuses)

Courtesy of FORD MOTOR COMPANY

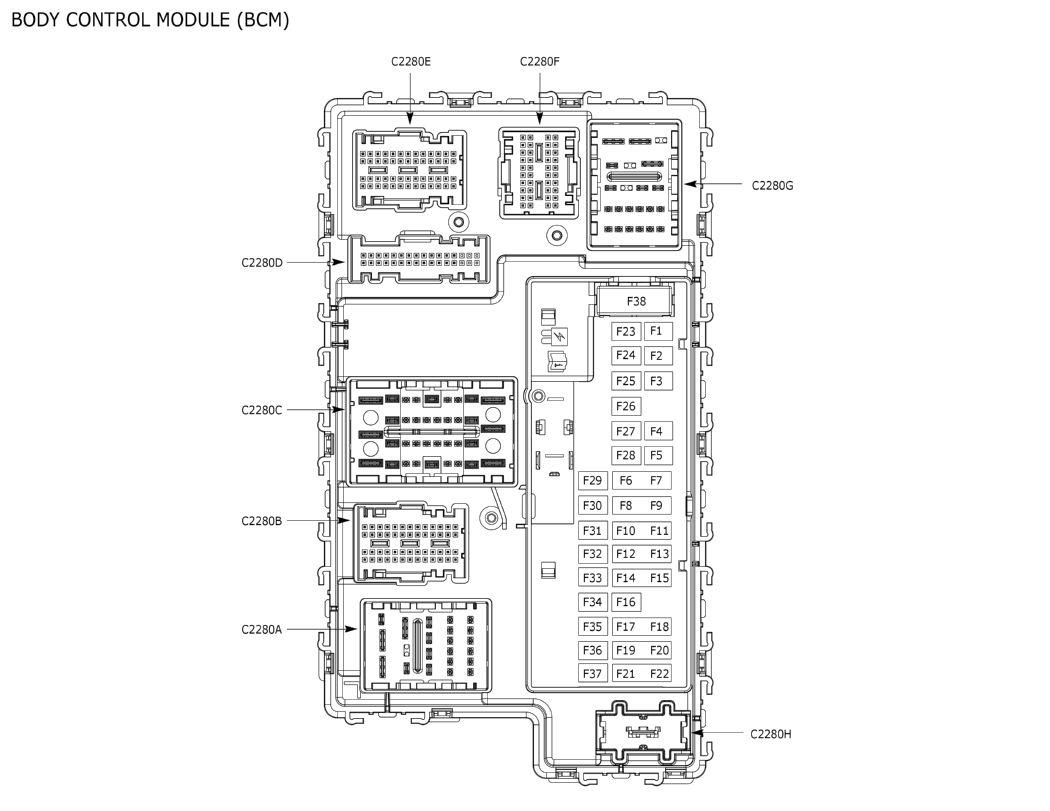

Fig 11: Body Control Module (BCM) Component Location

Courtesy of FORD MOTOR COMPANY

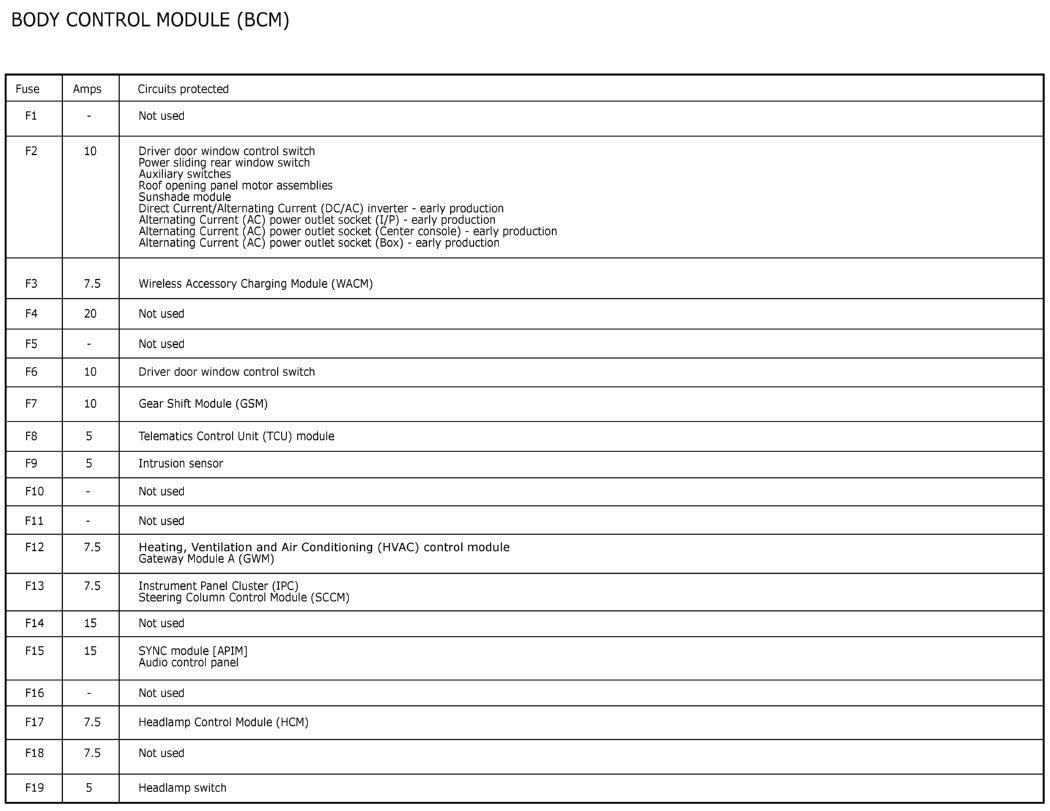

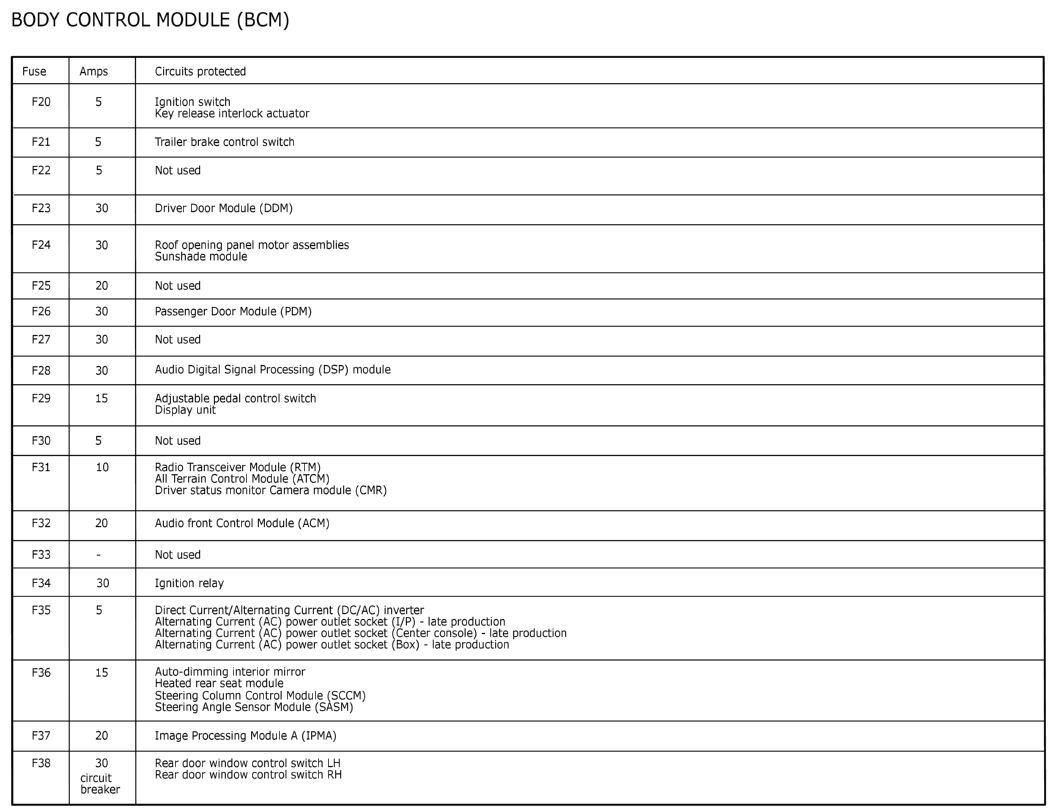

Fig 12: Body Control Module (BCM) Component Location Legend

Courtesy of FORD MOTOR COMPANY

Fig 13: Body Control Module (BCM) Component Location Legend

Courtesy of FORD MOTOR COMPANY

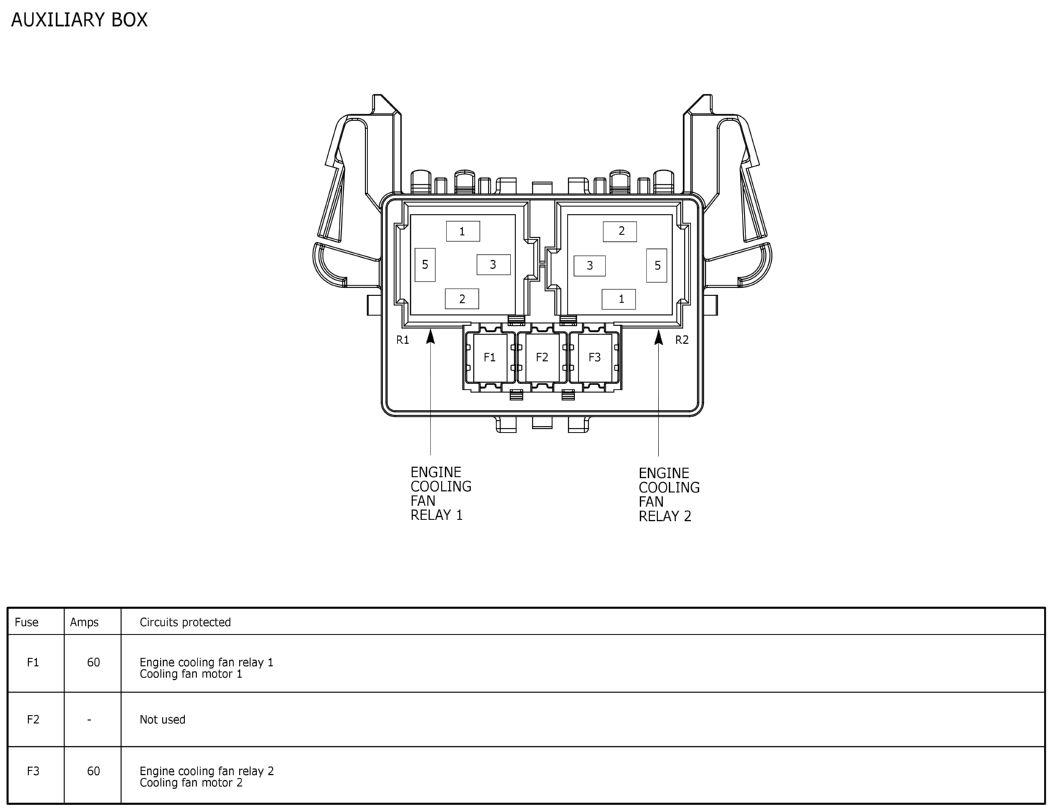

Fig 14: Auxiliary Box Component Location

Courtesy of FORD MOTOR COMPANY
