Parking Brake Shoes: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Vehicle with single rear wheels (SRW) shown in illustration. The wheel hub is removed from illustrations for clarity. It is not necessary to remove the wheel hub.
  1. Remove the brake disc. REFER to: Brake Disc .
    1. Remove the parking brake shoe adjuster.
    2. Remove the spring.
    GFD200937Courtesy of FORD MOTOR COMPANY

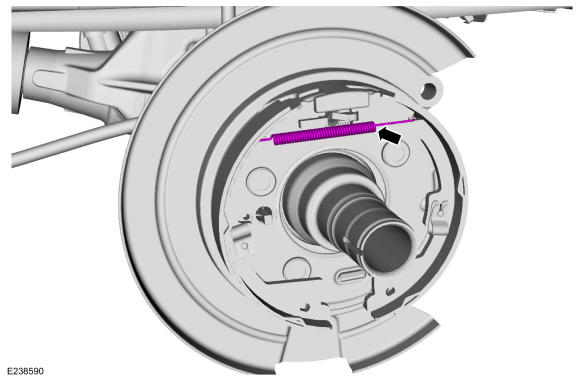

  3. Remove the spring.
    GFD200938Courtesy of FORD MOTOR COMPANY

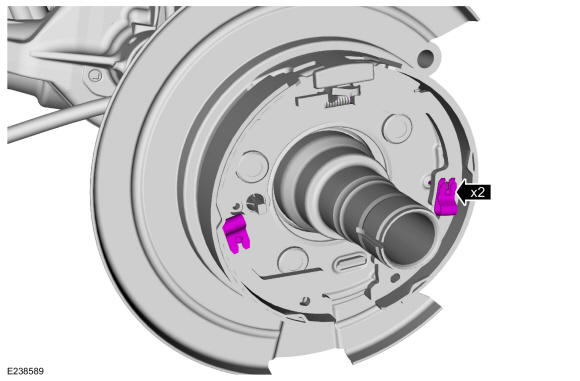

  4. Remove the parking brake shoe hold down springs and pins.
    GFD200939Courtesy of FORD MOTOR COMPANY
  5. Remove the spring and the parking brake shoes.
    GFD200940Courtesy of FORD MOTOR COMPANY
  6. Using wire brush and the specified cleaner, clean the parking brake shoe contact points.

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD200941Courtesy of FORD MOTOR COMPANY
  7. Using specified grease, lubricate the parking brake shoe contact points.

    Material

    : Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

GFD200942Courtesy of FORD MOTOR COMPANY
