Parking Brake Shoe Adjustment

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Activation

With the Vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

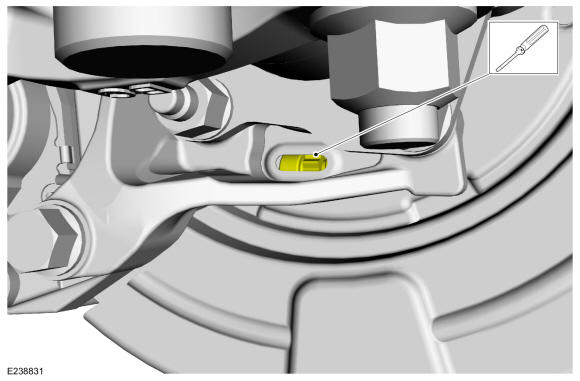

Remove the backing plate plug.

Courtesy of FORD MOTOR COMPANY
Turn the brake adjuster screw to expand the parking brake shoe and linings until they drag against the drum-in-hat brake disc and then back off the brake adjuster screw until no drag is evident.

Courtesy of FORD MOTOR COMPANY

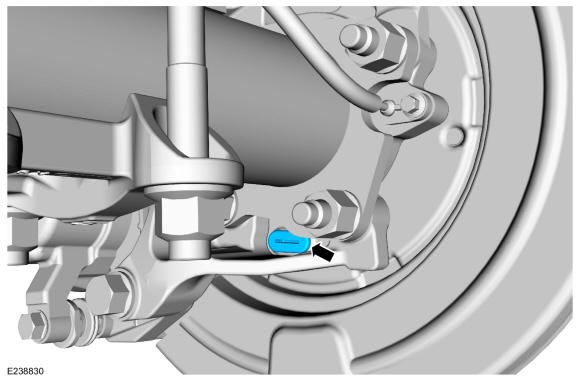

Install the backing plate plug.

Courtesy of FORD MOTOR COMPANY
