Connector End View (C9800) - INTRUSION SENSOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C9800 | INTRUSION SENSOR | BK | 14334 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 96AG-14474-RSA | FU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBP11 (BU-RD) | 22 | FUSE - 9 OR CIRCUIT BREAKER | 96AG-14474-RSA | ||||
| 2 | VDN03 (GY-VT) | 22 | CTRL MOD. - LIN BUS # 3 | 96AG-14474-RSA | ||||
| 3 | GD347 (BK-VT) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT | 96AG-14474-RSA | ||||
| 4 | * | * | Not Used | N/A | ||||

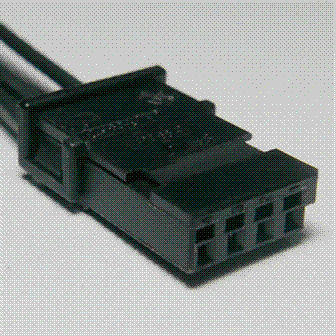

Available Pigtail Kits
Pigtail Kit Part Number WPT-1493
Service Part Number:
HU2Z-14S411-EA
Gauge:
20
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Sensor - Intrusion
