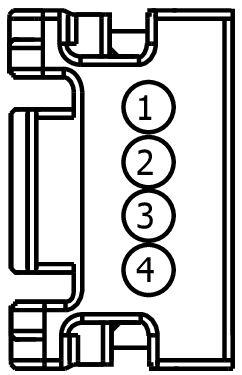

Connector End View (C9532) - EMERGENCY CALL SWITCH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9532 |
EMERGENCY CALL SWITCH |
BK |
14334 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| GU5T-14474-KA |
LU2Z-14474-AA |
0.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RMT10 (VT-GN) |
22 |
CTRL MOD. - E CALL BTN - |
GU5T-14474-KA |
| 2 |
CMT18 (VT-OG) |
22 |
CTRL MOD. - TELEMATICS # ECALL LIGHT |
GU5T-14474-KA |
| 3 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
GU5T-14474-KA |
| 4 |
CMT10 (BU-BN) |
22 |
SWITCH - EMERGENCY CALL |
GU5T-14474-KA |
