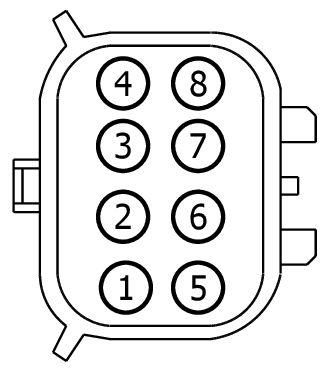

Connector End View (C9125) - HIGH MOUNTED STOPLAMP ASSEMBLY

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9125	HIGH MOUNTED STOPLAMP ASSEMBLY	BK	PIA	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB25 (*)	*	FUSE - 25 OR CIRCUIT BREAKER	N/A
2	VMF33 (*)	*	CAMERA - LIN	N/A
3	VMP57 (*)	*	CAMERA - REAR VIDEO -	N/A
4	VMP56 (*)	*	CAMERA - REAR VIDEO +	N/A
5	DMP56 (*)	*	SHIELD	N/A
6	GD348 (*)	*	GROUND - PILLAR C OR QUARTER PANEL RIGHT	N/A
7	CLN25 (*)	*	RELAY - PUDDLE LAMPS (KERB ILLUM.)	N/A
8	CLS17 (*)	*	CTRL MOD. - STOP HIGH MOUNT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1605

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-DC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Connector - Inline
Lamp - CHMSL (Center High Mount Stop Lamp)
Lamp - Flashing LED
Lamp - Park/Turn/Stop
Mirror - Sideview
Mirror - Sideview / Heated
Module - Anti-Lock Brake System
