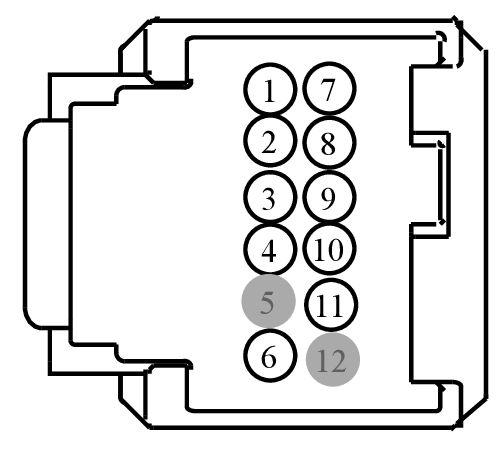

Connector End View (C9120) - AUXILIARY SWITCHES
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C9120 | AUXILIARY SWITCHES | BK | 14334 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBP02 (GN) | 22 | FUSE - 2 OR CIRCUIT BREAKER | 9U5T-14474-DB | ||||
| 2 | CAC01 (GN-BU) | 22 | SWITCH - UPFITTER #1 | 9U5T-14474-DB | ||||
| 3 | CAC02 (GY-BN) | 22 | SWITCH - UPFITTER #2 | 9U5T-14474-DB | ||||
| 4 | CAC03 (WH-VT) | 22 | SWITCH - UPFITTER #3 | 9U5T-14474-DB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | GD348 (BK-YE) | 22 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | 9U5T-14474-DB | ||||
| 7 | CAC16 (VT-OG) | 22 | SWITCH - UPFITTER #6 | 9U5T-14474-DB | ||||
| 8 | CAC15 (BU-BN) | 22 | SWITCH - UPFITTER #5 | 9U5T-14474-DB | ||||
| 9 | CBP02 (GN) | 22 | FUSE - 2 OR CIRCUIT BREAKER | 9U5T-14474-DB | ||||
| 10 | CAC04 (WH-BU) | 22 | SWITCH - UPFITTER #4 | 9U5T-14474-DB | ||||
| 11 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 9U5T-14474-DB | ||||
| 12 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1401
Service Part Number:
EU2Z-14S411-SA
Gauge:
20
Pin material:
Tin
Cavities:
12
Vehicle Uses:
- Module - Climate Control Seat
- Module - Heated Seat (Rear)
- Module - Image Processing
- Module - Media Gateway
- Module - Power Steering
- Monitor - Video/DVD
