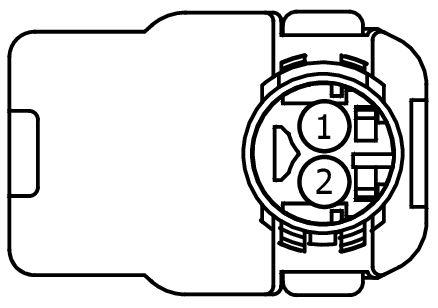

Connector End View (C9032) - PASSENGER SIDE CURTAIN AIRBAG
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9032 |
PASSENGER SIDE CURTAIN AIRBAG |
YE-BK |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| P/O ASSY |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CR111 (BN-WH) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + |
P/O ASSY |
| 2 |
RR111 (YE-VT) |
20 |
CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - |
P/O ASSY |
