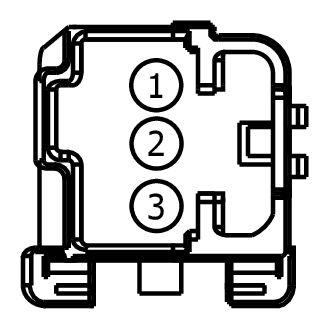

Connector End View (C9030) - HIGH MOUNTED STOPLAMP ASSEMBLY
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9030 |
HIGH MOUNTED STOPLAMP ASSEMBLY |
GY |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD348 (*) |
* |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
N/A |
| 2 |
CLN25 (*) |
* |
RELAY - PUDDLE LAMPS (KERB ILLUM.) |
N/A |
| 3 |
CLS17 (*) |
* |
CTRL MOD. - STOP HIGH MOUNT |
N/A |
