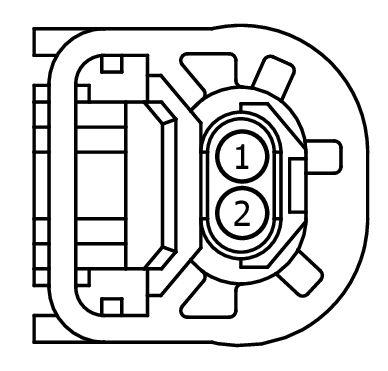

Connector End View (C4803C) - TELEMATICS CONTROL UNIT (TCU) MODULE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4803C |
TELEMATICS CONTROL UNIT (TCU) MODULE |
LT BU |
14H007 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VDB45 (BN-WH) |
26 |
CONNECTOR - DIAGNOSTIC # ECG/TCU ETHERNET + |
N/A |
| 2 |
VDB46 (WH-OG) |
26 |
CONNECTOR - DIAGNOSTIC # ECG/TCU ETHERNET - |
N/A |
