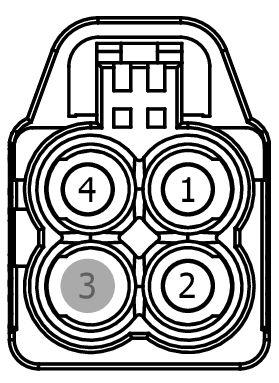

Connector End View (C4803B) - TELEMATICS CONTROL UNIT (TCU) MODULE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4803B |
TELEMATICS CONTROL UNIT (TCU) MODULE |
BK |
18895 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VMM25 (BK) |
22 |
ANTENNA - SECONDARY CELLULAR |
MU5T-14F494-ABA |
| 2 |
VMN03 (BK) |
22 |
ANTENNA - GPS (GLOBAL POSITIONING SYSTEM) + |
MU5T-14F494-ABA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
VMM22 (BK) |
22 |
ANTENNA - GSM (GLOBAL SYSTEM MOBILE COMMUNICATION) + |
MU5T-14F494-ABA |
