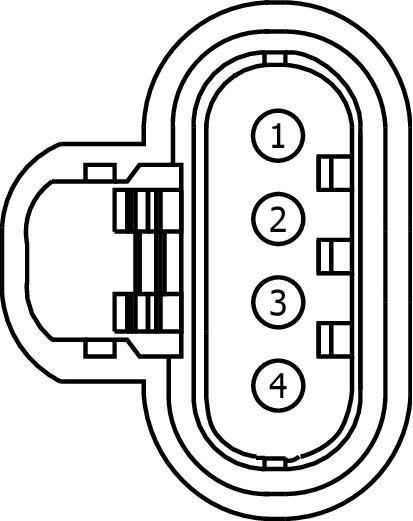

Connector End View (C4633) - EXHAUST HEAT EXCHANGER VALVE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4633 | EXHAUST HEAT EXCHANGER VALVE | BK | 14405 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6W8T-14474-PA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD480 (BK) | 20 | GROUND - FRAME MIDDLE LEFT | 6W8T-14474-PA | ||||
| 2 | VE940 (GN-BU) | 20 | CTRL MOD. - POWERTRAIN # EXHAUST HEAT EXCHANGER | 6W8T-14474-PA | ||||
| 3 | CBK03 (GY) | 18 | FUSE - 8 OR CIRCUIT BREAKER | 6W8T-14474-PA | ||||
| 4 | VE941 (BN) | 20 | CTRL MOD. - POWERTRAIN # EXHAUST HEAT EXCHANGER | 6W8T-14474-PA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1537
Service Part Number:
JU2Z-14S411-ACA
Gauge:
18
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Module - Differential Oil Temperature
- Module - Particulate Matter Bank Sensor
- Module - Reductant Quality
- Noise Generator
- Sensor - Fuel Rail Pressure and Temperature
- Sensor - Manifold Pressure/Intake Temperature
- Sensor - Turbo Intake Pressure/Temperature
- Valve - Active Exhaust Solenoid
