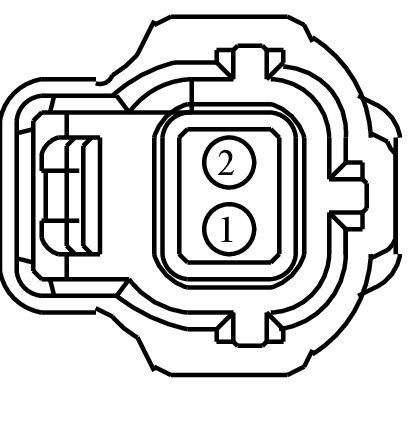

Connector End View (C4631) - ENGINE COOLANT TEMPERATURE (ECT) SENSOR 3

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4631	ENGINE COOLANT TEMPERATURE (ECT) SENSOR 3	GY	14405	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE716 (YE)	20	SENSOR - ENGINE COOLANT TEMPERATURE (ECT)	96AG-14474-AA
2	RE230 (WH-VT)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER	96AG-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-989

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HYB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:

Sensor - Coolant Temperature
Sensor - Cylinder Head Temperature
Sensor - Transmission Oil Temperature
