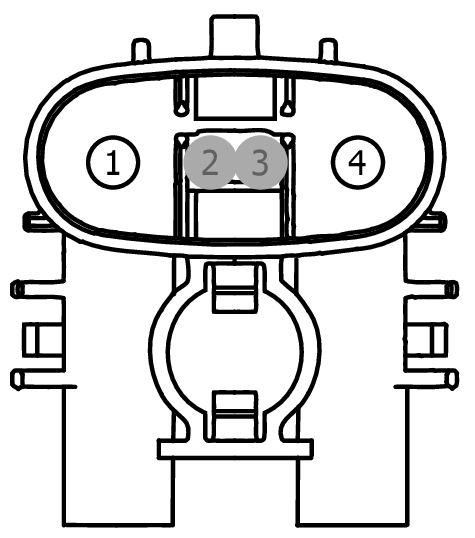

Connector End View (C4630B) - DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4630B |
DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER |
NA |
14B322 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| LU5T-14461-RB |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
HYT04 (OG-BK) |
6 |
CTRL MOD. - HYBRID TRANSAXLE # HIGH VOLTAGE NEG (HV-) |
LU5T-14461-RB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
HYT03 (OG) |
6 |
CTRL MOD. - HYBRID TRANSAXLE # HIGH VOLTAGE POS (HV+) |
LU5T-14461-RB |
