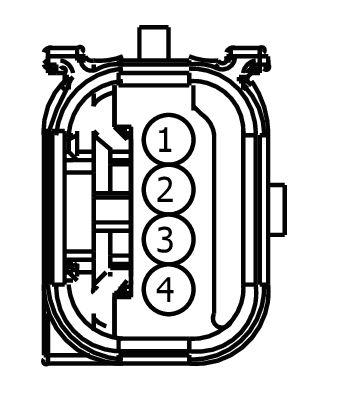

Connector End View (C4628) - ALTERNATING CURRENT (AC) POWER OUTLET SOCKET (BOX)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4628 |
ALTERNATING CURRENT (AC) POWER OUTLET SOCKET (BOX) |
BK |
13A409 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 9U5T-14421-CA |
EU2Z-14421-BA |
0.64 |
| 9U5T-14421-BA |
EU2Z-14421-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
HYA02 (OG-WH) |
18 |
CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B) |
9U5T-14421-CA |
| 2 |
HYA01 (OG-GN) |
18 |
CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A) |
9U5T-14421-CA |
| 3 |
RYA03 (BU-BN) |
22 |
CTRL MOD. - DC/AC INVERTER # LED INDICATOR - |
9U5T-14421-BA |
| 4 |
VYA07 (BU-GY) |
22 |
CTRL MOD. - DC/AC INVERTER # LED INDICATOR + |
9U5T-14421-BA |
