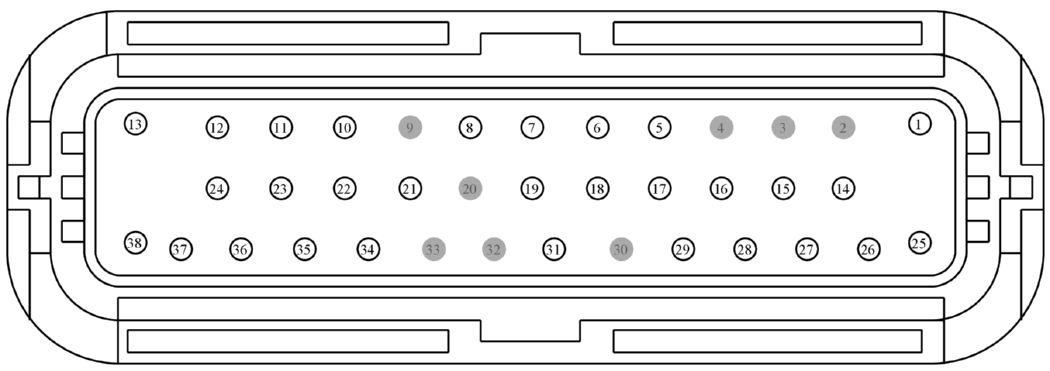

Connector End View (C4623) - REAR GATE TRUNK MODULE (RGTM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4623 |
REAR GATE TRUNK MODULE (RGTM) |
BK |
14B688 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 6G9T-14474-DAA |
Not Available |
| JU5T-14474-NA |
Not Available |
| 6G9T-14474-DBA |
Not Available |
| 6G9T-14474-HBA |
Not Available |
| 6G9T-14474-LCA |
KU2Z-14474-BA |
6.30 |
| 6G9T-14474-LDA |
KU2Z-14474-BA |
6.30 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD481 (BK-GN) |
14 |
GROUND - FRAME MIDDLE RIGHT |
6G9T-14474-LCA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
CPRH0 (YE-BU) |
22 |
CTRL MOD. - TAILGATE AJAR (PRIMARY) LH |
6G9T-14474-DAA |
| 6 |
CPRH1 (GN) |
22 |
CTRL MOD. - TAILGATE AJAR (SECONDARY) LH |
6G9T-14474-DAA |
| 7 |
CPRH2 (GY) |
22 |
CTRL MOD. - SECTOR SWITCH LH |
6G9T-14474-DAA |
| 8 |
CPRH3 (BU-OG) |
22 |
CTRL MOD. - DETENT SWITCH LH |
6G9T-14474-DAA |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
CPL60 (BN-YE) |
20 |
SWITCH - LIFTGATE GLASS RELEASE |
6G9T-14474-DBA |
| 11 |
RPR42 (GY-YE) |
22 |
CTRL MOD. - TAILGATE STEP STATUS (RETURN) |
6G9T-14474-DAA |
| 12 |
CPR63 (GY-YE) |
22 |
SWITCH - POWER LIFTGATE # OPEN/CLOSE |
6G9T-14474-DAA |
| 13 |
SBB37 (GY-RD) |
10 |
FUSE - 37 OR CIRCUIT BREAKER |
6G9T-14474-LDA |
| 14 |
VDB27 (VT-GN) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 HIGH |
6G9T-14474-DAA |
| 15 |
VDB28 (GY-VT) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED 2 LOW |
6G9T-14474-DAA |
| 16 |
CPRH8 (BU) |
22 |
CTRL MOD. - DETENT SWITCH RH |
6G9T-14474-DAA |
| 17 |
CPR42 (VT-GN) |
22 |
CTRL MOD. - POWER RUNNING BOARDS # DRIVER STOW |
6G9T-14474-DAA |
| 18 |
CPRJ0 (VT-BN) |
22 |
CTRL MOD. - HALL SENSE POWER |
6G9T-14474-DAA |
| 19 |
RPRJ0 (BU-BN) |
22 |
CTRL MOD. - HALL SENSE GROUND |
6G9T-14474-DAA |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
VPRJ4 (VT-WH) |
22 |
CTRL MOD. - HALL SENSOR 2 |
6G9T-14474-DAA |
| 22 |
VPRJ3 (YE-GN) |
22 |
CTRL MOD. - HALL SENSOR 1 |
6G9T-14474-DAA |
| 23 |
CPRH5 (BN-YE) |
22 |
CTRL MOD. - TAILGATE AJAR (PRIMARY) RH |
6G9T-14474-DAA |
| 24 |
CPRH6 (BU-GY) |
22 |
CTRL MOD. - TAILGATE AJAR (SECONDARY) RH |
6G9T-14474-DAA |
| 25 |
VPRJ1 (WH) |
16 |
CTRL MOD. - MOTOR CLOSE |
6G9T-14474-HBA |
| 26 |
CPRH7 (VT-GY) |
22 |
CTRL MOD. - SECTOR SWITCH RH |
6G9T-14474-DAA |
| 27 |
RPRH5 (BU-GN) |
22 |
CTRL MOD. - LATCH SWITCH RETURN RH |
6G9T-14474-DAA |
| 28 |
RPRH0 (BN) |
22 |
CTRL MOD. - LATCH SWITCH RETURN LH |
6G9T-14474-DAA |
| 29 |
VPRH5 (YE-GY) |
14 |
CTRL MOD. - RH TAILGATE CINCH RELEASE |
JU5T-14474-NA |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
VPRH6 (WH-BN) |
14 |
CTRL MOD. - RH TAILGATE CINCH |
JU5T-14474-NA |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
VPRH0 (BN-BU) |
14 |
CTRL MOD. - LH TAILGATE CINCH RELEASE |
JU5T-14474-NA |
| 35 |
VPRJ2 (WH-GN) |
22 |
CTRL MOD. - CLUTCH + |
6G9T-14474-DAA |
| 36 |
VPRH1 (GN-VT) |
14 |
CTRL MOD. - LH TAILGATE CINCH |
JU5T-14474-NA |
| 37 |
RPRJ2 (VT-OG) |
22 |
CTRL MOD. - CLUTCH - |
6G9T-14474-DAA |
| 38 |
VPRJ0 (YE-OG) |
16 |
CTRL MOD. - MOTOR OPEN |
6G9T-14474-HBA |
