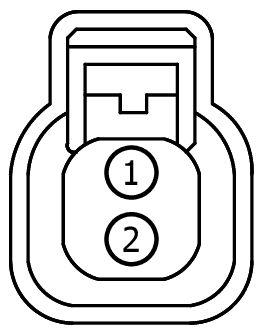

Connector End View (C4499) - TAILGATE RELEASE SWITCH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4499 |
TAILGATE RELEASE SWITCH |
BK |
14B562 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 97BG-14474-ADA |
LU2Z-14474-CA |
1.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CPL60 (BN-YE) |
20 |
SWITCH - LIFTGATE GLASS RELEASE |
97BG-14474-ADA |
| 2 |
GD481 (BK-GN) |
20 |
GROUND - FRAME MIDDLE RIGHT |
97BG-14474-ADA |
