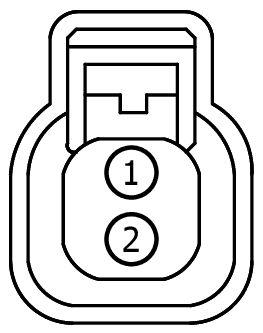

Connector End View (C4496) - TRUCK BED LAMP SWITCH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4496 |
TRUCK BED LAMP SWITCH |
BK |
14A411/13B669 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 97BG-14474-ADA |
LU2Z-14474-CA |
1.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CLN13 (WH-BU) |
20 |
SWITCH - TRUNK/CARGO LAMP |
97BG-14474-ADA |
| 2 |
GD406 (BK-YE) |
20 |
GROUND - FRAME REAR RIGHT |
97BG-14474-ADA |
