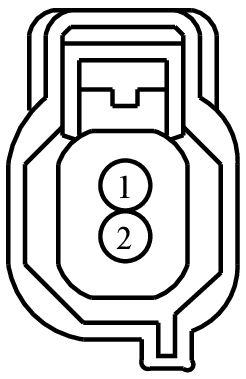

Connector End View (C4495) - TRUCK BED LAMP RH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4495	TRUCK BED LAMP RH	GY	13B668	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-RA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN74 (GN-BU)	20	CTRL MOD. - TRUCK BED ILLUMINATION	7C3T-14474-RA
2	GD406 (BK-YE)	20	GROUND - FRAME REAR RIGHT	7C3T-14474-RA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1116

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-BJA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Lamp - Running Board
Sensor - Knock
Sensor - Speed
Sensor - Water in Fuel
