Connector End View (C4396) - VEHICLE DYNAMICS CONTROL MODULE (VDM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C4396 VEHICLE DYNAMICS CONTROL MODULE (VDM) BK 14405 part# N/A Not Available

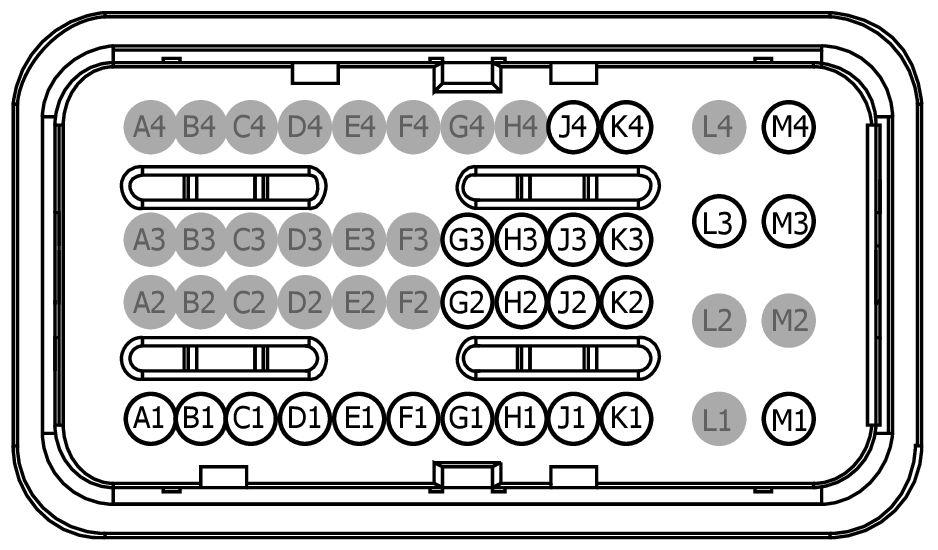

GFDWR124700Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
GU5T-14474-JA Not Available
GU5T-14474-HA Not Available
DU5T-14474-GA Not Available
DU5T-14474-HA Not Available
DU5T-14474-JA Not Available
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
A1 CCD03 (WH-BU) 18 CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT + GU5T-14474-JA
A2 * * Not Used N/A
A3 * * Not Used N/A
A4 * * Not Used N/A
B1 RCD03 (VT-BN) 18 CTRL MOD. - CDC # VALVE DAMPER FRONT LEFT - GU5T-14474-JA
B2 * * Not Used N/A
B3 * * Not Used N/A
B4 * * Not Used N/A
C1 CCD04 (GY-YE) 18 CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT + GU5T-14474-JA
C2 * * Not Used N/A
C3 * * Not Used N/A
C4 * * Not Used N/A
D1 RCD04 (BU-OG) 18 CTRL MOD. - CDC # VALVE DAMPER FRONT RIGHT - GU5T-14474-JA
D2 * * Not Used N/A
D3 * * Not Used N/A
D4 * * Not Used N/A
E1 CCD05 (GN-BU) 18 CTRL MOD. - CDC # VALVE DAMPER REAR LEFT + GU5T-14474-JA
E2 * * Not Used N/A
E3 * * Not Used N/A
E4 * * Not Used N/A
F1 RCD05 (YE-BU) 18 CTRL MOD. - CDC # VALVE DAMPER REAR LEFT - GU5T-14474-JA
F2 * * Not Used N/A
F3 * * Not Used N/A
F4 * * Not Used N/A
G1 CCD06 (VT-GY) 18 CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT + GU5T-14474-JA
G2 RCD27 (WH-GN) 22 CTRL MOD. - LEFT FRONT SUSPENSION (SIGRTN) GU5T-14474-HA
G3 VCD10 (BN) 22 SENSOR - SUSPENSION VERTICAL POSITION FRONT LEFT GU5T-14474-HA
G4 * * Not Used N/A
H1 RCD06 (BU-BN) 18 CTRL MOD. - CDC # VALVE DAMPER REAR RIGHT - GU5T-14474-JA
H2 LCD27 (YE-GY) 22 CTRL MOD. - LEFT FRONT SUSPENSION (VREF) GU5T-14474-HA
H3 RCD28 (WH-VT) 22 CTRL MOD. - RIGHT FRONT SUSPENSION (SIGRTN) GU5T-14474-HA
H4 * * Not Used N/A
J1 RCD25 (GY) 22 CTRL MOD. - LEFT REAR SUSPENSION (SIGRTN) GU5T-14474-HA
J2 VCD11 (GY-VT) 22 SENSOR - SUSPENSION VERTICAL POSITION FRONT RIGHT GU5T-14474-HA
J3 LCD28 (BN-YE) 22 CTRL MOD. - RIGHT FRONT SUSPENSION (VREF) GU5T-14474-HA
J4 RCD26 (GY-BN) 22 CTRL MOD. - RIGHT REAR SUSPENSION (SIGRTN) GU5T-14474-HA
K1 LCD25 (GN-WH) 22 CTRL MOD. - LEFT REAR SUSPENSION (VREF) GU5T-14474-HA
K2 VCD12 (VT-WH) 22 SENSOR - SUSPENSION VERTICAL POSITION REAR LEFT GU5T-14474-HA
K3 VCD13 (GN-VT) 22 SENSOR - SUSPENSION VERTICAL POSITION REAR RIGHT GU5T-14474-HA
K4 LCD26 (VT-GN) 22 CTRL MOD. - RIGHT REAR SUSPENSION (VREF) GU5T-14474-HA
K4 LCD26 (BU-BN) 22 CTRL MOD. - RIGHT REAR SUSPENSION (VREF) GU5T-14474-HA
L1 * * Not Used N/A
L2 * * Not Used N/A
L3 VDB49 (YE-OG) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD HIGH DU5T-14474-GA
L4 * * Not Used N/A
M1 CBBB4 (VT-BN) 14 FUSE - 114 OR CIRCUIT BREAKER DU5T-14474-JA|DU5T-14474-HA
M1 CBBB4 (VT-BN) 16 FUSE - 114 OR CIRCUIT BREAKER DU5T-14474-JA|DU5T-14474-HA
M2 * * Not Used N/A
M3 VDB50 (BU-OG) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD LOW DU5T-14474-GA
M4 GD480 (BK) 14 GROUND - FRAME MIDDLE LEFT DU5T-14474-JA|DU5T-14474-GA
M4 GD480 (BK) 20 GROUND - FRAME MIDDLE LEFT DU5T-14474-JA|DU5T-14474-GA
