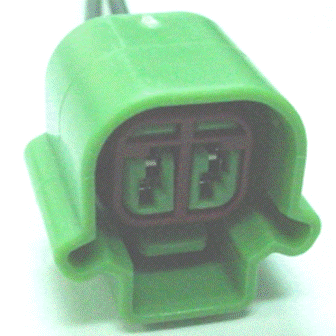

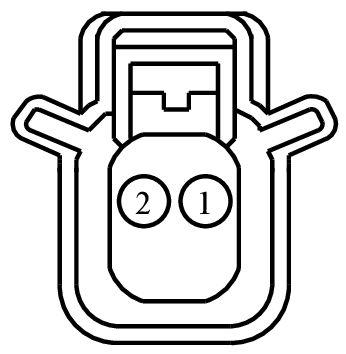

Connector End View (C4359) - ELECTRONIC LOCKING DIFFERENTIAL (ELD) FIELD COIL

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4359	ELECTRONIC LOCKING DIFFERENTIAL (ELD) FIELD COIL	GN	15K857	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-AEA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCF31 (YE-BU)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE REAR AXLE E-LOCK	97BG-14474-AEA
2	RCF31 (BU-BN)	18	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE REAR AXLE E-LOCK (GROUND)	97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-829

Courtesy of FORD MOTOR COMPANY

Service Part Number:

2U2Z-14S411-BB

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Electronic Locking Differential
Lamp - Fog/Driving
Switch - Hood Ajar
