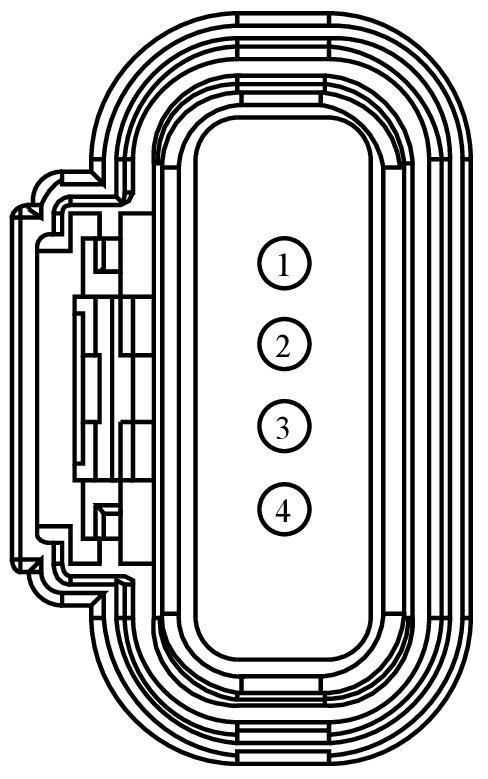

Connector End View (C4331) - FUEL PUMP AND SENDER UNIT
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4331 | FUEL PUMP AND SENDER UNIT | BK | 14405 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BFA | DU2Z-14474-FA | 2.80 |
| 97BG-14474-BEA | DU2Z-14474-FA | 2.80 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RMC32 (GN-BU) | 18 | CTRL MOD. - SENSOR FUEL LEVEL | 97BG-14474-BEA | ||||
| 2 | VMC11 (YE-VT) | 18 | SENSOR - FUEL LEVEL (FLI) | 97BG-14474-BEA | ||||
| 3 | RE515 (WH-BN) | 14 | DRIVER - FUEL PUMP MOTOR (FPDM) - | 97BG-14474-BFA | ||||
| 4 | CE515 (YE-GY) | 14 | DRIVER - FUEL PUMP MOTOR (FPDM) + | 97BG-14474-BFA | ||||

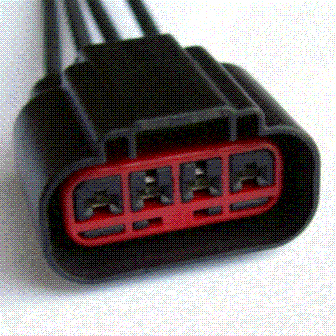

Available Pigtail Kits
Pigtail Kit Part Number WPT-1591
Service Part Number:
3U2Z-14S411-ZEB
Gauge:
14
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Fuel Pump/Sending Unit
- Module - Trailer Tow
- Module - Variable Speed Blower Controller
- Motor - Heater/AC Blower (Front)
- Resistor - Blower Motor (Auxiliary)
- Resistor - Blower Motor (Front)
- Resistor - Blower Motor (Rear)
- Switch - Heater / A/C Blower (Front)
