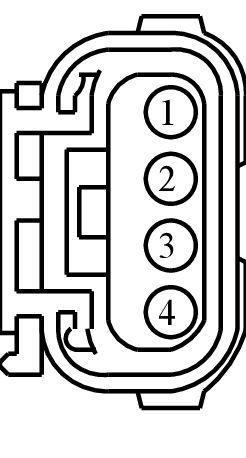

Connector End View (C4330) - FUEL PUMP AND SENDER UNIT
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4330 | FUEL PUMP AND SENDER UNIT | LT GY | 14405 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F8VB-14474-AA | EU2Z-14474-AB | 2.80 |
| BU5T-14474-BAA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RMC32 (GN-BU) | 18 | CTRL MOD. - SENSOR FUEL LEVEL | BU5T-14474-BAA | ||||
| 2 | VMC11 (YE-VT) | 18 | SENSOR - FUEL LEVEL (FLI) | BU5T-14474-BAA | ||||
| 3 | RE515 (WH-BN) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) - | F8VB-14474-AA | ||||
| 3 | RE515 (WH-BN) | 14 | DRIVER - FUEL PUMP MOTOR (FPDM) - | F8VB-14474-AA | ||||
| 4 | CE515 (YE-GY) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) + | F8VB-14474-AA | ||||
| 4 | CE515 (YE-GY) | 14 | DRIVER - FUEL PUMP MOTOR (FPDM) + | F8VB-14474-AA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1658
Service Part Number:
3U2Z-14S411-DGAC
Gauge:
16
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Fuel Pump/Sending Unit
- Module - Fuel Pump Driver
- Motor - Fuel Pump - Cold Start
- Sensor - Fuel Level
- Sensor - Water in Fuel
Pigtail Kit Part Number WPT-1373
Service Part Number:
3U2Z-14S411-DGAB
Gauge:
16
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Fuel Pump/Sending Unit
- Module - Fuel Pump Driver
- Sensor - Fuel Level
