Connector End View (C4238) - INLINE

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C4238	INLINE	BK	14F65412663	See Below

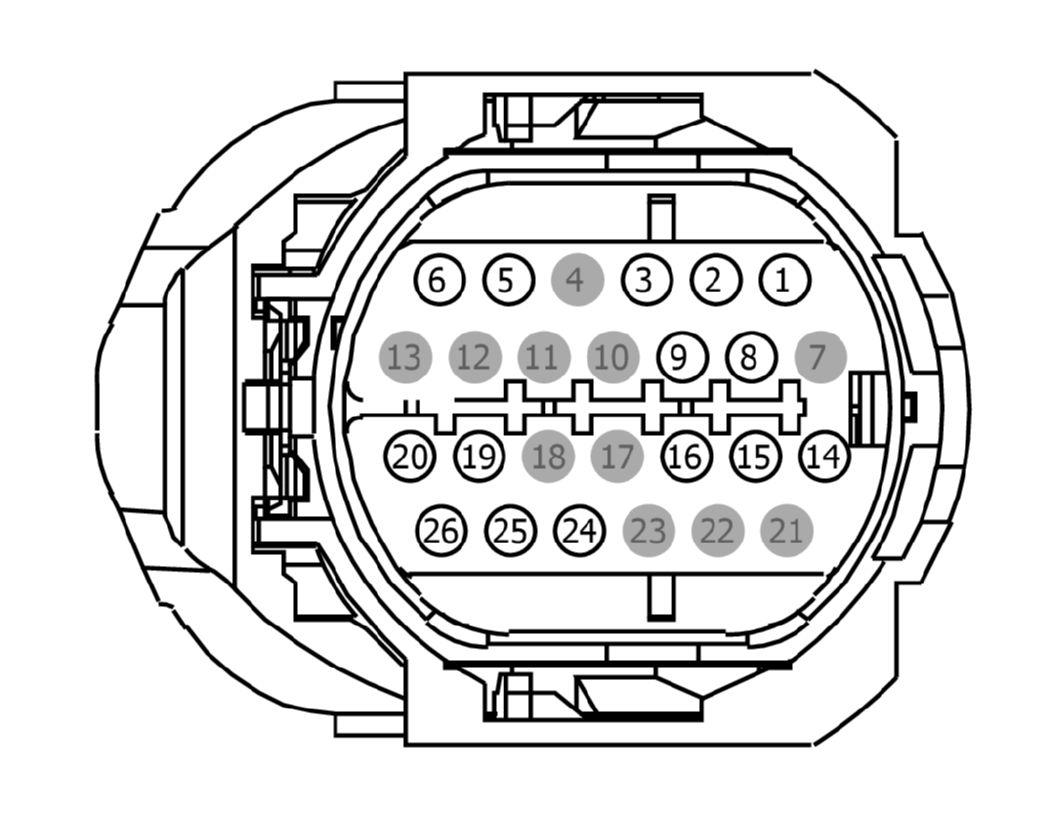

MALE

Harness

14F654

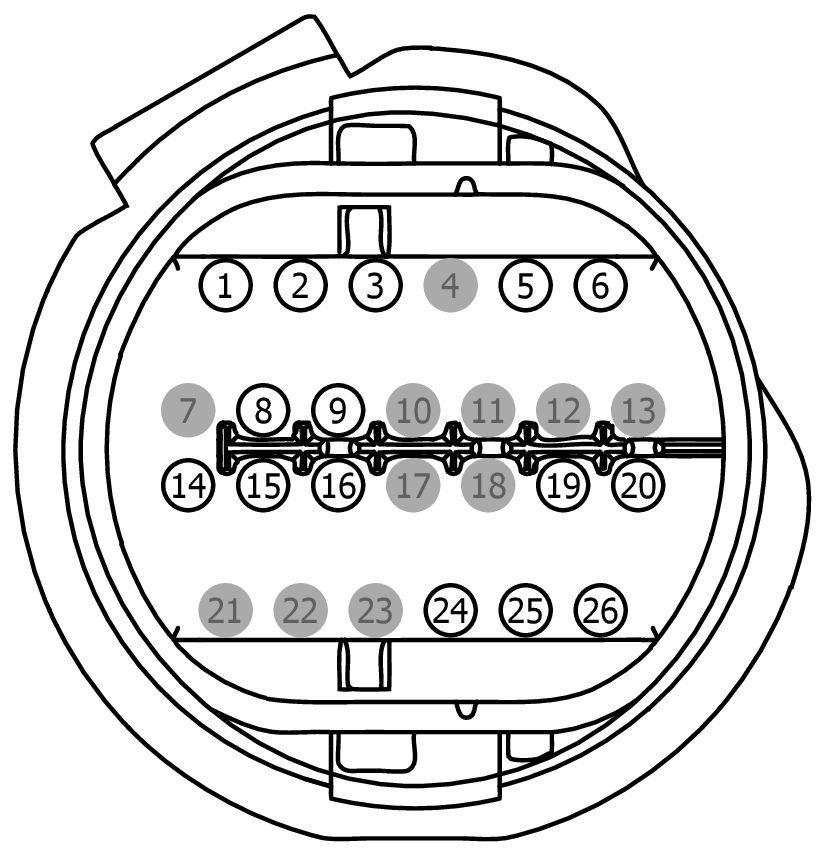

FEMALE

Harness

12663

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6W8T-14474-BA	EU2Z-14474-BA	1.20

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CYD14 (GN-BN)	22	N/A
2	CR167 (YE-VT)	22	N/A
3	LYB22 (BU)	22	N/A
4	*	*	N/A
5	SBX08 (RD-WH)	18	N/A
6	SBX08 (RD)	18	N/A
7	*	*	N/A
8	CYC03 (BN-GN)	18	N/A
9	CYT14 (VT-OG)	22	N/A
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	*	*	N/A
14	CYB04 (VT-BN)	22	N/A
15	VDB05 (WH)	22	N/A
16	VDB04 (BU-WH)	22	N/A
17	*	*	N/A
18	*	*	N/A
19	VYB30 (YE-GN)	22	N/A
20	CYB04 (GY)	22	N/A
21	*	*	N/A
22	*	*	N/A
23	*	*	N/A
24	RE481 (BU-GY)	22	N/A
25	GD909 (BK)	18	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CYD14 (GN-BN)	20	6W8T-14474-BA
2	CR167 (YE-VT)	20	6W8T-14474-BA
3	LYB22 (BU)	20	6W8T-14474-BA
4	*	*	N/A
5	SBBE6 (YE-GY)	20	6W8T-14474-BA
6	SBBE6 (YE-RD)	20	6W8T-14474-BA
7	*	*	N/A
8	CYB74 (YE-BU)	20	6W8T-14474-BA
9	CE318 (VT-OG)	20	6W8T-14474-BA
10	*	*	N/A
11	*	*	N/A
12	*	*	N/A
13	*	*	N/A
14	CYB03 (BN-YE)	20	6W8T-14474-BA
15	VDB05 (WH)	20	6W8T-14474-BA
16	VDB04 (BU)	20	6W8T-14474-BA
17	*	*	N/A
18	*	*	N/A
19	VYB30 (YE-GN)	20	6W8T-14474-BA
20	CYB03 (BN-YE)	20	6W8T-14474-BA
21	*	*	N/A
22	*	*	N/A
23	*	*	N/A
24	RE481 (BU-GY)	20	6W8T-14474-BA
25	GD412 (BK-VT)	20	6W8T-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1634

Service Part Number:

LU2Z-14S411-EA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Switch - Traction Control
Transmission
