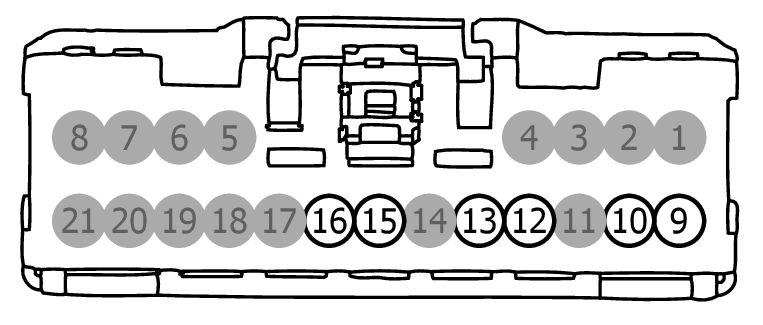

Connector End View (C4237D) - BATTERY ENERGY CONTROL MODULE (BECM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4237D	BATTERY ENERGY CONTROL MODULE (BECM)	GY	10B694	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	* (*)	*	TEMPERATURE SENSOR 5	N/A
10	* (*)	*	TEMPERATURE SENSOR 5 RETURN	N/A
11	*	*	Not Used	N/A
12	* (*)	*	TEMPERATURE SENSOR 6	N/A
13	* (*)	*	TEMPERATURE SENSOR 6 RETURN	N/A
14	*	*	Not Used	N/A
15	* (*)	*	TEMPERATURE SENSOR 8	N/A
16	* (*)	*	TEMPERATURE SENSOR 8 RETURN	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
