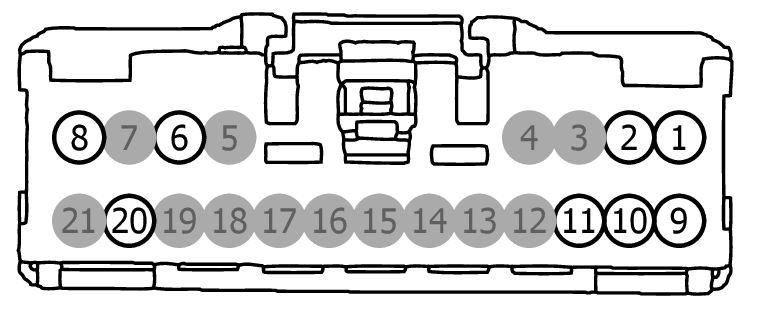

Connector End View (C4237B) - BATTERY ENERGY CONTROL MODULE (BECM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4237B |
BATTERY ENERGY CONTROL MODULE (BECM) |
GN |
14F654 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
VYC01 (BN-BU) |
22 |
SENSOR - HIGH VOLTAGE BATTERY CURRENT OUTPUT 1 (CS_AOUT1) |
N/A |
| 2 |
RYC01 (GN-OG) |
22 |
SENSOR - HIGH VOLTAGE BATTERY CURRENT (CS_RTN) |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
CYC05 (WH-BU) |
22 |
CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY POSITIVE (MC+_CTRL) |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
CYC06 (YE-VT) |
22 |
CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY NEGATIVE (MC-_CTRL) |
N/A |
| 9 |
LYC01 (GY-VT) |
22 |
SENSOR - HIGH VOLTAGE BATTERY CURRENT VREF (CS_VREF) |
N/A |
| 10 |
CYB03 (BN-YE) |
22 |
CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK POS (INT+) |
N/A |
| 11 |
CYB04 (VT-BN) |
22 |
CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK NEG (INT-) |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
CYC04 (VT-GY) |
22 |
CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY PRECHARGE (PRC_CTRL) |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
