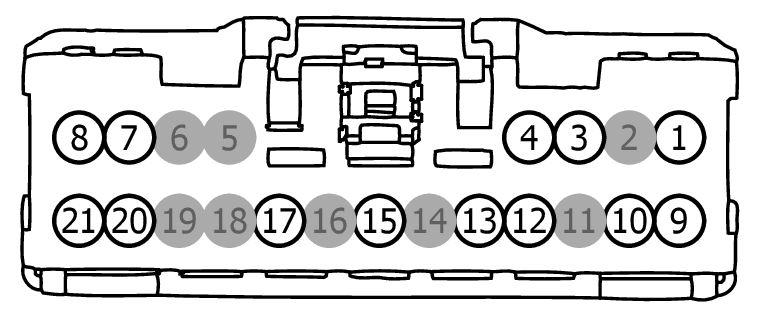

Connector End View (C4237A) - BATTERY ENERGY CONTROL MODULE (BECM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4237A |
BATTERY ENERGY CONTROL MODULE (BECM) |
BK |
14F654 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBX08 (RD) |
18 |
FUSE - 146 OR CIRCUIT BREAKER |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VDB04 (BU-WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
N/A |
| 4 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
RE481 (BU-GY) |
22 |
SIGNAL RETURN |
N/A |
| 8 |
GD909 (BK-WH) |
18 |
GROUND |
N/A |
| 9 |
SBX08 (RD-WH) |
18 |
FUSE - 146 OR CIRCUIT BREAKER |
N/A |
| 10 |
CYC03 (BN-GN) |
18 |
CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY ENABLE (CONT_PWR_EN) |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
LYB22 (BU) |
22 |
CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY COOLANT TEMPERATURE SENSOR |
N/A |
| 13 |
VYB30 (YE-GN) |
22 |
CTRL MOD. - POWERTRAIN # HIGH VOLTAGE BATTERY LT COOLANT PUMP |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
CYT14 (VT-OG) |
22 |
CTRL MOD. - RELAY MOTOR ELECTRONICS COOLING PUMP (MECP) |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
CR167 (YE-VT) |
22 |
CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
* |
* |
Not Used |
N/A |
| 20 |
CYD14 (GN-BN) |
22 |
CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) |
N/A |
| 21 |
GD909 (BK) |
18 |
GROUND |
N/A |
