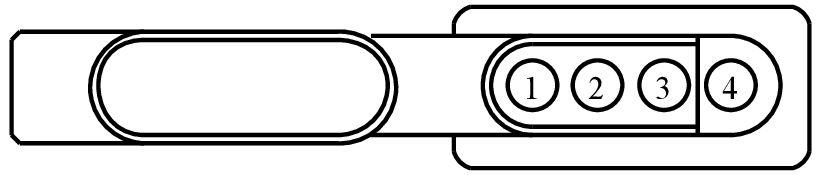

Connector End View (C4098) - TRAILER TOW CONNECTOR
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4098 | TRAILER TOW CONNECTOR | BK | 13A576 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| E8EB-14461-GA | Not Available | |
| E8EB-14488-ALA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CAT09 (GN) | 14 | CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT | E8EB-14488-ALA | ||||
| 2 | CAT06 (YE) | 14 | CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT | E8EB-14488-ALA | ||||
| 3 | CAT11 (BN) | 14 | CTRL MOD. - TRAILER TOW # PARK LAMPS | E8EB-14488-ALA | ||||
| 4 | RAT08 (WH) | 14 | CTRL MOD. - TRAILER TOW # RETURN | E8EB-14461-GA | ||||

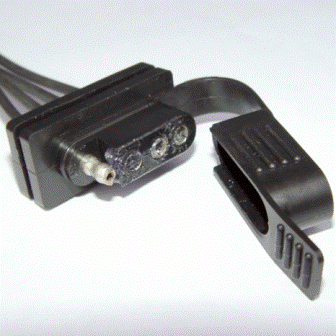

Available Pigtail Kits
Pigtail Kit Part Number WPT-840
Service Part Number:
5U2Z-14S411-JA
Gauge:
12
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Trailer Tow - Vehicle Side
