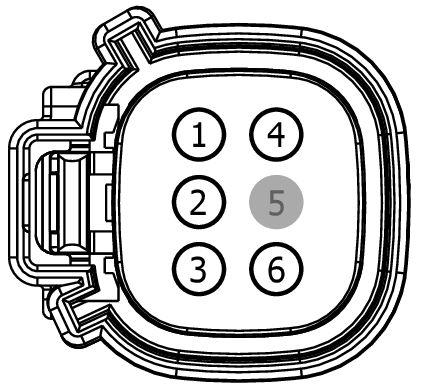

Connector End View (C4035) - REAR LAMP ASSEMBLY LH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4035 |
REAR LAMP ASSEMBLY LH |
GY |
13A409 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| BU5T-14474-UA |
DU2Z-14474-DA |
1.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CLS51 (WH-GN) |
22 |
CTRL MOD. - STOP/TURN LEFT OUTBOARD |
BU5T-14474-UA |
| 2 |
CLS08 (VT-GN) |
22 |
CTRL MOD. - PARK REAR LEFT |
BU5T-14474-UA |
| 3 |
CLS23 (GY-OG) |
22 |
CTRL MOD. - TURN LAMP LEFT REAR |
BU5T-14474-UA |
| 4 |
CLS10 (GN-BN) |
22 |
CTRL MOD. - REVERSE LEFT OR COMMON |
BU5T-14474-UA |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
GD406 (BK-YE) |
20 |
GROUND - FRAME REAR RIGHT |
BU5T-14474-UA |
