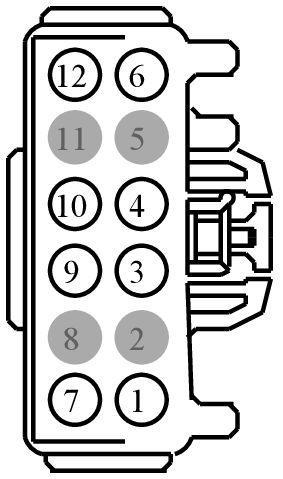

Connector End View (C3889A) - DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3889A	DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER	LT GY	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3M5T-14474-HBA	DU2Z-14474-EA	2.80
3M5T-14474-HAA	DU2Z-14474-EA	2.80

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	HYA01 (OG-GN)	16	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	3M5T-14474-HBA
2	*	*	Not Used	N/A
3	VYA01 (YE)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	3M5T-14474-HAA
4	VYA03 (WH)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	3M5T-14474-HAA
5	*	*	Not Used	N/A
6	CBP35 (YE-GY)	22	FUSE - 35 OR CIRCUIT BREAKER	3M5T-14474-HAA
7	HYA02 (OG-WH)	16	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	3M5T-14474-HBA
8	*	*	Not Used	N/A
9	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	3M5T-14474-HAA
10	VYA07 (BU-GY)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	3M5T-14474-HAA
11	*	*	Not Used	N/A
12	VDN04 (VT-WH)	22	CTRL MOD. - LIN BUS # 4	3M5T-14474-HAA

Available Pigtail Kits

Pigtail Kit Part Number WPT-396

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BKA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Liftgate
Switch - Headlamp
Switch - Seat (driver)
Switch - Seat (passenger)
