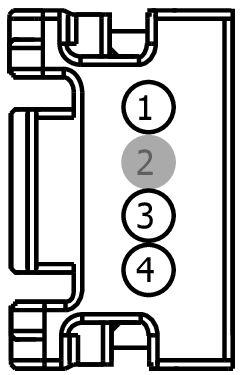

Connector End View (C3886) - DRIVER FRONT SEAT CUSHION MODULE
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3886 |
DRIVER FRONT SEAT CUSHION MODULE |
BK |
14D231 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBX06 (GY-RD) |
22 |
POWER - SEAT # HEATED SEAT MODULE |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VPSD7 (WH-VT) |
22 |
CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE |
N/A |
| 4 |
GD904 (BK-BU) |
22 |
GROUND - SEAT |
N/A |
