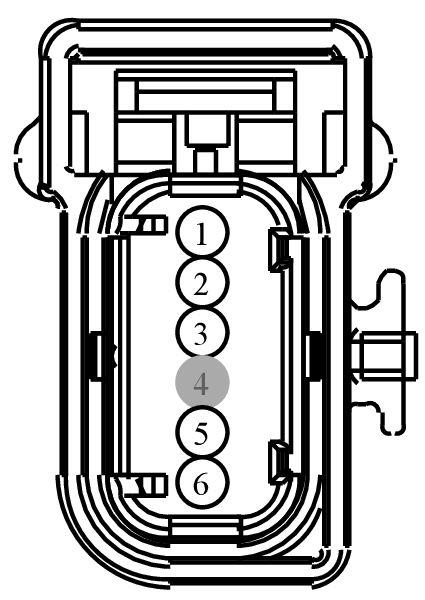

Connector End View (C3738) - FRONT SEATBELT BUCKLE RH

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3738	FRONT SEATBELT BUCKLE RH	BK	14D230	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR210 (BU-BN)	20	SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD	N/A
2	LR142 (YE-BU)	20	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD +	N/A
3	GD901 (BK)	20	GROUND - SEAT # RESTRAINTS CLEAN	N/A
4	*	*	Not Used	N/A
5	CR201 (GN-BU)	20	SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE	N/A
6	GD901 (BK)	20	GROUND - SEAT # RESTRAINTS CLEAN	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1329

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-EA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Antenna - Keyless Entry
Handle - Decklid
Switch - Keyless Entry
Switch - Seatbelt
