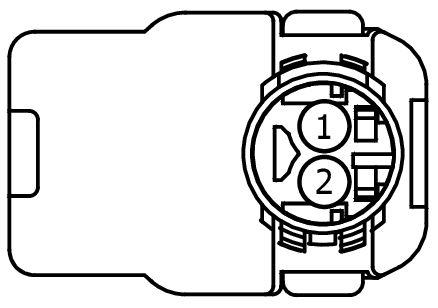

Connector End View (C3646) - SECOND ROW SEATBELT RETRACTOR LH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3646 |
SECOND ROW SEATBELT RETRACTOR LH |
YE-BK |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| P/O ASSY |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CR123 (GN-VT) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE + |
P/O ASSY |
| 2 |
RR123 (GY) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE - |
P/O ASSY |
