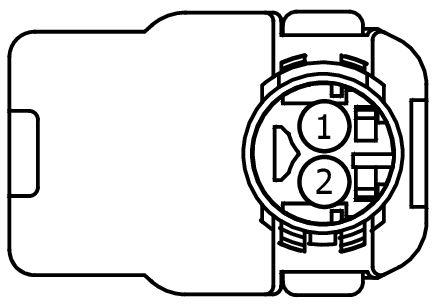

Connector End View (C3637A) - FRONT SEATBELT RETRACTOR PRETENSIONER AND LOAD LIMITER RH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3637A |
FRONT SEATBELT RETRACTOR PRETENSIONER AND LOAD LIMITER RH |
YE-BK |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| P/O ASSY |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CR179 (BU) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD + |
P/O ASSY |
| 2 |
RR179 (GY-BU) |
20 |
CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD - |
P/O ASSY |
