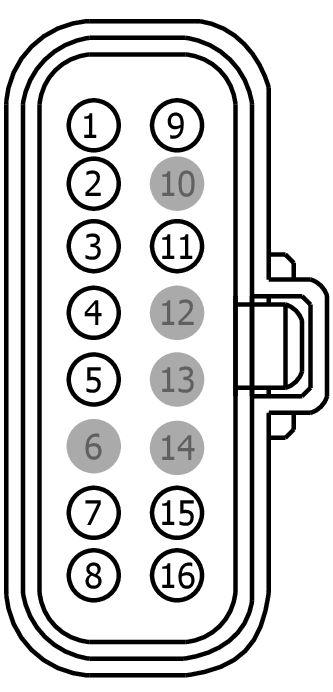

Connector End View (C3613) - REDUCTANT PUMP ASSEMBLY
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3613 |
REDUCTANT PUMP ASSEMBLY |
BK |
14D378 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 10865171 |
Not Available |
| 10865173 |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
101 (BN) |
20 |
REDUCTANT TEMPERATURE + (RDT) |
10865171 |
| 2 |
102 (BU) |
20 |
SIGNAL RETURN |
10865171 |
| 3 |
103 (BN) |
20 |
SIGNAL RETURN |
10865171 |
| 4 |
104 (BU) |
20 |
REDUCTANT PUMP (RDP) |
10865171 |
| 5 |
105 (BU) |
20 |
VREF |
10865171 |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
107 (WH) |
16 |
REDUCTANT PUMP PHASE A (RDPAP) |
10865173 |
| 8 |
108 (YE) |
16 |
REDUCTANT PUMP PHASE B (RDPBP) |
10865173 |
| 9 |
109 (WH) |
16 |
REDUCTANT HEATER CONTROL (RDHTRC1) |
10865173 |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
110 (BN) |
16 |
GROUND - FRAME REAR LEFT #2 |
10865173 |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
111 (BK) |
20 |
SHIELD |
10865173 |
| 16 |
114 (BU) |
16 |
REDUCTANT PUMP PHASE C (RDPCP) |
10865173 |
