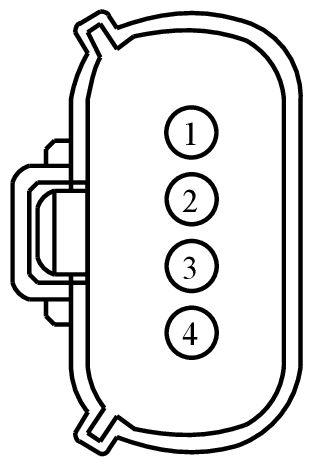

Connector End View (C3558) - REAR SEATBELT BUCKLE RH
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3558 | REAR SEATBELT BUCKLE RH | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR205 (WH-OG) | 22 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 MIDDLE | BU5T-14474-UA | ||||
| 2 | RR172 (GN-VT) | 22 | CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES | BU5T-14474-UA | ||||
| 3 | CR206 (BN) | 22 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD | BU5T-14474-UA | ||||
| 4 | RR172 (GN-VT) | 22 | CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES | BU5T-14474-UA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-925
Service Part Number:
8U2Z-14S411-TA
Gauge:
14
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- A/C Compressor Clutch
- Lamp - Headlamp - High/Low Beam
