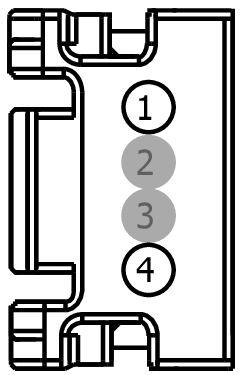

Connector End View (C3522) - USB CHARGE PORT (REAR BACKPANEL)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3522 |
USB CHARGE PORT (REAR BACKPANEL) |
BK |
14B079/15080 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| DU5T-14474-BA |
LU2Z-14474-AA |
0.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CBBC5 (YE) |
22 |
FUSE - 125 OR CIRCUIT BREAKER |
DU5T-14474-BA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
GD238 (BK-WH) |
22 |
GROUND - COWL SIDE/PILLAR A RIGHT |
DU5T-14474-BA |
