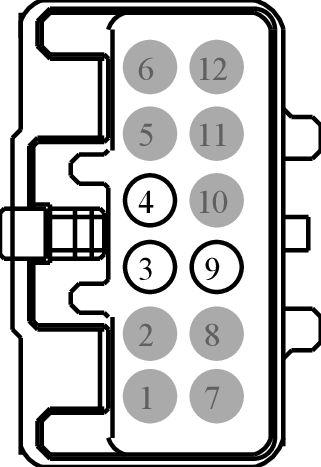

Connector End View (C3501F) - DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3501F |
DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER |
LT GY |
PIA |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
LDC59 (BU-WH) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + |
N/A |
| 4 |
SDC57 (BU-OG) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
RDC59 (GY-BN) |
22 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR - |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
