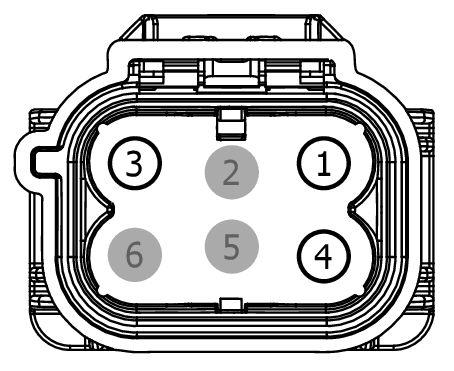

Connector End View (C3501D) - DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3501D |
DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER |
OG |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
HYA10 (OG-GY) |
12 |
CTRL MOD. - L1 |
LU5T-14487-CA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
HYA12 (OG-YE) |
12 |
CTRL MOD. - N |
LU5T-14487-CA |
| 4 |
RYA09 (GY) |
12 |
CTRL MOD. - DC/AC INVERTER # LED INDICATOR - |
LU5T-14487-CA |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
